Sirio - SPO 868-915-6 N-f

Product code: 211182000
Factory code: 2111820.00
Barcode: 8056182115959

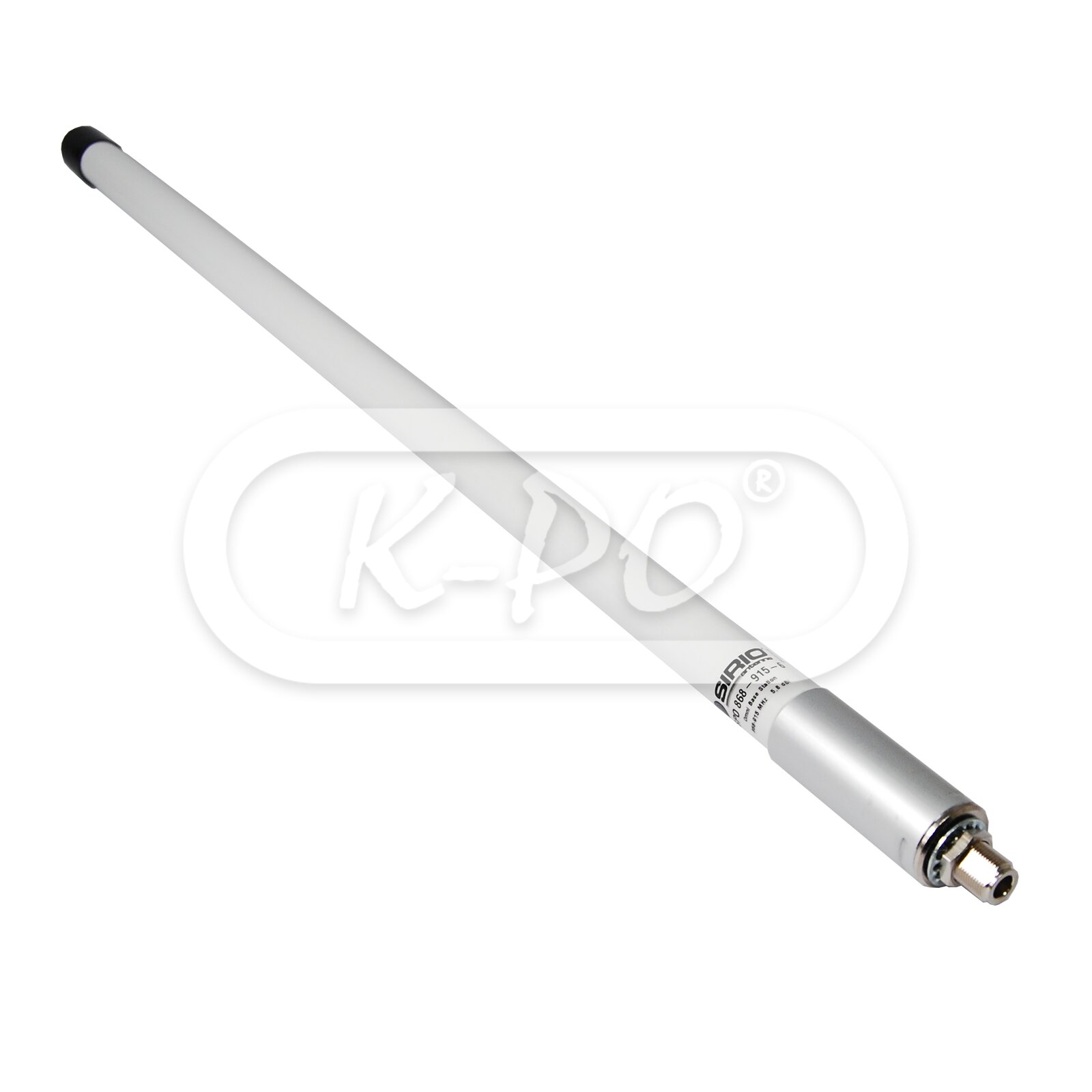

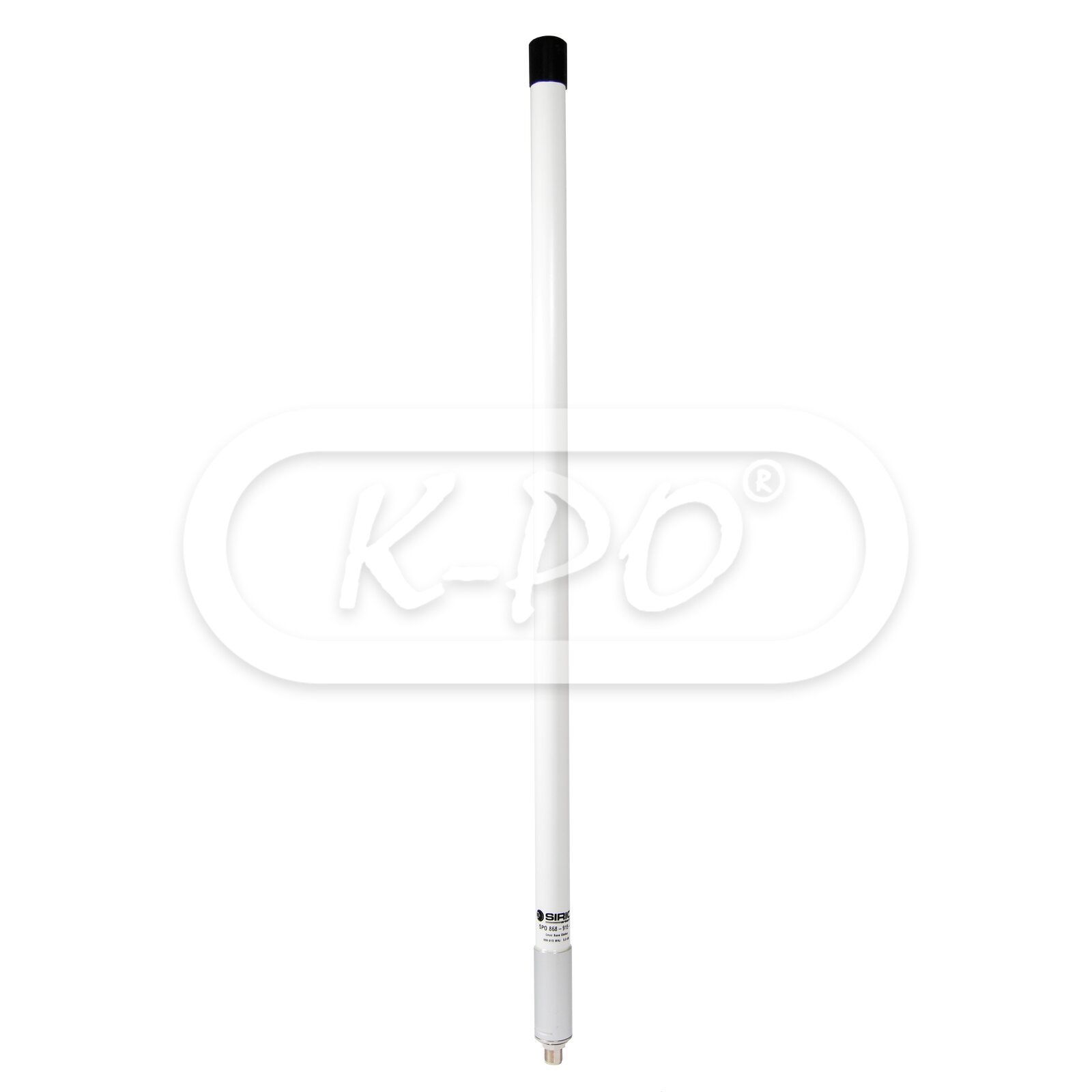

New - Base station antennas conceived for ISM/LoRa systems working on 868 MHz & 915 MHz, no tuning required. Can be used for cryptomining (Helium Miner) too. The radiant colinear dipoles are made of PCB and protected by a strong fiberglass tube. With N-female connector.

Frequency range: 868 - 915 MHz
Shipped today
€52.95 (43.76 excl. 21% VAT)

Electrical data

  • Electrical type: Colinear
  • Gain: 3.8 dBd, 6 dBi
  • VSWR: ≤ 1.4
  • Maximum continuous power: 20 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Anodized aluminium, nickel plated brass, fiberglass, PCB
  • Mast Ø: 35 - 52 mm
  • Max wind resistance: 140 km/h
  • Height: 840 mm
  • Weight: 460 gram
  • Mounting type: On mast
  • Antenna connector: N-female

Inside the box

  • Antenna: Yes

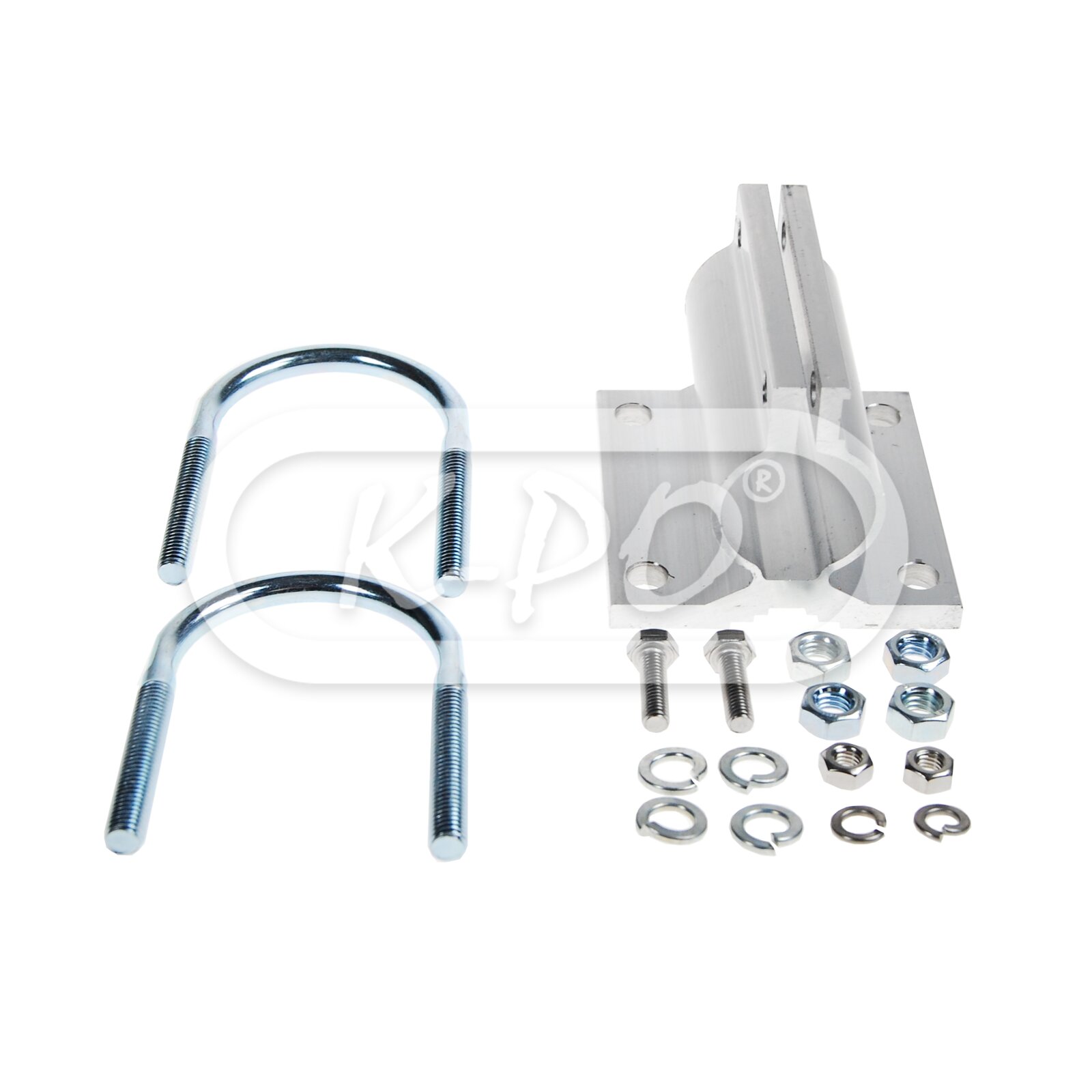

  • Mounting parts: Yes
  • Installation manual: English
