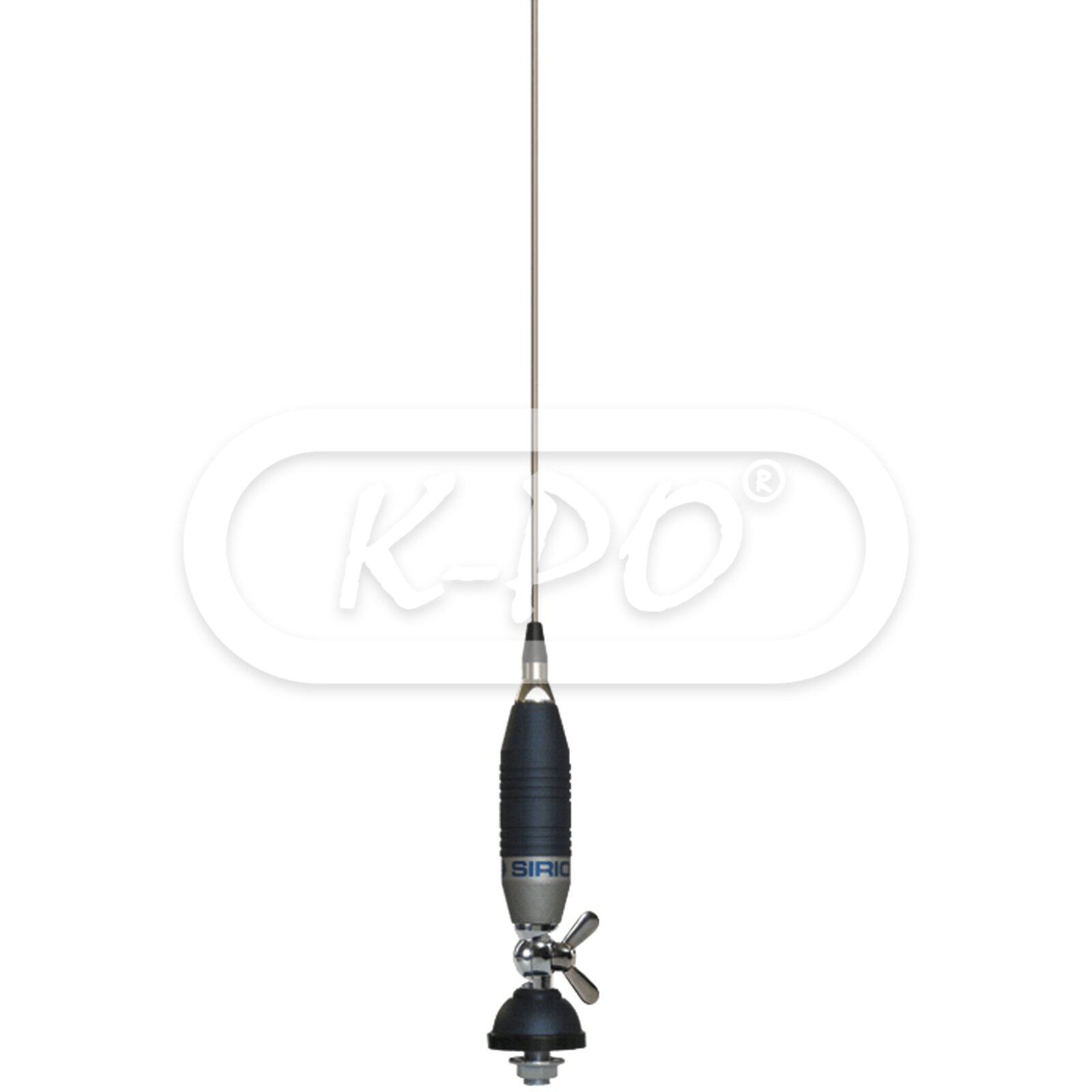

Sirio - Super 70

Product code: 223030501

Factory code: 2230305.01/BLUE

Barcode: 8056182114914

The Sirio Super 70 is a popular and short antenna, only 70 cm. It also replaces the discontinued Midland Picco 70.

Frequency range: 27 - 28.5 MHz

Shipped next business day

€31.94 (26.4 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 1200 kHz (100 channels) ≤ 2.0
• Maximum continuous power: 15 Watts (CW)
• Power peak: 150 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 700 mm
• Weight: 380 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 419 super series 07 04 2014
