Sirio - SY-3

Product code: 1043

Factory code: 2105101.00

Barcode: 8056182113375

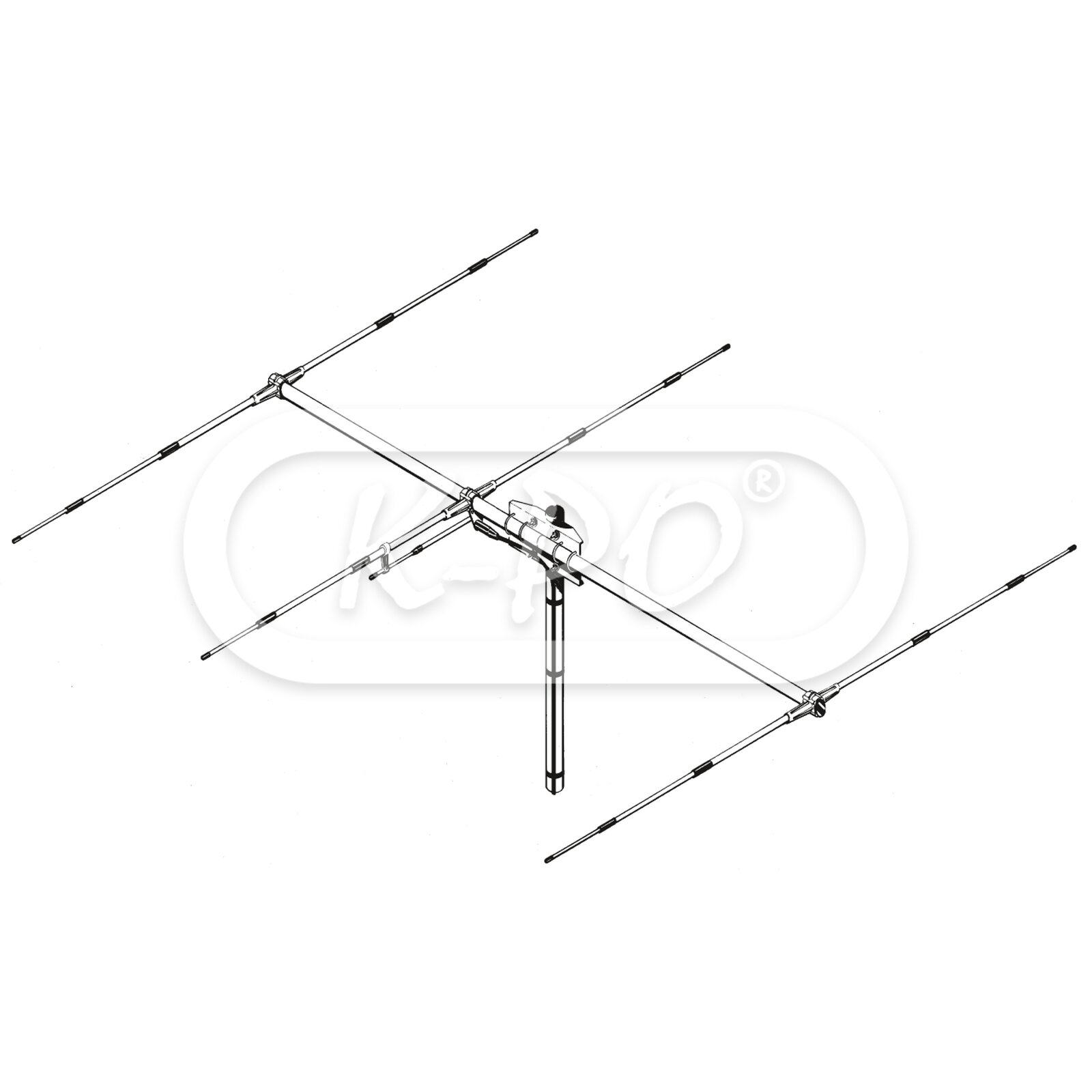

Directional 3 elements Yagi antenna for 26.5 - 30.0 MHz (tunable) with gamma match feed system. Elements and boom of generous section are completely made of anticorodal aluminum. The elements are fixed to the boom by a strong die-cast metal support to get the maximum strength. All connections are waterproof and it is supplied with UHF female connector. All metal parts and hardware are weather resistant.

Frequency range: 26.5 - 30 MHz tunable

Out of stock - Longer delivery time

Available from - 06-11-2025

€165.95 (137.15 excl. 21% VAT)

Electrical data

• Electrical type: 3 elements Yagi
• Gain: 8.5 dBd, 10.65 dBi
• VSWR: ≤ 1.2
• Bandwidth: 1200 kHz @ 26.5 MHz ≤ 2.0
• Maximum continuous power: 1000 Watts (CW)
• Power peak: 3000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear horizontal

Mechanical data

• Materials: Aluminium, galvanized steel, zamak
• Mast Ø: 35 - 50 mm
• Max wind resistance: 120 km/h
• Length: 5942 mm
• Height: 100 mm
• Width: 2710 mm
• Weight: 4700 gram
• Mounting type: On mast
• Antenna connector: UHF-female
• Boom length: 2710 mm
• Boom diameter Ø: 33 mm
• Max. element length: 5942 mm
• Element diameter: 8 - 12 - 16 mm
• Tuning radius: 3300 mm

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Datasheet: Id 098 10 09 2011 sy 3
