Sirio - SY 68-2

Product code: 210590168
Factory code: 2105901/68

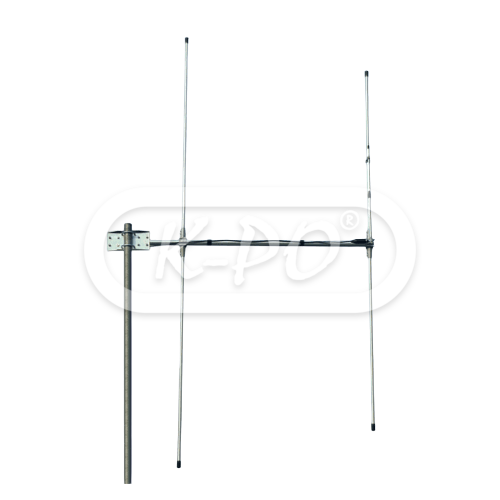

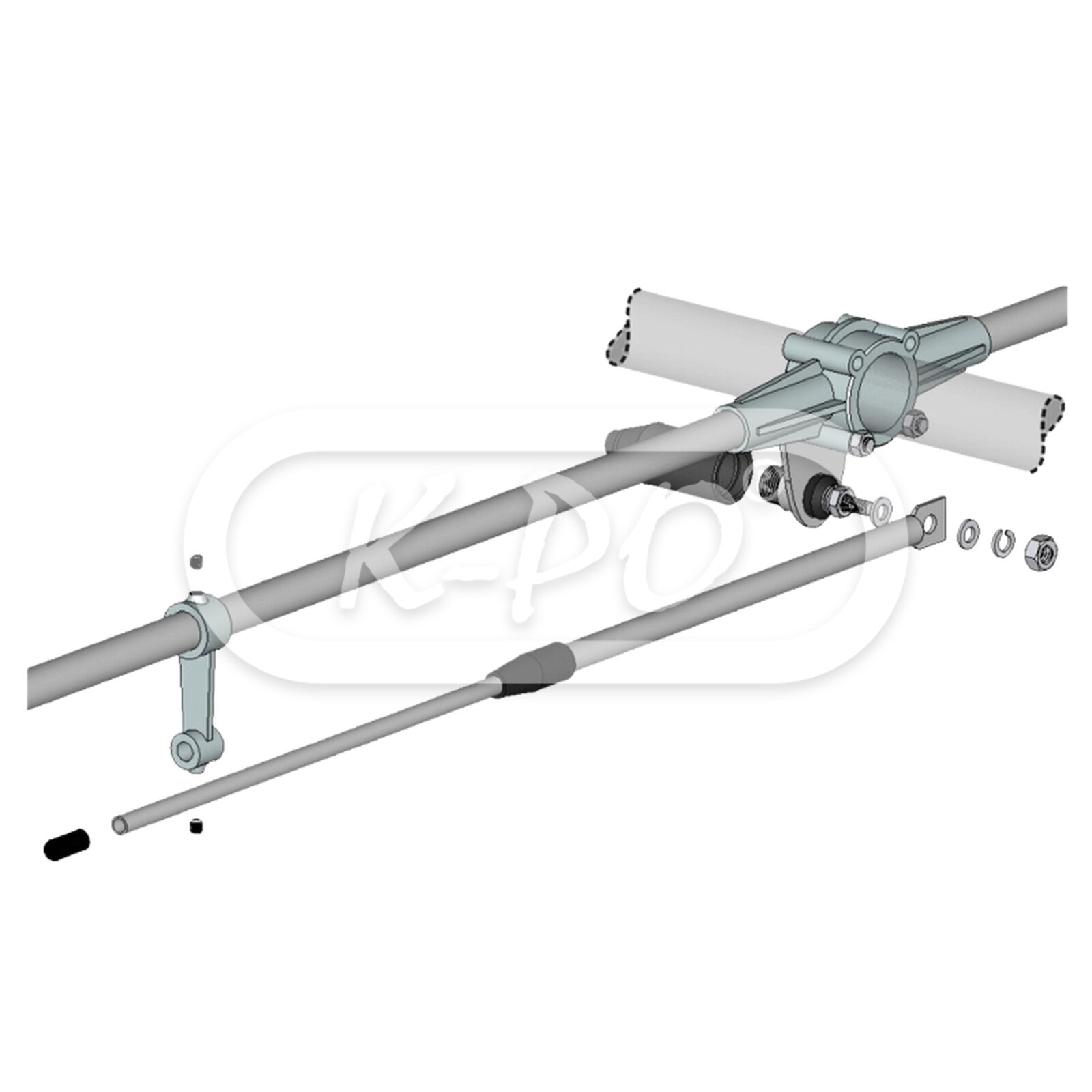

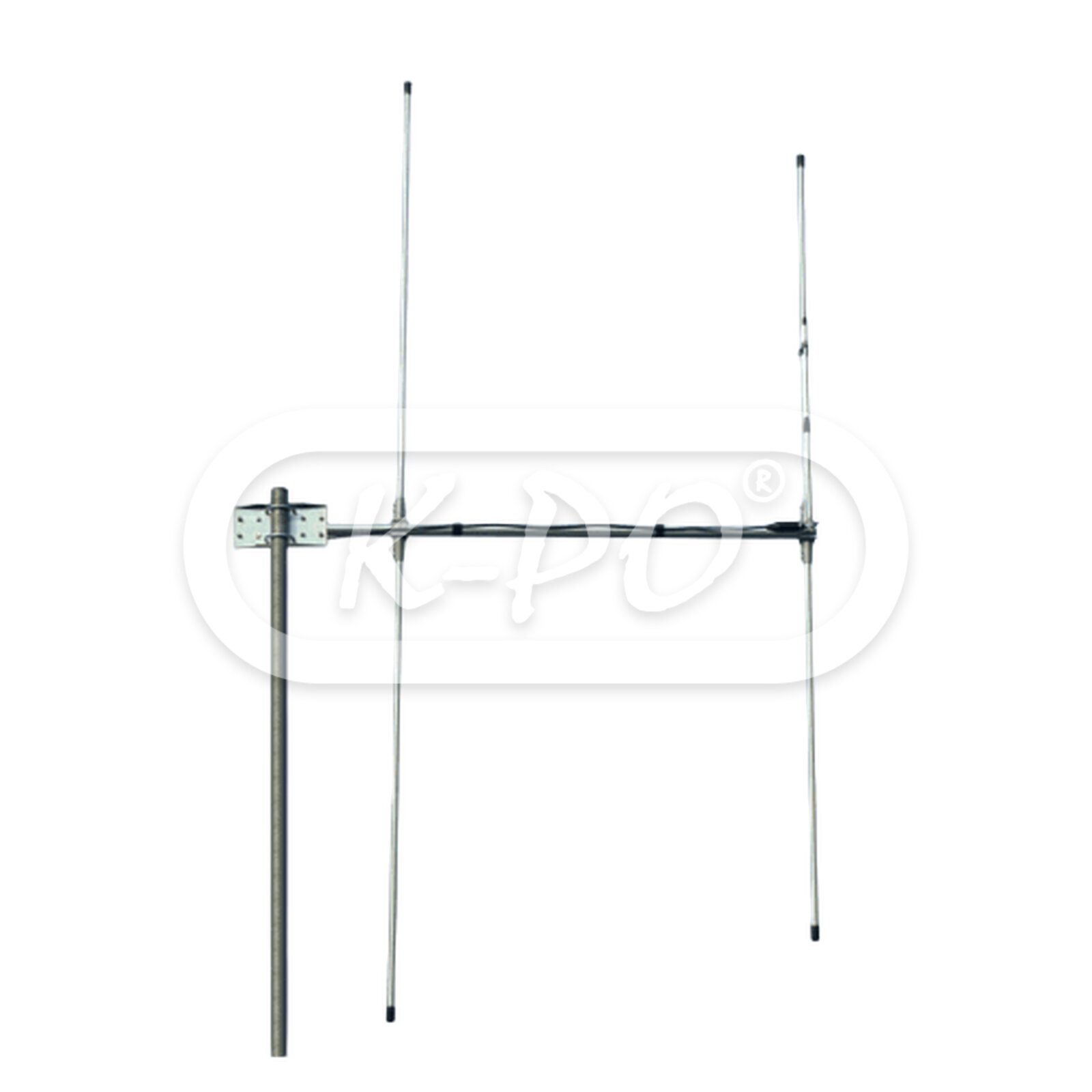

Directional 2 elements Yagi antenna for VHF 68-78 MHz with gamma

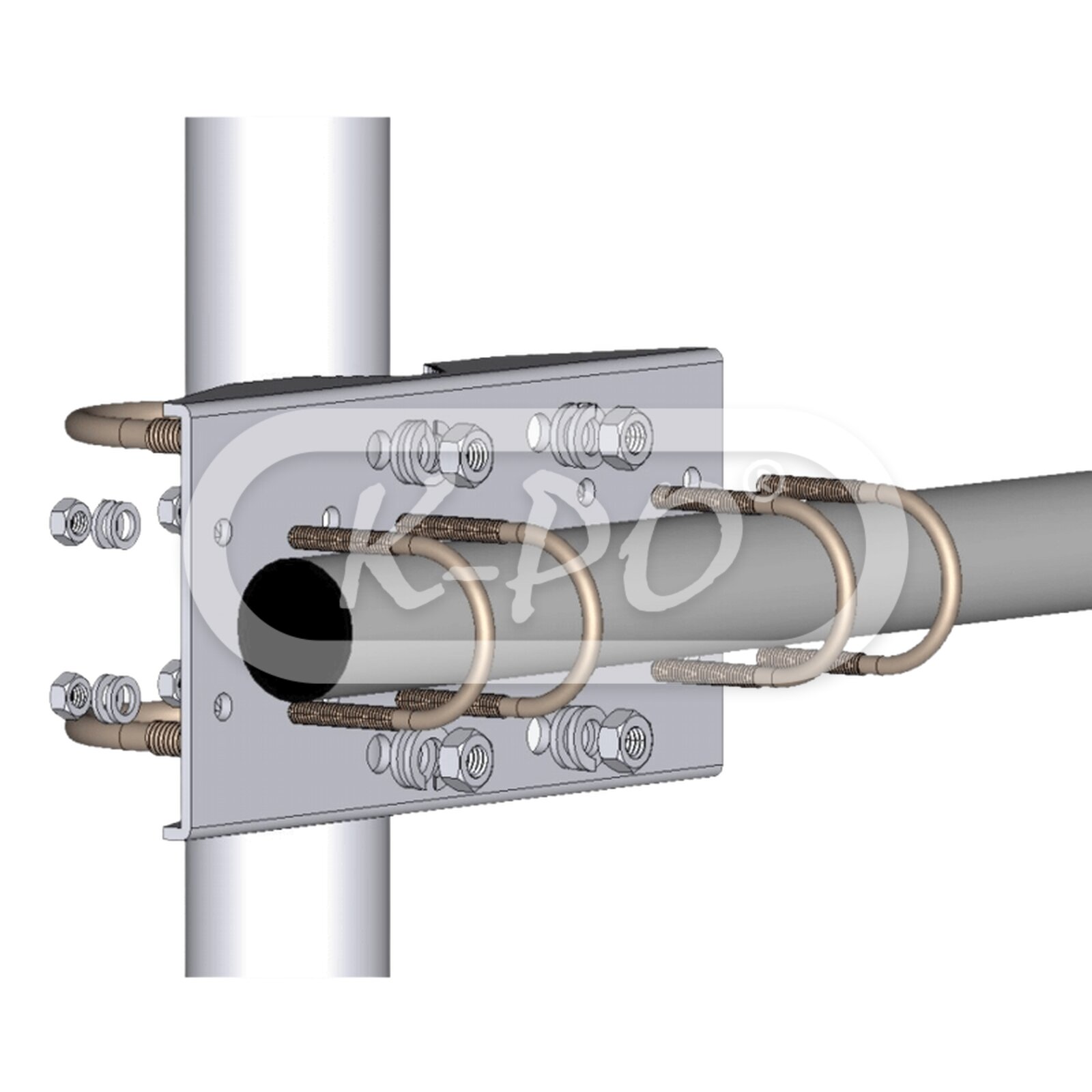

match feed system. Elements and boom of generous section are completely made of anticorodal aluminum, and the steel bracket is placed in the rear
position for the best performance in vertical and horizontal polarization.
The elements are fixed to the boom by a strong die-cast metal support
to get the maximum strength. All connections are waterproof and it is supplied whit UHF female connector. All metal parts and hardware are weather resistant.
To improve the antenna gain please install it in stacked or bayed array.

Frequency range: 68 - 78 MHz tunable
Shipped today - Stock: 3
€89.95 (74.34 excl. 21% VAT)

Electrical data

  • Electrical type: 2 elements Yagi
  • Gain: 5 dBd
  • VSWR: ≤ 1.5
  • Maximum continuous power: 350 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical / Linear horizontal /

Mechanical data

  • Materials: Aluminium, chromed brass, galvanized steel, zamak
  • Mast Ø: 35 - 52 mm
  • Max wind resistance: 140 km/h
  • Length: 2235 mm
  • Width: 1250 mm
  • Weight: 2695 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
