Sirio - Titanium 1000 MAG

Product code: 220450561
Factory code: 2204505.61
Barcode: 8056182114174

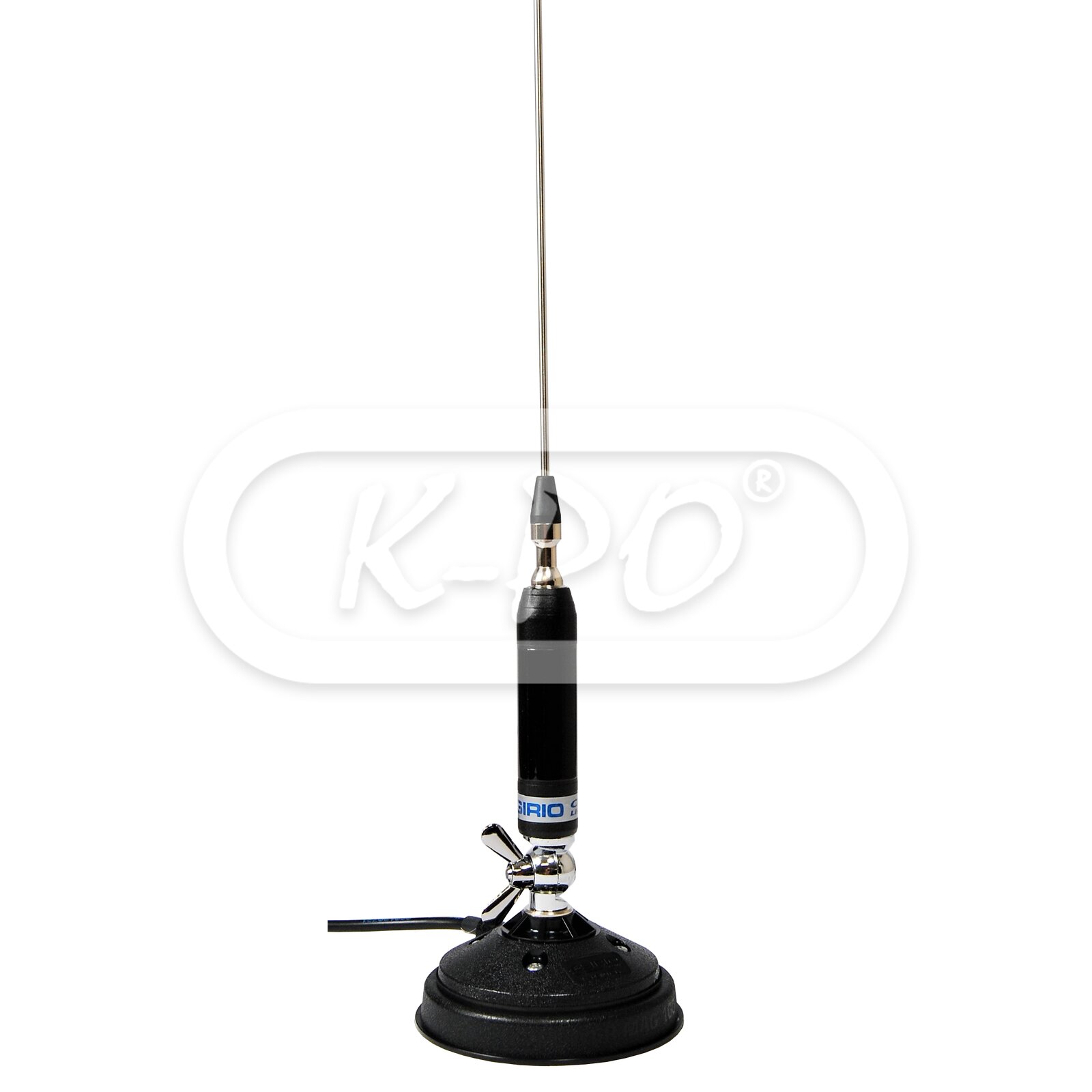

The Titanium 1000 MAG antenna is a mobile antenna with PM 100 magnet. The antenna is supplied with magnetic mount and 3.6 meter cable.

Frequency range: 27 - 28.5 MHz
Shipped today
€31.36 (31.36 excl. 0% VAT)

Electrical data

  • Electrical type: Base loaded
  • VSWR: ≤ 1.2
  • Bandwidth: 1500 kHz (110 channels) ≤ 2.0
  • Power continues: 15 Watts (CW)
  • Power peak: 150 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 3.6 meter / RG 58

Mechanical data

  • Materials: Copper, brass, stainless steel 17/7 PH, nylon
  • Height: 975 mm
  • Weight: 1150 gram
  • Mounting type: 100 mm magnet

Inside the box

  • Antenna: Yes
  • Radio connector: UHF-male (PL)
  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English, Italian
