Sirio - Tornado 50-60

Product code: 2108901
Factory code: 2108901.00

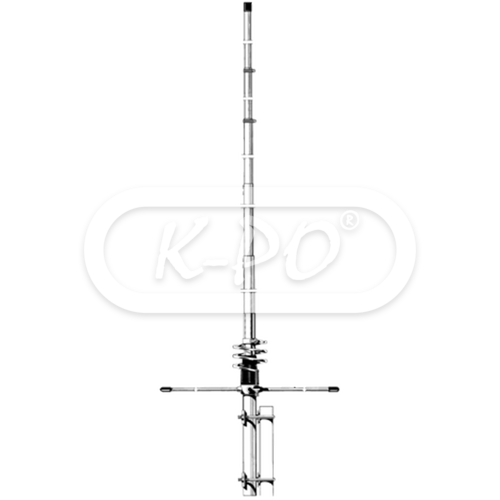

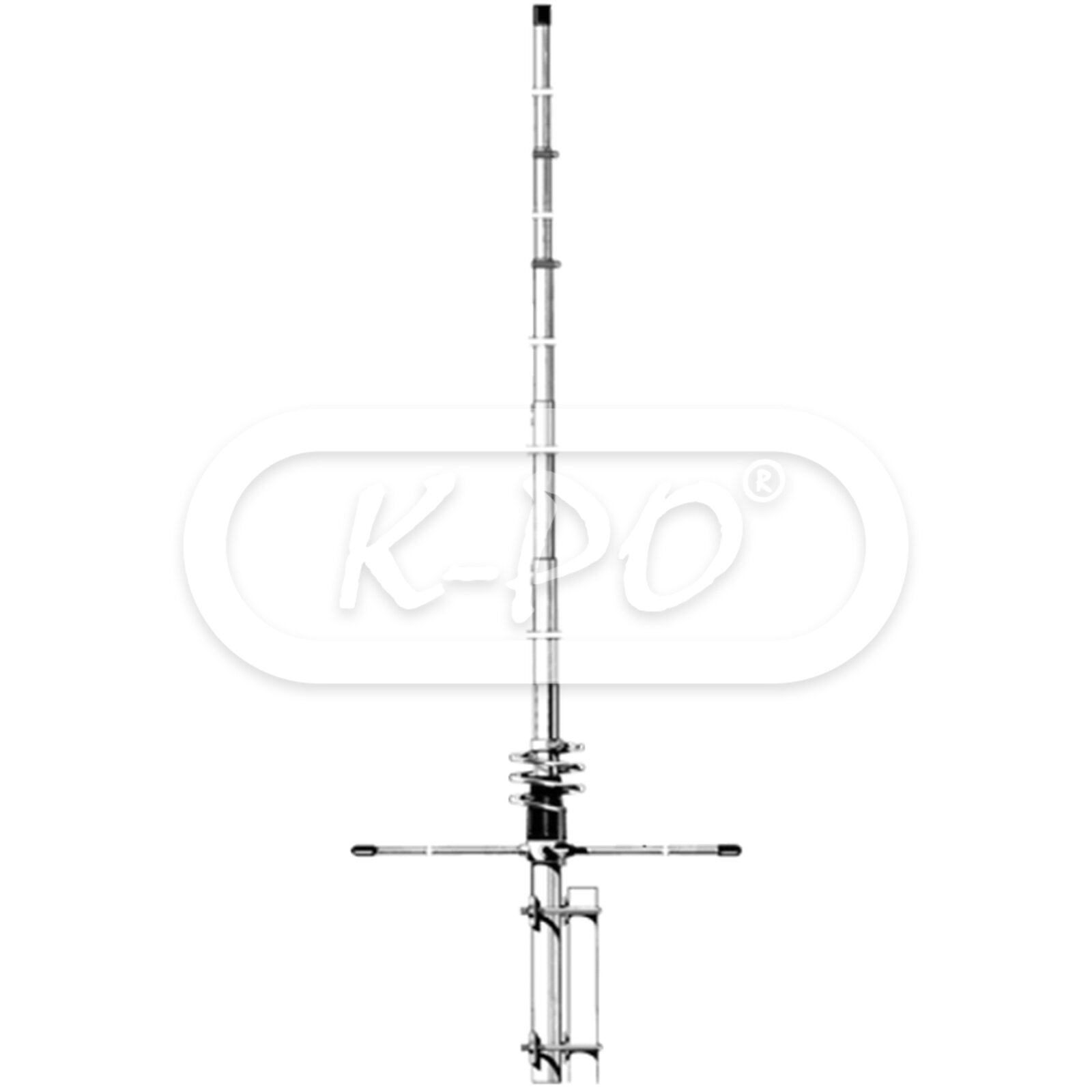

5/8 λ ground plane aluminium base antenna for 50 - 60 MHz with 4 radials. 1000 Watts power handling.

Frequency range: 50 - 60 MHz tunable
Out of stock - Longer delivery time
€66.07 (66.07 excl. 0% VAT)

Electrical data

  • Electrical type: 5/8 λ ground plane
  • Gain: 1.2 dBd, 3.35 dBi
  • VSWR: ≤ 1.2 @ tuned frequency
  • Bandwidth: 3.1 MHz ≤ 2.0
  • Power continues: 1000 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Aluminium, brass, galvanized steel, thermoplastic UV stabilized
  • Mast Ø: 35 - 42 mm
  • Max wind resistance: 150 km/h
  • Height: 4100 mm
  • Weight: 2250 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female
  • Radial length: 1170 mm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English

Downloads
