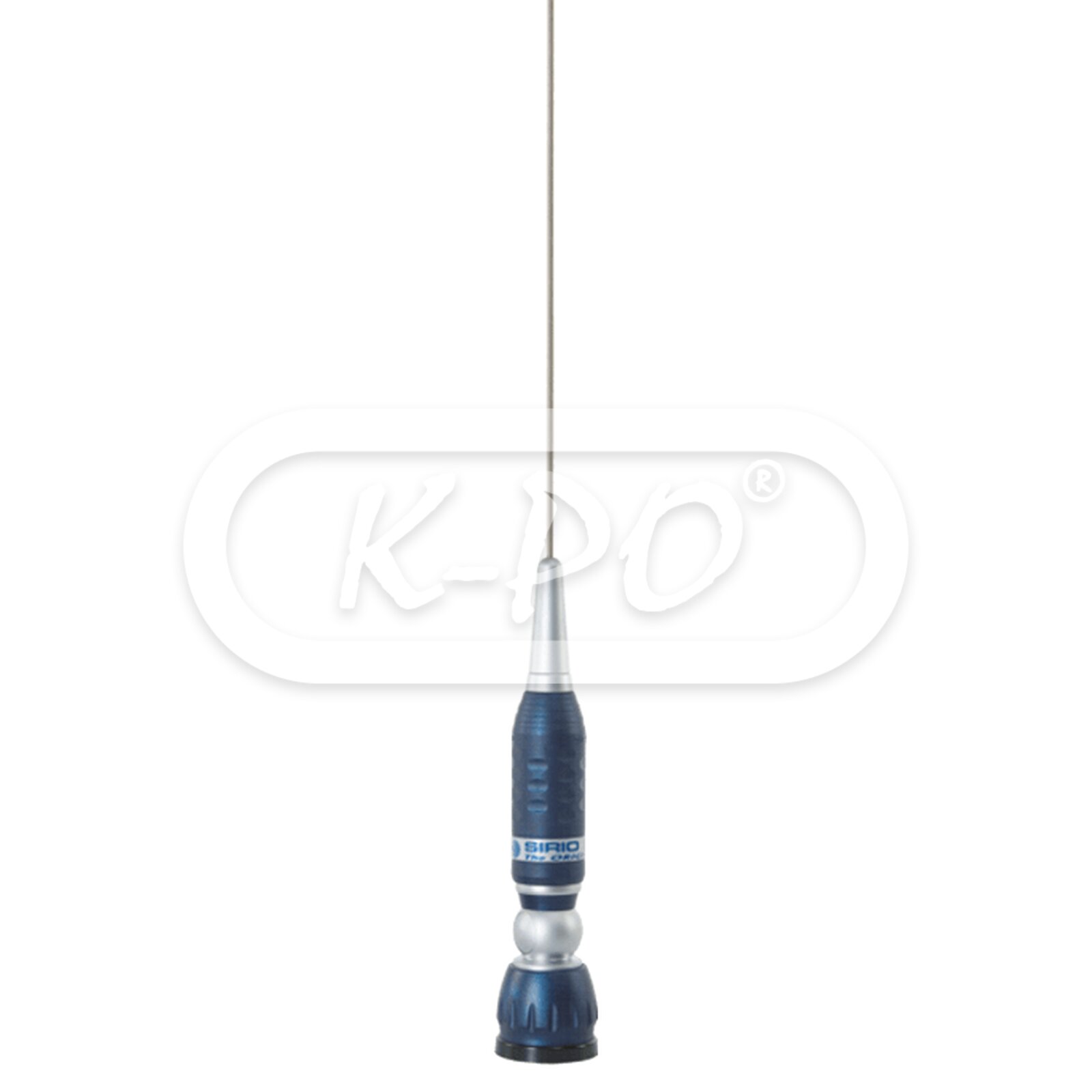

Sirio - Turbo 1000 PL

Product code: 200209

Factory code: 2202005.41

Barcode: 8056182112323

One of the best high power antenna series in the market. Easy adjustable system to put the antenna in an angle.

Frequency range: 27 - 28.5 MHz

Out of stock - Longer delivery time

€47.95 (39.63 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 600 kHz (60 channels) ≤ 2.0
• Maximum continuous power: 200 Watts (CW)
• Power peak: 1000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 1150 mm
• Weight: 580 gram

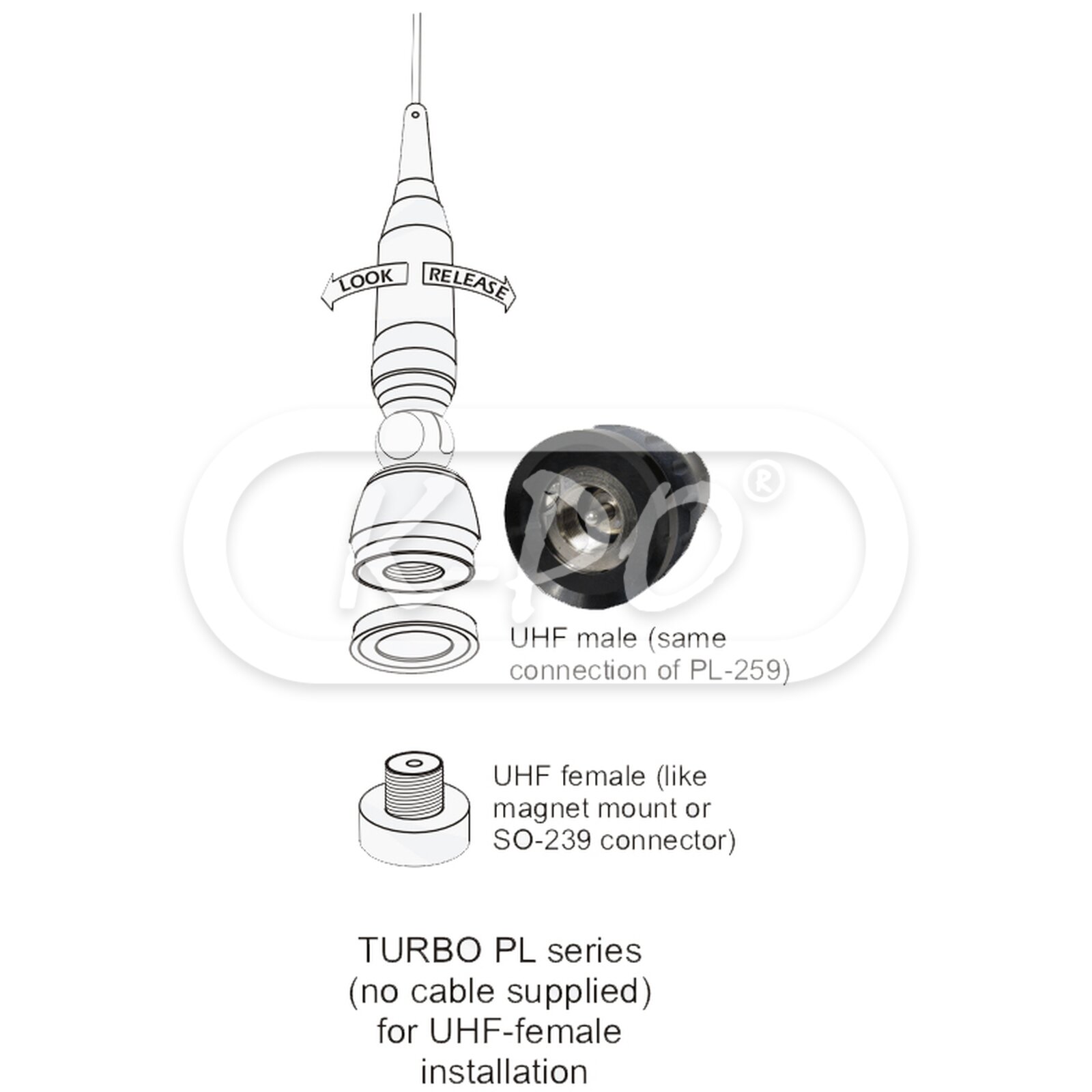

• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 398 20 11 2019 turbo serie web
