Sirio - WD 380-N

Product code: 2113301380
Factory code: 2113301/380
Barcode: 8056182113047

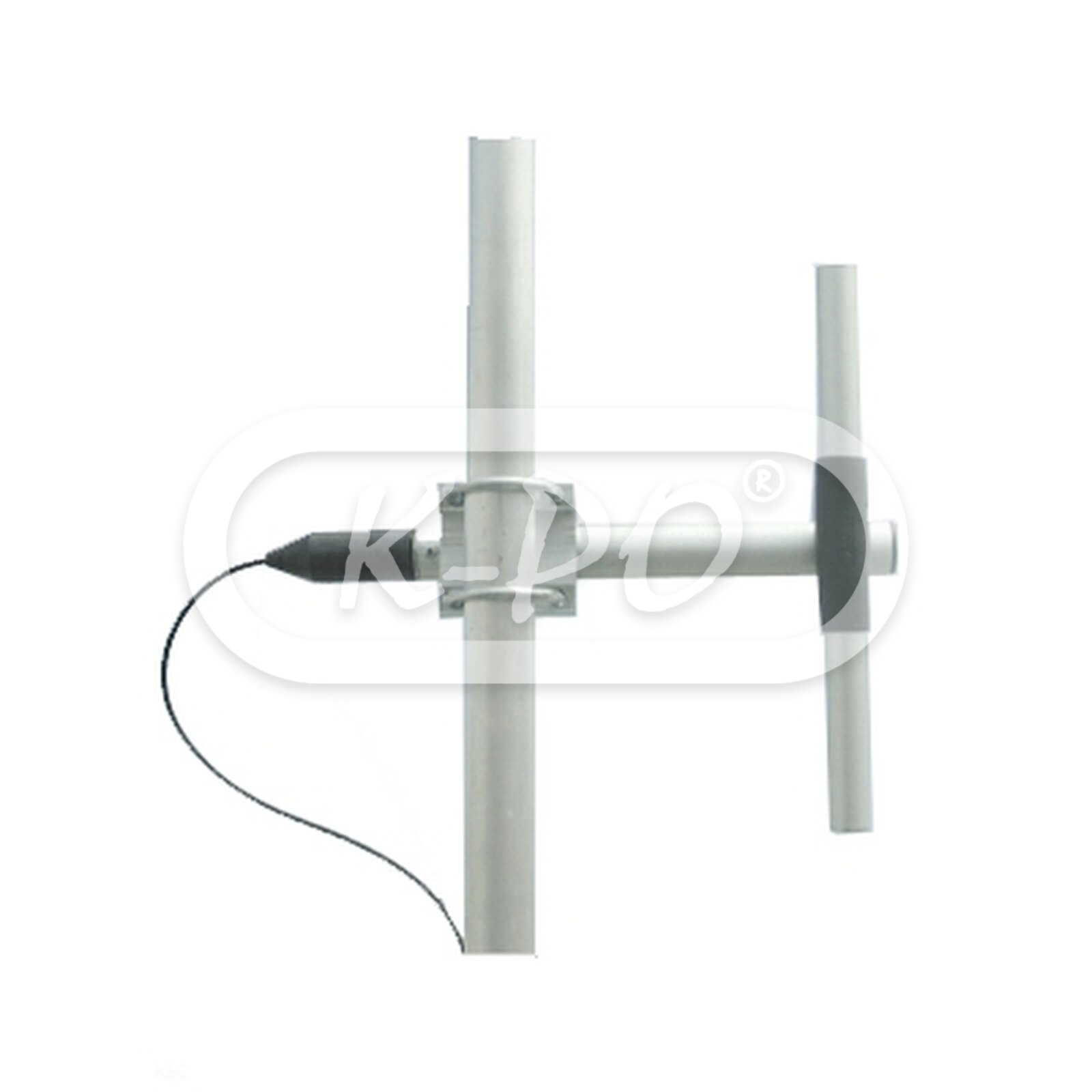

Directional base station antenna for 380 - 470 MHz, no tuning required. Conceived by using an innovative feed system studied and applied to have highly symmetrical radiation pattern in both planes (E and H). It's completely computer designed to get high performances of gain and front-to-back in the working band. All aluminium parts are protected by anodized treatment, hardware are of stainless steel of zinc plated steel, mounting bracket is of extruded aluminium for the best strength and the connector is placed in rear position for an easily access. To increase the antenna gain please install it in vertical stacked array.

Frequency range: 380 - 470 MHz
Shipped next business day
€72.69 (72.69 excl. 0% VAT)

Electrical data

  • Electrical type: 1/2 λ
  • Gain: 2.35 dBd, 4.5 dBi
  • VSWR: ≤ 1.5
  • Power continues: 150 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Anodized aluminium, chromed brass, thermoplastic UV stabilized, EPDM rubber
  • Mast Ø: 35 - 52 mm
  • Max wind resistance: 200 km/h
  • Height: 340 mm
  • Width: 380 mm
  • Weight: 950 gram
  • Mounting type: On mast
  • Antenna connector: N-female
  • Boom diameter Ø: 32 mm
  • Dipole diameter Ø: 24 mm
  • Tuning radius: 240 mm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
