Sirio - WY 155-2N

Product code: 2113401155
Factory code: 2113401/155
Barcode: 8056182113641

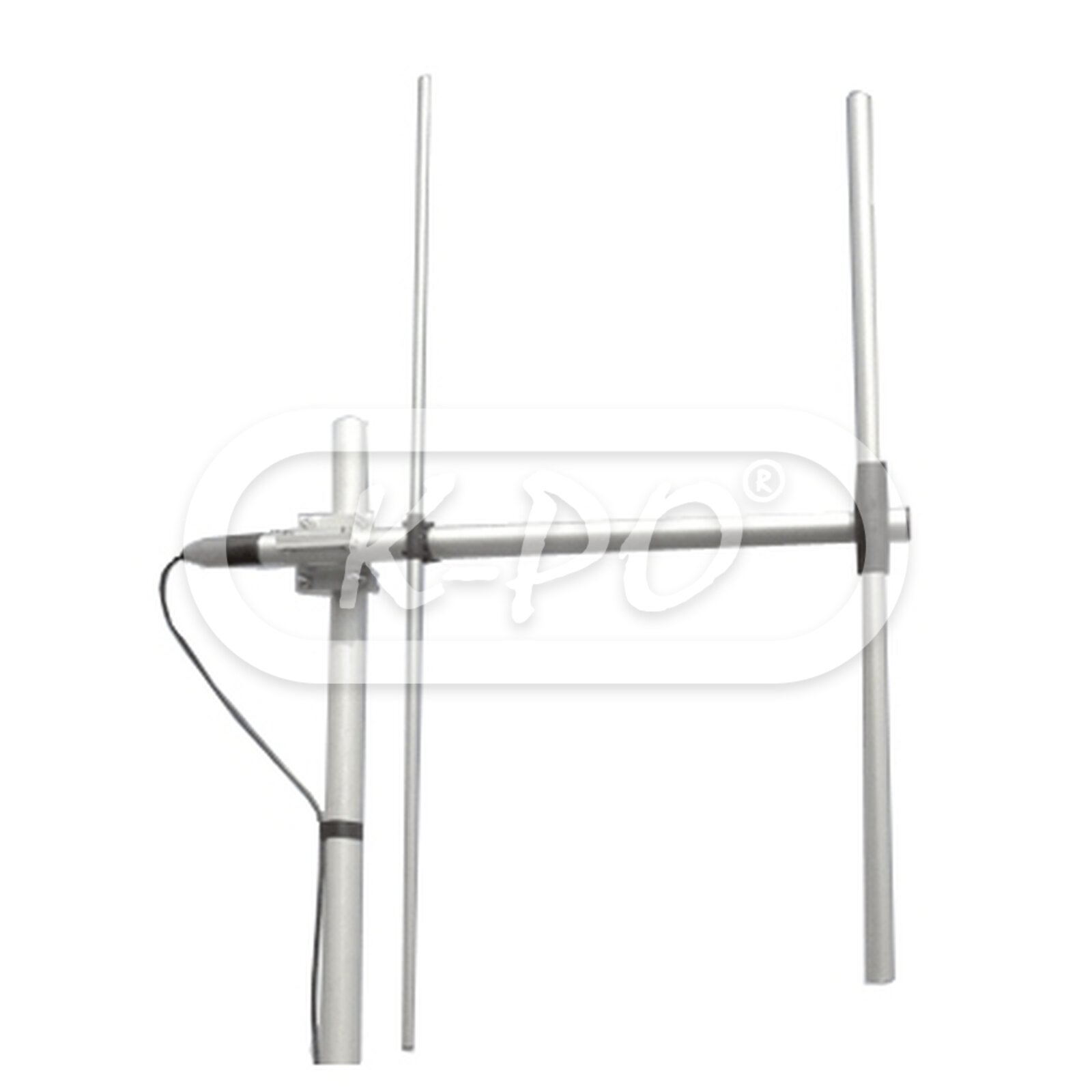

Directional base station antenna for 155 - 175 MHz, no tuning required. Conceived by using an innovative feed system studied and applied to have highly symmetrical radiation pattern in both planes (E and H). It's completely computer designed to get high performances of gain and front-to-back in the working band. All aluminium parts are protected by anodized treatment, hardware are of stainless steel of zinc plated steel, mounting bracket is of extruded aluminium for the best strength and the connector is placed in rear position for an easily access. To increase the antenna gain please install it in vertical stacked array.

Frequency range: 155 - 175 MHz
Shipped today - Stock: 3
€89.95 (74.34 excl. 21% VAT)

Electrical data

  • Electrical type: 2 elements Yagi
  • Gain: 3.05 dBd, 5.2 dBi
  • VSWR: ≤ 1.5
  • Maximum continuous power: 200 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical / Linear horizontal /

Mechanical data

  • Materials: Anodized aluminium, chromed brass, thermoplastic UV stabilized, EPDM rubber
  • Mast Ø: 35 - 52 mm
  • Max wind resistance: 180 km/h
  • Height: 955 mm
  • Width: 740 mm
  • Weight: 1450 gram
  • Mounting type: On mast
  • Antenna connector: N-female
  • Boom diameter Ø: 32 mm
  • Dipole diameter Ø: 24 mm
  • Element diameter Ø: 12 mm
  • Tuning radius: 750 mm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
