Sirio - WY 155-3N

Product code: 2113501155
Factory code: 2113501/155

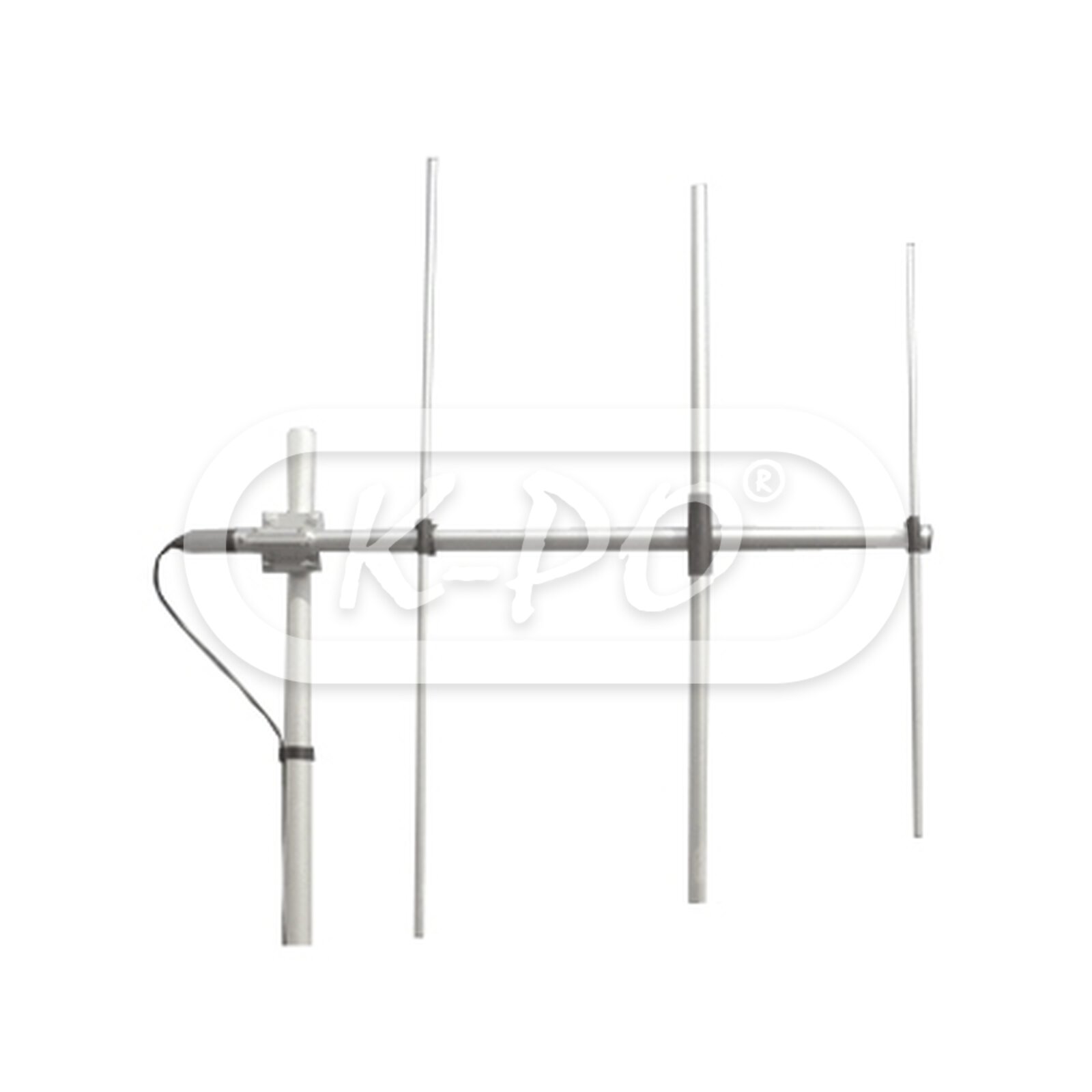

Directional base station antenna for 155 - 175 MHz, no tuning required. Conceived by using an innovative feed system studied and applied to have highly symmetrical radiation pattern in both planes (E and H). It's completely computer designed to get high performances of gain and front-to-back in the working band. All aluminium parts are protected by anodized treatment, hardware are of stainless steel of zinc plated steel, mounting bracket is of extruded aluminium for the best strength and the connector is placed in rear position for an easily access. To increase the antenna gain please install it in vertical stacked array.

Frequency range: 155 - 175 MHz
Shipped today
€99.13 (99.13 excl. 0% VAT)

Electrical data

  • Electrical type: Anodized aluminium, chromed brass, thermoplastic UV stabilized, EPDM rubber
  • Gain: 4.85 dBd – 7 dBi
  • VSWR: ≤ 1.5
  • Power continues: 200 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical / Linear horizontal /

Mechanical data

  • Materials: Anodized aluminium, chromed brass, thermoplastic UV stabilized, EPDM rubber
  • Mast Ø: 35 - 52 mm
  • Max wind resistance: 160 km/h
  • Height: 985 mm
  • Width: 990 mm
  • Weight: 1680 gram
  • Mounting type: On mast
  • Antenna connector: N-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
