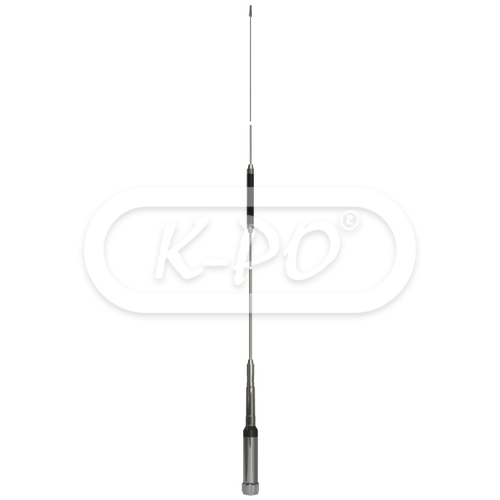

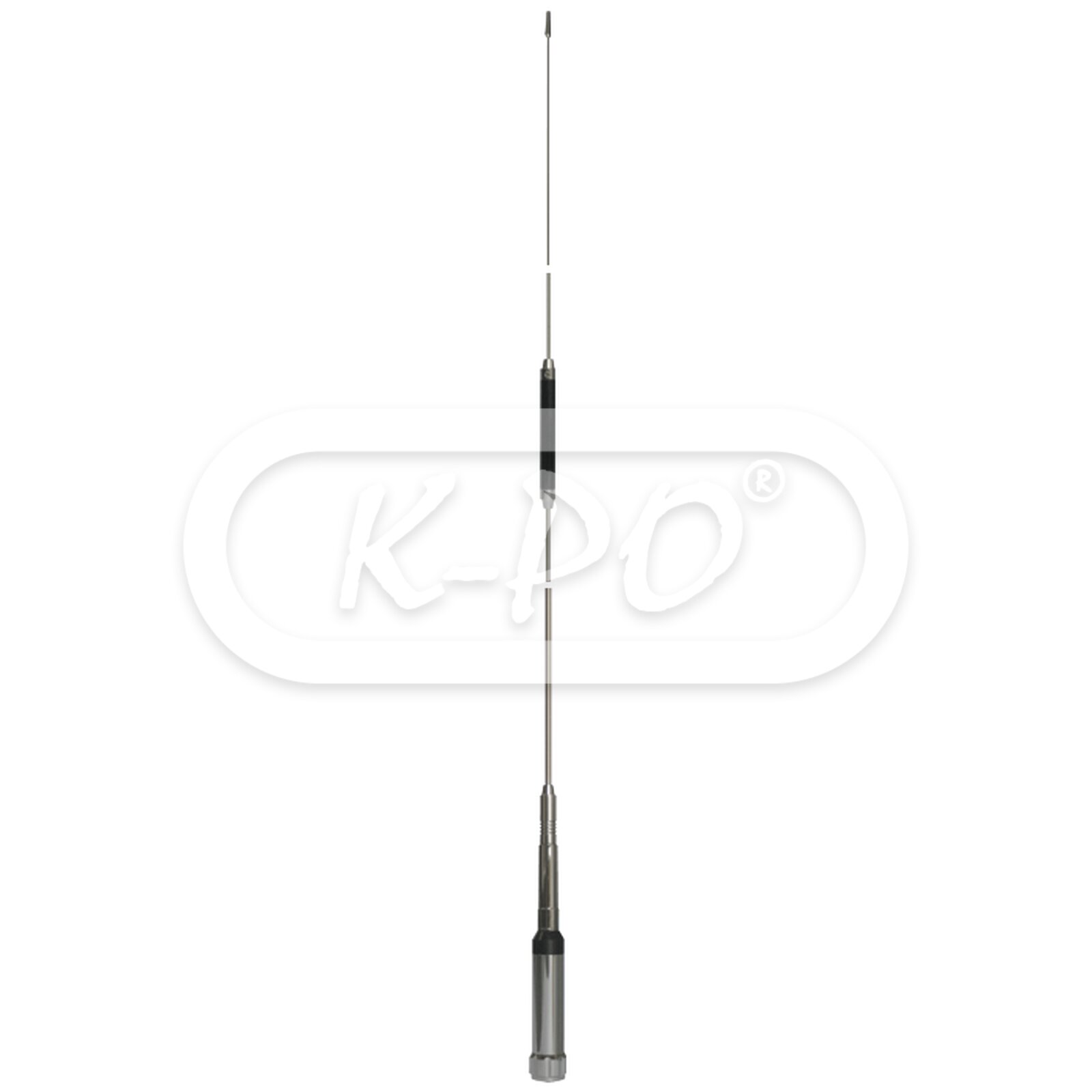

Sirio - ZN-22C

Product code: 221080505

Factory code: 2210805.05

Specially designed high gain 2 meter band antenna. Factory tuned to work on the entire 2 meter band, 143 - 147 MHz, with a VSWR of ≤ 1.5. If needed the antenna can be tuned by moving the whip element in and out from the tiltable base.

Frequency range: 143 - 147 MHz

Out of stock - Longer delivery time

€71.95 (59.46 excl. 21% VAT)

Electrical data

• Electrical type: 2x 5/8 λ
• Gain: 6.5 dB
• VSWR: ≤ 1.2 on center frequency
• Bandwidth: 900 kHz ≤ 2.0
• Maximum continuous power: 300 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 2430 mm
• Weight: 530 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English

Downloads

• Datasheet: Id 428 11 03 2015
