Stabo - XM 3006E VOX

Product code: 30118

Factory code: 30118

Barcode: 4010384301187

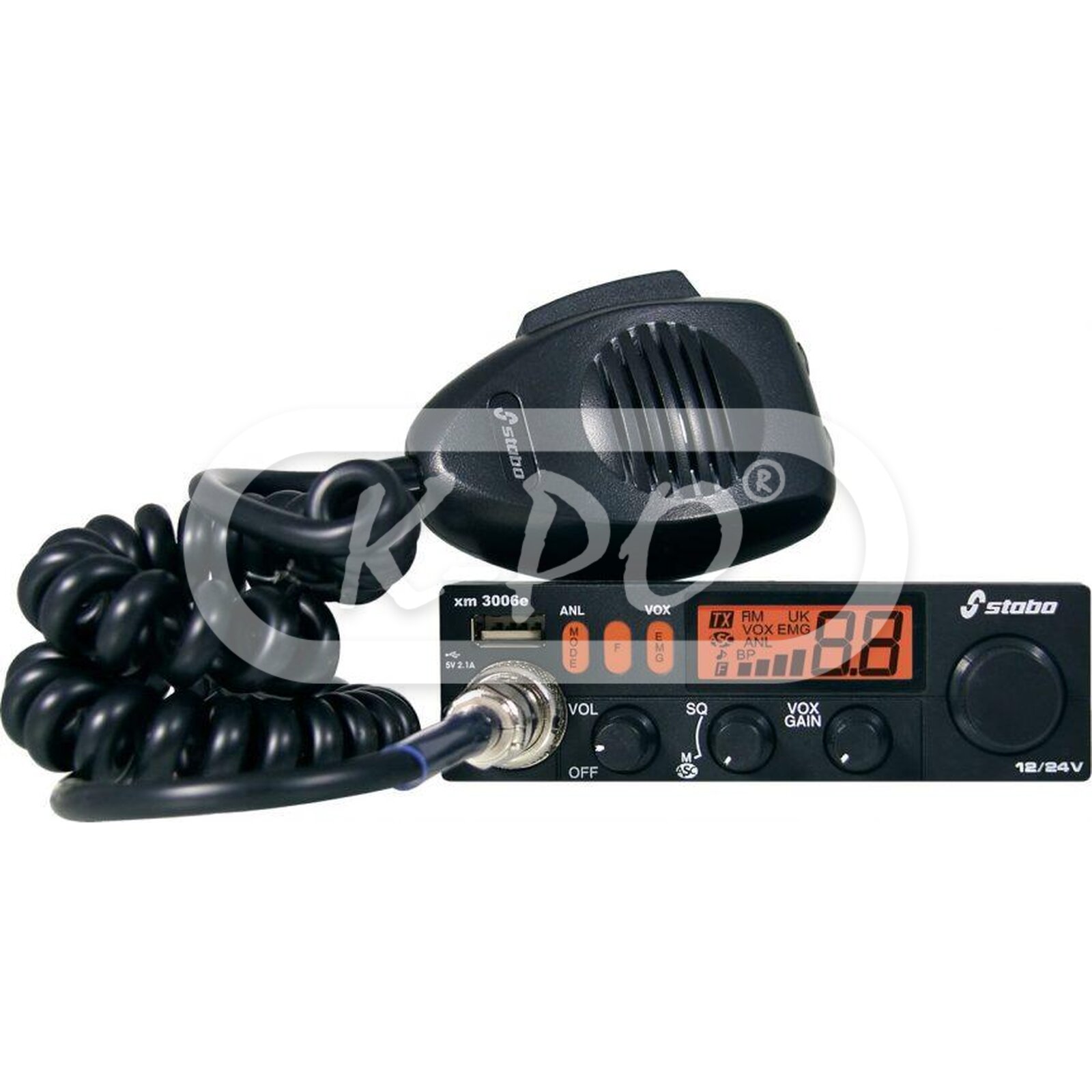

The Stabo XM 3006E VOX is a CB transceiver with 40 channel and the Stabo XM 3006E has a controllable VOX function directly from the front of the radio. And the Stabo XM 3006e has an USB connection (5V 2.1A) on the front of the device. The Stabo XM 3006E VOX can be used on both 12 and 24 Volt.

Frequency range: 26.965 - 27.405 MHz

Out of stock - Longer delivery time

€250.95 (207.4 excl. 21% VAT)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt
• Channels: 40 AM / FM
• Display type: LCD display
• Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
• VOX Function: Yes
• USB: Yes
• Noise blanker: Yes
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Scan function: Yes
• External speaker socket: Yes
• S-meter: Yes
• MIC gain: Yes
• TOT (time out timer): Yes
• VOX gain: Yes
• External VOX socket: Yes
• Roger Beep: Yes

Electrical data

• Voltage: 13,8 Volt / 24 Volt /
• Operating temperature: -10° to +55° C

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: <3 mV
• Frequency allowance: ± 600 Hz
• Drain: 13.2 Volt: 2 A max / 24 Volt: 2 A max

Receiver

• AM sensitivity: ≤ -107 dBm 20 dB SINAD
• FM sensitivity: ≤ -107 dBm 20 dB SINAD
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 2 Watt
• Internal speaker: 8 Ohm
• Squelch sensitivity: min. 0.2 μV
• Image rejection: 70 dB
• Drain: 300 mA nominal / 750 mA max.

Mechanical data

• Length: 165 mm
• Height: 35 mm
• Width: 115 mm
• Weight: 600 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 6 pin connector

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, Français, German, Polski

Downloads

• Datasheet: User manual stabo xm3006e 12 24 V DE EN FR PL
