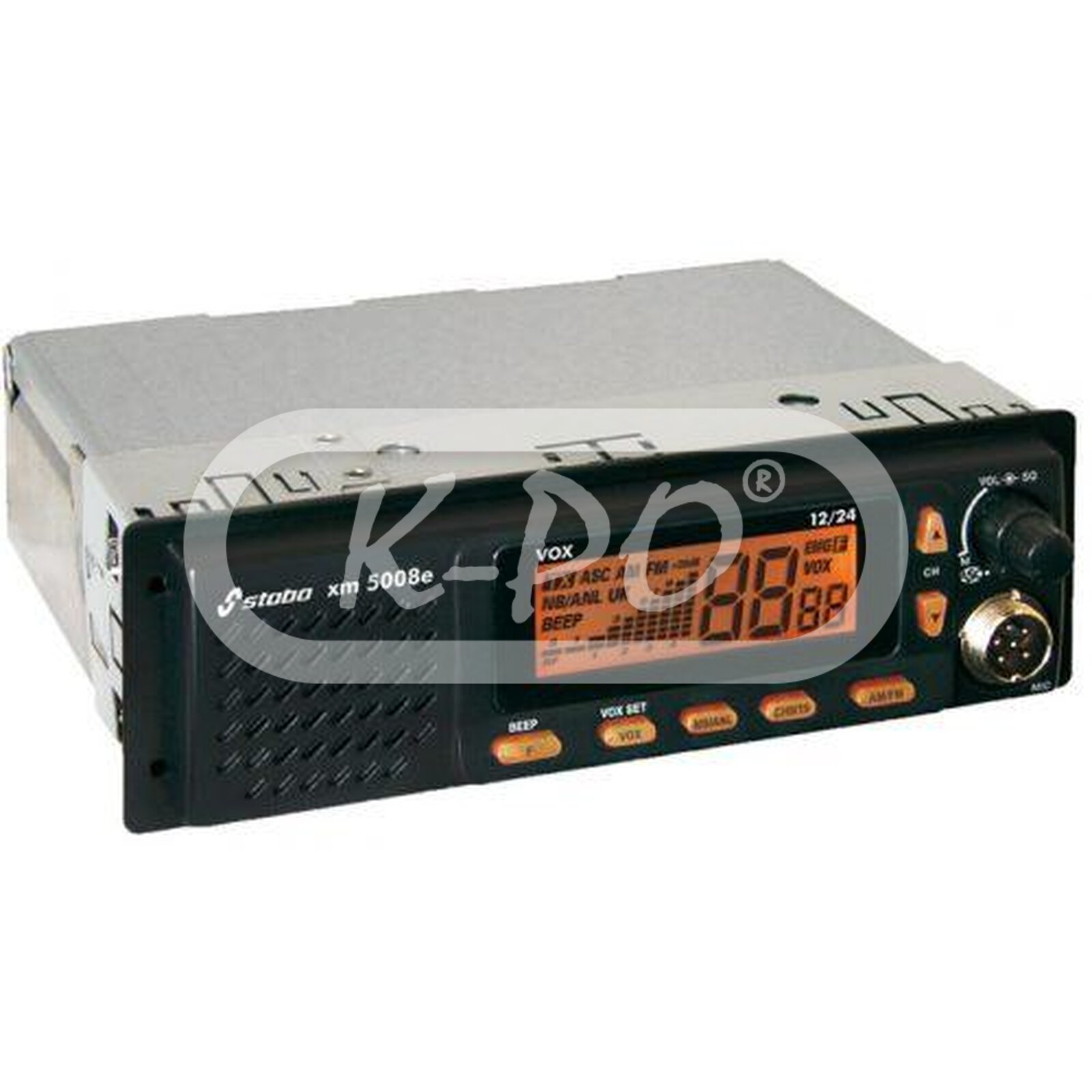

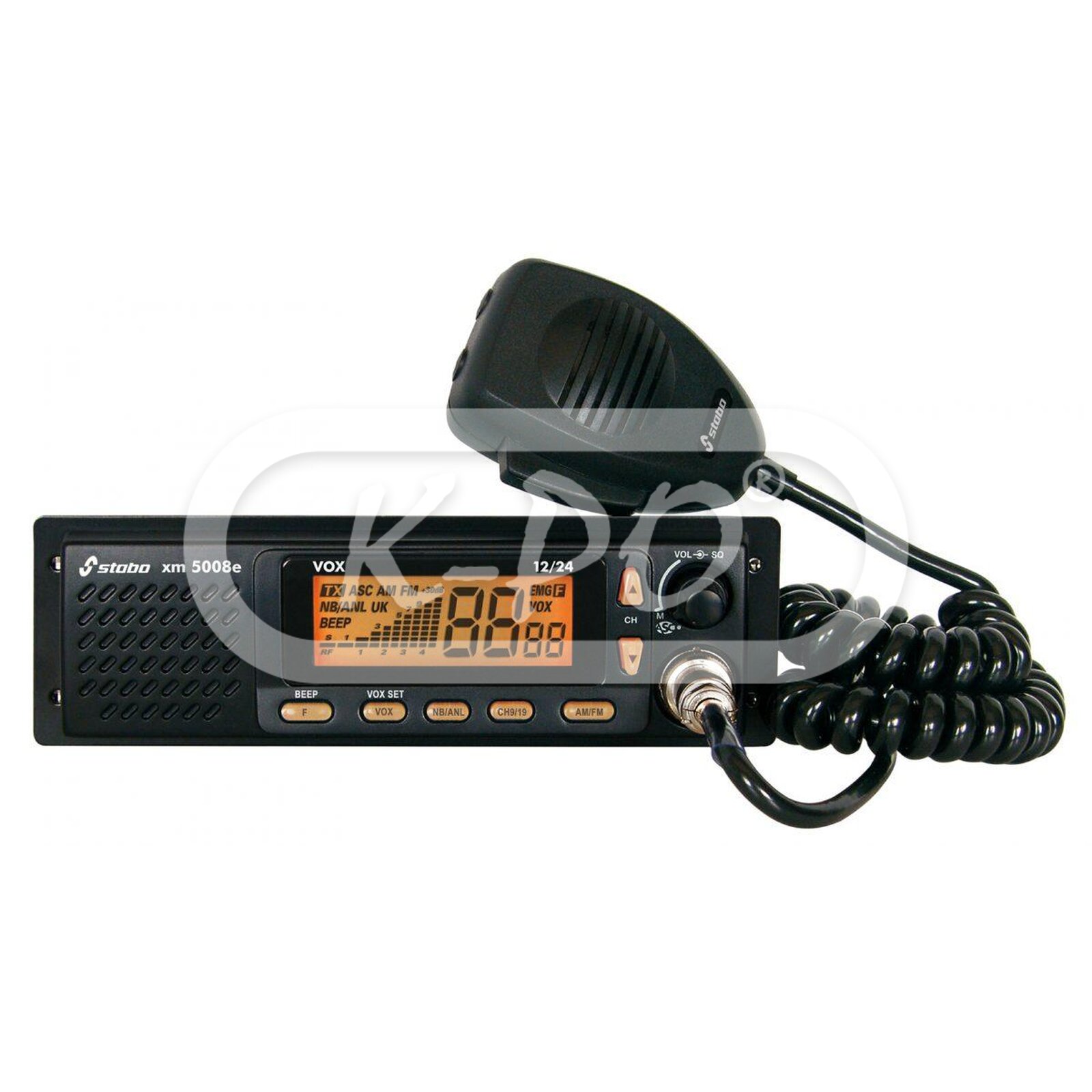

Stabo - XM 5008E-R VOX

Product code: 30257
Factory code: 30257
Barcode: 4010384302573

The Stabo XM 5008E-R VOX is a mobile CB radio device and can be used on 12 and 24 Volt. The XM 5008E-R has an adjustable VOX function (5 levels) that makes it possible to communicate handsfree with the optional Stabo VOX microphone. This versions is included an original DIN mount from Stabo.

Frequency range: 26.965 - 27.405 MHz
Shipped today
€276.82 (276.82 excl. 0% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt
  • Channels: 40 AM / FM
  • Front speaker: Yes
  • Display type: LCD display
  • Display colors: Orange
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
  • Emergency channel: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • TOT (time out timer): Yes
  • Din mount: Yes
  • Roger Beep: Yes

Electrical data

  • Voltage: 13,8 Volt / 24 Volt /
  • Operating temperature: -10° to +55° C

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Microphone sensitivity: <5 mV
  • Frequency allowance: ± 300 Hz
  • Drain: 13.2 Volt: 2 A max / 24 Volt: 2 A max

Receiver

  • AM sensitivity: 0.7 µV - 110 dBm
  • FM sensitivity: 0.4 µV - 115 dBm
  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Squelch sensitivity: min. 0.2 μV - 120 dBm min. / 10 mV -27 dBm max.
  • IF rejection: 65 dB
  • Intermodulation suppression: 50 dB
  • Drain: 250 mA nominal / 750 mA max.

Mechanical data

  • Length: 180 mm
  • Height: 60
  • Width: 170 mm
  • Weight: 1000 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Power lead: 1 pcs
  • DIN mount: 1 pcs
  • User manual: English, German, French, Polish,
