Stabo - XM 5010E

Stabo - XM 5010E

Product code: 30259
Factory code: 30259
Barcode: 4010384302597

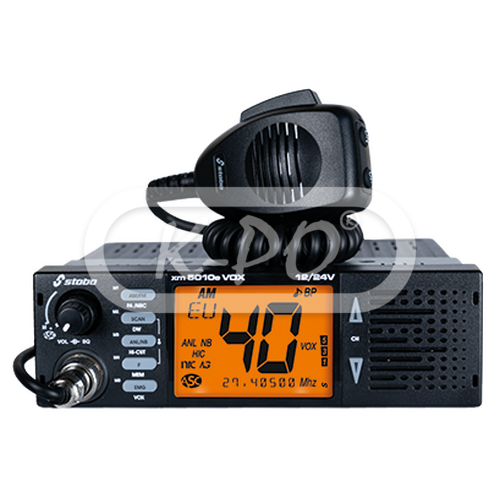

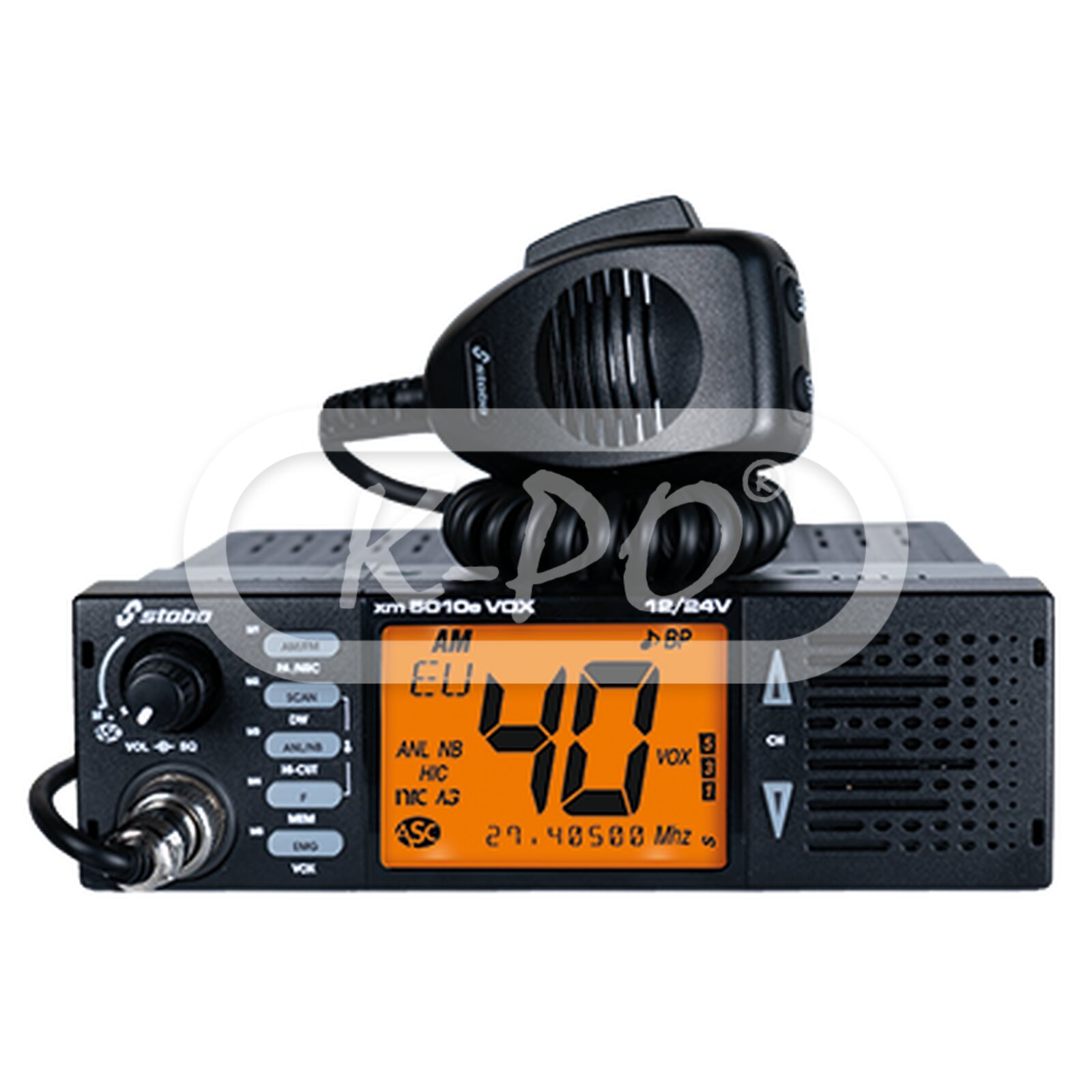

The Stabo XM-5010E is a compact multi-norm CB radio for professional use in cars, vans, and trucks. It's DIN-size design with and 12/24V operation makes it easy to fit in any standard car radio slot.

It features an XL LCD display with channel and frequency indication, six switchable European frequency bands, and five programmable memory channels with scan and priority functions for flexible operation.

Key functions include VOX hands-free operation, NRC noise reduction, and automatic SWR calibration. With PA function and connections for an external speaker and VOX microphone, the XM-5010E is a versatile and reliable CB radio for everyday use.

Frequency range: 26.965 - 27.405 MHz
Shipped next business day - Stock: 6
€279.95 (231.36 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt
  • Channels: 40 AM / FM
  • Front speaker: Yes
  • Display type: LCD display
  • Display colors: 7 colors
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
  • Emergency channel: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • External speaker socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • TOT (time out timer): Yes
  • Din mount: Yes
  • Roger Beep: Yes
  • NRC (Noise Reduction Circuit): Yes

Electrical data

  • Voltage: 13,8 Volt / 24 Volt /

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Microphone sensitivity: 3,0 mV
  • Frequency allowance: ± 200 Hz
  • Drain: 13.2 Volt: 2.5A, 26.4 Volt: 1.3A

Receiver

  • AM sensitivity: 0,79 μV (-109 dBm)
  • FM sensitivity: 0,39 μV (-115 dBm)
  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Squelch sensitivity: Min. 0,2 μV (-120 dBm) / Max. 1,0 mV (-47 dBm)
  • IF rejection: 65 dB
  • Intermodulation suppression: 50 dB
  • Drain: 13.2 Volt: 160 - 500 mA, 26.4 Volt: 90 - 300 mA

Mechanical data

  • Length: 157 mm
  • Height: 50
  • Width: 178 mm
  • Weight: 1066 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • DIN mount: 1 pcs
  • User manual: Yes
