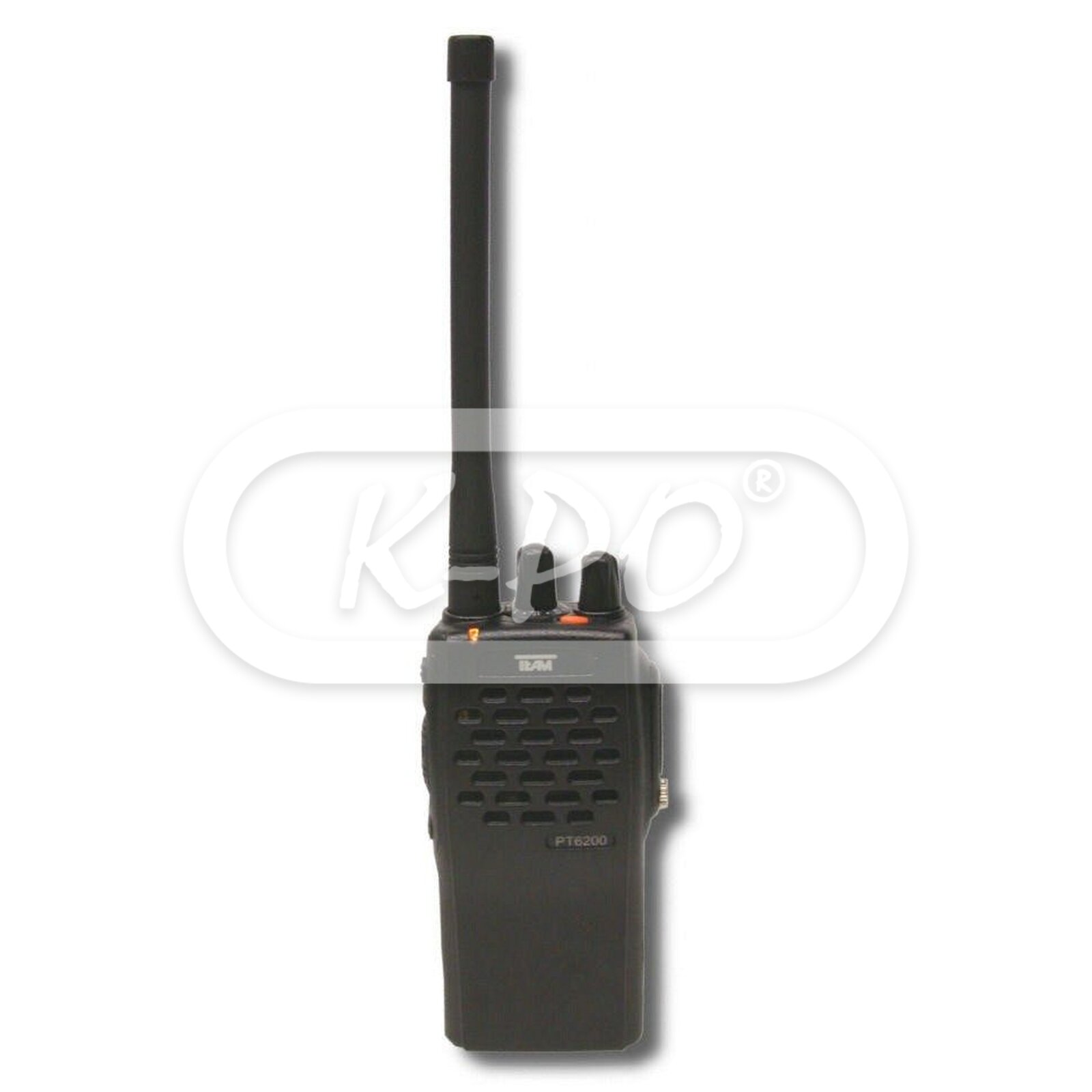

Team - PT-6200 VHF

Product code: 6201
Barcode: 4010507080265

The Team PT-6200 is a VHF transceiver which is programmable between 136-174 MHz. The PT-6200 will be delivered with a 1500 mAh Li-Ion battery pack.

Please note that we don't have the program software available for this radio.

Frequency range: TX/RX: 136-174 MHz
Shipped next business day
€41.28 (41.28 excl. 0% VAT)

Electrical data

  • Frequency step: 5 kHz / 6.25 kHz /
  • Channels: 16

Transmitter

  • Power output (Watts): 5/1 Watts
  • Modulation limit: F3E (FM)
  • Antenna impedance: 50 Ohm
  • Channel separation: Narrow: 12.5 KHz / wide: 25 KHz
  • Deviation: Narrow: 2.5 KHz / wide: 5 KHz
  • RX sensitivity: Narrow: 0.28 µV at 12.5 KHz / wide: 0.75 µV at 25 KHz
  • Audio output power: 0.50 Watts at 8 Ohm with 10% THD

Mechanical data

  • Length: 56 mm
  • Height: 120 mm
  • Width: 35 mm
  • Weight: 332 gram
  • Antenna connector: SMA male

Inside the box

  • Transceiver: Yes
  • Battery: Li-Ion 1500 mAh
  • Charger: Desk charger with adapter and 12 V car charger
  • Antenna: Yes
  • Installation manual: English, Dutch, German
  • Hand strap: Yes
  • Belt clip: Yes
