TTI - AMC 5020 P6

Product code: 5020

Replaced by the TTI AMC B101 product code 770101.

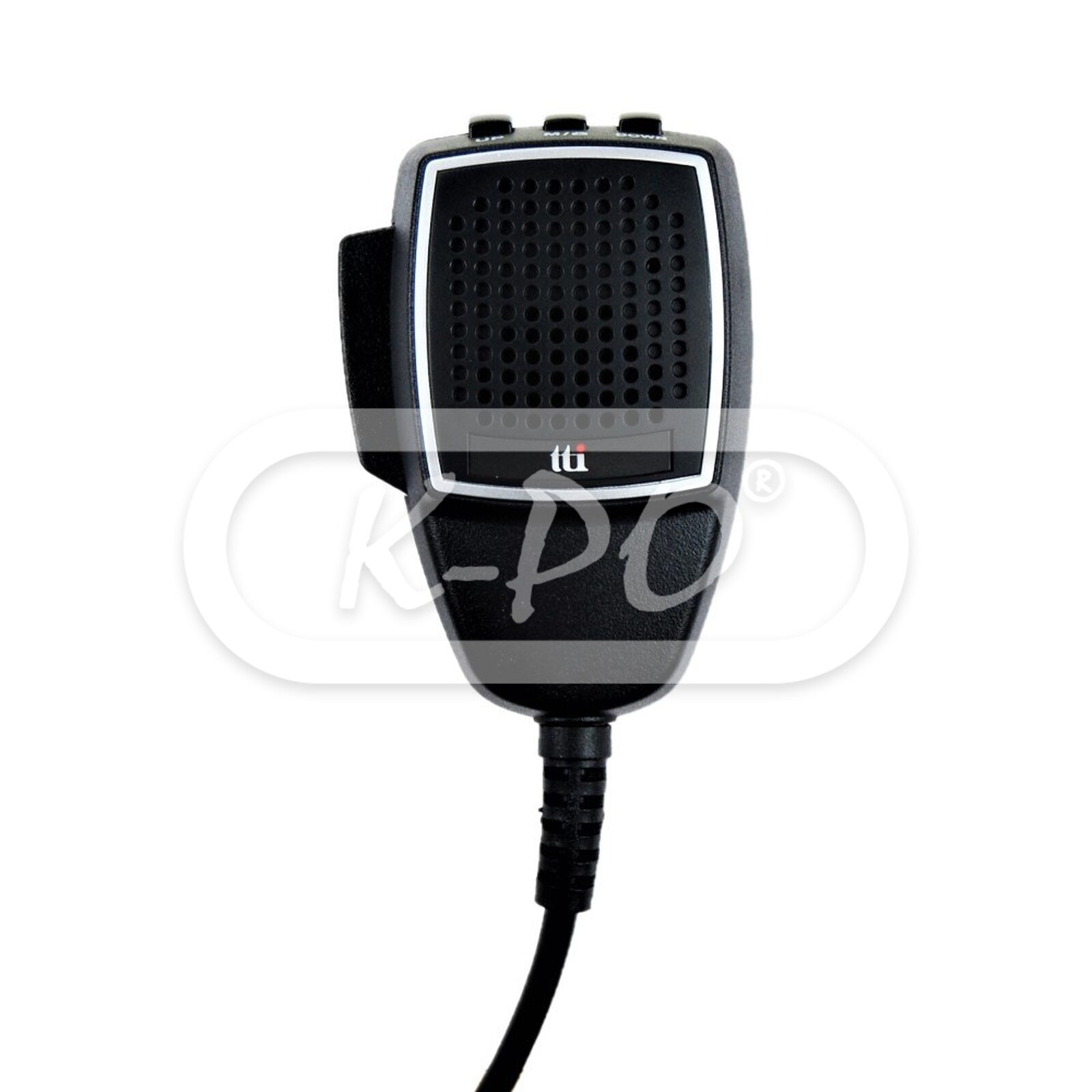

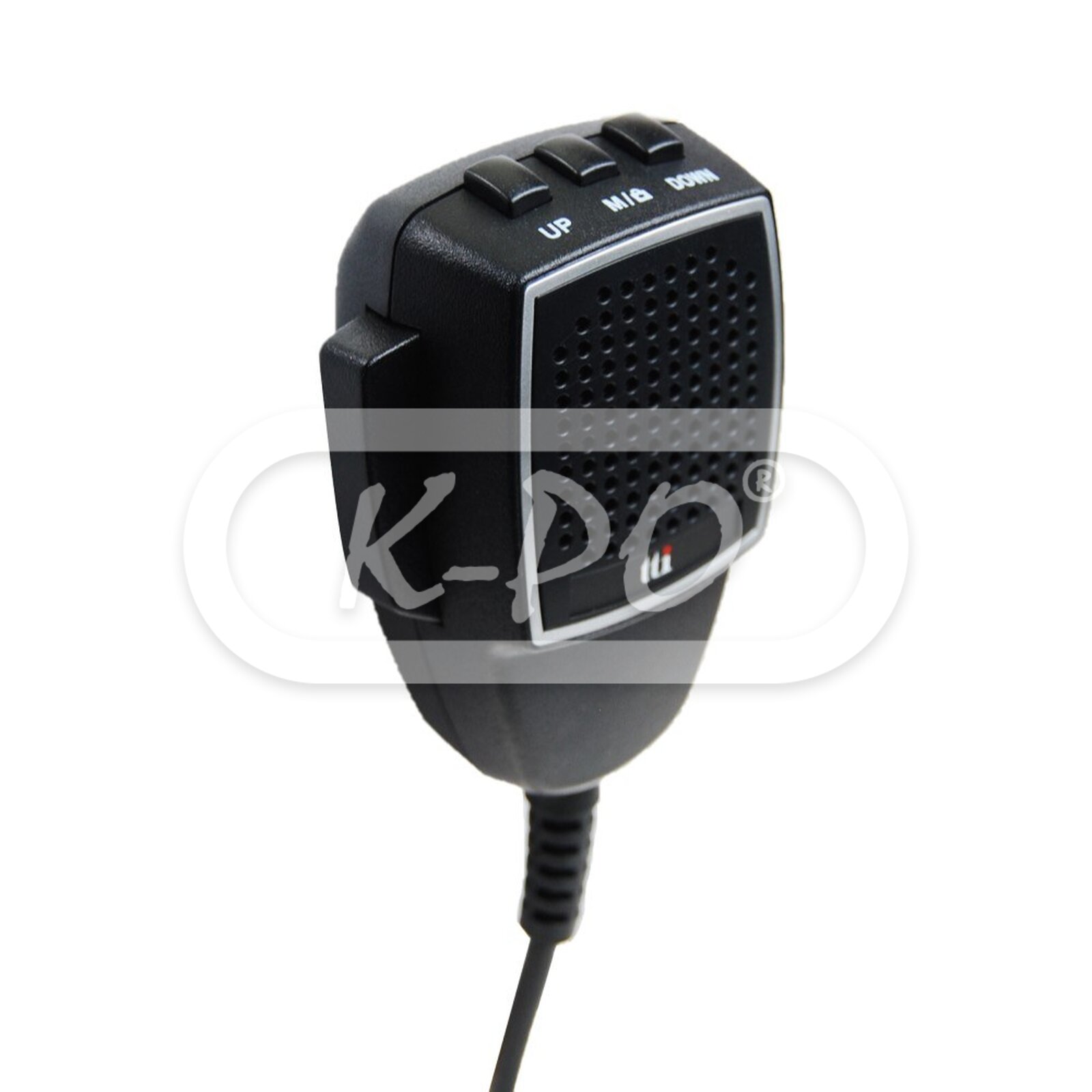

The TTI AMC 5021 handheld microphone is an original TTI microphone. The microphone is suitable for the TCB-1100.

Note - Discontinued
€ -- (Discontinued)

Features

  • Suitable for: TTI TCB-1100
  • Up down: Yes
  • Lock button: Yes
  • Microphone type: Dynamic microphone

Mechanical data

  • Cable Length: 3 meter

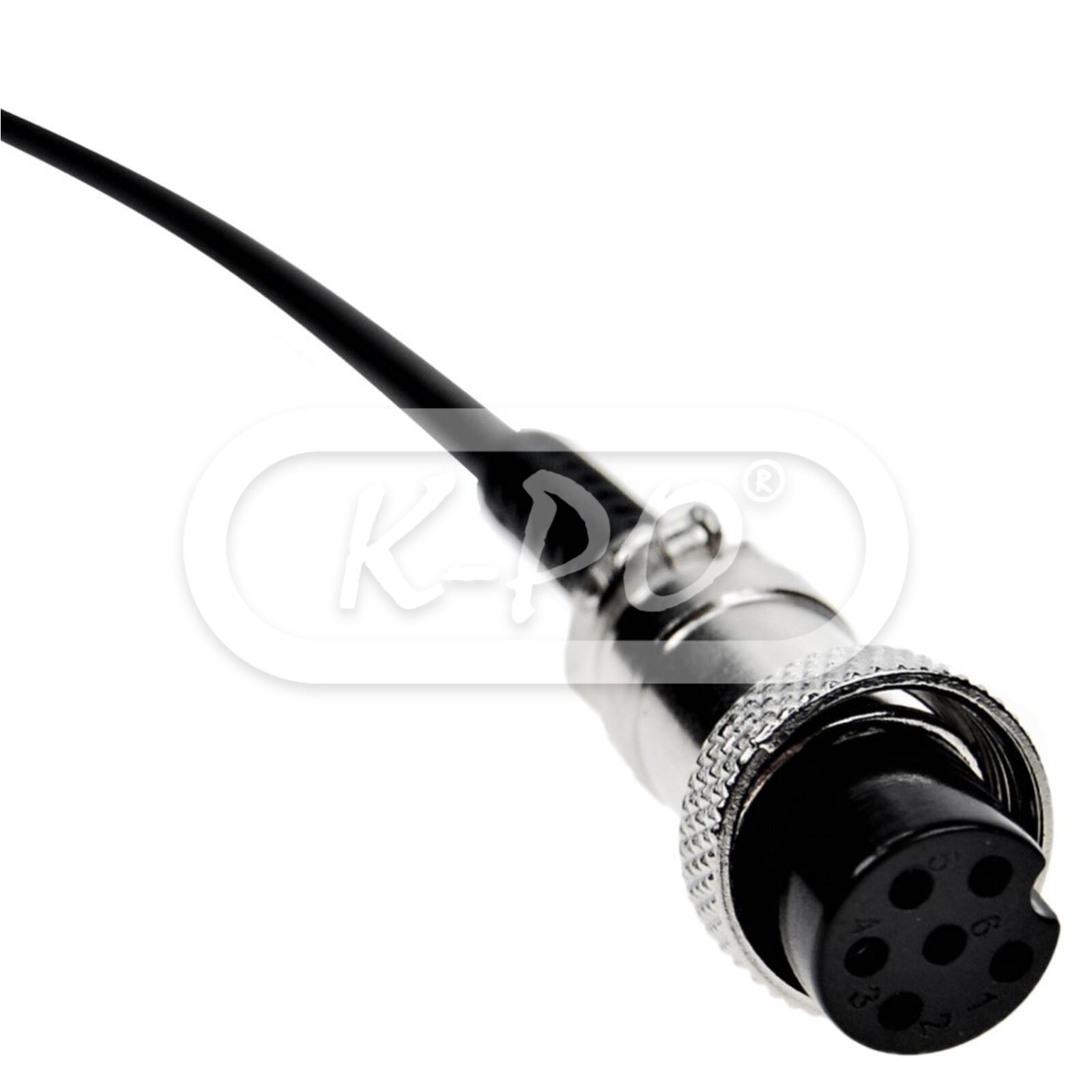

  • Microphone connector: 6-pin

Microphone wiring

  • Up: Pin 1
  • Down: Pin 1
  • Receive: Pin 6
  • Transmit: Pin 3
  • Mic Audio: Pin 4
  • Ground: Pin 5
