TTI - AMC 5021 P6

Product code: 770880
Barcode: 8809075734023

Replaced by the TTI AMC B101 product code 770101.

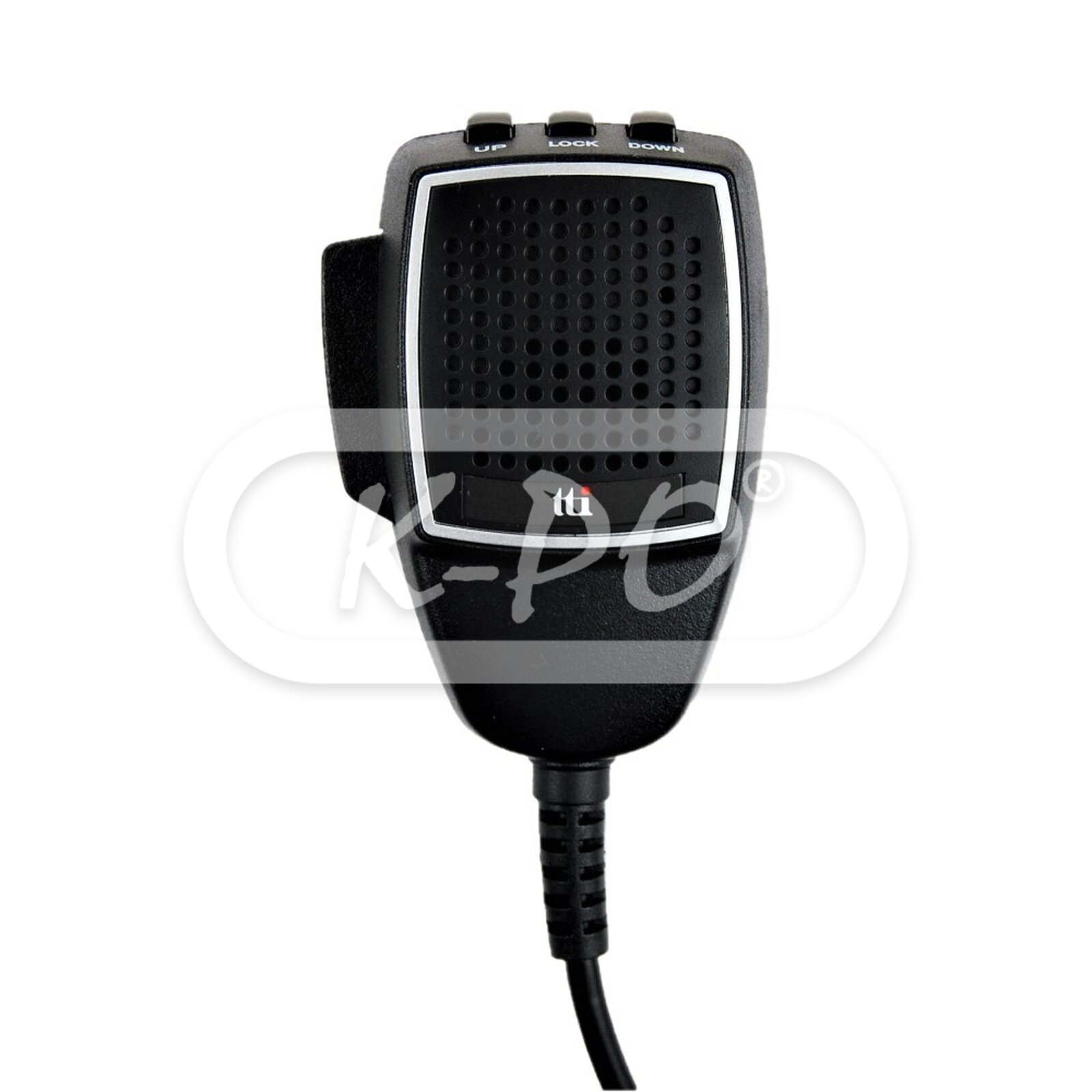

The TTI AMC 5021 handheld microphone is an original TTI microphone. The microphone is suitable for e. g. the TCB-881 and TCB-900.

Note - Discontinued
€ -- (Discontinued)

Features

  • Suitable for: TTI TCB-660 / TTI TCB-770 / TTI TCB-771 / TTI TCB-775 / TTI TCB-880 / TTI TCB-881 / TTI TCB-900 / TTI TCB-900 HP / TTI TCB-950 /
  • Up down: Yes
  • Lock button: Yes
  • Microphone type: Dynamic microphone

Mechanical data

  • Cable Length: 3 meter

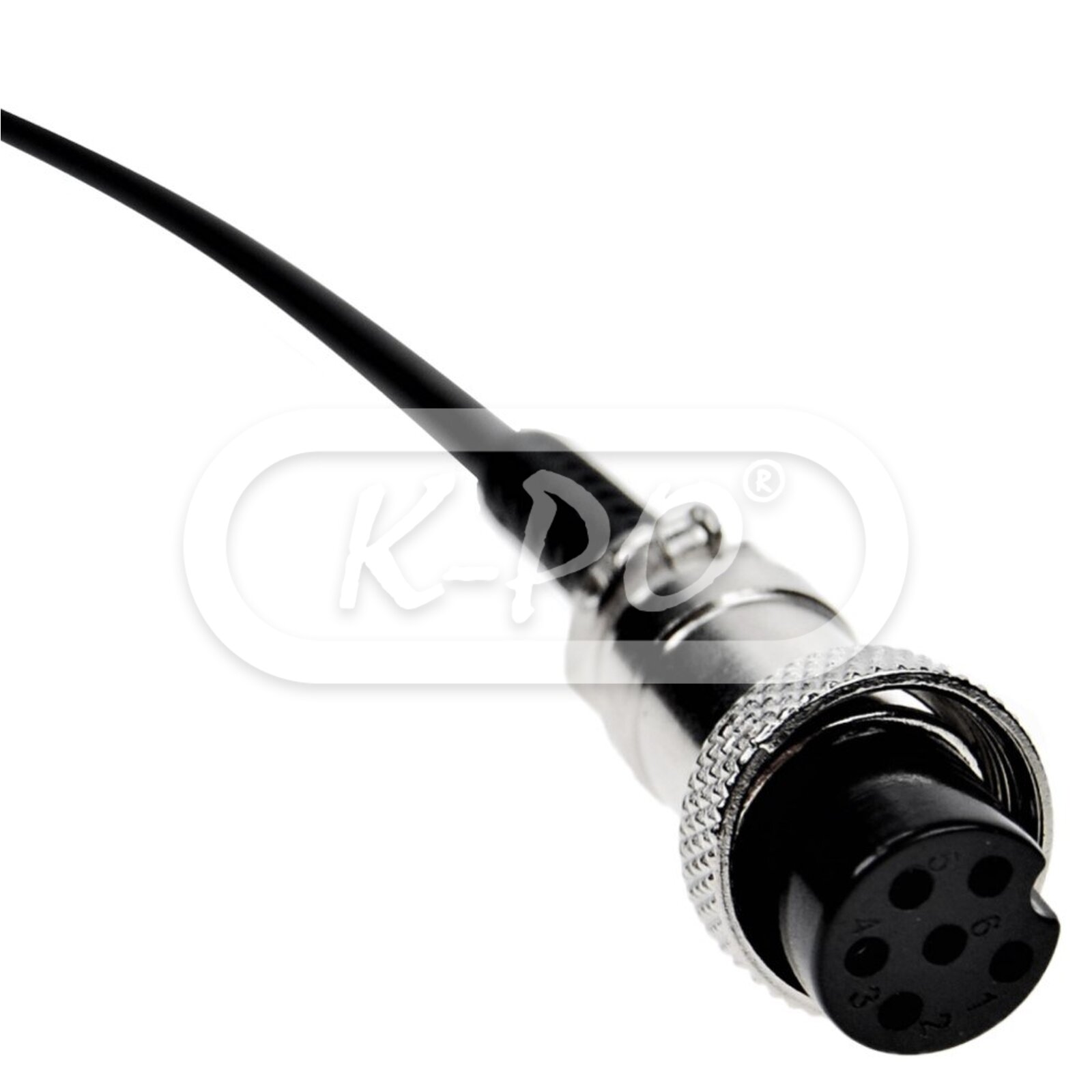

  • Microphone connector: 6-pin

Microphone wiring

  • Up: Pin 2
  • Down: Pin 2
  • Receive: Pin 6
  • Transmit: Pin 3
  • Mic Audio: Pin 4
  • Ground: Pin 5
