TTI - TCB-565

Product code: 50565

Barcode: 8809075732159

Replaced by the TTI TCB-560, product code 50560

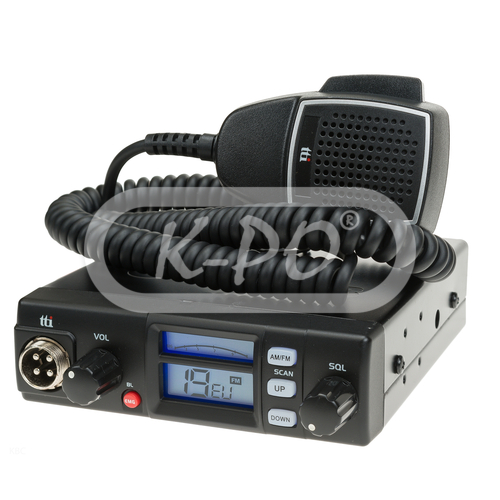

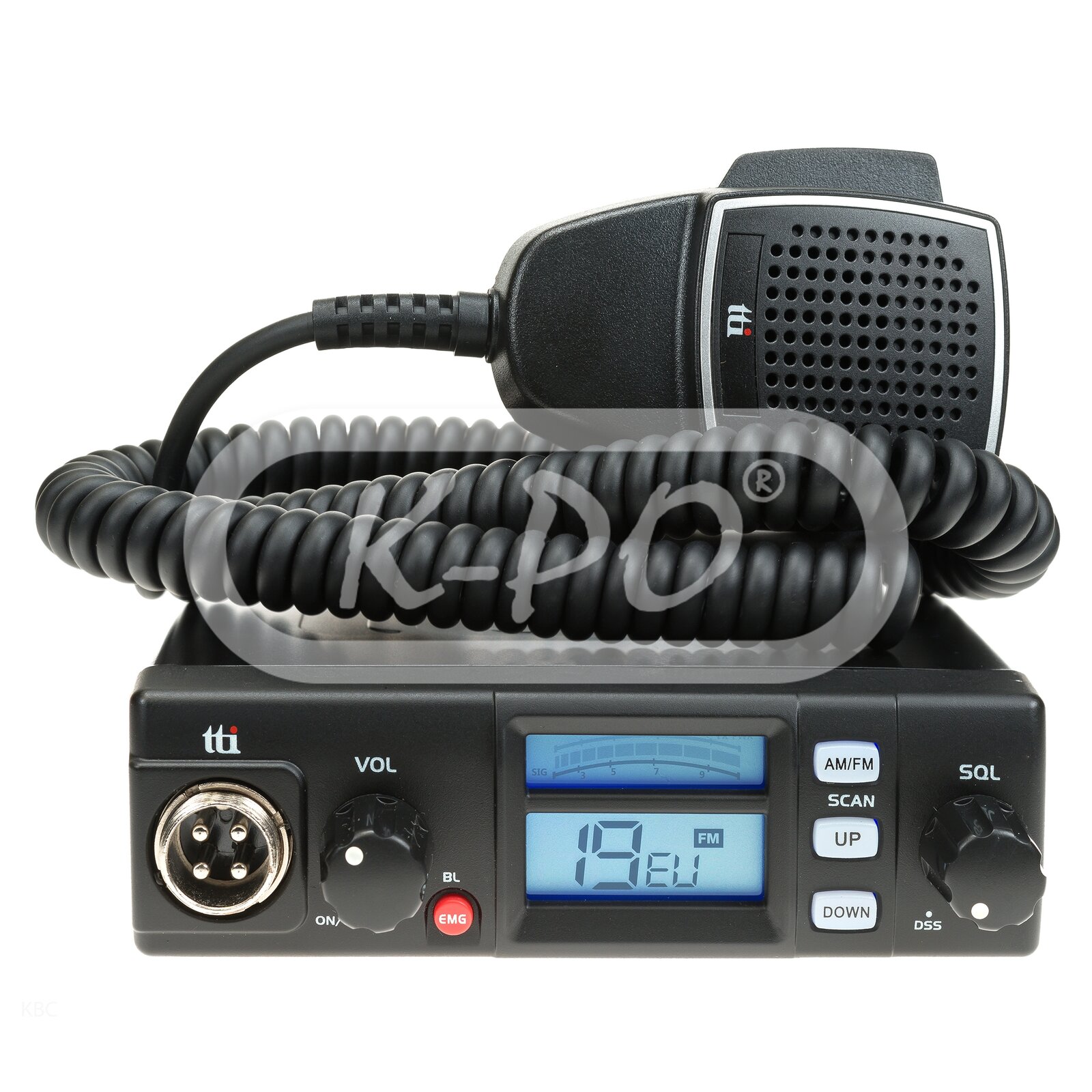

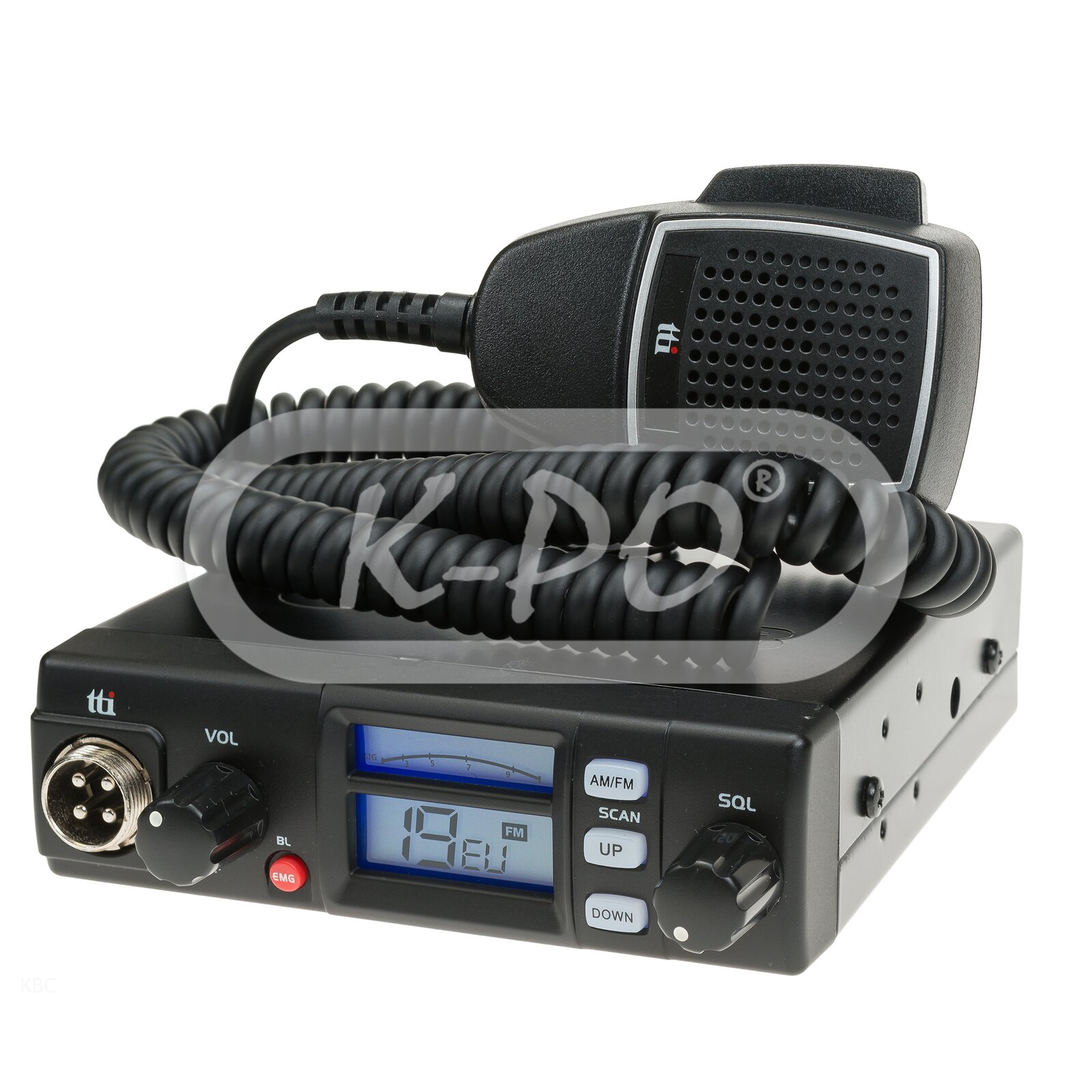

The TTI TCB-565 is a compact 12/24V CB Radio with dual LCD displays incorporating both channel/country display and digital signal meter. It is a small yet robust multi-channel radio and includes all EU country bands. Other features include; Tri-colour LCD display (Red/Blue/Purple), EMG button, Scan, DSS (Auto-Squeclh) and AM/FM Button.

Frequency range: 26.965 - 27.405 MHz

Note - Discontinued

€ -- (Discontinued)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
• Channels: 40 AM / FM
• Display type: Multi-color backlight
• Display colors: Blue / Red / Purple
• Squelch: DSS (Dynamic Squelch System) / Manual squelch /
• Emergency channel: Yes
• Scan function: Yes
• External speaker socket: Yes
• External S-meter socket: Yes
• S-meter: Yes

Electrical data

• Voltage: 13,8 Volt / 24 Volt /
• Operating temperature: -10° to +55° C
• Operating mode: F3E (FM) / A3E (AM)
• Frequency control: PLL synthesizer
• Frequency tolerance: 0.002 %

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Modulation AM: from 85% to 95%
• Modulation FM: 1.8 kHz to ± 0.2 kHz
• Harmonic suppression: More than -36 dBm
• Drain: 13.2 Volt: 1.6 A max.

Receiver

• AM sensitivity: 0.7 µV for 10 dB
• FM sensitivity: 0.5 µV for 20 dB SINAD
• Frequency response: 300 Hz - 2.5 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 2 Watt
• Internal speaker: 8 Ohm, round
• Receiving system: Dual conversion superheterodyne
• IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
• Audio distortion: Less than 8% @ 1 kHz
• Image rejection: 60 dB
• Conducted spurious: More than 60 dB
• Squelch: Adjustable, threshold less than 1 µV,

Mechanical data

• Length: 135 mm
• Height: 37 mm
• Width: 124 mm
• Weight: 655 gram

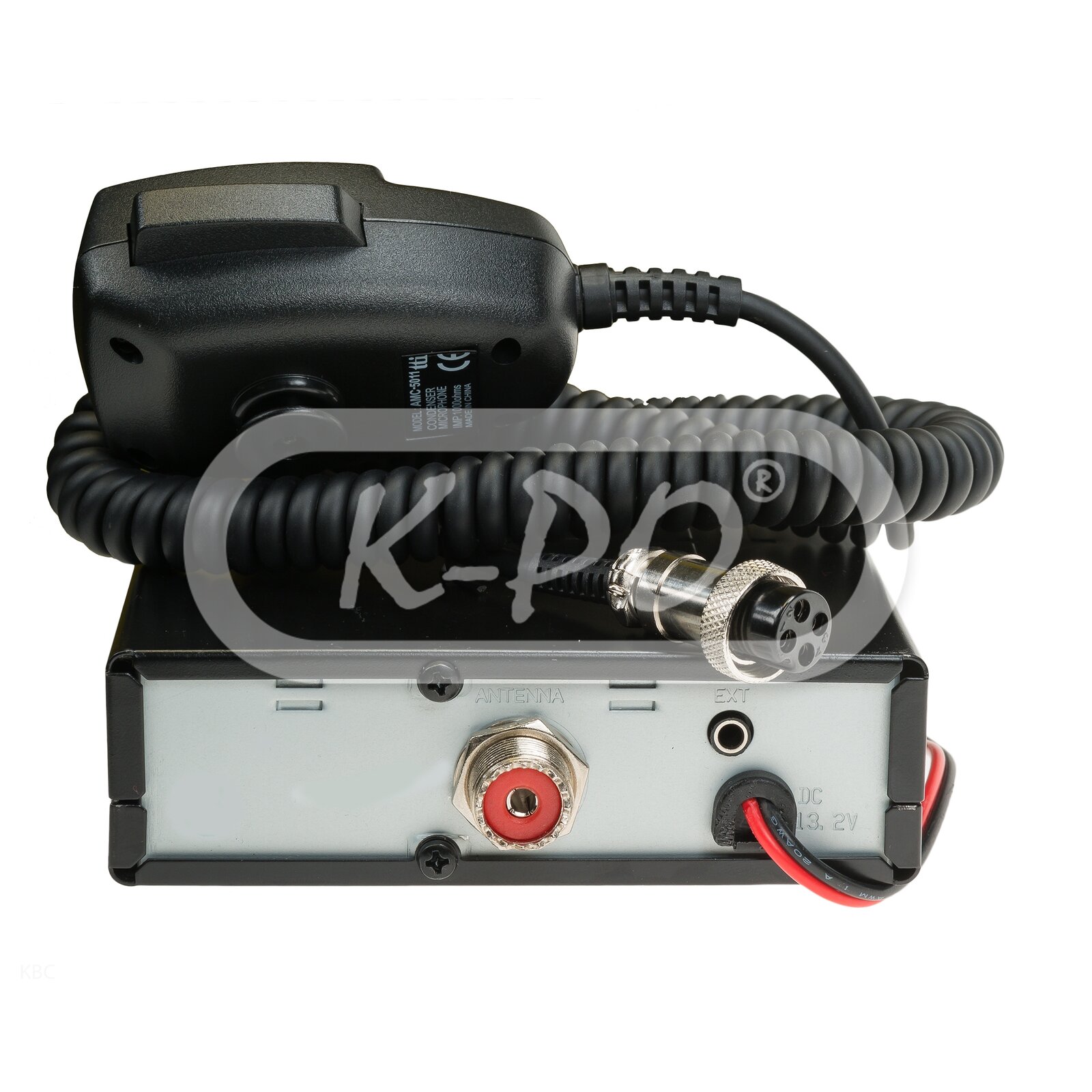

• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 4 pin connector

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: Dutch, English, French, Romania, Czech, German,Polish
• Microphone holder: 1 pcs
