TTI - TCB-900evo

Product code: 48900
Factory code: 48900
Barcode: 8809075210190

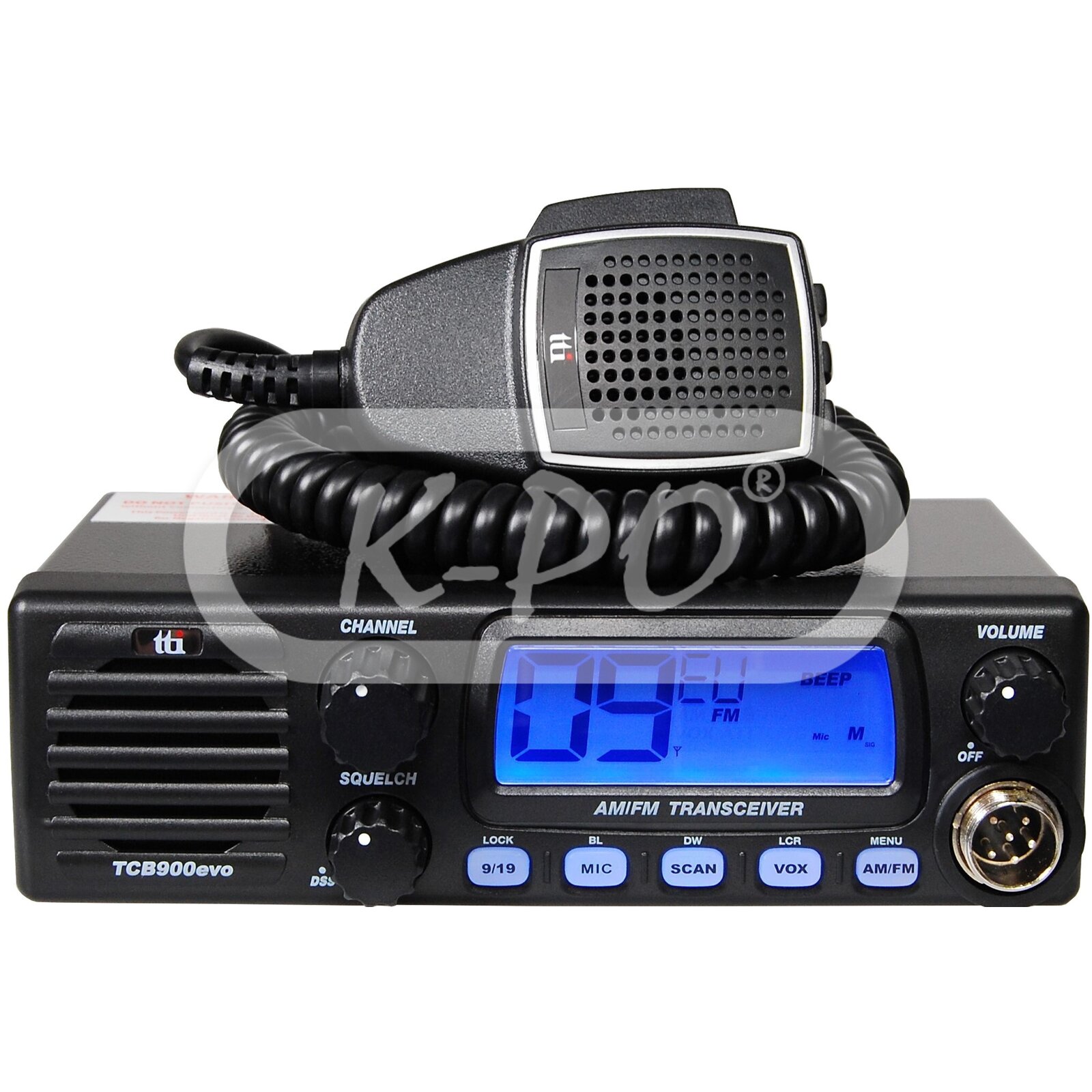

The TTI TCB-900evo is a high quality front speaker CB radio and the successor of the popular TTI TCB-900. The TCB-900evo can be mounted with the traditional bracket which is included in the box or with the optional TTI TDP-5000 DIN mount.

New features and functions on the TTI TCB-900evo are:

  • 7 display colors
  • VOX function
  • VOX button on Microphone
  • Noise blanker
  • Mic Gain (H/M/L)
  • Attenuation

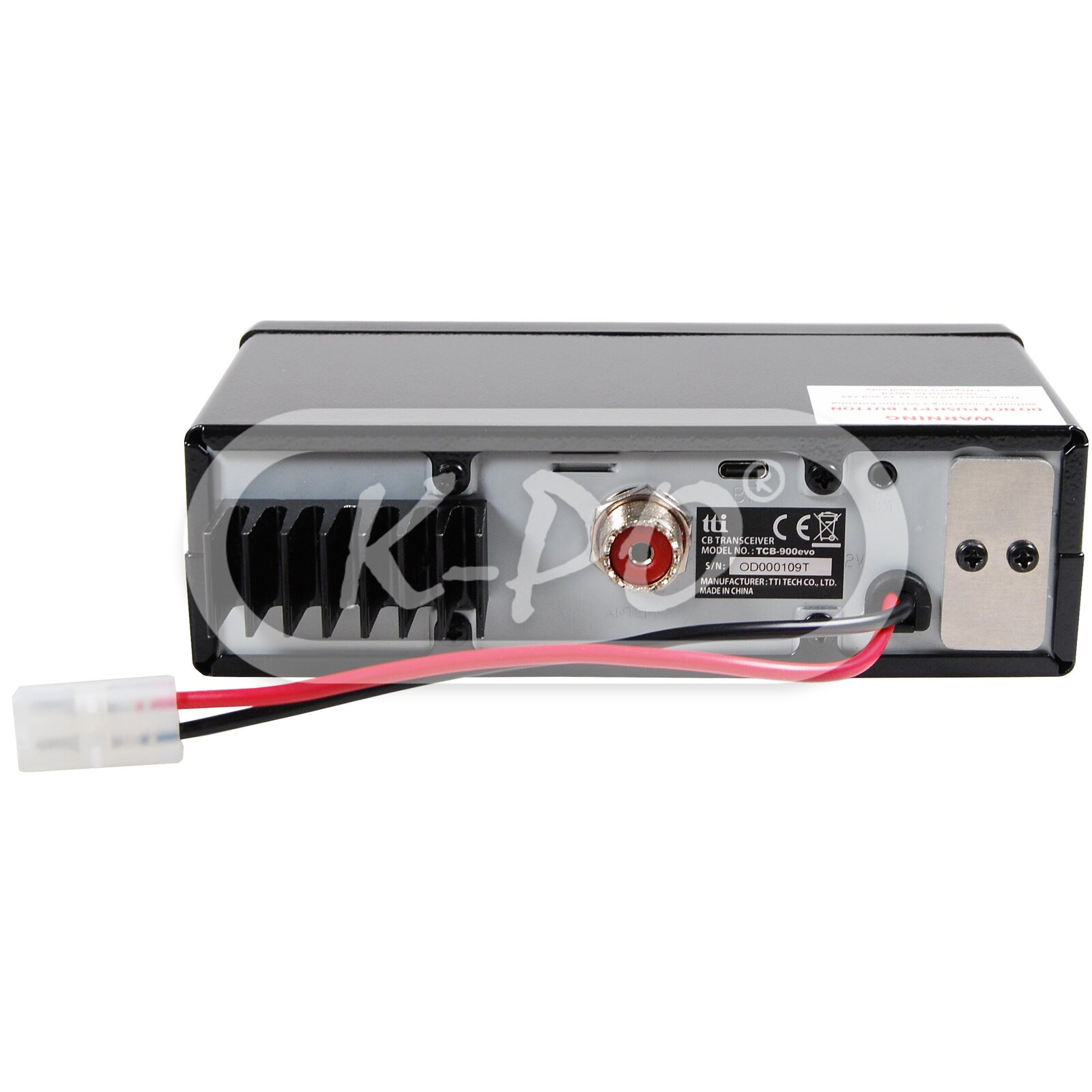

  • Heat sink on the backside
Frequency range: 26.965 - 27.405 MHz
Out of stock - Longer delivery time
€109.95 (90.87 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Output power: 4 Watts / Duty cycle 10% @ 13.8V DC
  • Channels: 40 AM / FM
  • Front speaker: Yes
  • Display type: LCD display
  • Display colors: Green / Orange / Purple / Dark Blue / Light Blue / Yellow / Clear Blue
  • Export version: 10-12 Watts
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: Automatic squelch / DSS (Dynamic Squelch System) / Manual squelch /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Scan function: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • MIC gain: Yes

Electrical data

  • Voltage: 13,8 Volt / 24 Volt /
  • Operating temperature: -10° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002%

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: from 85% to 95%
  • Modulation FM: 1.8 kHz to ± 0.2 kHz
  • Harmonic suppression: Less than -36 dBm
  • Drain: 13.8 Volt: 1.6 A max.

Receiver

  • AM sensitivity: 0.7 µV for 10 dB
  • FM sensitivity: 0.7 µV for 20 dB SINAD
  • Frequency response: 300 Hz - 2.5 kHz
  • Adjacent channel selectivity: More than 60 dB
  • Maximum audio power: 2 Watt
  • Internal speaker: 8 Ohm, round
  • Receiving system: Dual conversion superheterodyne
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Audio distortion: Less than 8% @ 1 kHz
  • Image rejection: More than 60 dB
  • Conducted spurious: Less than -57 dB
  • Squelch: Adjustable, threshold less than 1 µV, DSS less than 2 µV

Mechanical data

  • Length: 95,6 mm without heatsink. (with heatsink 115 mm)
  • Height: 51 mm
  • Width: 171 mm
  • Weight: 664 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

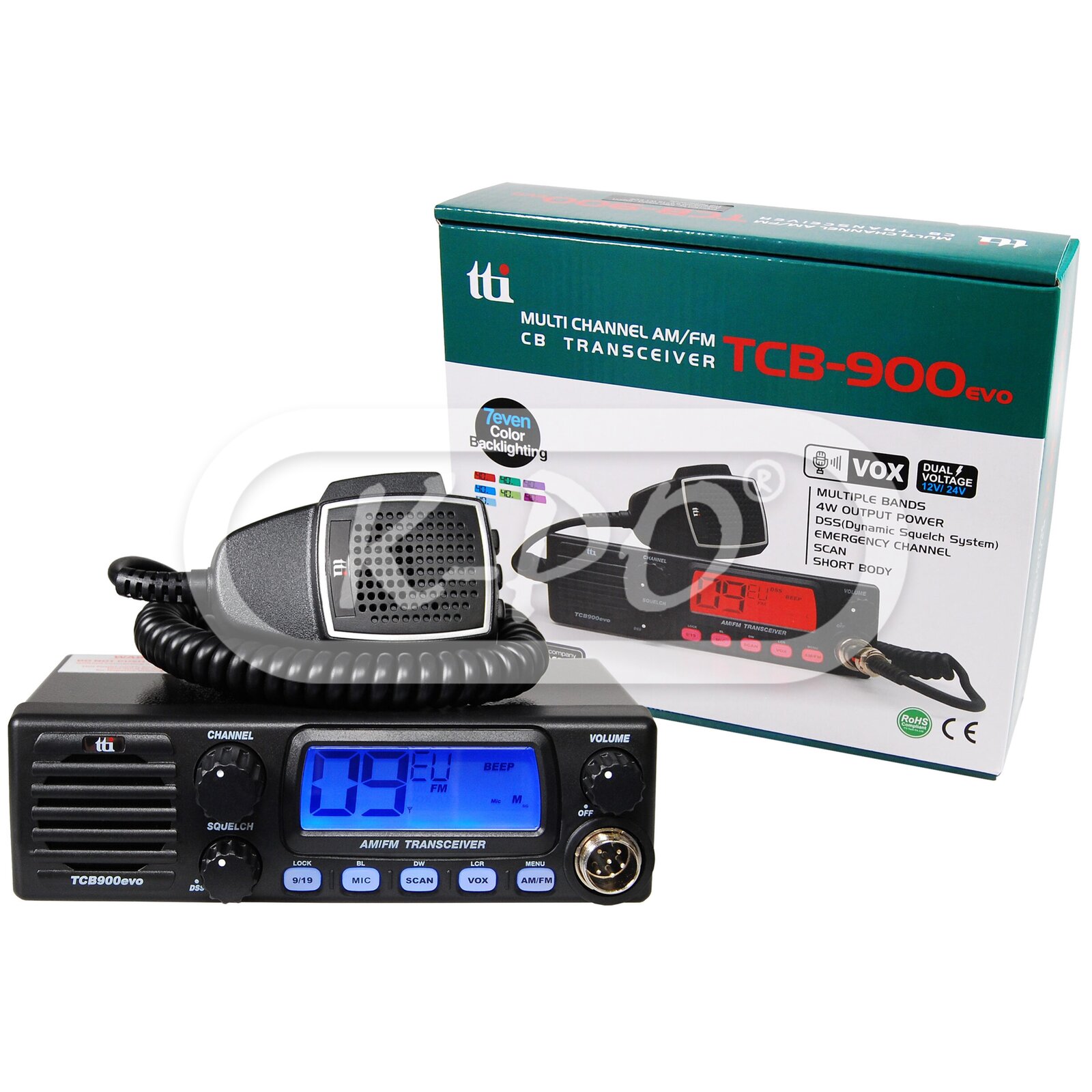

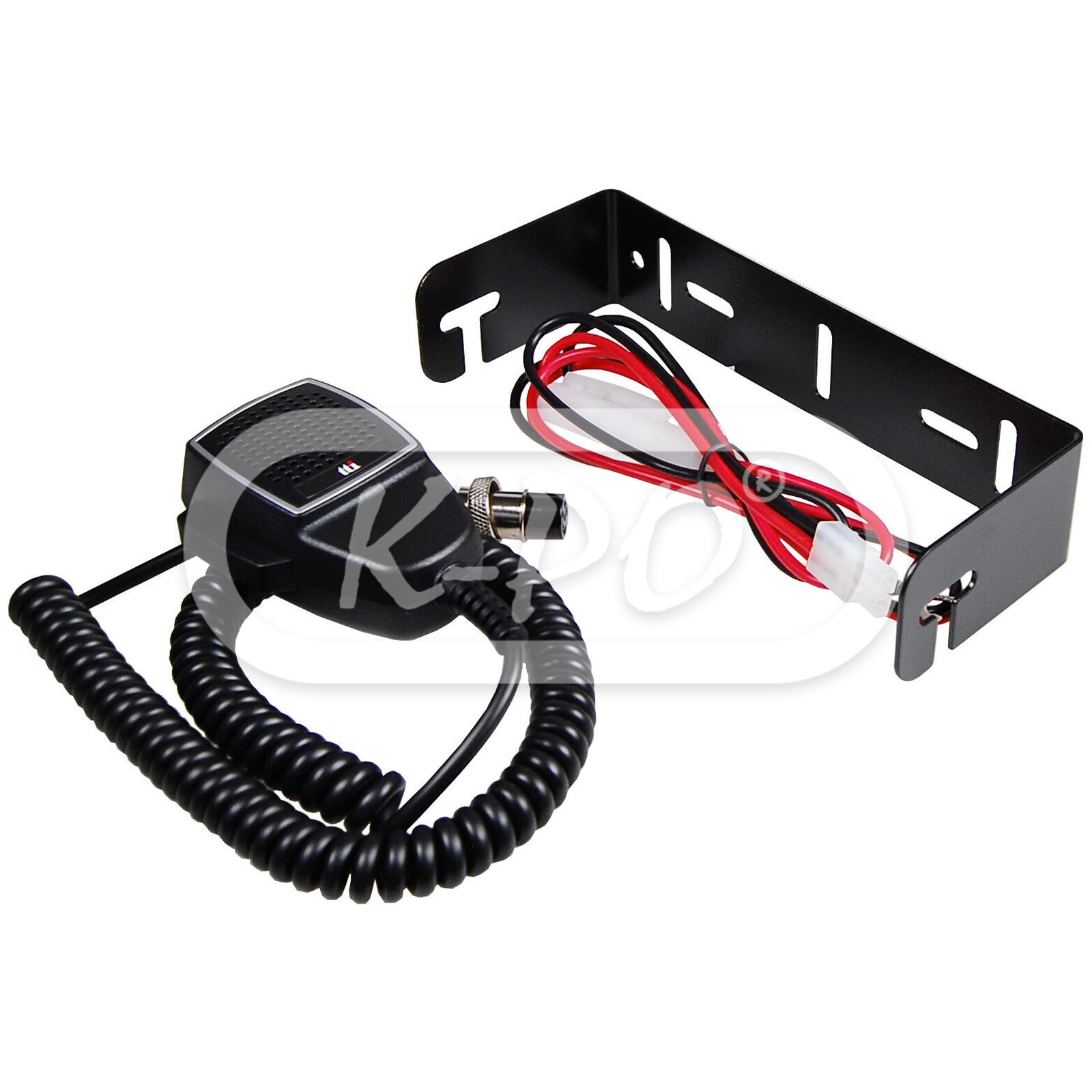

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English
  • Microphone holder: 1 pcs
