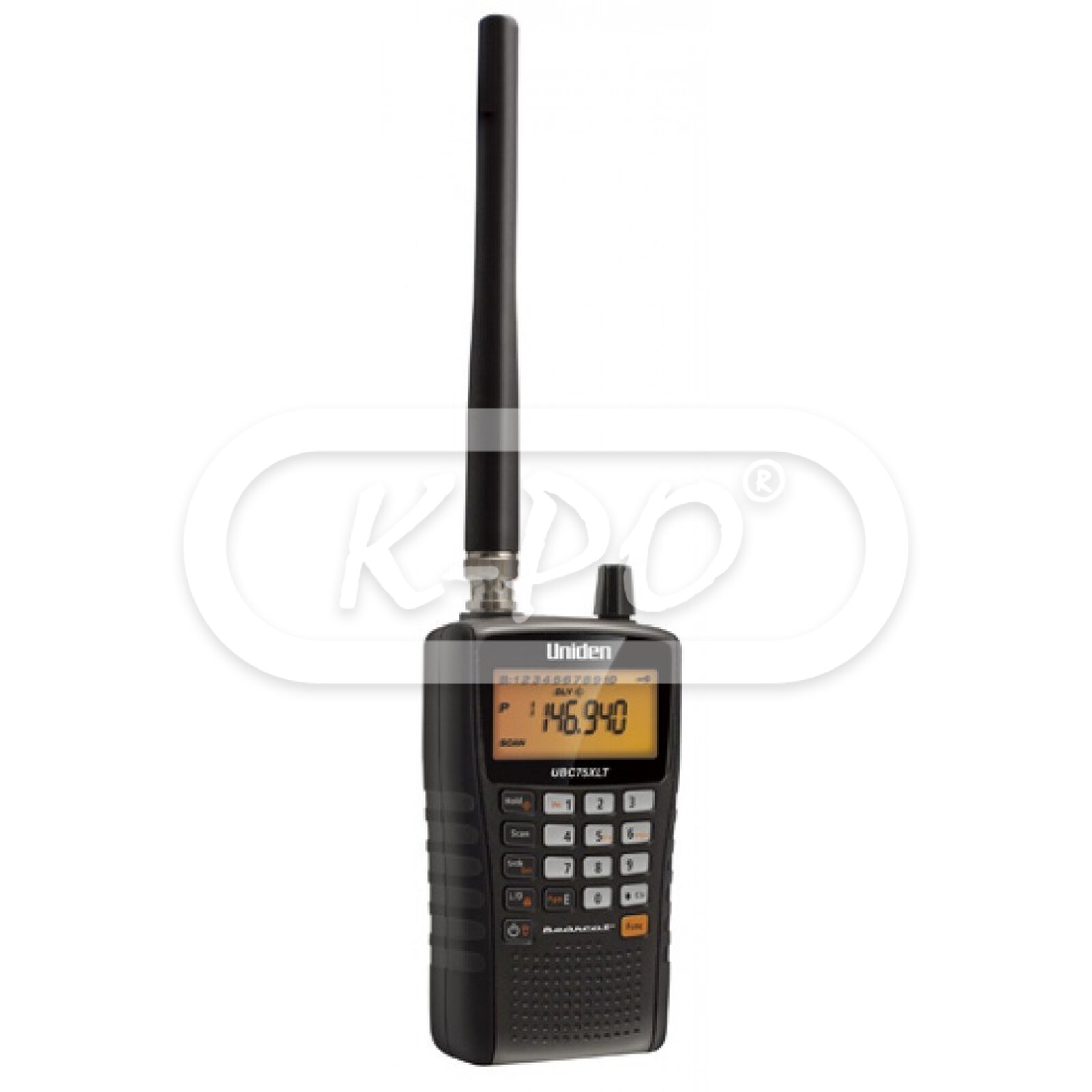

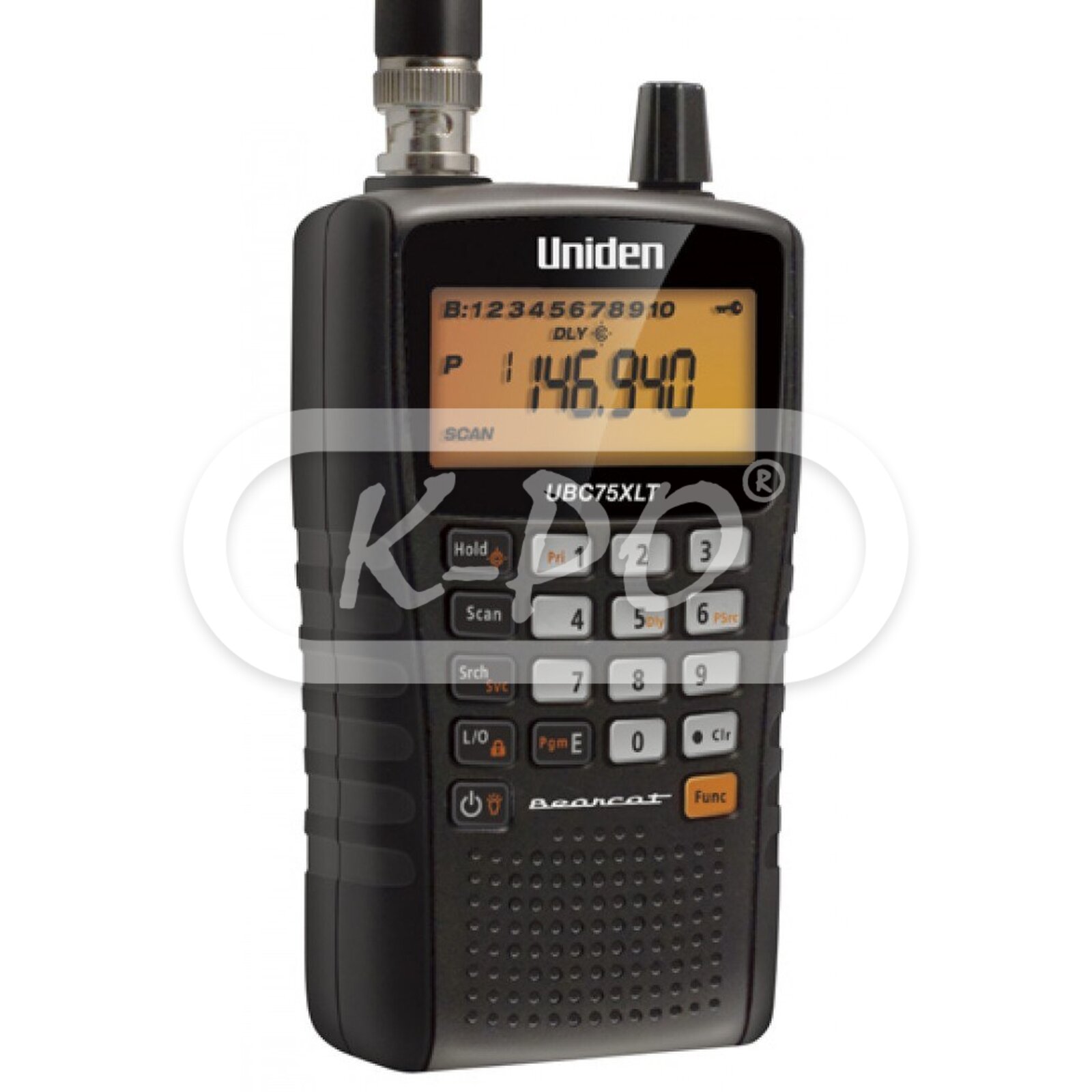

Uniden - Bearcat UBC 75 XLT

Product code: 922075
Barcode: 4954355102802

The Uniden UBC 75 XLT is a compact 300 channel handheld scanner with 5 / 8.33 / 12.5 kHz steps and fast scanning rate of 90 channels per second. Ideal for listening to the communication from civil air control, boats, truckers operating on CB radio, Ham radio/amateur operators, sporting events, and churches etc.

Frequency range: 25 - 88 / 108 - 174 / 400 - 512 MHz
Shipped today - Stock: 8
€149.94 (123.92 excl. 21% VAT)

Electrical data

  • Channels: 300
  • Bands: 10
  • Operating temperature: –20°C to +60°C
  • Scan rate: 90 Channels per second (max)
  • Search rate: Normal 90 steps per second (max) / Hyper 270 steps per second (max)
  • Priority sampling: 2 Seconds
  • Scan delay: 2 Seconds
  • Internal speaker: 24 ohm / 0.8W Max (32 Ø)
  • Audio output: 360mW nominal (24 ohm)
  • Power Requirements: 2 AA Alkaline Batteries

Features

  • Close call: Yes
  • PC programming: Yes
  • Custom search: Yes
  • Quick search: Yes
  • Turbo search: Yes
  • Search lockout: Yes
  • Lock-out function: Yes
  • Priority channels: Yes
  • Priority scan: Yes
  • Priority scan with do not disturb: Yes
  • Duplicate channel alert: Yes
  • Channel storage banks: Yes
  • Two-second scan delay: Yes
  • Seven service bands: Yes
  • Key lock: Yes
  • Direct access: Yes
  • Display backlight: Yes
  • Memory backup: Yes
  • Key confirmation tones: Yes
  • Battery low alert: Yes
  • Battery save: Yes

Receiver

  • Sensitivity: SINAD 12 dB, nominal

Mechanical data

  • Length: 115mm
  • Height: 32.7mm
  • Width: 67mm
  • Weight: 175 (with out antenna and battery)
  • Antenna connector: BNC
  • External Jacks: Phone Jack (3.5mm)

Inside the box

  • Transceiver: Yes
  • Battery: Rechargeable Ni-MH batteries
  • Wrist strap: Yes
  • Mounting bracket: Yes (belt clip)
  • Antenna: Yes
  • USB cable: Yes
