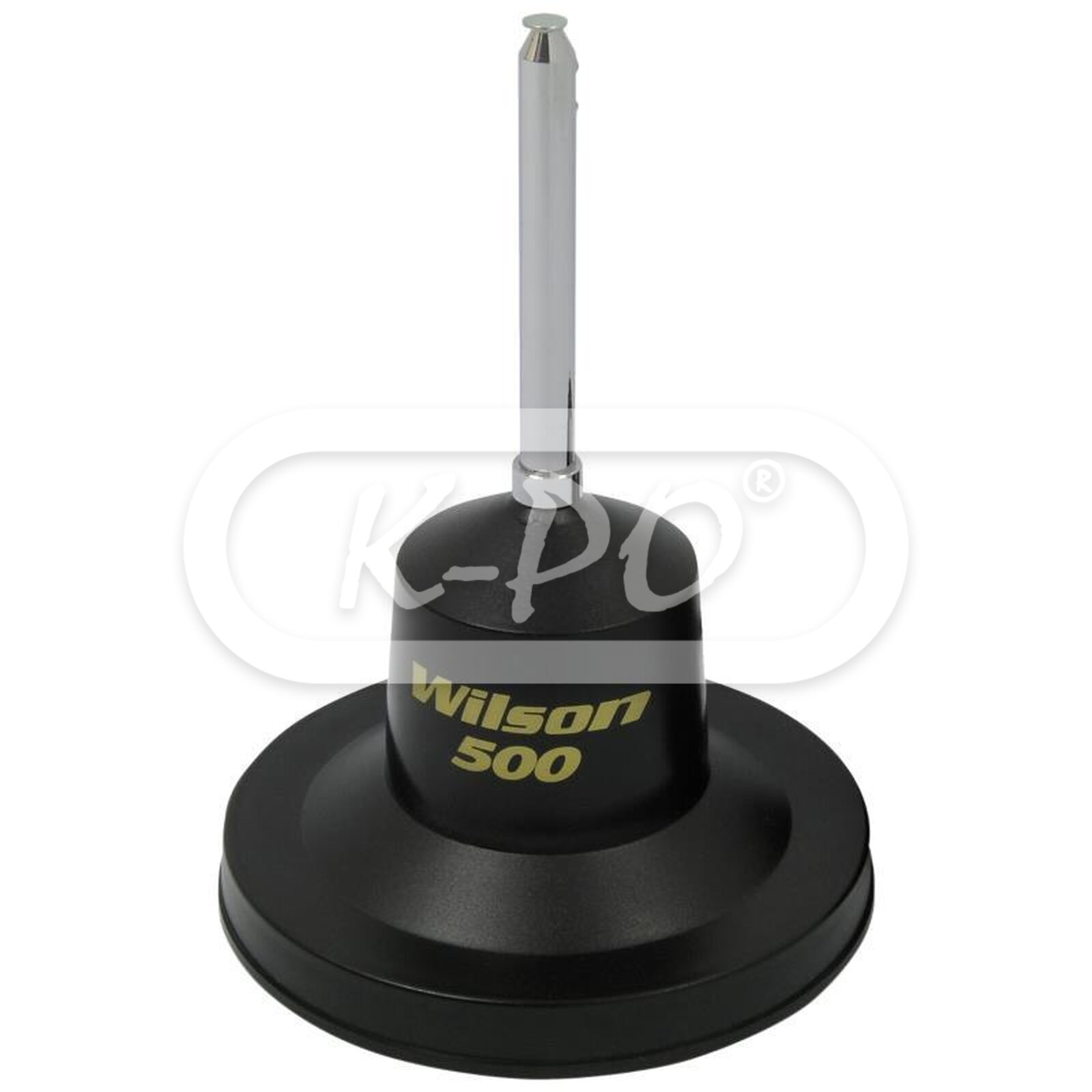

Wilson - 500 Magnet

Product code: 200500
Factory code: 880-500100B

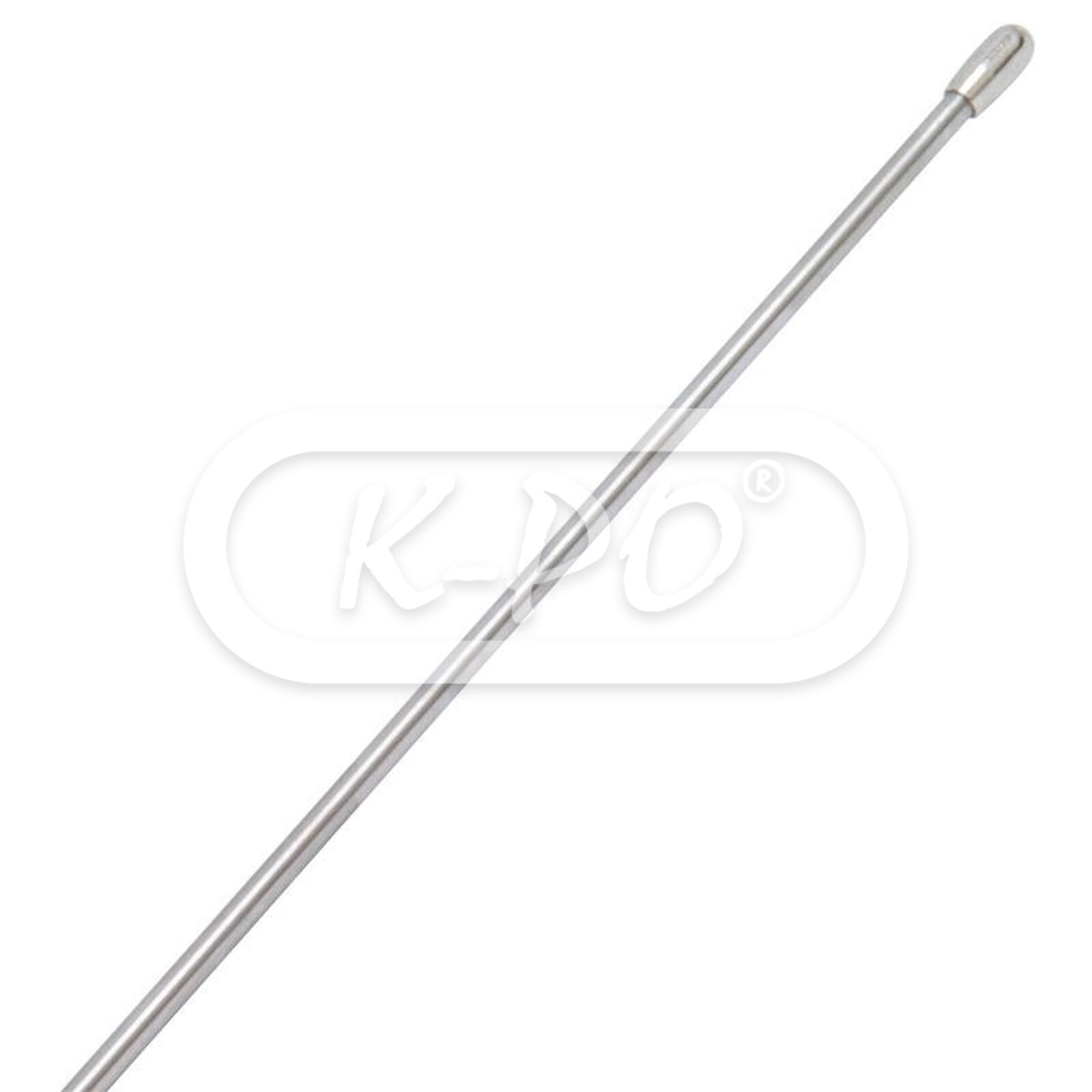

The original Wilson 500 CB and 10 meter amateur antenna magnet mount kit with 2000 Watt power handling capacity (ICAS) is made with high impact thermoplastic. Heavy-duty coil uses 12-guage copper wire and an exclusive low loss coil design uses a 54 inch (137 cm) 17-7-PH stainless steel whip.

Frequency range: 26 - 30 MHz
Out of stock - Longer delivery time
€74.34 (74.34 excl. 0% VAT)

Electrical data

  • Electrical type: Base loaded
  • Power peak: 2000 Watts (ICAS)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes

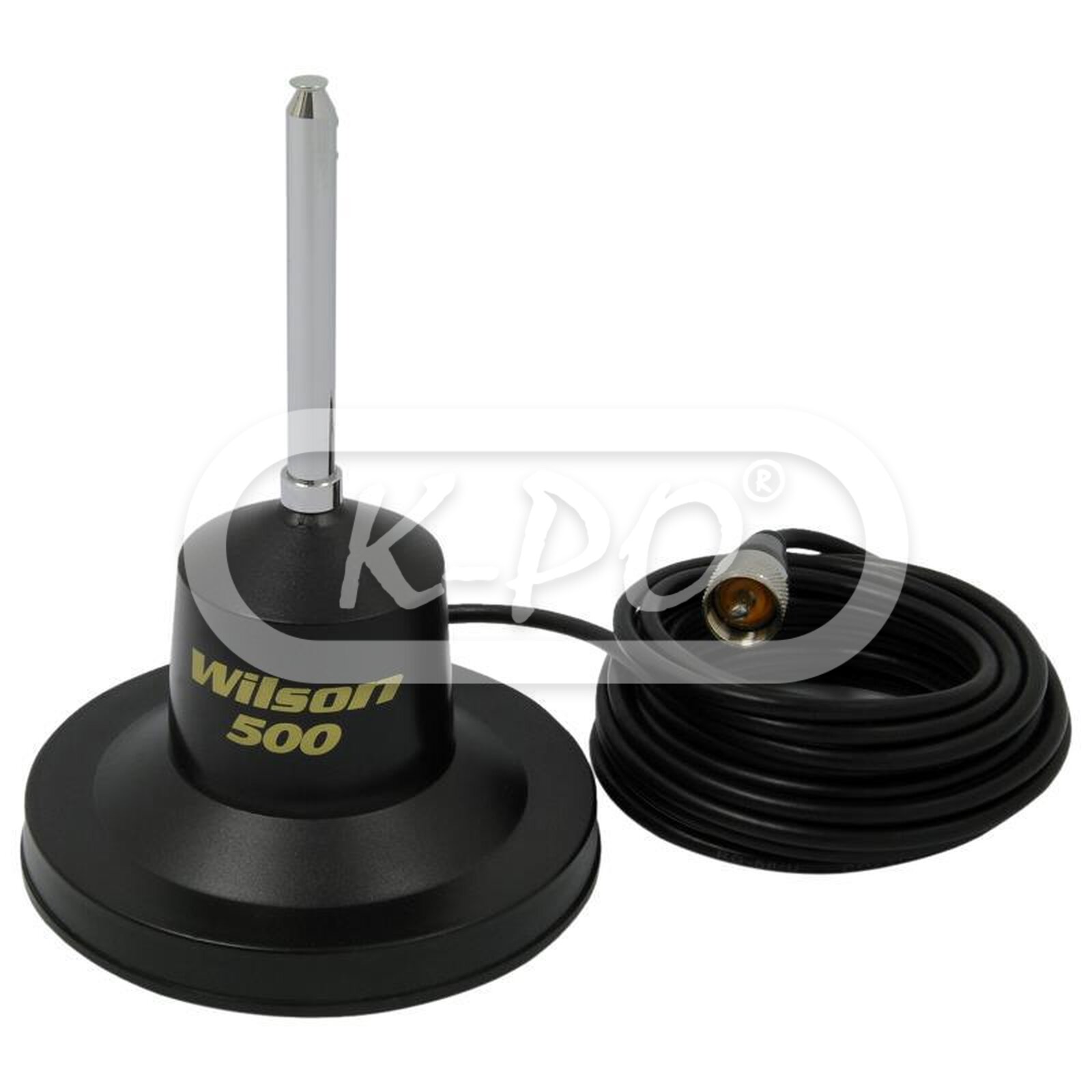

  • Cable length: 5.20 meter / RG 58

Mechanical data

  • Materials: Mobay thermoplastic, stainless steel 17/7 PH
  • Height: 151 cm
  • Mounting type: Magnet

Inside the box

  • Antenna: Yes
  • Radio connector: UHF-male (PL)
  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
