Wouxun - KG-D26 Energy PRO package

Product code: 7200010
Factory code: 7200010

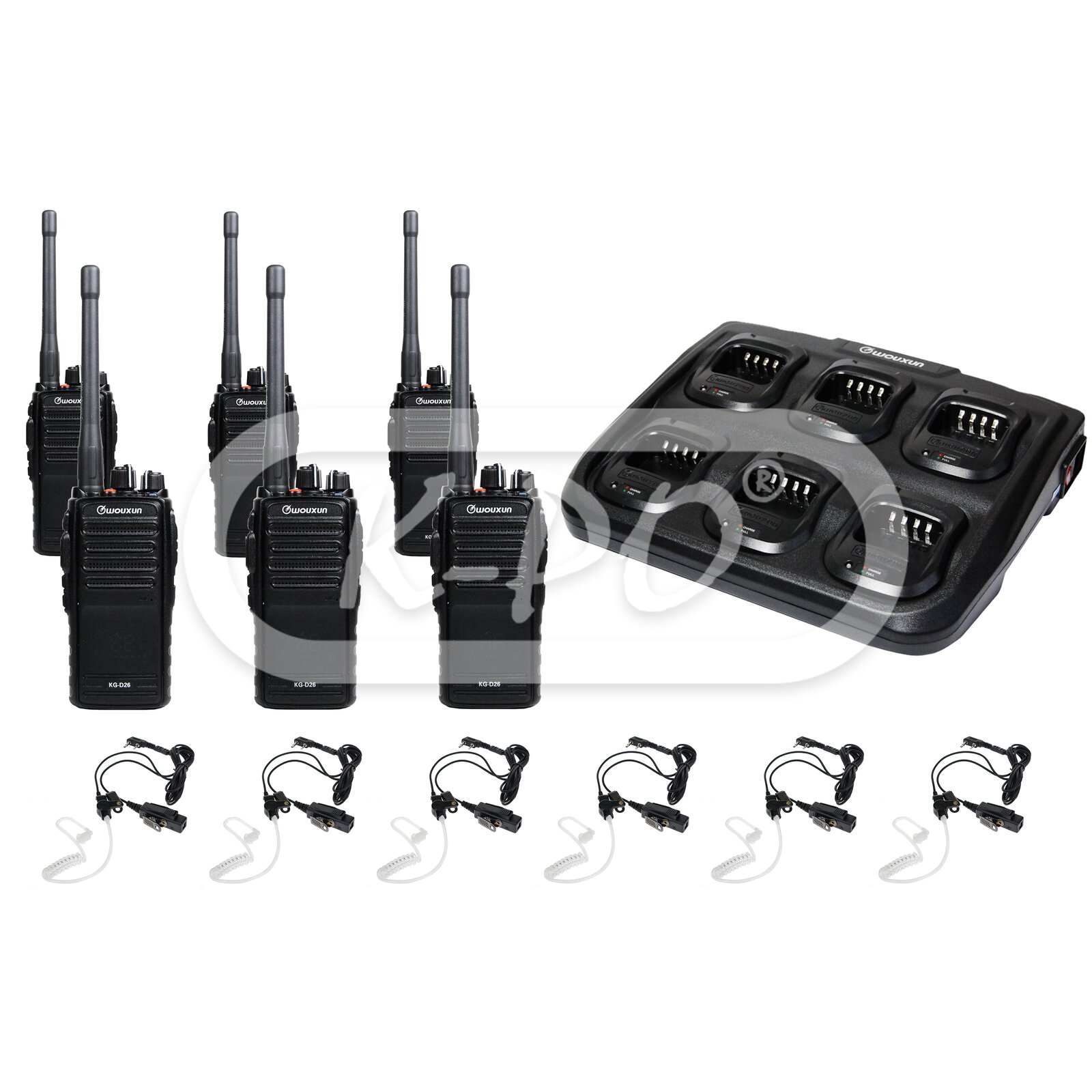

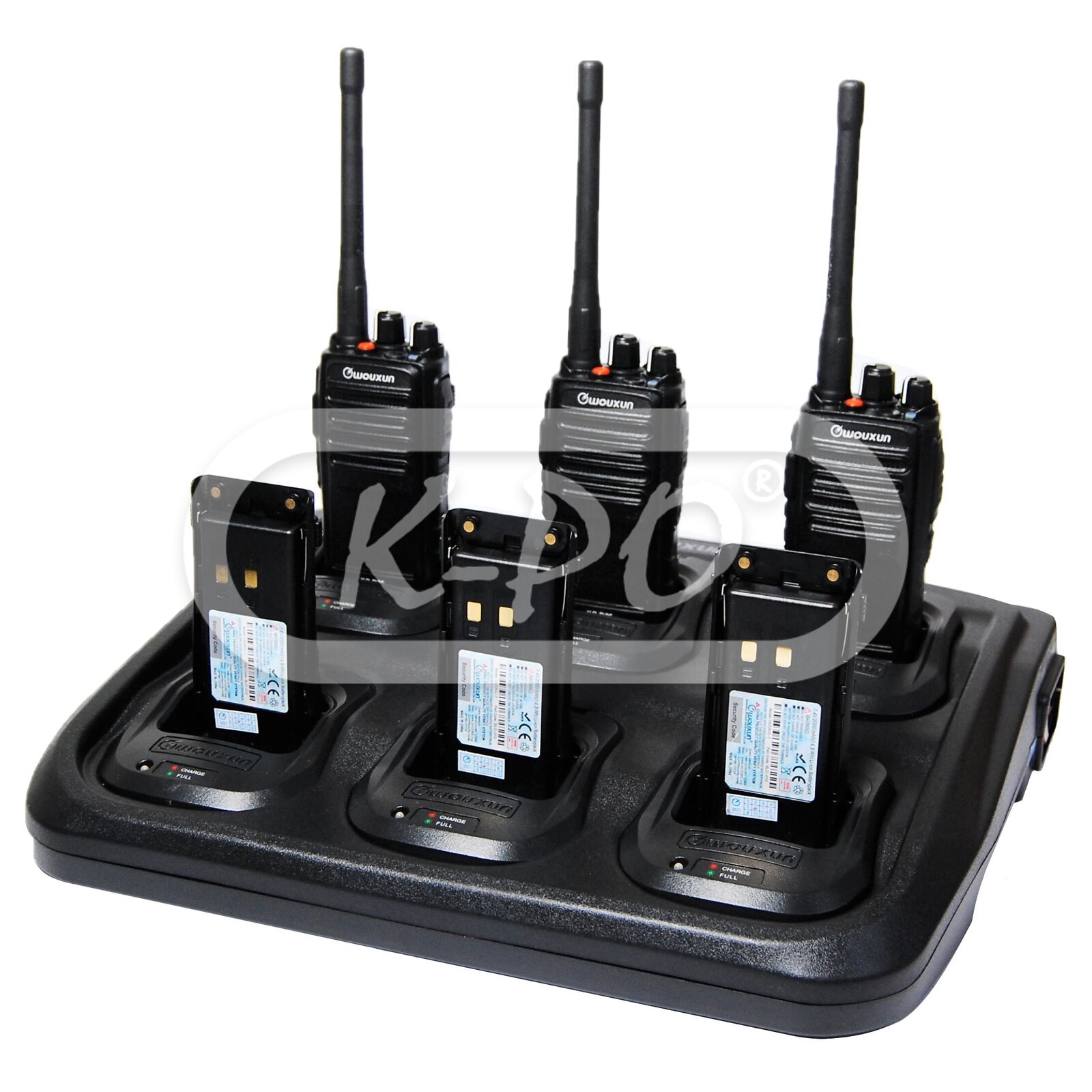

The Wouxun KG-D26 Energy PRO package is a set with 6 radios, 6 ear-microphones and an 6 way charger.

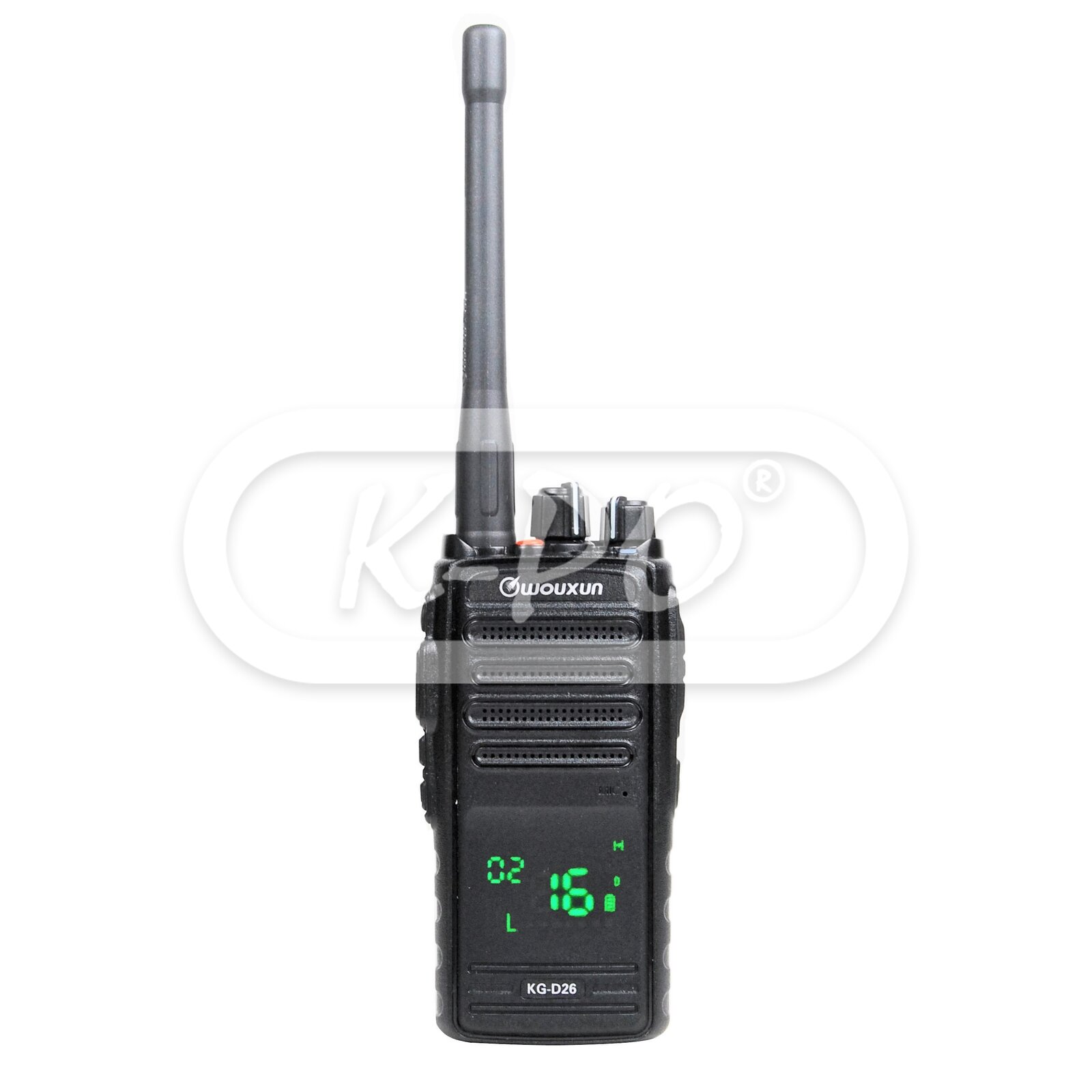

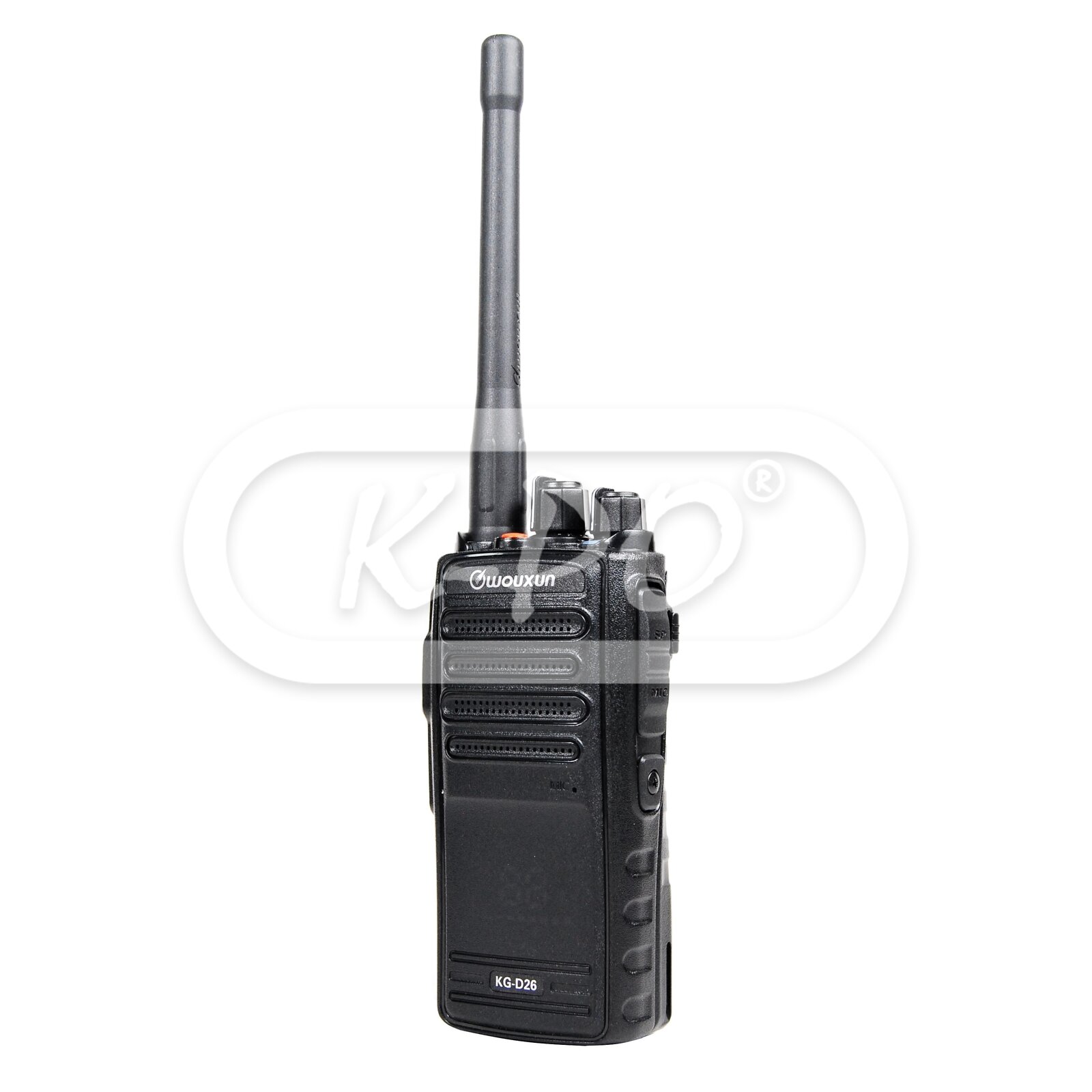

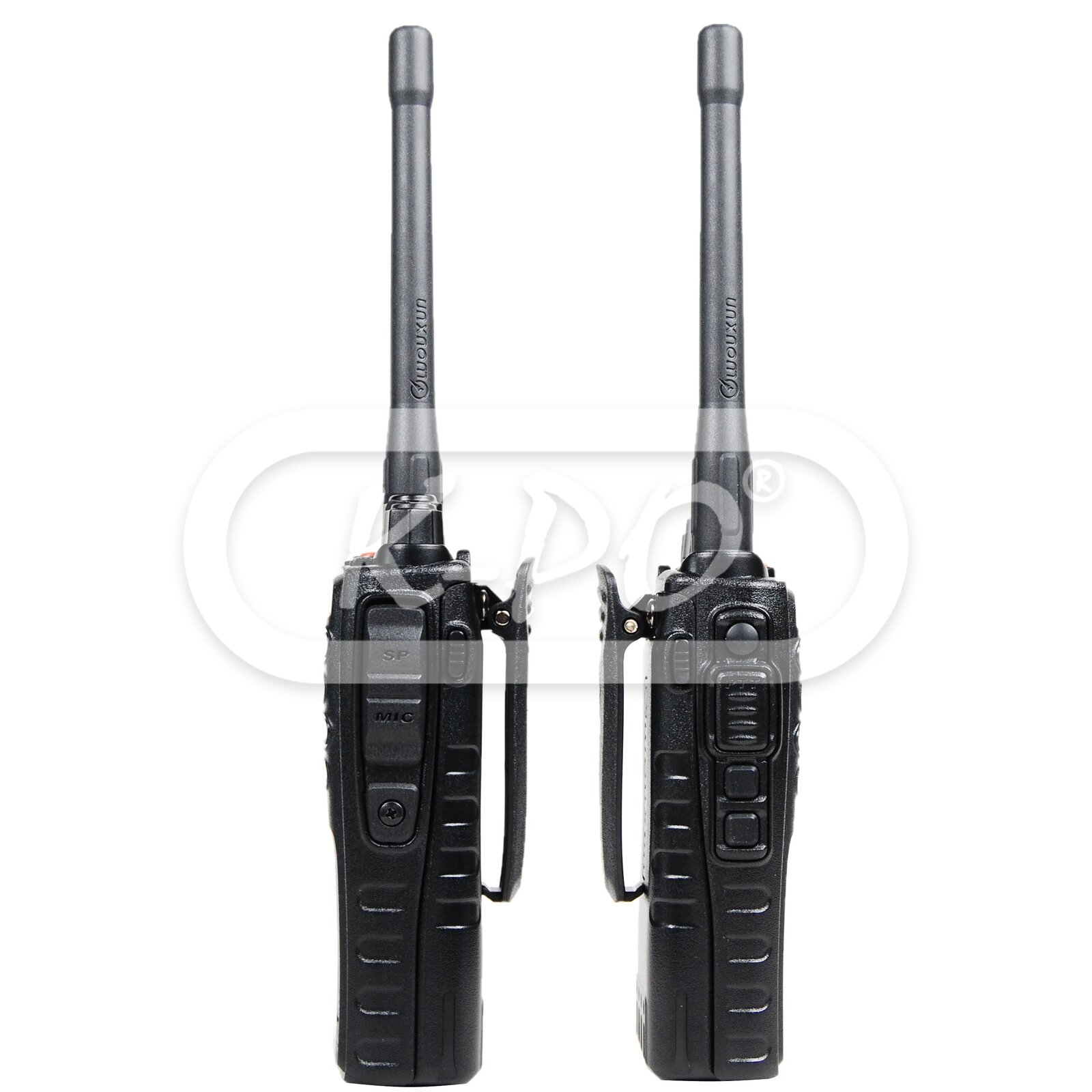

The Wouxun KG-D26 dPMR is fully compatible, analog and digital, with the Kenwood TK-3401D, TK-3601D and TK-3701D series. The hidden display is integrated in the strong radio body, which prevent it from damaging. It will clearly show you the: Channel number, Analogue / digital mode, Current zone, High / low power,Narrow / wide bandwidth, Battery status, Signal status, VOX indicator, DCS/CTCSS indicator and Time slot 1 / 2 indicator.

Frequency range: 446.0 - 446.2 MHz
Note - Price on request
€ -- (Price on request)

Features

  • Number of channels: 16
  • Number of zones: 99 programmable (3 zones preprogrammed)
  • Output power: 0.5 / 6 Watt
  • Channel spacing analogue: 12.5 kHz
  • Channel spacing digital: 6.25 kHz
  • Call alert: Yes
  • Key lock: Yes
  • Programmable function keys: Yes
  • PC programming: Yes
  • Display: Yes
  • Display colors: Green
  • High/low power: Yes
  • Battery capacity: Li-ion 2000 mAh
  • Accessory connector: 2-pin Kenwood connector (K)
  • Voice guide: English and Chinese
  • VOX: Yes, activation by software
  • Scan: Yes, activation by software
  • Flashlight: Yes
  • RX group list: 32 groups, 8 members per group
  • Scanning list: 16 groups, 16 channels per group

Electrical data (radio)

  • Channels: 10000
  • Frequency stability: +/- 1.0 ppm
  • RX sensitivity: 0.25 uV
  • Microphone modulation: 120 mV
  • Microphone distortion: 12 mV
  • Adjacent channel power: > 60 dB at narrow bandwidth
  • Error radio: -118 dBm
  • Offset frequency: 100 Hz
  • Modulation: +3dB –3dB
  • Spurious Emission: > -57 d
  • Audio: +2 dB -10 dB
  • Audio output: Internal speaker 1 W - 12 Ohm / external output 1 W - 16 Ohm

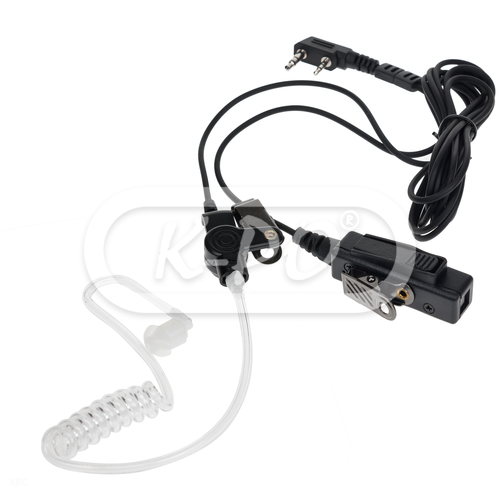

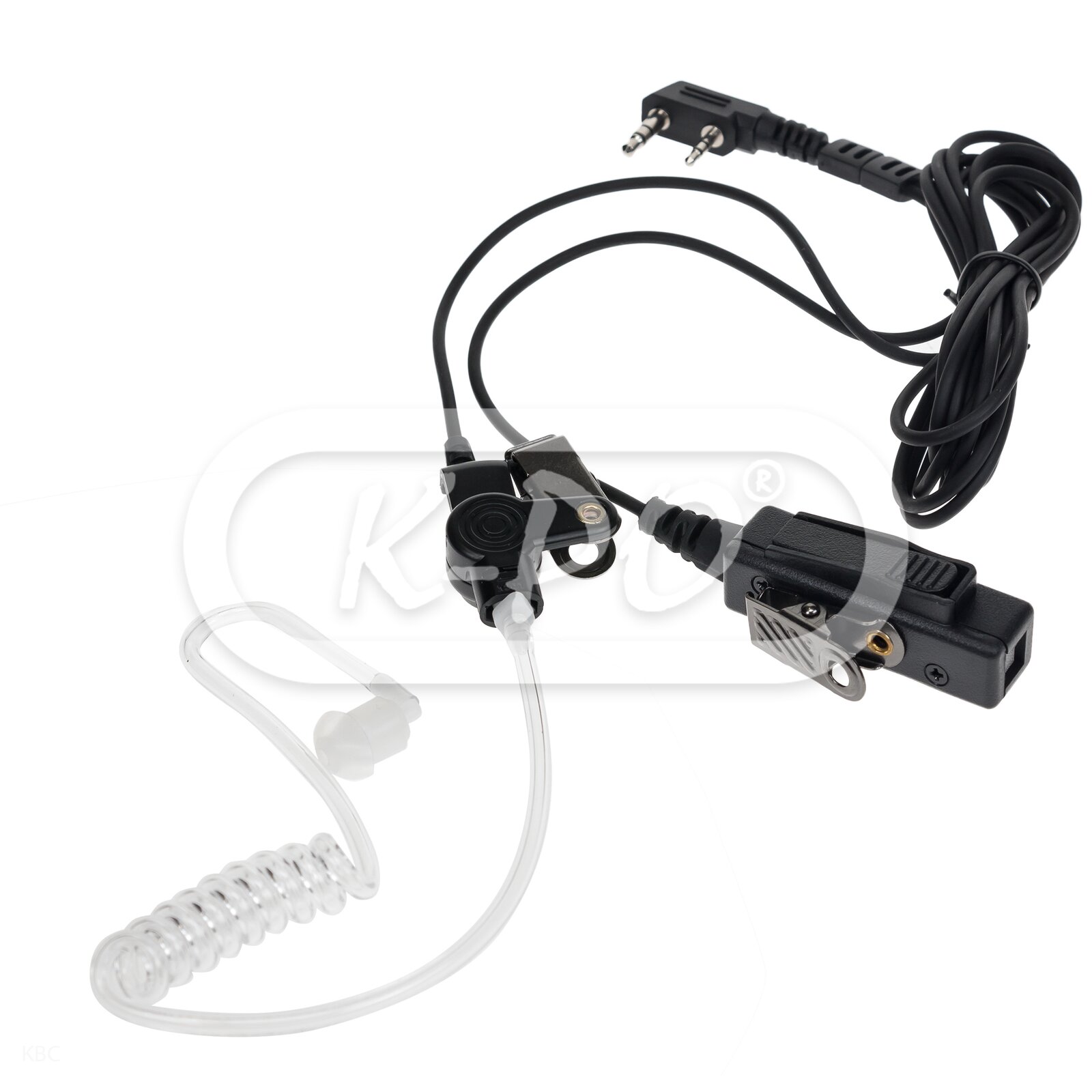

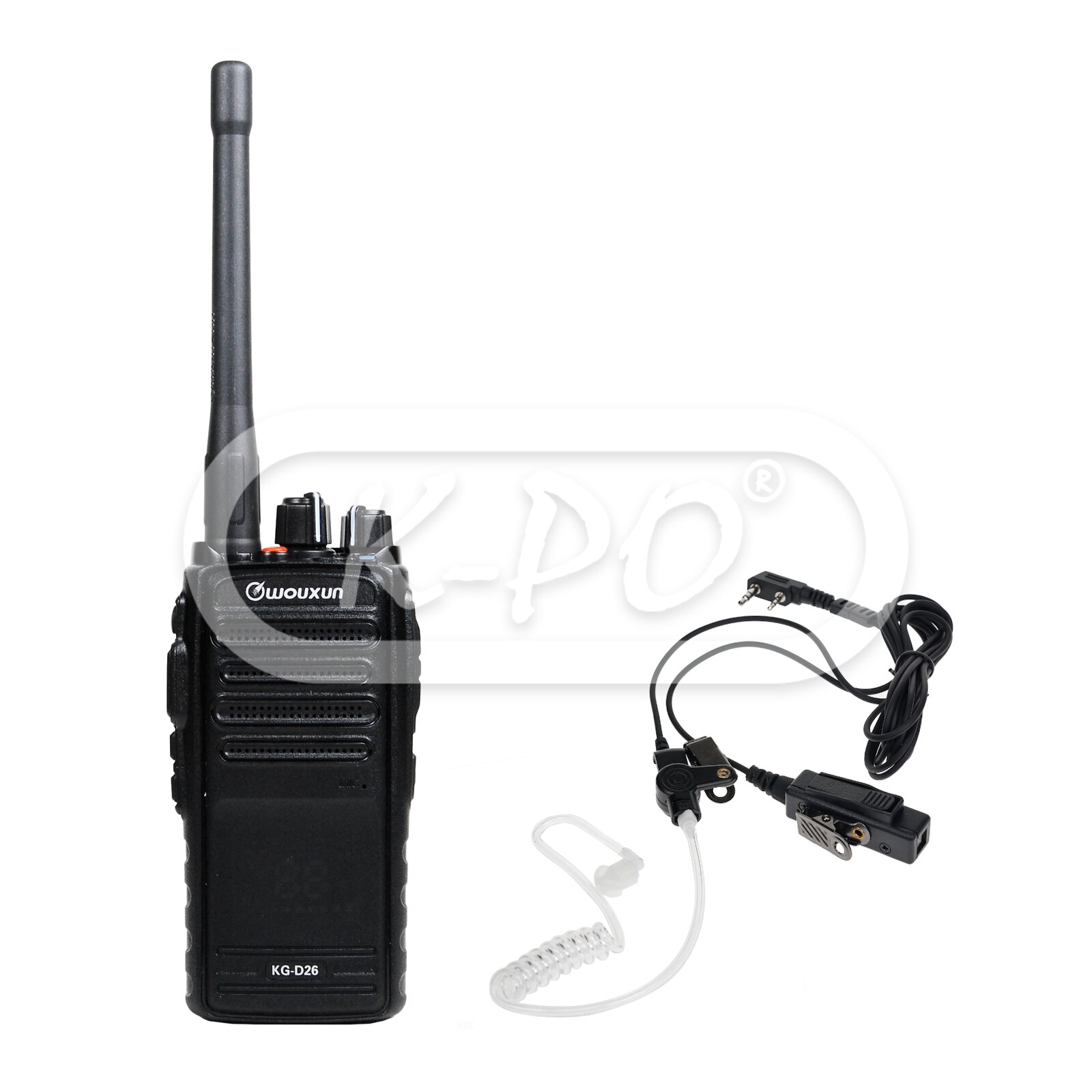

Electrical data (ear-microphone)

  • Speaker size: 16 mm
  • Sound pressure level: 90 dB ±3 dB
  • Impendance speaker: 90 Ohm ±10%
  • Audio output speaker: 100 mW
  • Size microphone: 9.7 x 5.0 mm
  • Impendance speaker: 90 Ohm ±10%
  • Frenquency response: 20 - 16000 Hz
  • Sensitivity microphone: -36 dB ± 2 dB
  • Impendance microphone: 2.2K Ohm

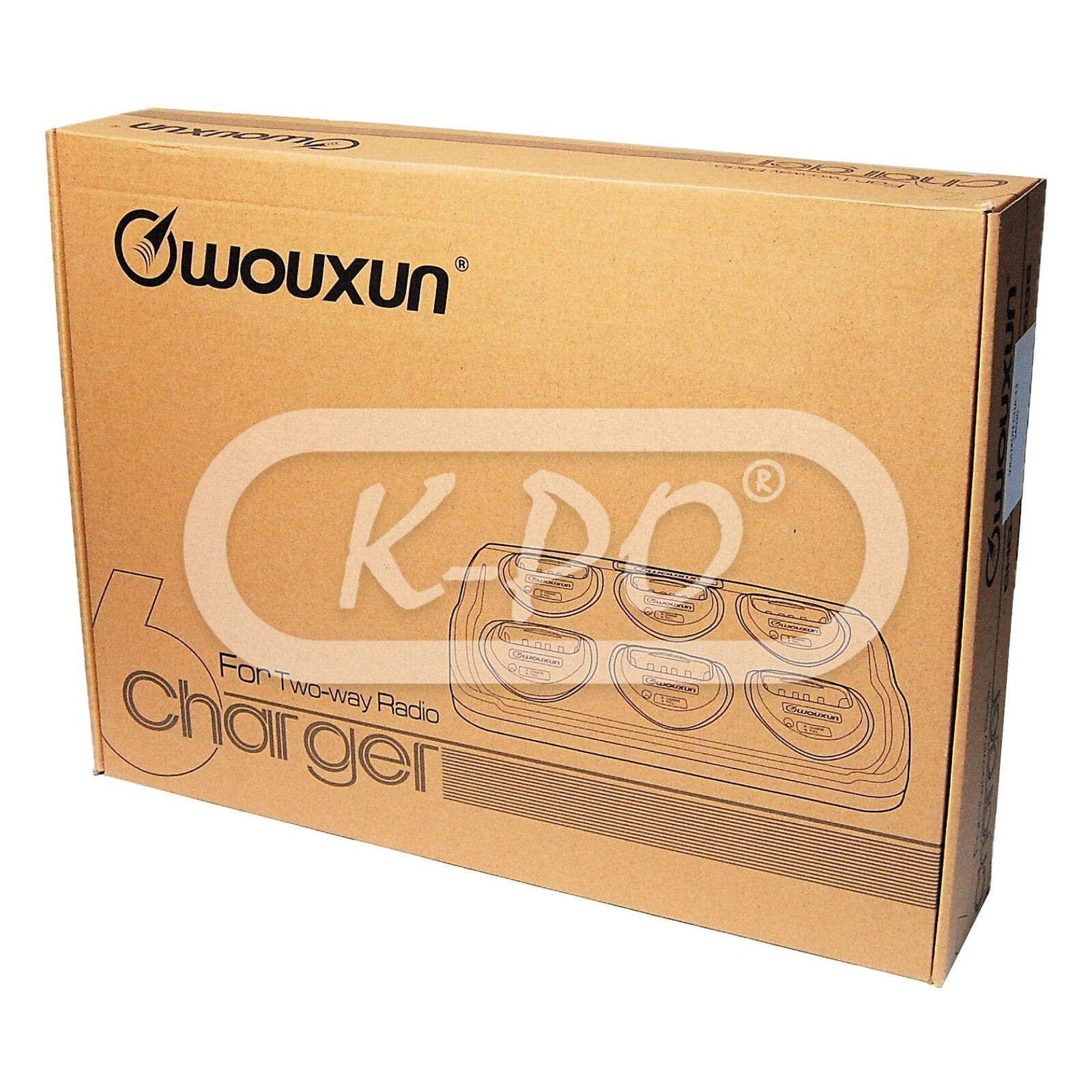

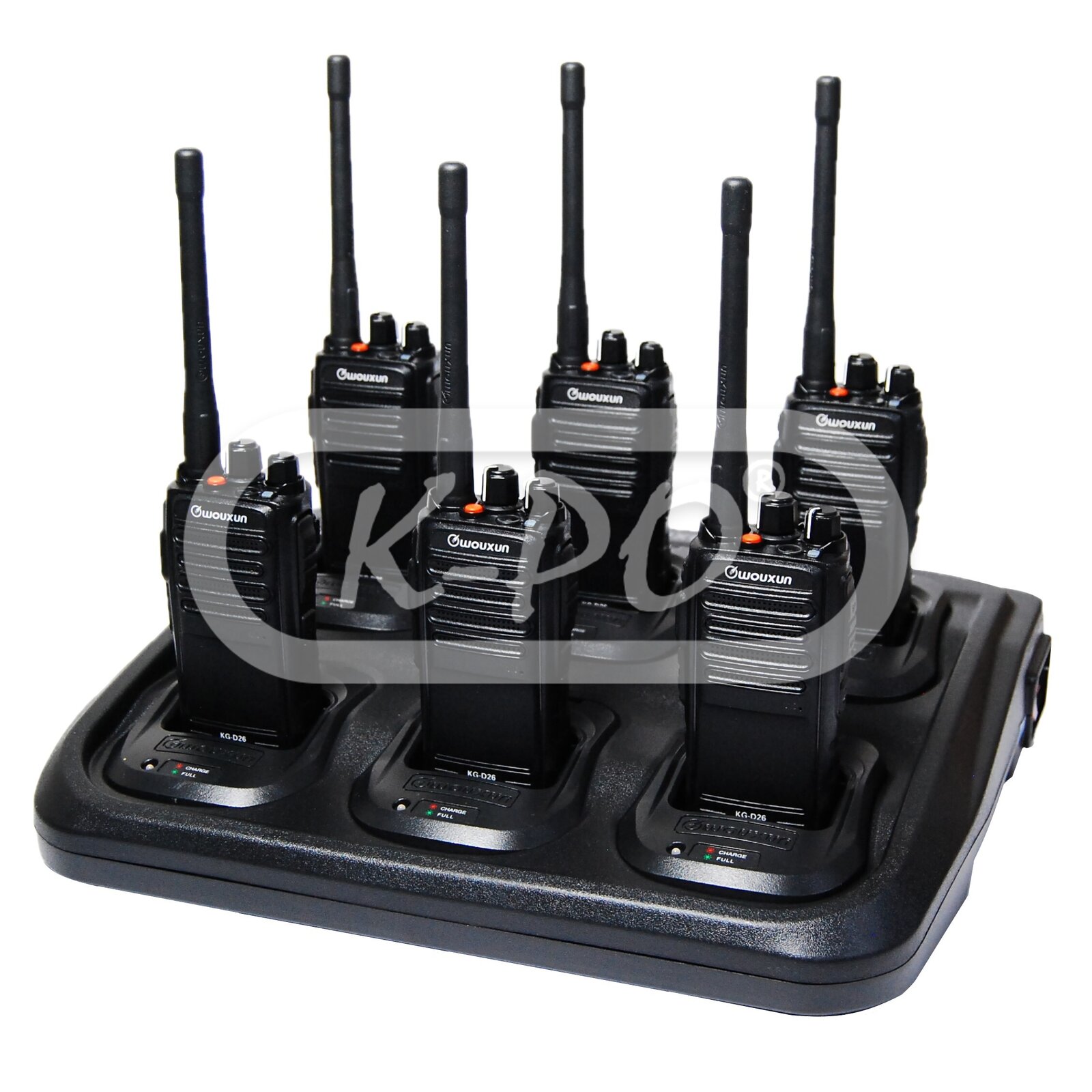

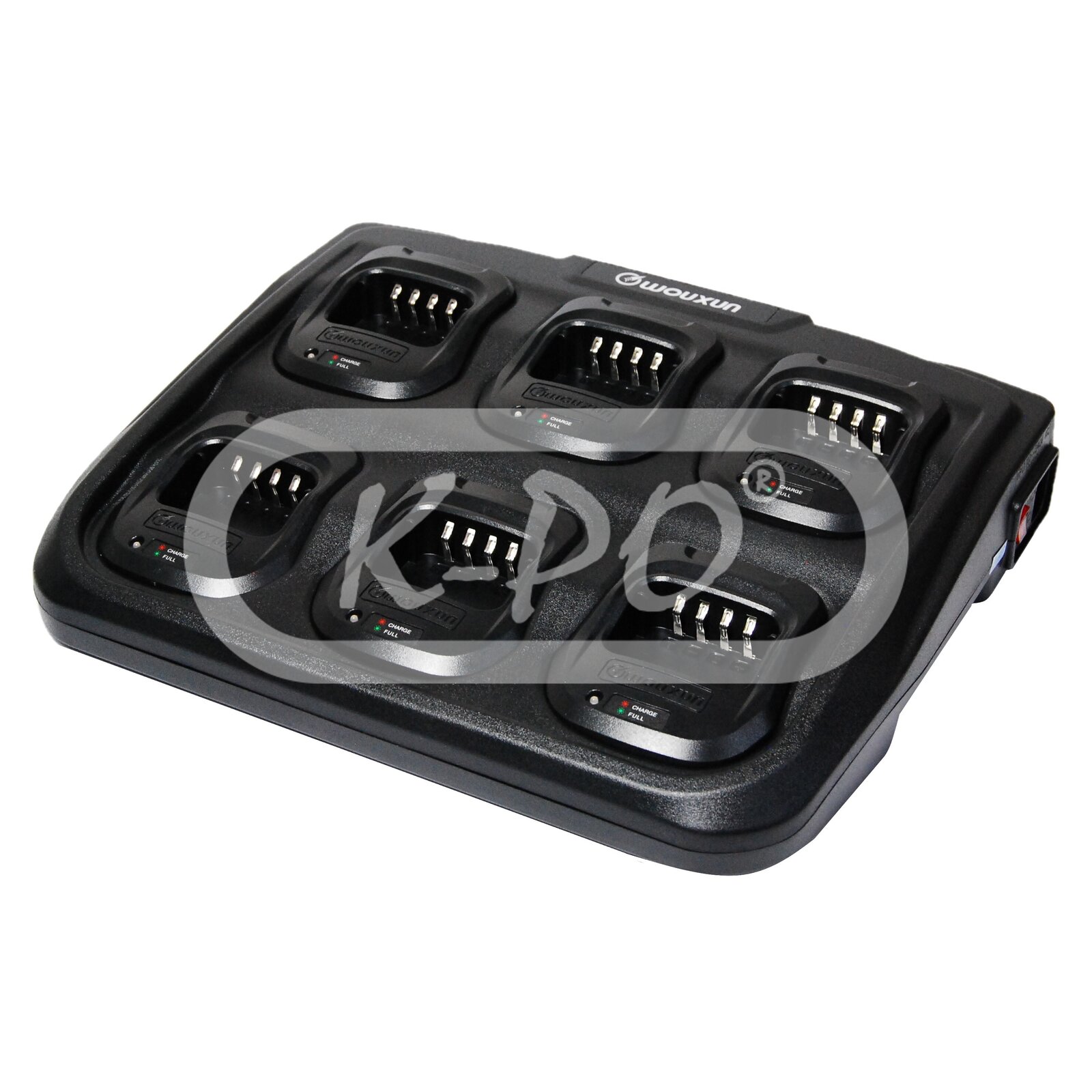

Features (6 way charger)

  • Suitable for: Wouxun KG-D26 / Wouxun KG-D901 / Wouxun KG-UV9D / Wouxun KG-UV9D Plus / Wouxun KG-UV9K /
  • Input voltage: 230 Volt
  • Battery charging function: Yes
  • Number of radios: 6

Mechanical data (radio)

  • Length: 53 mm
  • Height: 245 mm
  • Width: 33 mm
  • Weight: 245 gram
  • Antenna connector: SMA male
  • Operating voltage: 7.5V DC +/- 20%
  • Battery life: Battery save off: 24 hours, battery save on: 30 hours (5% transmit, 5% receive, 90% standby)

Mechanical data (6 way charger)

  • Length: 410 mm
  • Height: 70 mm
  • Width: 300 mm
  • Weight: 200 gram
  • Color: Black

Inside the box

  • Radio: 6 pcs
  • Microphone: 6 pcs
  • Desktop charger: 6 pcs

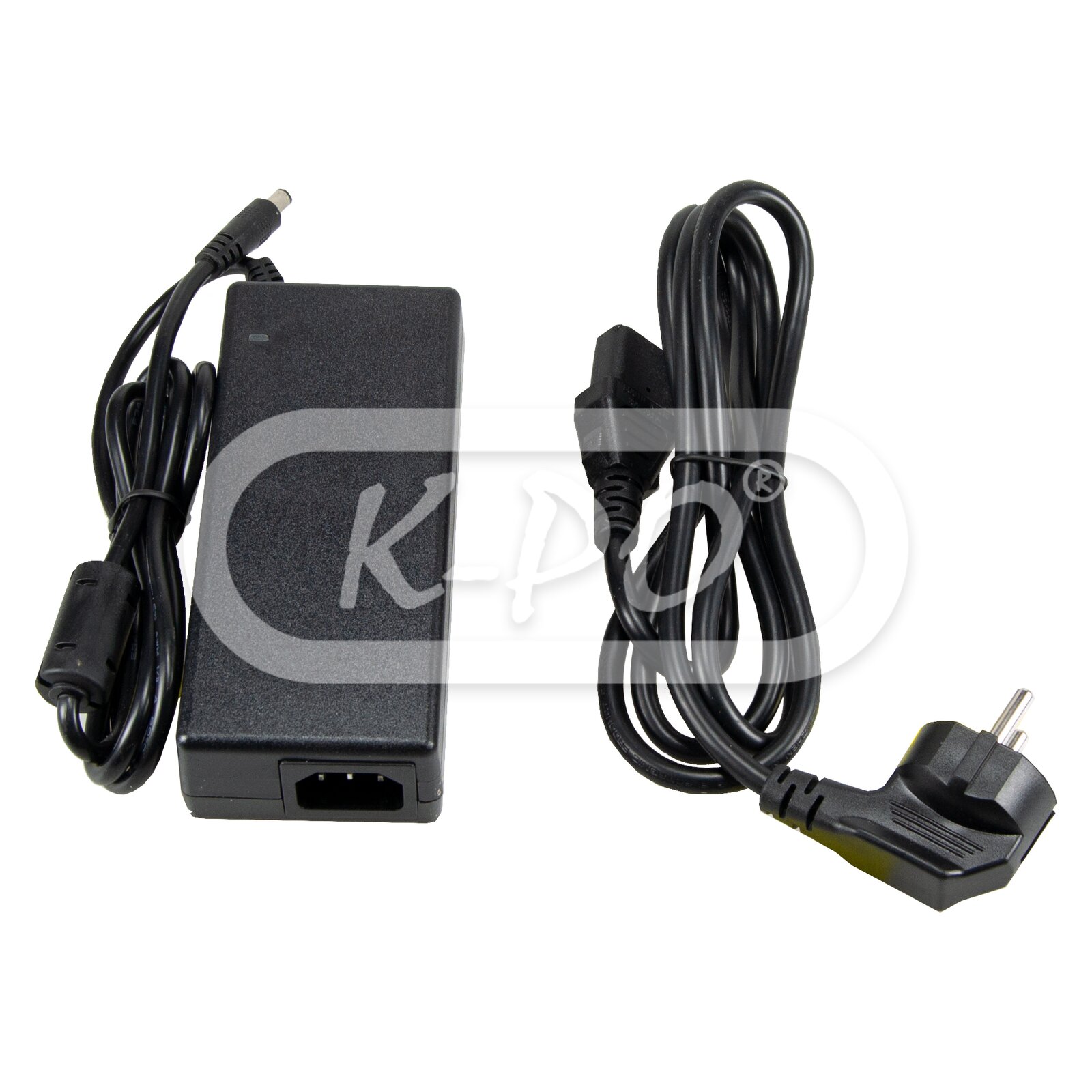

  • Wall adapter: 6 pcs
  • Batteries (pack): 6 pcs
  • Belt clip: 6 pcs
  • User manual: English
  • Hand strap: 6 pcs
  • 6 way charger: 1 pcs
