Wouxun - KG-D26 Work package

Product code: 7200007
Factory code: 7200007

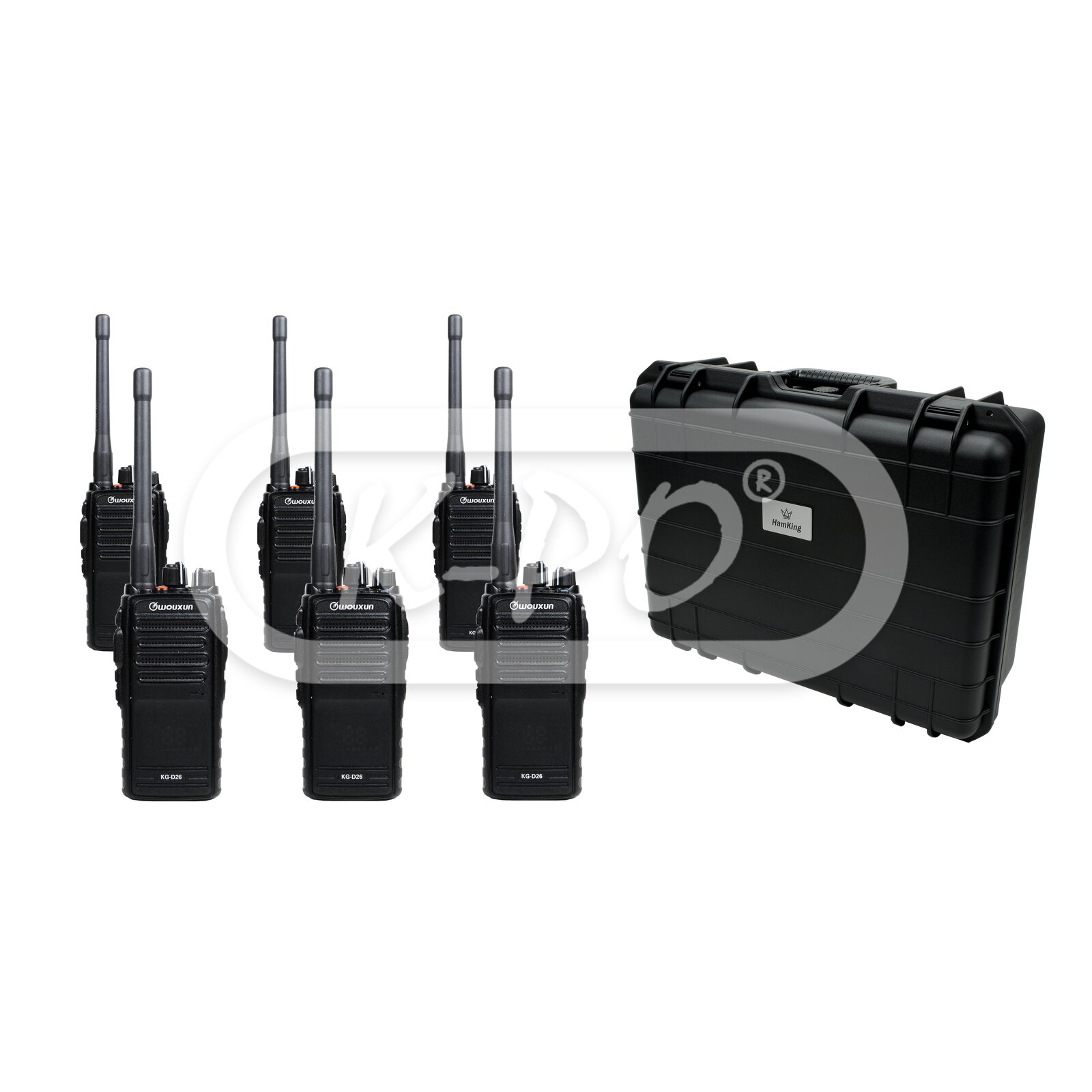

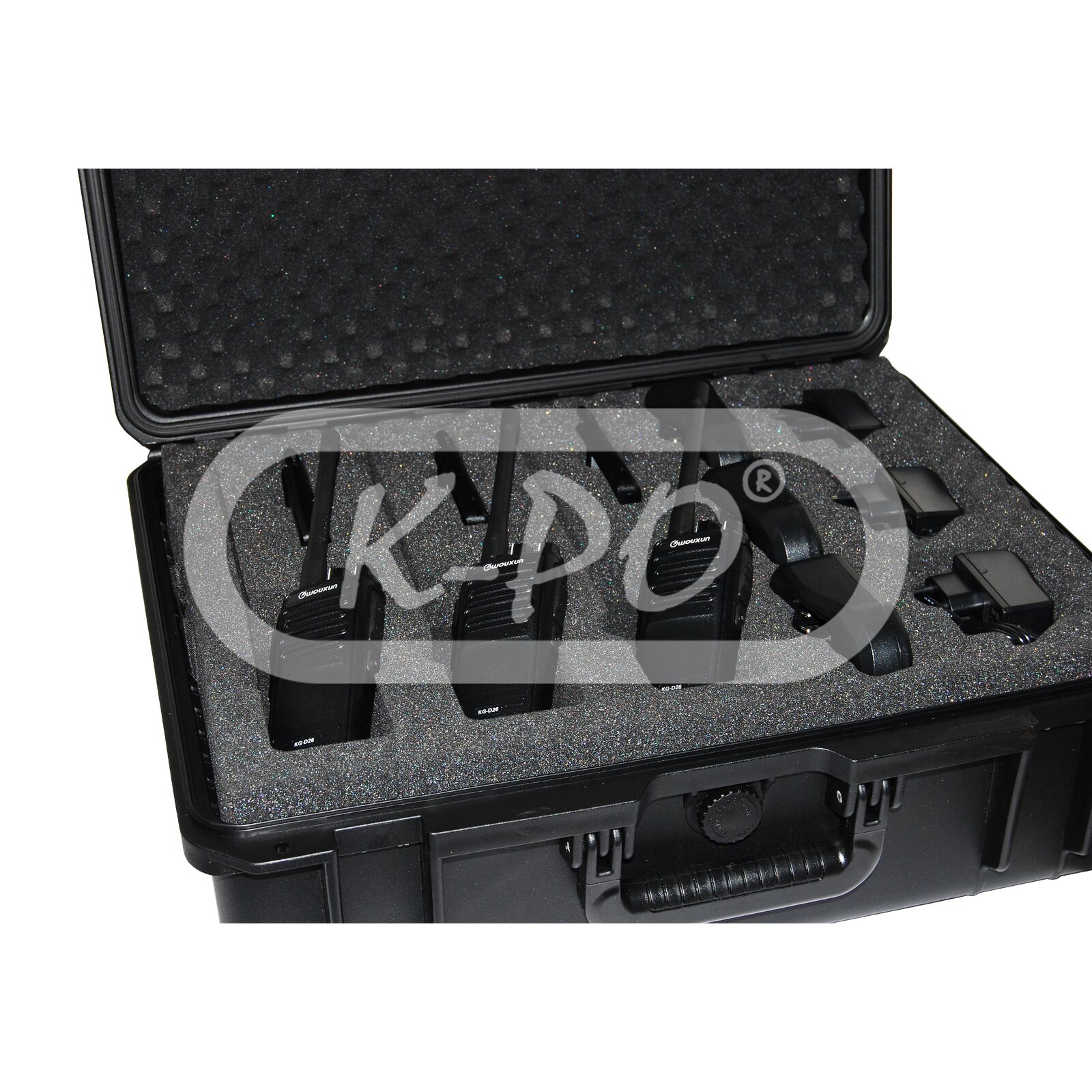

The Wouxun KG-D26 Work package is a set with 6 radios and a hard case.

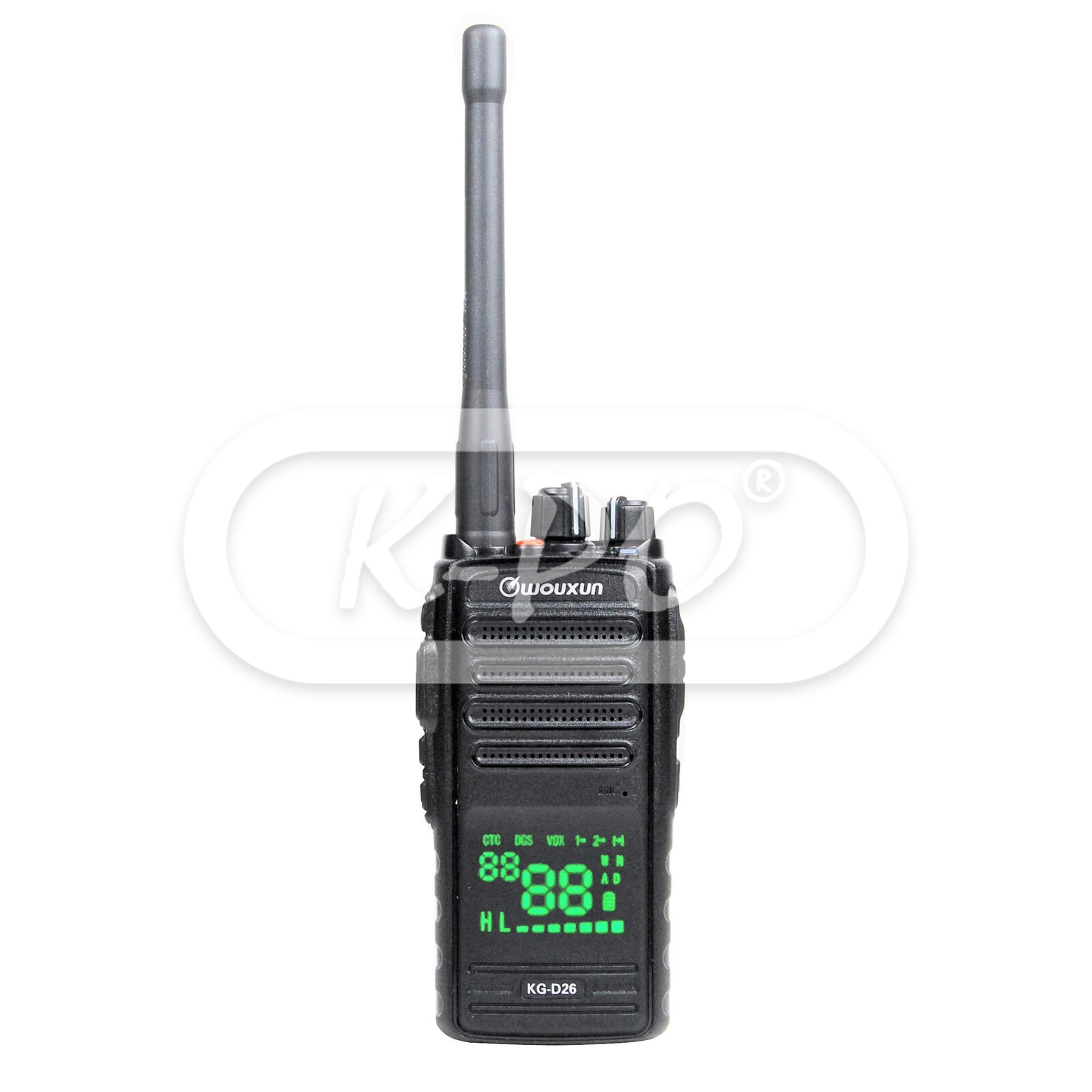

The Wouxun KG-D26 dPMR is fully compatible, analog and digital, with the Kenwood TK-3401D, TK-3601D and TK-3701D series. The hidden display is integrated in the strong radio body, which prevent it from damaging. It will clearly show you the: Channel number, Analogue / digital mode, Current zone, High / low power,Narrow / wide bandwidth, Battery status, Signal status, VOX indicator, DCS/CTCSS indicator and Time slot 1 / 2 indicator.

Frequency range: 446.0 - 446.2 MHz
Out of stock - Longer delivery time
€826.40 (826.4 excl. 0% VAT)

Features

  • Number of channels: 16
  • Number of zones: 99 programmable (3 zones preprogrammed)
  • Output power: 0.5 / 6 Watt
  • Channel spacing analogue: 12.5 kHz
  • Channel spacing digital: 6.25 kHz
  • Call alert: Yes
  • Key lock: Yes
  • Programmable function keys: Yes
  • PC programming: Yes
  • Display: Yes
  • Display colors: Green
  • High/low power: Yes
  • Battery capacity: Li-ion 2000 mAh
  • Accessory connector: 2-pin Kenwood connector (K)
  • Voice guide: English and Chinese
  • VOX function: Yes, activation by software
  • Scan function: Yes, activation by software
  • Flaslight: Yes
  • RX group list: 32 groups, 8 members per group
  • Scanning list: 16 groups, 16 channels per group

Electrical data (radio)

  • Channels: 10000
  • Frequency stability: +/- 1.0 ppm
  • RX sensitivity: 0.25 uV
  • Microphone modulation: 120 mV
  • Microphone distortion: 12 mV
  • Adjacent channel power: > 60 dB at narrow bandwidth
  • Error radio: -118 dBm
  • Offset frequency: 100 Hz
  • Modulation: +3dB –3dB
  • Spurious Emission: > -57 d
  • Audio: +2 dB -10 dB
  • Audio output: Internal speaker 1 W - 12 Ohm / external output 1 W - 16 Ohm

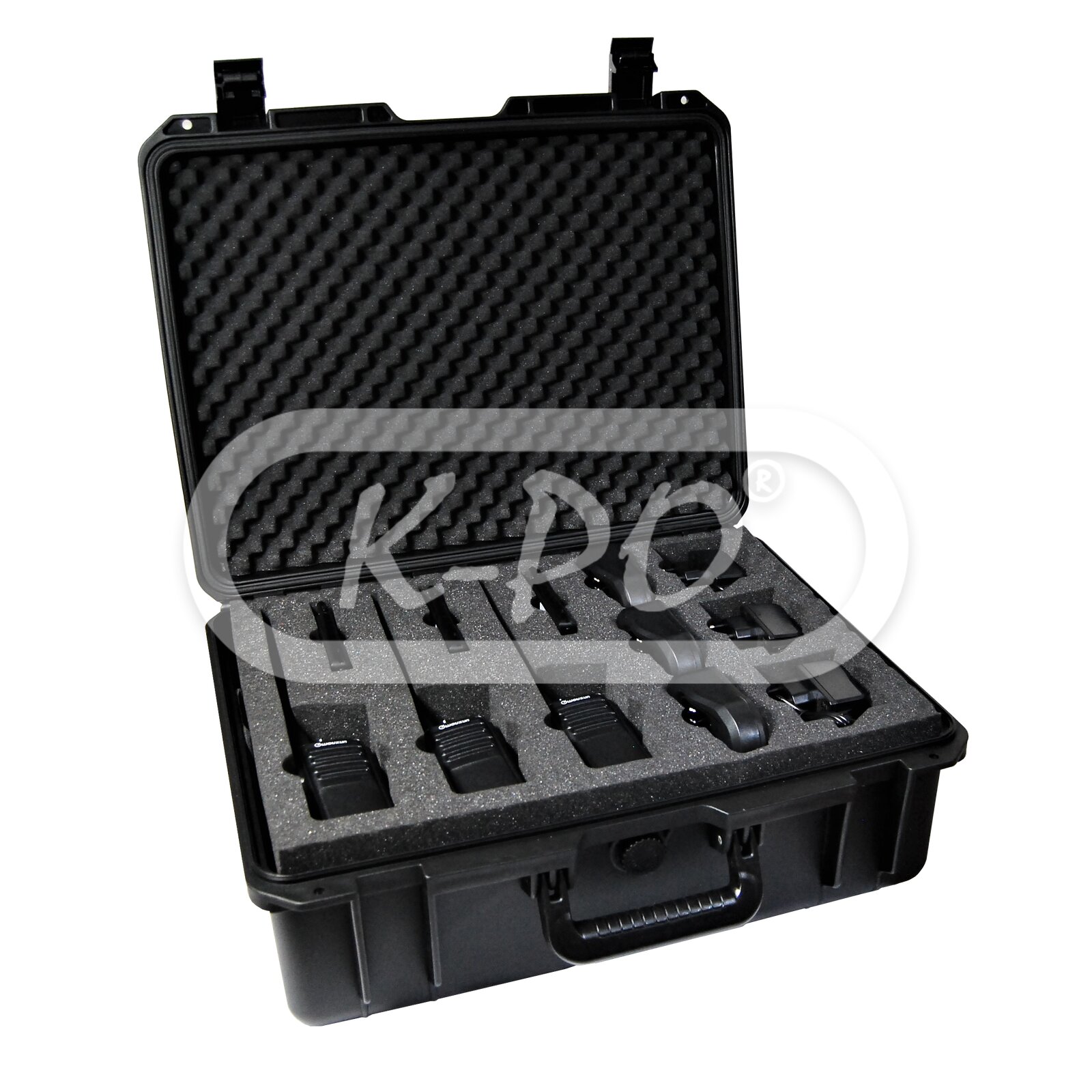

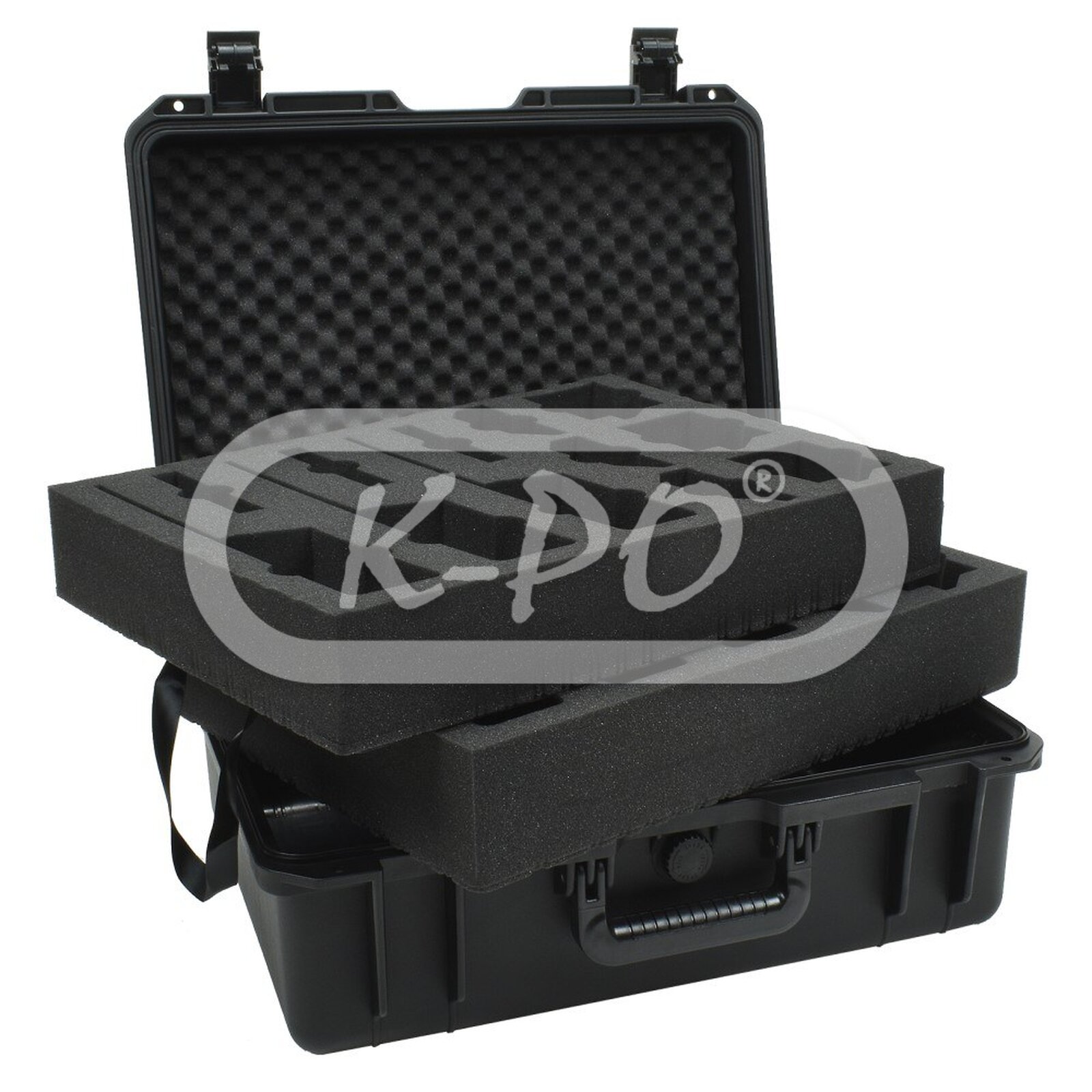

Features (hard case)

  • Pre-cut foam for radios: Yes
  • Pre-cut foam for radios: 2
  • Number of radios: 6
  • Removable top foam layer: Yes
  • Shock-resistant: Yes
  • Waterproof: Yes
  • Padlock hole(s): Yes

Mechanical data (radio)

  • Length: 53 mm
  • Height: 245 mm
  • Width: 33 mm
  • Weight: 245 gram
  • Antenna connector: SMA male
  • Operating voltage: 7.5V DC +/- 20%
  • Battery life: Battery save off: 24 hours, battery save on: 30 hours (5% transmit, 5% receive, 90% standby)

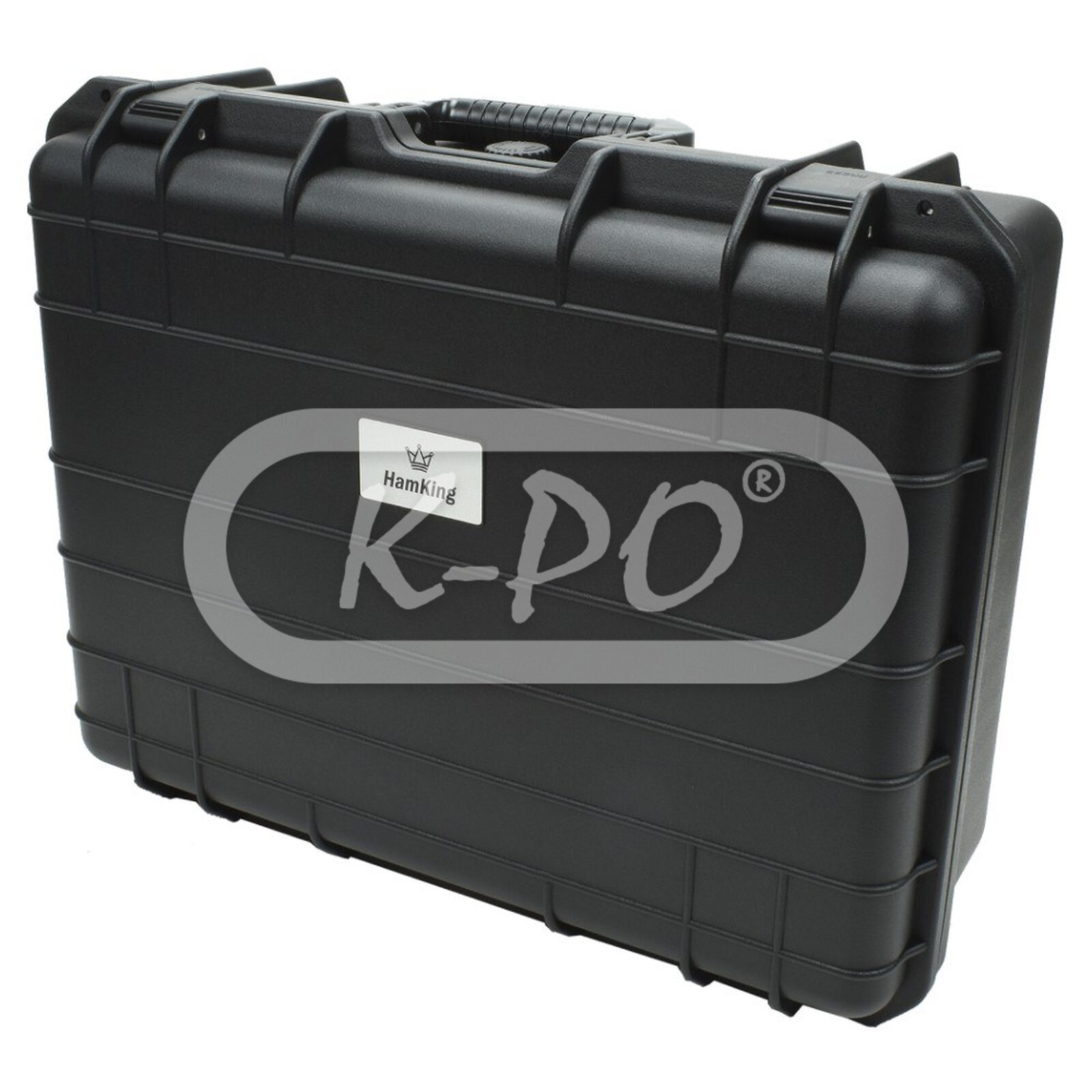

Mechanical data (hard case)

  • Materials: PVC and foam
  • Length: 515 mm
  • Height: 415 mm
  • Width: 200 mm
  • Weight: 4400 gram
  • Color: Black

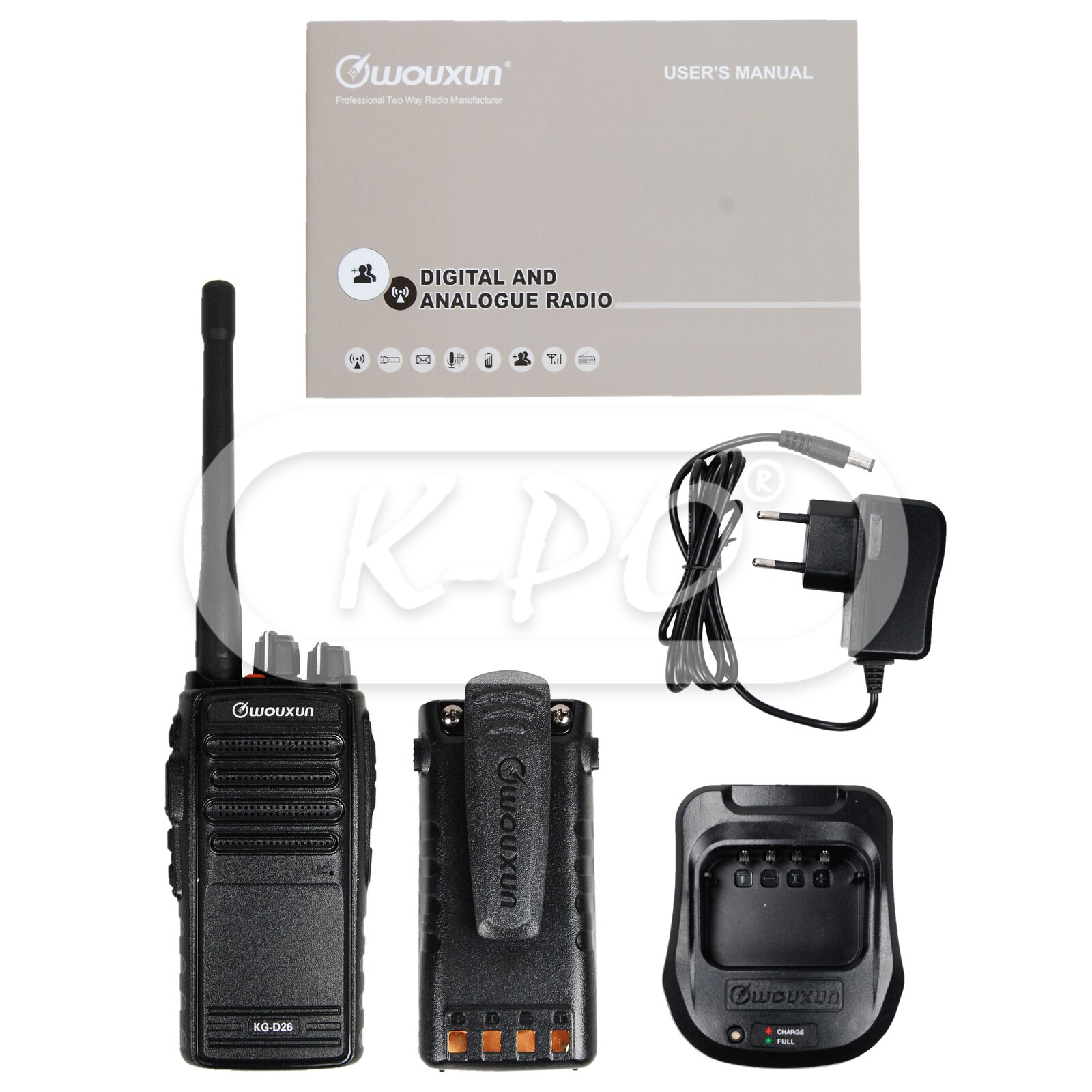

Inside the box

  • Radio: 6 pcs
  • Desktop charger: 6 pcs
  • Wall adapter: 6 pcs
  • Batteries (pack): 6 pcs
  • Belt clip: 6 pcs
  • Headset: 6 pcs
  • User manual: English
  • Hand strap: 6 pcs
  • Hard case: 1 pcs
