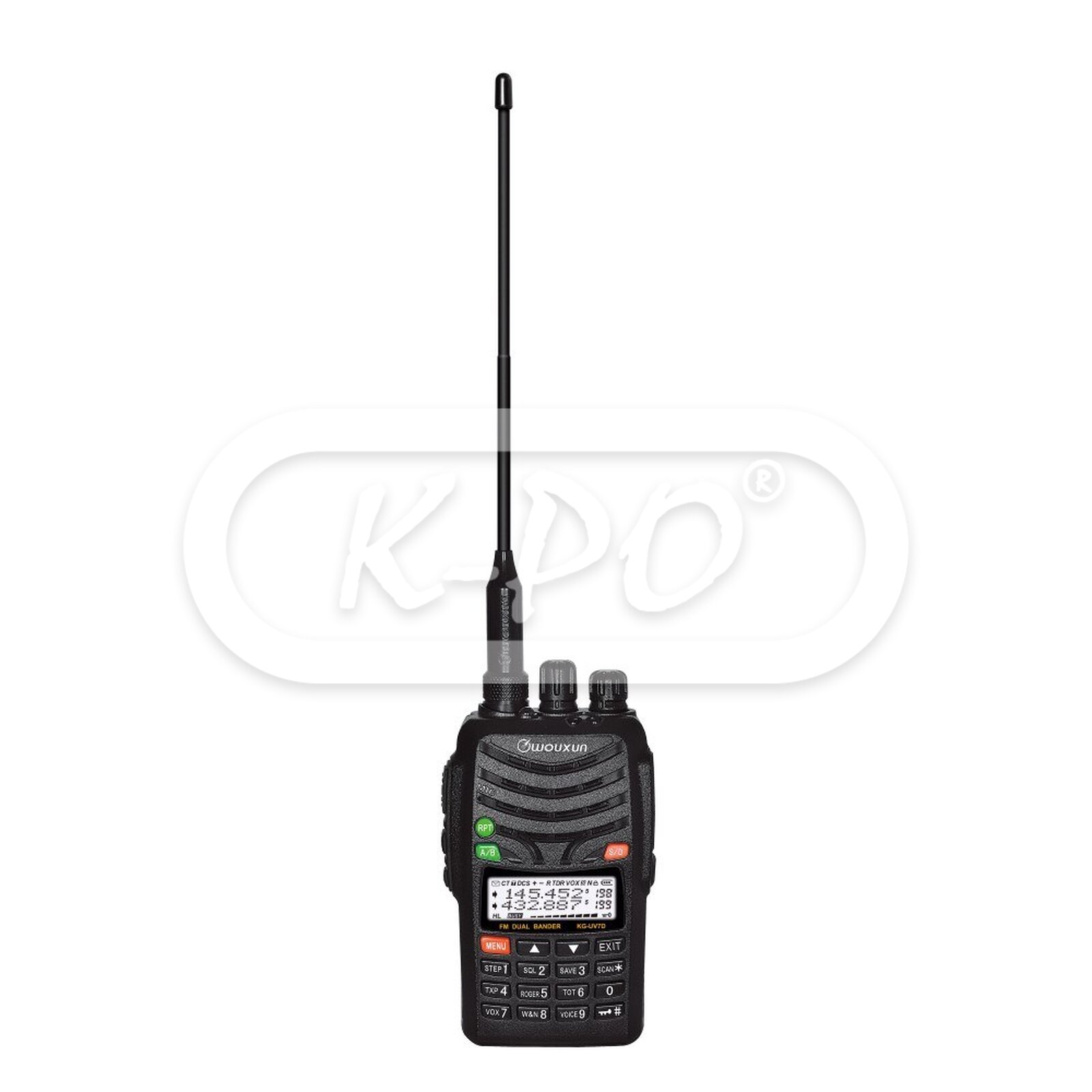

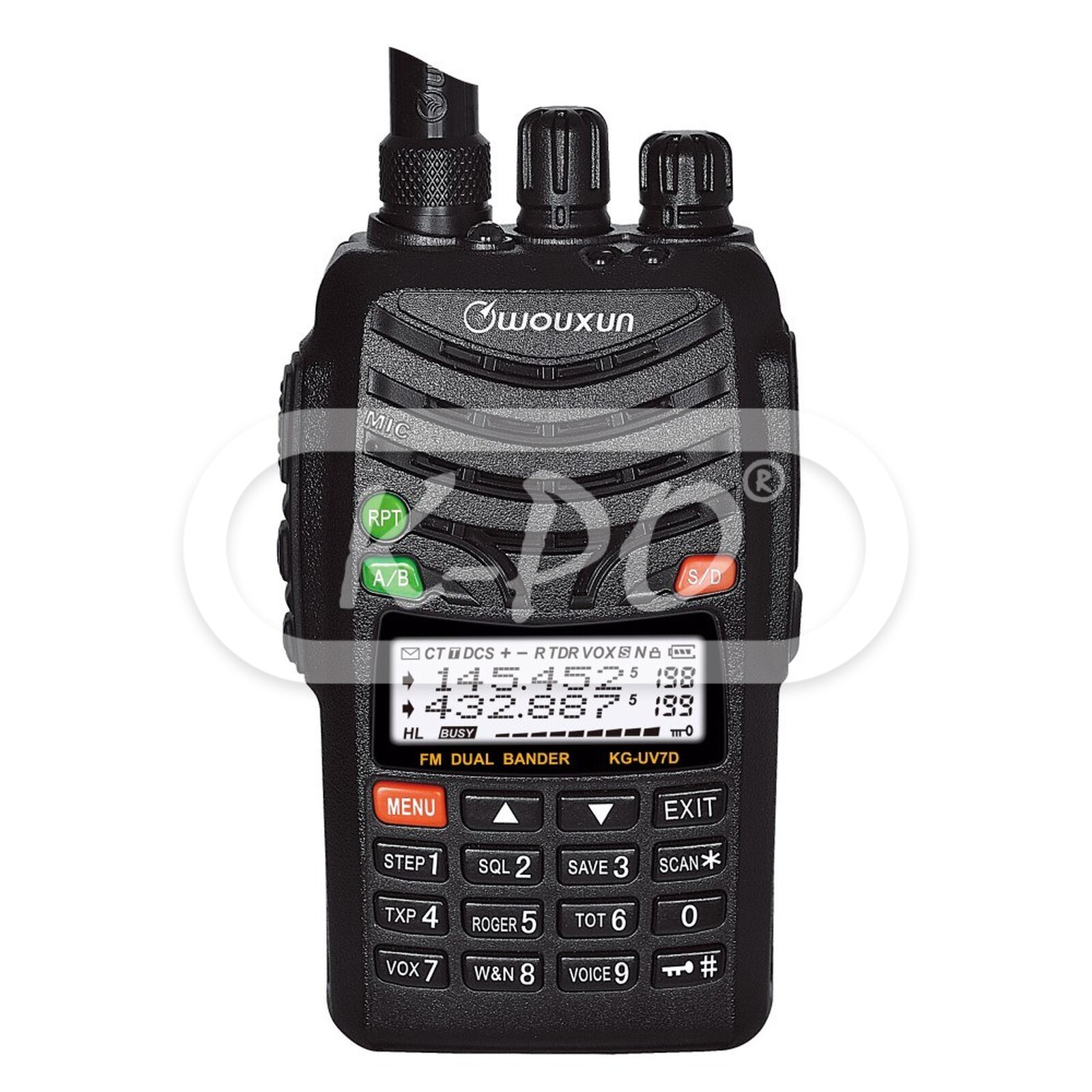

Wouxun - KG-UV7D

Product code: 34840

Barcode: 6946351703754

The Wouxun KG-UV7D is a dual band transceiver suitable for 144-146 / 430-440 MHz. The KG-UV7D will be delivered with a 1700 mAh Li-Ion battery pack.

Frequency range: TX/RX: 144-146 / 430-440 MHz, RX: 76-108 MHz (FM)

Out of stock - Longer delivery time

€134.95 (111.53 excl. 21% VAT)

Features

• Display: Yes, LCD
• VOX function: Yes
• DTMF: Yes
• Emergency (SOS) function: Yes
• Flashlight: Yes
• Priority channel scan: Yes
• High/low power selection: Yes
• Voice guide: English and Chinese
• Working mode: U-V,V-U,V-V,U-U can be set freely
• Band: VHF TX-UHF RX or UHF TX-VHF RX can be set freely
• Burst tone: Yes, at 1750Hz
• DCS codes: 105 groups
• CTCSS codes: 50 groups
• FM Radio: Yes
• Wire clone function: Yes
• Program: Yes, by computer
• Multi scan mode: Yes

Electrical data

• Frequency step: 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
• Channels: 199
• Wide and narrow bandwidth selection: Yes
• Operating temperature: -30℃ to +60℃

Transmitter

• Power output (Watts): VHF: 7 Watts / UHF: 5 Watts
• Modulation limit: F3E(FM)
• Frequency stability: ±2.5 PPM
• Effective radiation power (ERP): within pre-determined value ±7.5 dB
• Max. frequency deviation: Channel space: 12.5 KHz ±2.5 KHz / 25KHz ±5 KHz
• Audio modulation: +3 dB (pre-emphasis by 6 dB between 0.3-3 KHz)
• Adjacent channel power: Channel space: 12.5 KHz ≥60 dB / 25 KHz ≥70 dB
• Spurious radiation: ≤-30 dB
• Inter modulation attenuation: ≥40 dB
• Modulation distortion: ≤10%
• Residual FM: ≤-35 dB
• Residual AM: ≤3%

Receiver

• Audio distortion: ≤5%
• Audio power output: ≤500 mW
• Sensitivity (12dB SINAD): 0.16 µV
• Squelch rejection sensitivity: ≤0.8 µV
• Squelch sensitivity: ≤0.2 µV
• Audio response: 300-3000 Hz +1 to -3 dB
• Co-channel rejection: ≥-8.0 dB
• Performance of amplitude limiter: ≤3
• Adjacent channel selection: Channel space: 25KHz ≥70 dB / 12.5KHz ≥60 dB
• Inter modulation: ≥65 dB
• Resistance: ≥84 dB
• Spurious radiation: 9 KHz-1 GHz≤-57 dBm / 1 GHz-4 GHz≤-47dBm

Mechanical data

• Length: 65 mm
• Height: 119 mm
• Width: 40 mm
• Weight: 260 gram
• Antenna connector: SMA male

Inside the box

• Transceiver: Yes
• Battery: Li-Ion 1700 mAh
• Charger: Desk charger with adapter and 12 V car charger
• Antenna: Yes
• Installation manual: English
• Belt clip: Yes
• Hand strap: Yes
