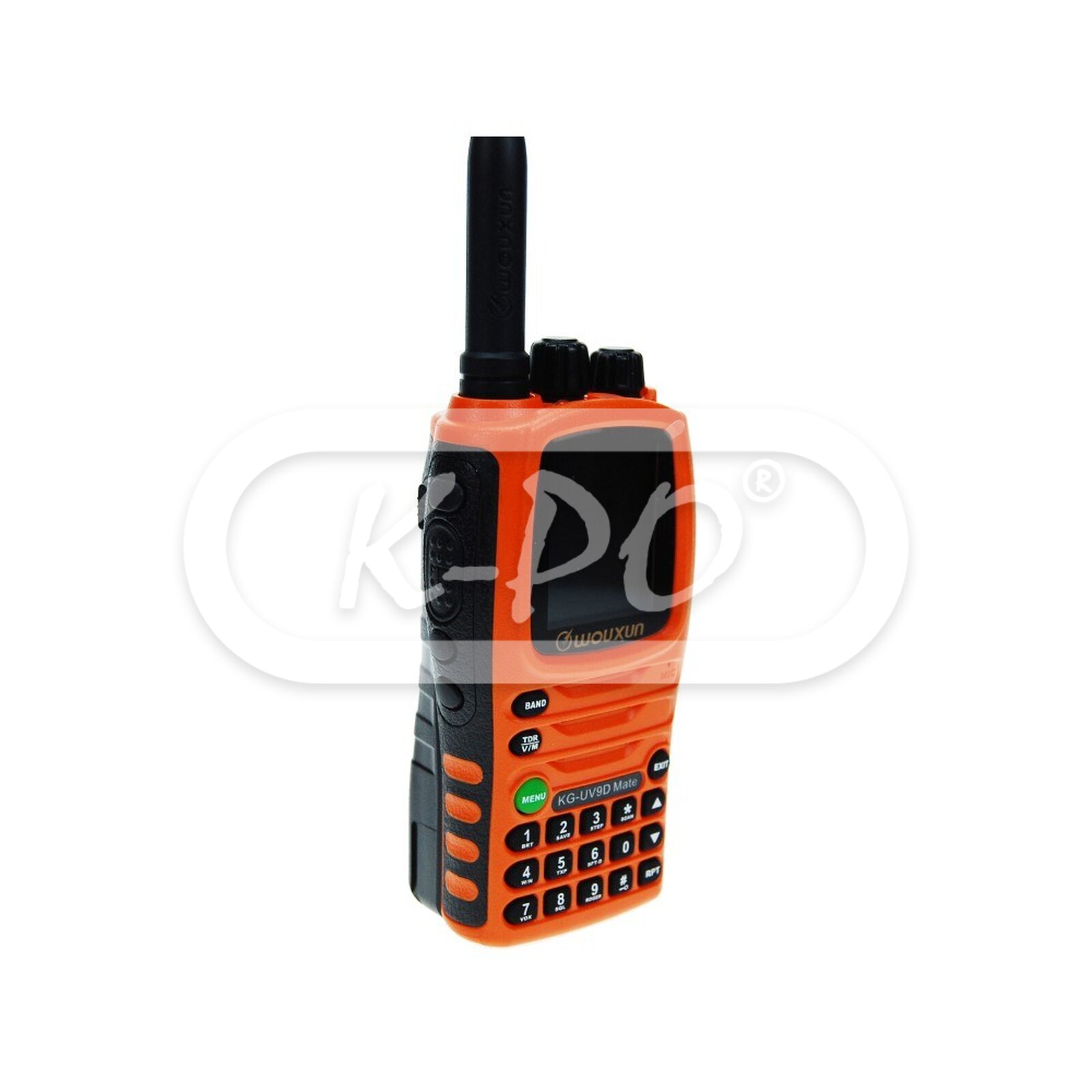

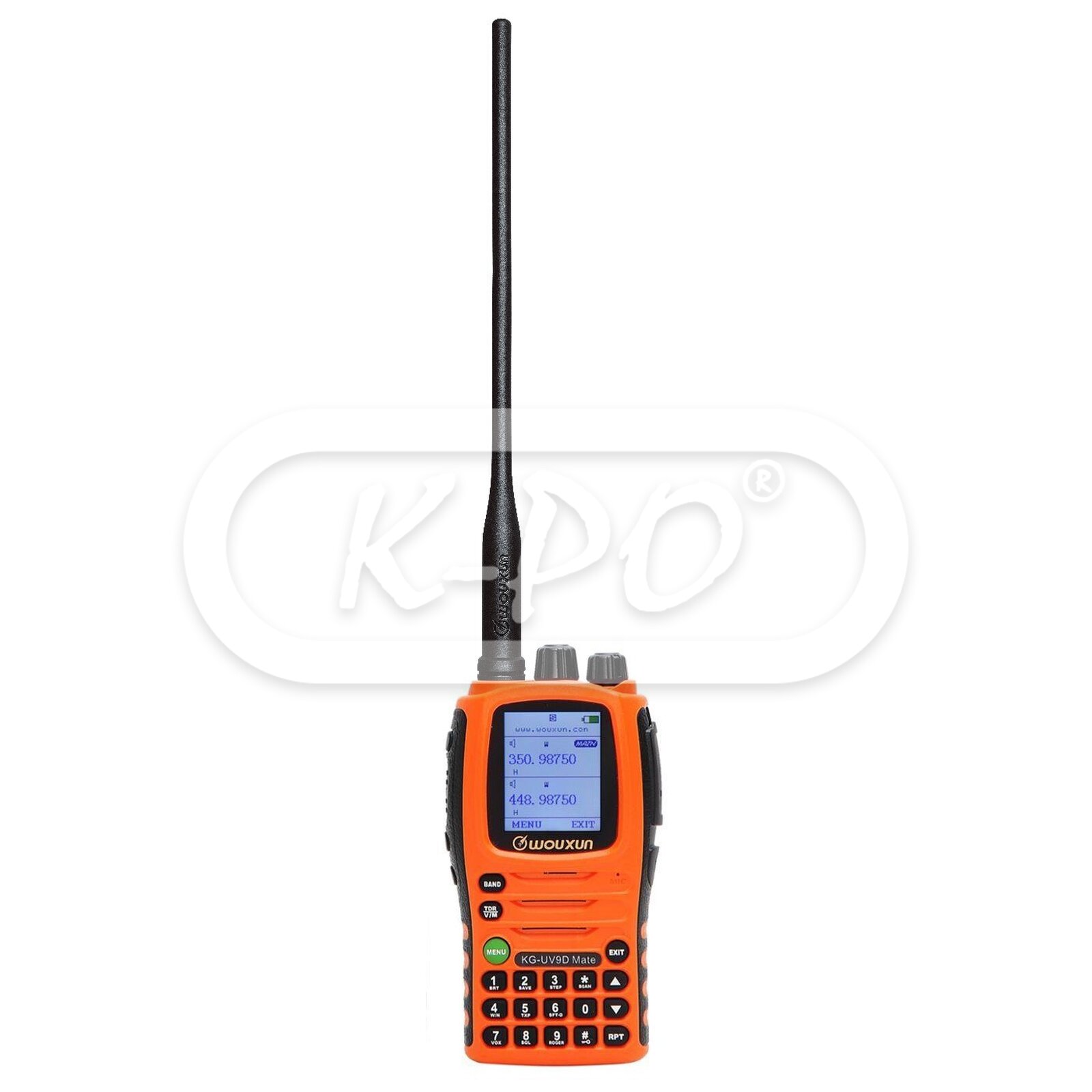

Wouxun - KG-UV9D Mate (cross-band)

Product code: 34905
Barcode: 6946351703761

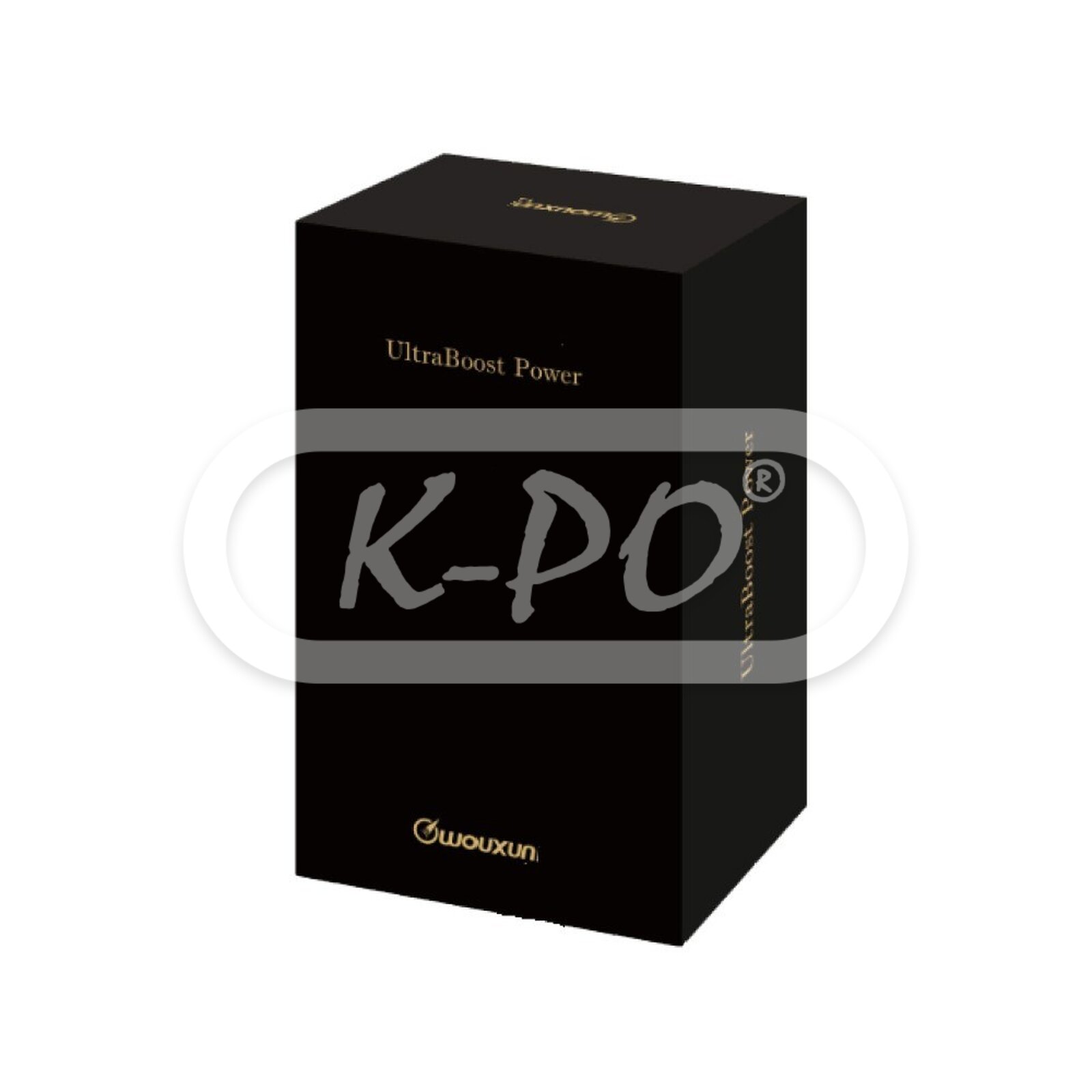

The Wouxun KG-UV9D Mate is a special edition with high output power (10 Watts), 3200 mAh battery pack and extra accessories. The KG-UV9D is suitable for 144-146 / 430-440 MHz and will be delivered in a nice black giftbox.

*This version is without the 8.33 KHz step on RX Airband.

Frequency range: TX/RX: 144-146 / 430-440 MHz
Out of stock - Longer delivery time
€199.95 (165.25 excl. 21% VAT)

Features

  • Display: Yes, color display
  • VOX function: Yes
  • DTMF: Yes, decoding, encoding and scan
  • Crossband repeater function: Yes
  • Emergency (SOS) function: Yes
  • Flashlight: Yes
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • Voice guide: English and Chinese
  • Channel group scanning: Yes
  • QT/DQT: Yes, decoding, encoding and scan
  • Calls: Yes, group and selective calls
  • FM Radio: Yes
  • Single-tone pulse frequency: 1000 - 1450 - 1750 - 2100 Hz
  • Program: Yes, by computer
  • Stopwatch: Yes
  • Remote alarm: Yes
  • Reverse frequency: Yes
  • CTCSS: Non-Standard,CTCSS can be set arbitrarily
  • Dual receiving: Yes
  • Scanning mode: Simultaneously on Twin Band and on Limiting Frequency

Electrical data

  • Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
  • Channels: 999
  • Wide and narrow bandwidth selection: Yes
  • Operating temperature: -20℃ to +40℃

Transmitter

  • Power output (Watts): VHF: 10/7/1 Watts / UHF: 8/5/1 Watts
  • Work mode: F2D / F3E
  • Antenna impedance: 50 Ohm
  • Frequency stability: ±2.5 PPM
  • Type of modulation: Wide: 16K F3E / Narrow: 11K F3E
  • Max. frequency deviation: Wide: ±5 KHz / Narrow: ≤±2.5 KHz
  • Audio response: 300-3000 Hz +1 to -3 dB
  • Adjacent channel selectivity: Wide: ≤70 dB / Narrow: ≤60 dB
  • Spurious: Wide: ≤60 dB / Narrow: ≤60 dB
  • Modulation distortion: ≤5%

Receiver

  • Audio distortion: ≤5%
  • Audio power output: ≤500 mW
  • Audio response: 300-3000 Hz +1 to -3 dB
  • Adjacent channel selection: Wide: ≤70 dB / Narrow: ≤60 dB
  • Inter modulation: Wide: ≤65 dB / Narrow: ≤60 dB
  • Signal to noise ratio: Wide: ≥45 dB / Narrow: ≥40 dB
  • Spurious radiation: Wide: ≥70 dB / Narrow: ≥70 dB
  • Sensitivity 108 - 136MHz (AM): 106.0 dbm SINAD 13 dB
  • Sensitivity 136 - 180MHz: 119.0 dbm SINAD 13 dB
  • Sensitivity 230 - 250MHz: 116.0 dbm SINAD 13 dB
  • Sensitivity 350 - 400MHz: 119.0 dbm SINAD 13 dB
  • Sensitivity 400 - 512MHz: 119.0 dbm SINAD 13 dB
  • Sensitivity 700 - 986MHz: 96.0 dbm SINAD 12 dB

Mechanical data

  • Length: 65 mm
  • Height: 130 mm
  • Width: 40 mm
  • Weight: 335 gram
  • Antenna connector: SMA female

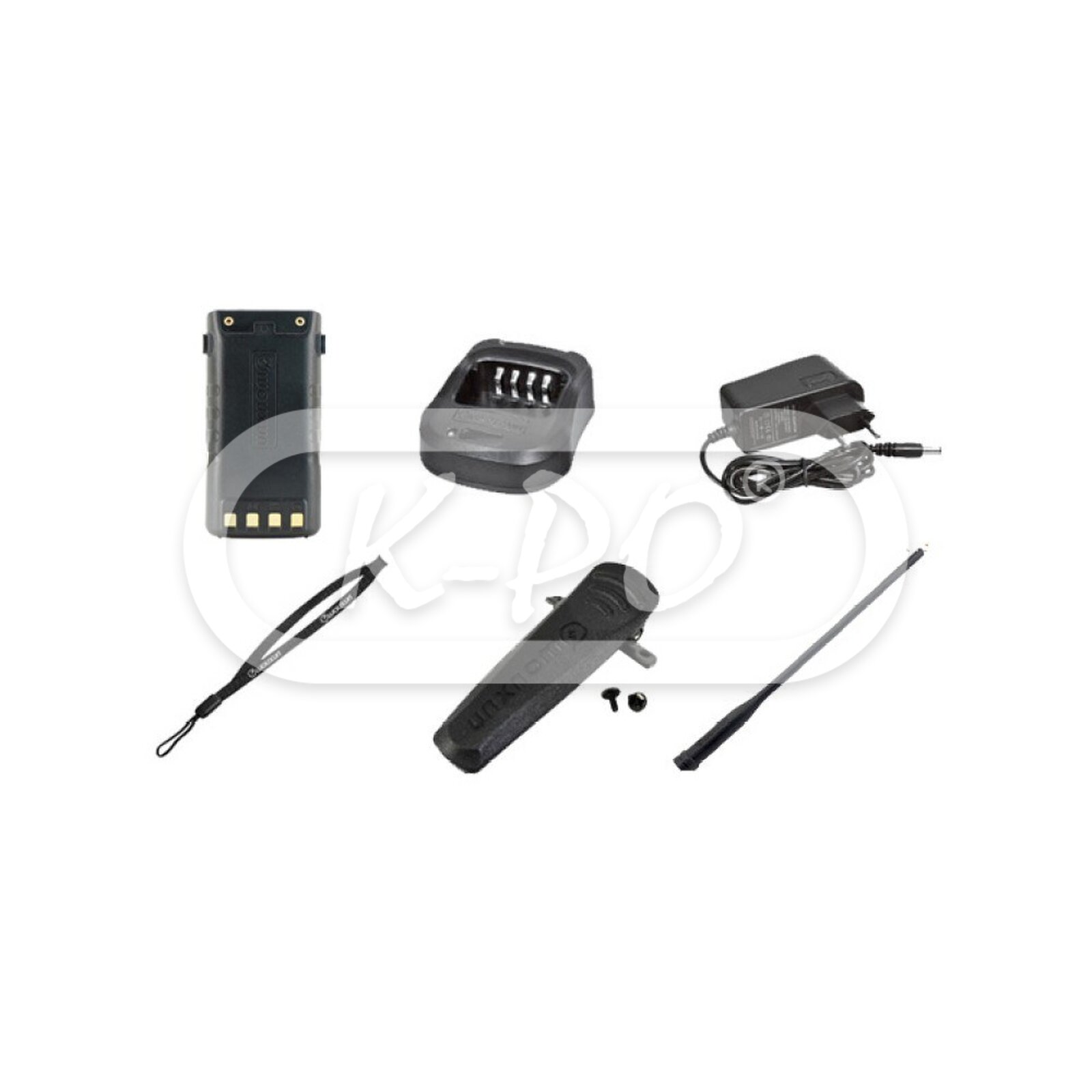

Inside the box

  • Transceiver: Yes

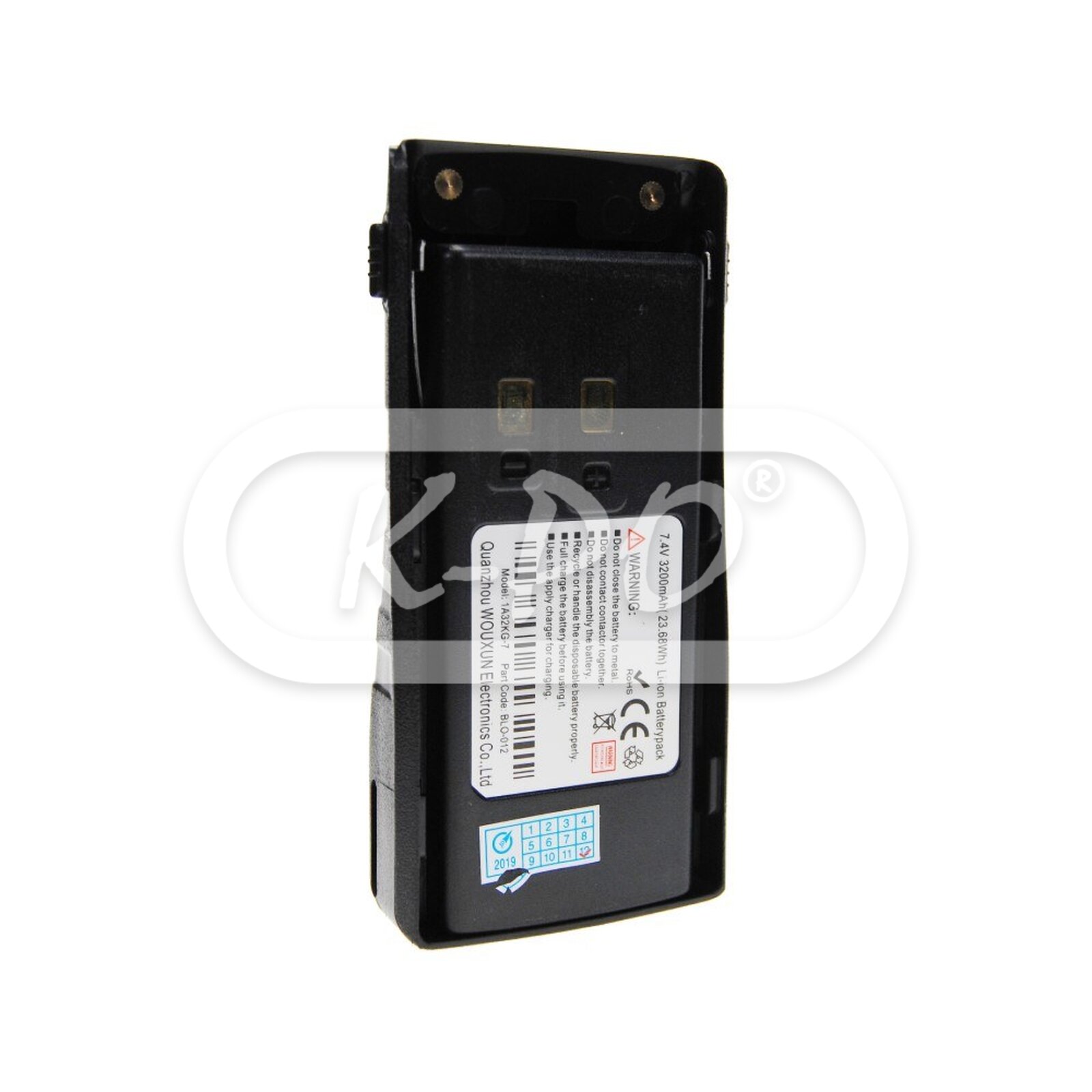

  • Battery: Li-Ion 3200 mAh
  • Charger: Desk charger with adapter and 12 V car charger
  • Antenna: Yes

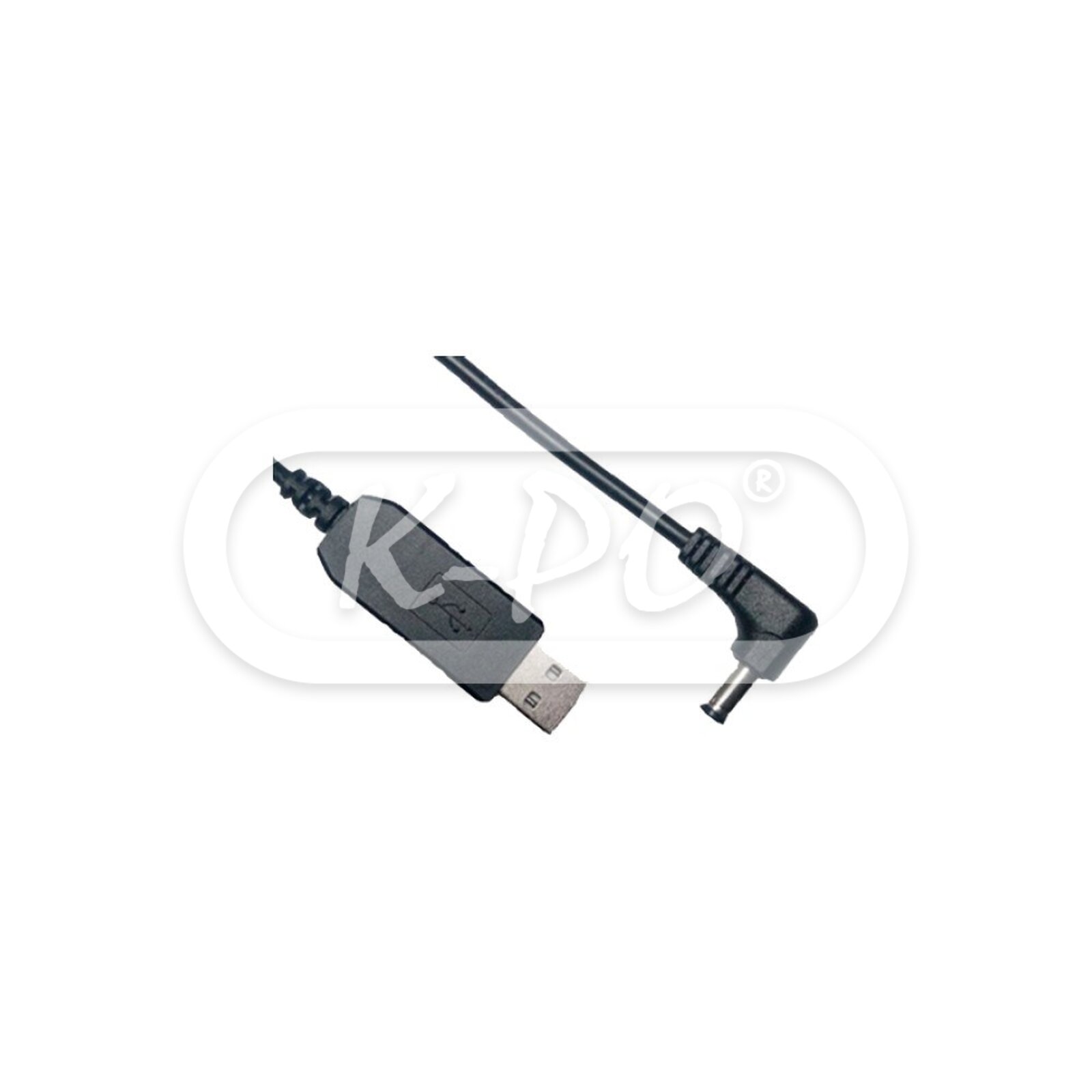

  • USB program cable: Yes
  • Installation manual: English
  • Belt clip: Yes
  • Hand strap: Yes
