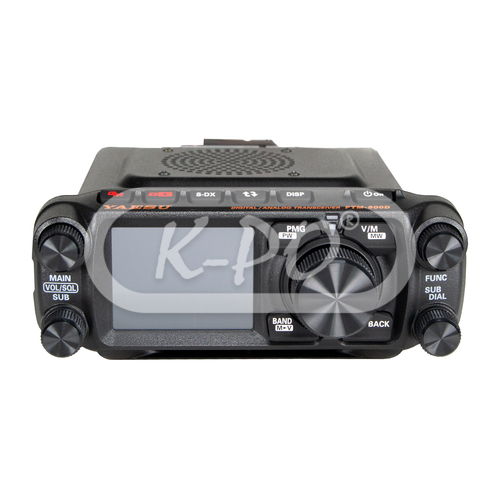

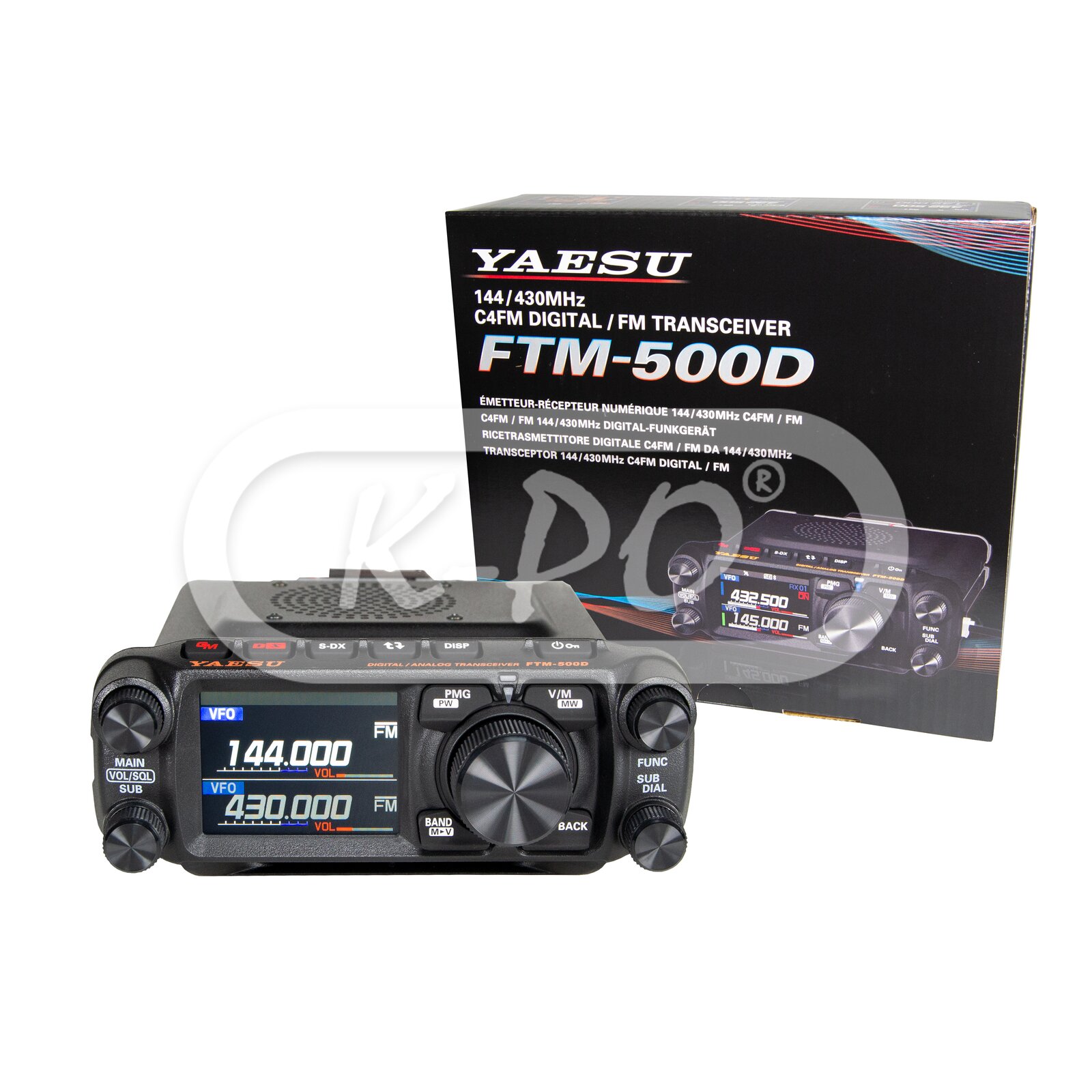

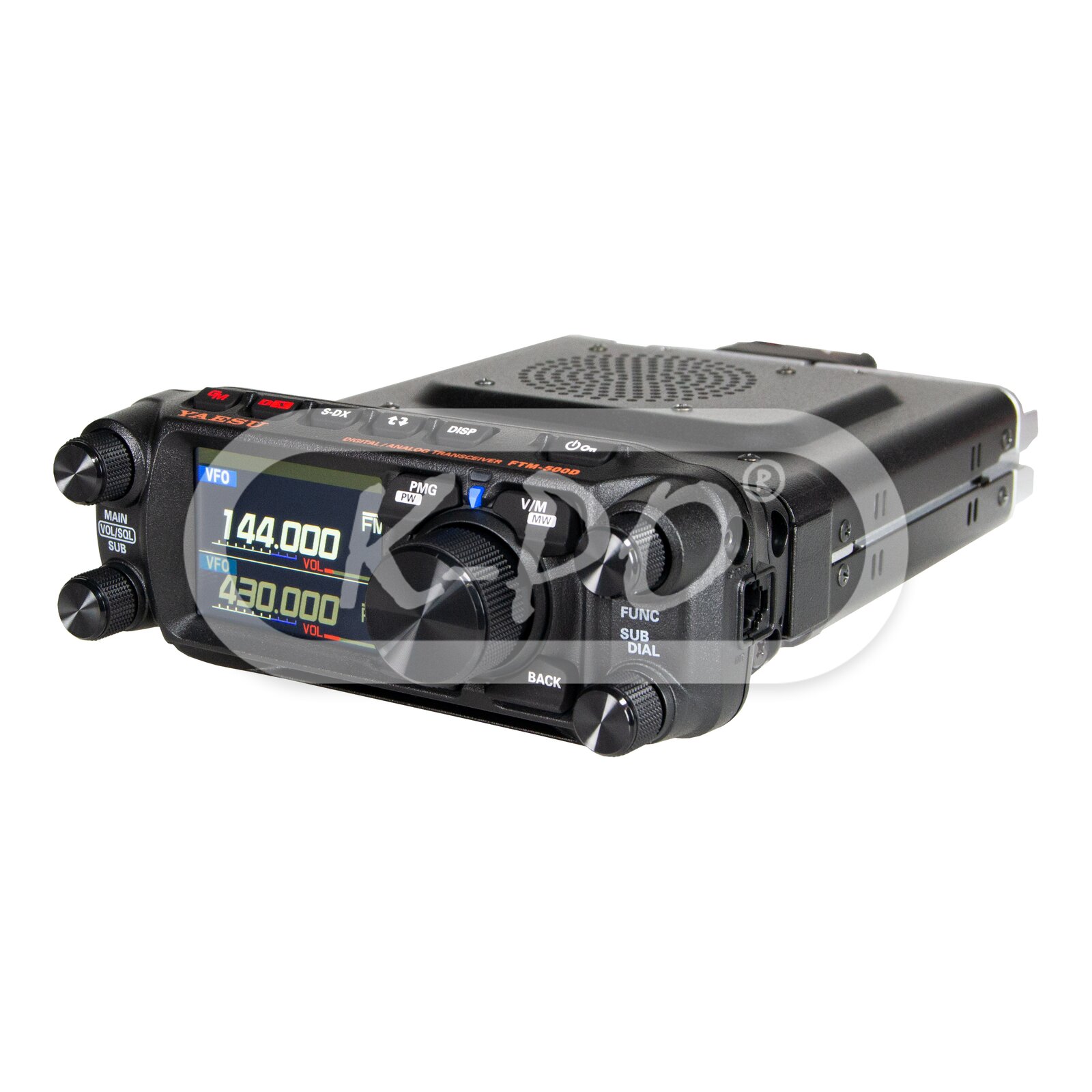

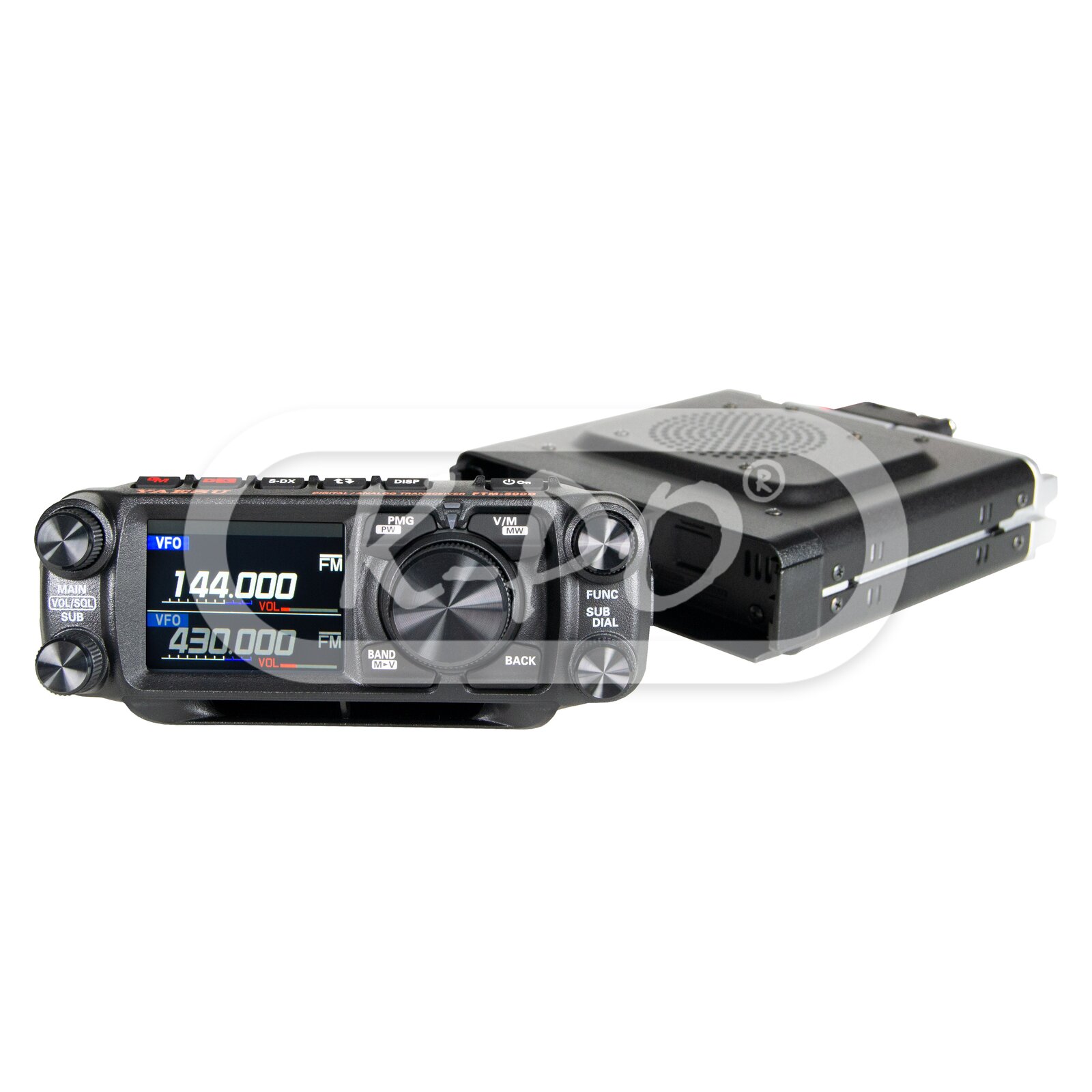

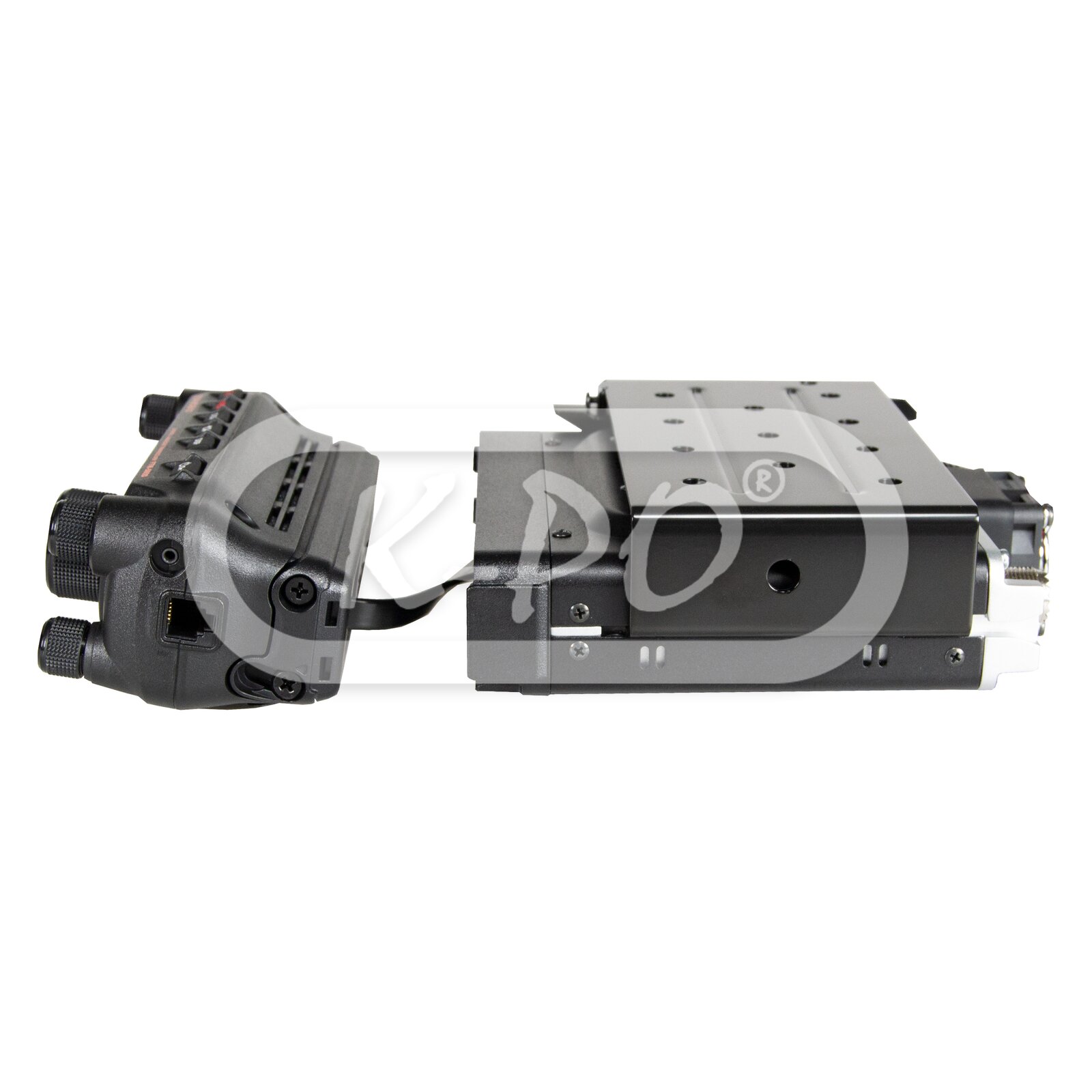

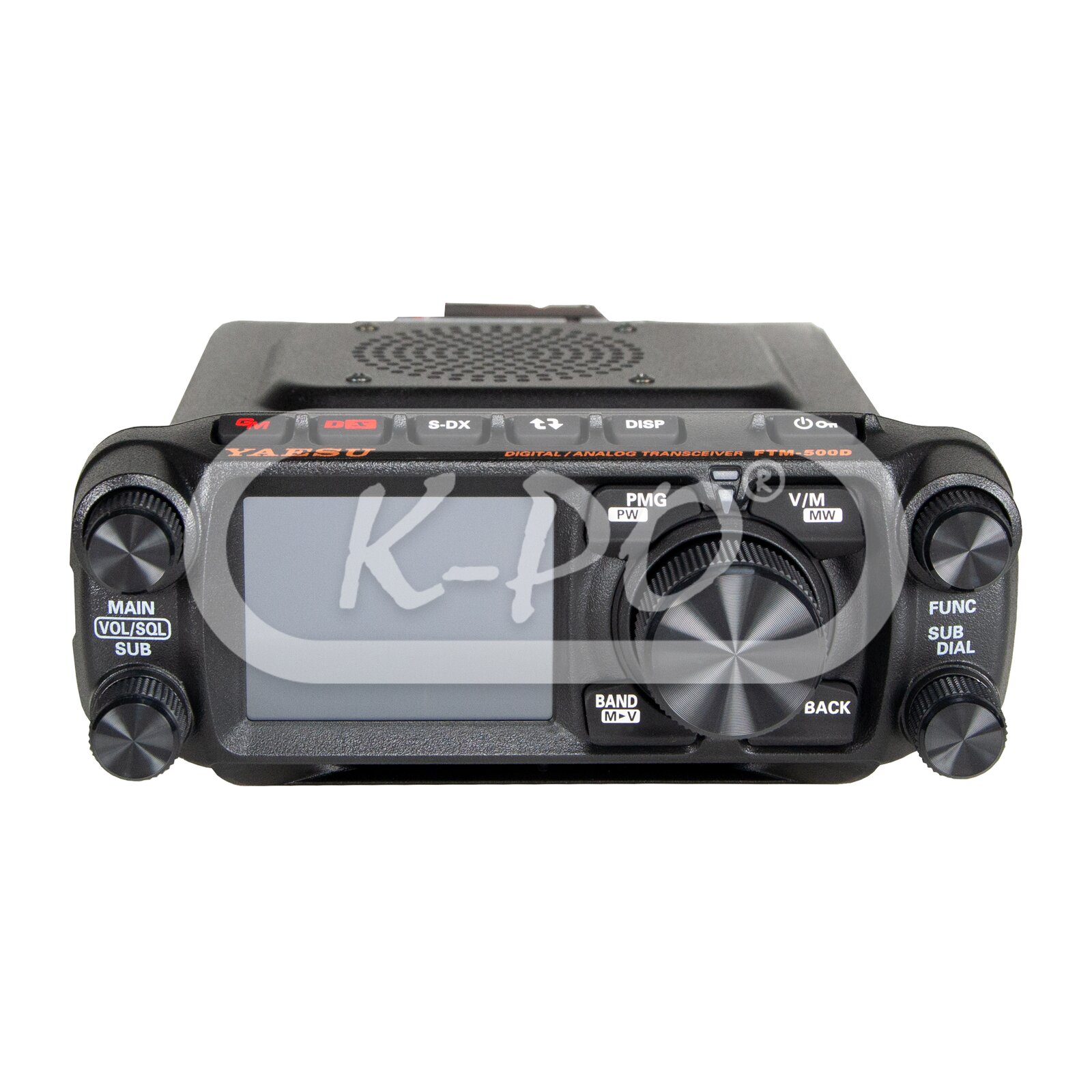

Yaesu - FTM-500DE

Product code: XAH081M004-0E
Factory code: XAH081M004-0E
Barcode: 4909959179187

Replaced by the Yaesu FTM-510DE ASP, product code: XAH089M004-0E

We are pleased to introduce the new FTM-500D Series 50W C4FM/FM 144/430MHz Dual Band Digital Mobile Transceiver. The FTM-500DR shares the Yaesu advanced core features, and utilizes the latest C4FM Digital technology.

Front speaker with AESS (Acoustic Enhanced Speaker System) Dual Speaker System. Total 9W Clear & Powerful High-fidelity Audio, delivered by the Front Panel 6W and the Main Unit Internal 3W speakers.

E2O-IV (Easy to Operate). Innovative, Smart Operating System with Touch & Go, Search & Go and PMG (Primary Memory Group Monitor) functions.

Frequency range: TX: 144-146 / 430-440 MHz, RX: 108-999.99 MHz
Note - Discontinued
€ -- (Discontinued)

Features

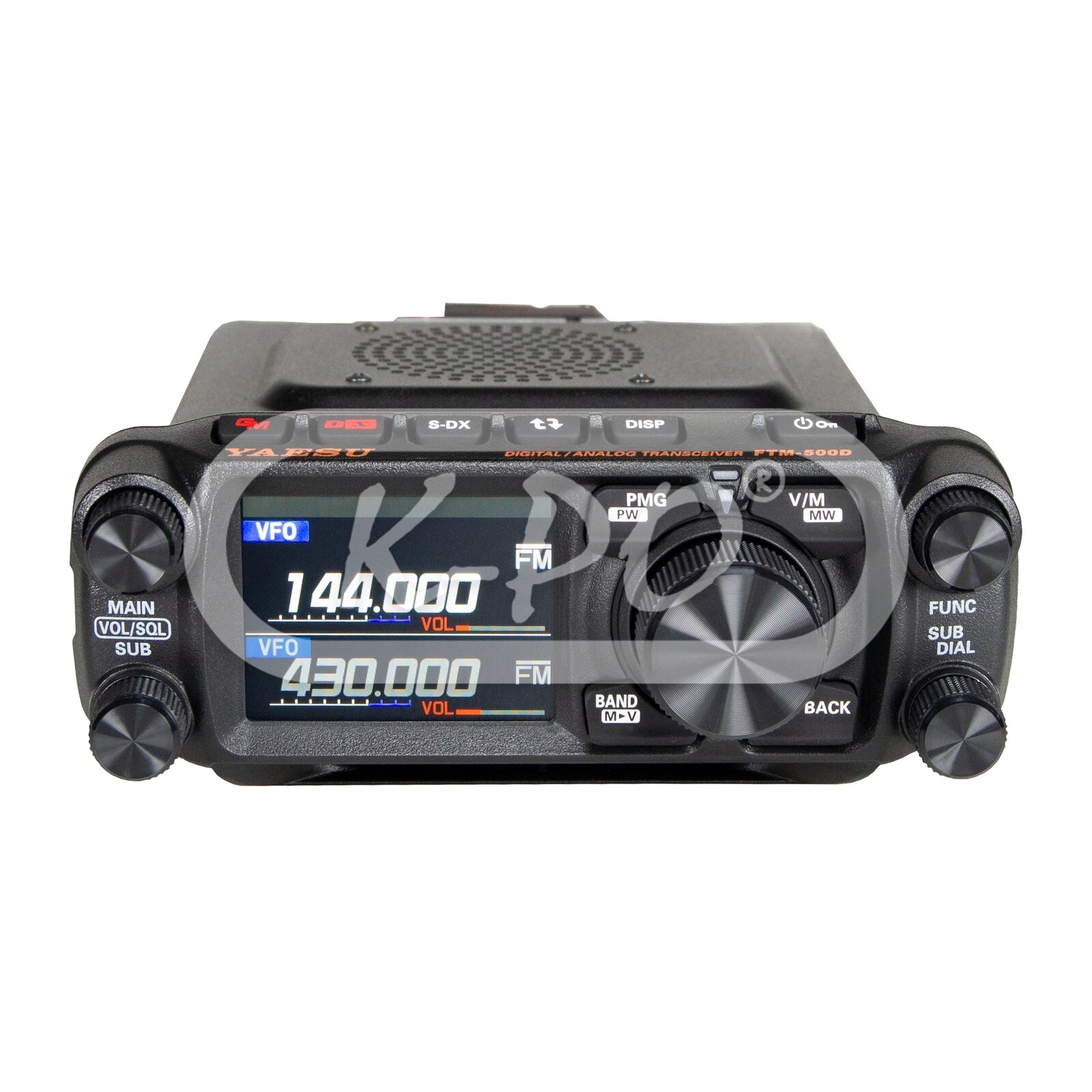

  • Display: High Resolution, Full color, Touch-panel, 2.4 inch
  • VOX function: Yes
  • DTMF: Yes
  • Mode of emission: F1D / F2D / F3E / F7W
  • Bluetooth: Version: 5.0 / Class: 1
  • Operating System: Yes, E2O-IV 'Touch & Go / Search & Go functions'
  • AESS Dual Speaker System: Yes, delivers clear and high fidelity audio
  • Memory Auto Grouping (MAG): Yes, Memory channels can be easily grouped and recalled by band. Each time the [BAND grp] key is pressed while operating in memory mode, the bands are switched in the order illustrated below.
  • Band scope: Yes, High speed Band Scope function
  • VFO Band Skip: Yes, The VFO band selection is enabled by pressing the [BAND grp] key. Also, unused bands may be skipped.
  • Automatic Packet Reporting System (APRS®): Yes, The FTM-500DE uses a GPS receiver to acquire and display its position location information. The APRS feature uses the location information to transmit the position information, data and messages, using the format developed by Bob Bruninga WB4APR
  • Data communication: Yes, 1200/9600bps APRS® Data Communication
  • WiRES-X: Yes, Portable Digital Node or HRI-200 Fixed Node capability
  • Voice recording: Yes, of the received and transmitted audio
  • GPS: Yes, built-in 66ch High precision GPS receiver and External GPS device connectivity
  • Digital Personal ID (DP-ID): Yes, Digital Personal ID (DP-ID) feature opens the speaker audio only when a C4FM signal
  • Time-out Timer: Yes
  • MicroSD card slot: Yes, up to 32 GB
  • External DATA jack: Yes
  • External speaker socket: Yes, ext SP A and SP B

Electrical data

  • Frequency step: 5 kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 50 kHz / 100 kHz /
  • Channels: 1104
  • Operating temperature: -20℃ to +60℃
  • Frequency stability: ±2.5 PPM
  • Operating voltage: 13.8 Volt (Negative Ground)
  • Current consumption: RX: 0.5A / TX: 10A (50W 144 / 430 MHz)

Transmitter

  • Power output (Watts): 5/25/50 Watts
  • Spurious Emission: ≤ 60 dB
  • Modulation type: F1D / F2D / F3E: Variable Reactance Modulation / F7W: 4FSK (C4FM)
  • Maximum deviation: ±5 kHz
  • Antenna impedance: 50 Ω
  • Microphone impedance: 2k Ω
  • DATA Jack impedance: 10k Ω

Receiver

  • Sensitivity 108-137 MHz AM: 0.8 μV typ for 10 dB SINAD
  • Sensitivity 137-150 MHz FM: 0.2 μV typ for 12 dB SINAD
  • Sensitivity 150-174 MHz FM: 0.25 μV typ for 12 dB SINAD
  • Sensitivity 174-222 MHz FM: 0.3 μV typ for 12 dB SINAD
  • Sensitivity 222-300 MHz FM: 0.25 μV typ for 12 dB SINAD
  • Sensitivity 300-336 MHz AM: 0.8 μV typ for 10 dB SINAD
  • Sensitivity 336-420 MHz FM: 0.25 μV typ for 12 dB SINAD
  • Sensitivity 420-470 MHz FM: 0.2 μV typ for 12 dB SINAD
  • Sensitivity 470-540 MHz FM: 0.2 μV typ for 12 dB SINAD
  • Sensitivity 540-800 MHz AM: 0.8 μV typ for 12 dB SINAD
  • Sensitivity 800-900 MHz AM: 0.4 μV typ for 12 dB SINAD
  • Sensitivity 900-999.99 MHz AM: 0.8 μV typ for 12 dB SINAD
  • Digital mode: 0.19 μV typ for BER 1%
  • Intermediate frequency 1st: Main: 56.75 MHz / Sub: 55.85 MHz
  • Intermediate frequency 2nd: Main: 450 kHz / Sub: 450 kHz
  • Receiving system: Dual conversion superheterodyne
  • Strength of secondary radio waves: ≤4 nW
  • Audio power output (Front speaker): 6W (8 Ω, THD10%, 13.8 V)
  • Audio power output (Internal speaker): 3W (8 Ω, THD10%, 13.8 V)
  • Audio power output (External speaker): 3W (8 Ω, THD10%, 13.8 V)
  • Selectivity (-6 dB/-60 dB) NFM/AM:: 12 kHz / 30 kHz

Mechanical data

  • Length (Radio unit): 132 mm
  • Height (Radio unit): 42 mm
  • Width (Radio unit): 139 mm
  • Length (Controller): 58 mm
  • Height (Controller): 64 mm
  • Width (Controller): 156 mm
  • Weight: 1400 gram

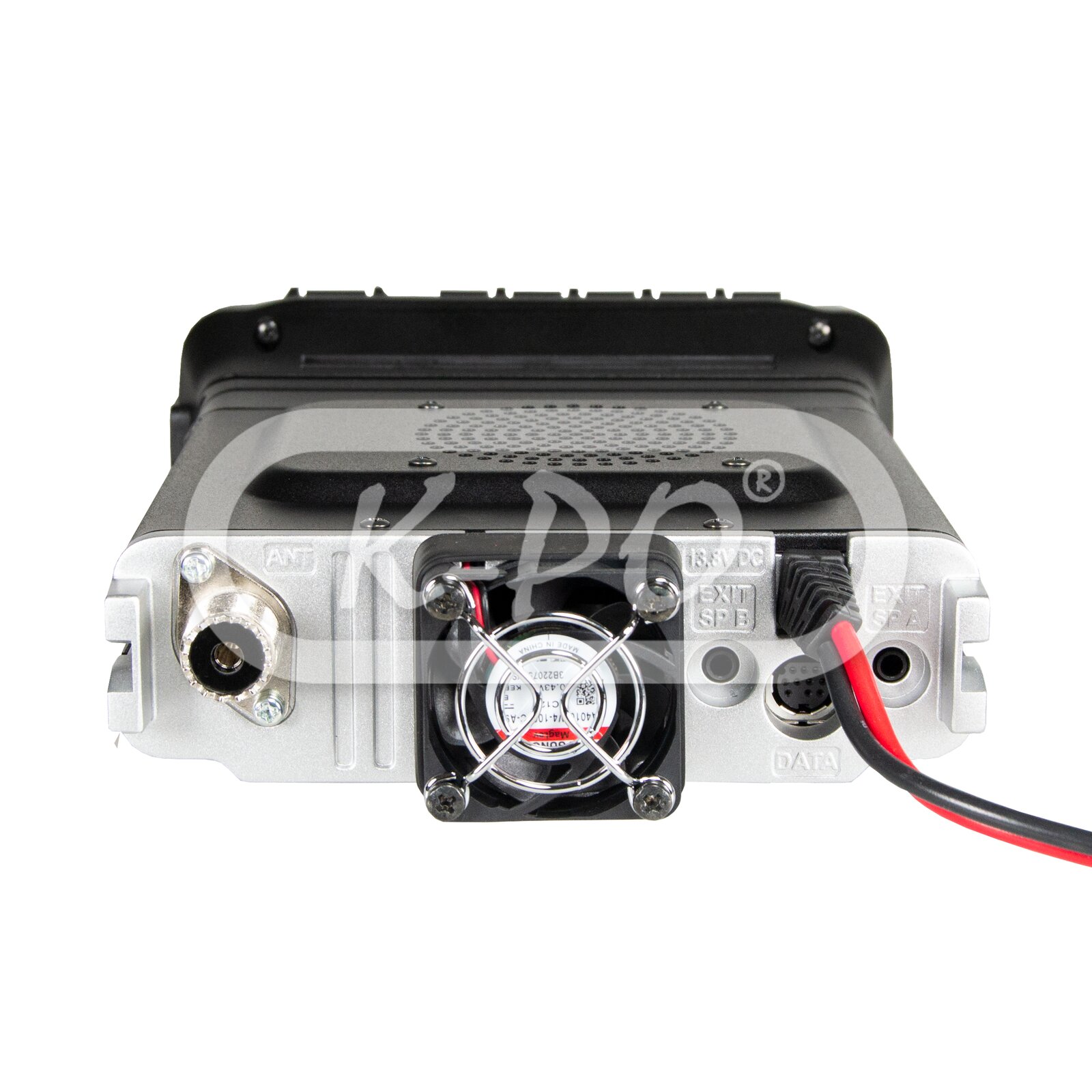

  • Antenna connector: UHF (PL) female (SO-239)
  • Microphone connector: RJ12

Inside the box

  • Transceiver: Yes
  • DC power cable: Yes
  • Installation manual: English
  • Microphone: Yes, SSM-85D DTMF Microphone
  • Bracket for main body: Yes
  • Fuse: Yes, Spare fuse (15A)
