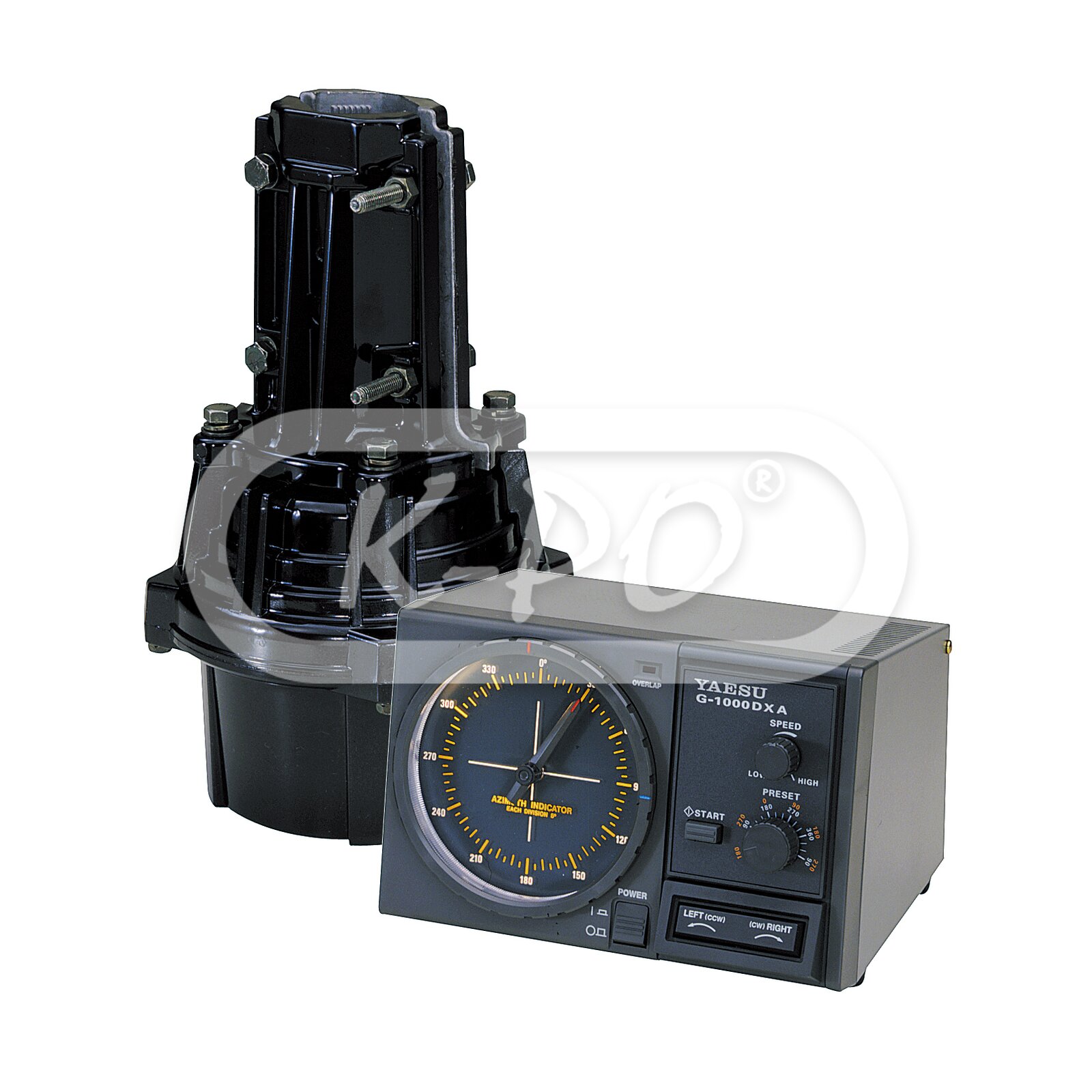

Yaesu - G-1000DXC

Product code: AAA66X007

Factory code: AAA66X007

Barcode: 4909959105766

The Yaesu G-1000DXC is a new, high-performance rotator is ideal for heavy-duty applications. Its slim-line constructions is ideal for many crank-up tower installations. Rotation range: 450°, with presets.

Compass Display

Stop may be set at North or South.

Preset Control

For hands-free rotation during busy operating sessions.

Variable Speed

40 - 100 seconds for 360º of rotation.

*Yaesu control cable is not included!

Out of stock - Longer delivery time

€539.95 (446.24 excl. 21% VAT)

Electrical data

Power supply voltage: 220 V
Rotator voltage: 11 - 24 Volt
Power supply current consumption: 1.5 A
Operating temperature (Rotator): -20℃ to +40℃
Operating temperature (Controller): 0℃ to +40℃
360° Rotation time (Non loaded): 100 ± 10 sec to 40 ± 5 sec (Variable)
Rotation range: 450° ±3
Rotation torque: 600 to 1,100 kgf-cm
Braking torque: 6,000 kgf-cm
Maximum vertical load: Coninuous: 200 kg or less / Momentary: 800 kg
Braking type: Mechanical and electrical stoppers
Antenna K coefficient: 230 or less
Maximum continuous duty: 3 minutes
Type of rotor: Azimuthal

Mechanical data

Wind loading area: Pole type: 0.75 m² x 0.6 m or less / Tower type: 2.2 m² or less
Mast diameter: Ø 38 to 63 mm
Diamater (Rotator): Ø 186 mm
Height (Rotator): 300 mm
Weight (Rotator): ±3500 gram
Length (Controller): 193 mm
Height (Controller): 130 mm
Width (Controller): 200 mm
Weight (Controller): ±3800 gram
