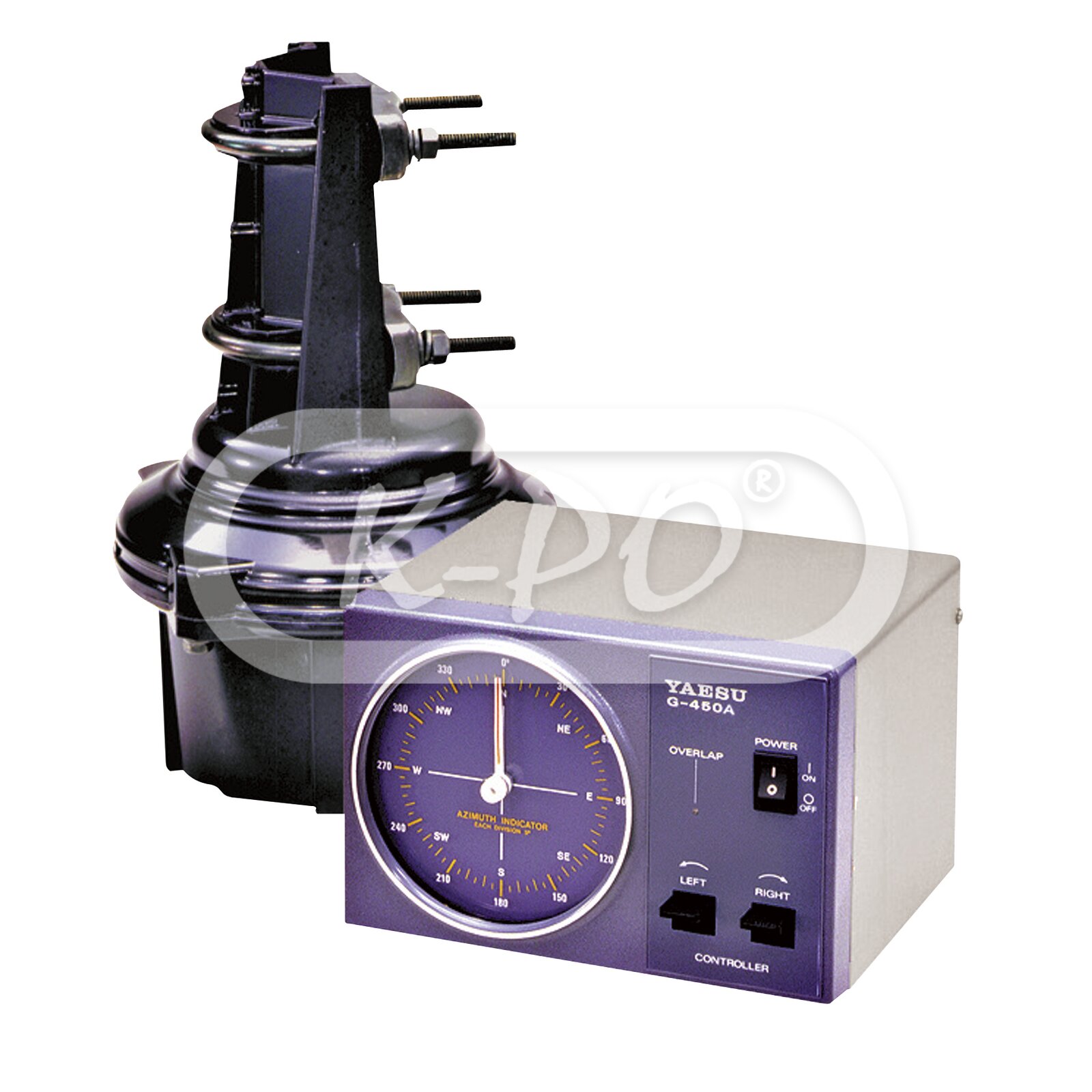

Electrical data

• Power supply voltage: 220 V / 50-60 Hz
• Power supply current consumption: 0.5 A
• Operating temperature (Rotator): -20℃ to +40℃
• Operating temperature (Controller): 0℃ to +40℃
• 360° Rotation time (Non loaded): 63 seconds at 50 Hz, 51 seconds at 60 Hz
• Rotation range: 450°
• Rotation torque: 600 kgf-cm
• Braking torque: 3,000 kgf-cm
• Maximum vertical load: Coninuous: 100 kg or less / Momentary: 300 kg
• Braking type: Mechanical stoppers
• Antenna K coefficient: 100 or less
• Maximum continuous duty: 3 minutes
• Type of rotor: Azimuthal

Mechanical data

• Wind loading area: Pole type: 0.5 m² x 0.5 m or less / Tower type: 1.0 m² or less
• Mast diameter: Ø 32 to 63 mm
• Diamater (Rotator): Ø 186 mm
• Height (Rotator): 263 mm
• Weight (Rotator): ±3500 gram
• Length (Controller): 190 mm
• Height (Controller): 125 mm
• Width (Controller): 150 mm
• Weight (Controller): ±2700 gram

Inside the box

• Controller unit: 1 pcs
• Rotor unit: 1 pcs
• U bolts: 2 pcs
• 7-pin round plug (with rubber boot): 1 pcs
• 6-pin rectangular plug: 1 pcs
• M8 x 16 mm hex bolts: 4 pcs
• Split washers: 8 pcs
• Flat washers: 4 pcs
• M8 nuts: 4 pcs
• Installation manual: English
