Yaesu - M-100 Yaesu - M-100

Yaesu - M-100

Product code: ABA86X001
Factory code: ABA86X001
Barcode: 4909959159820

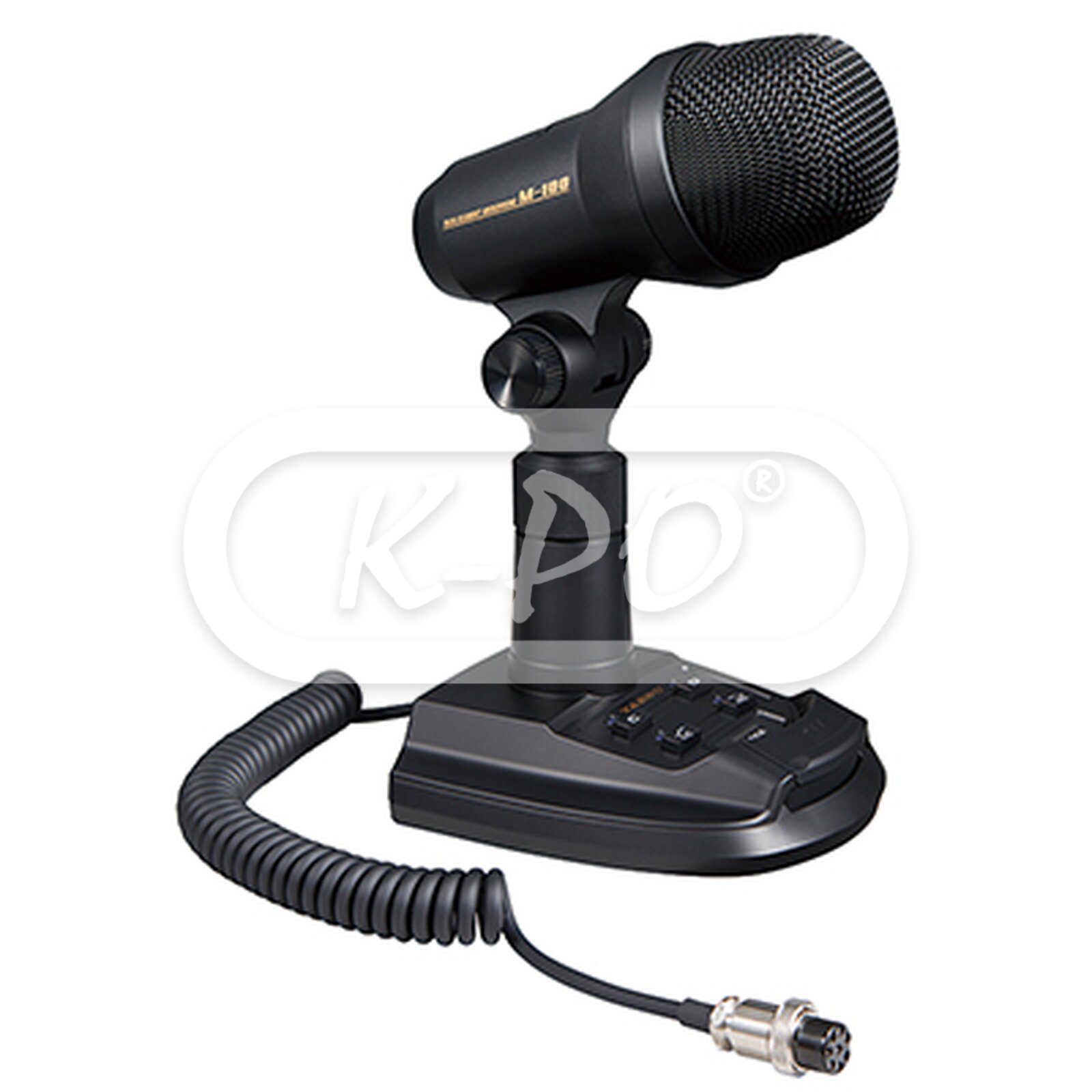

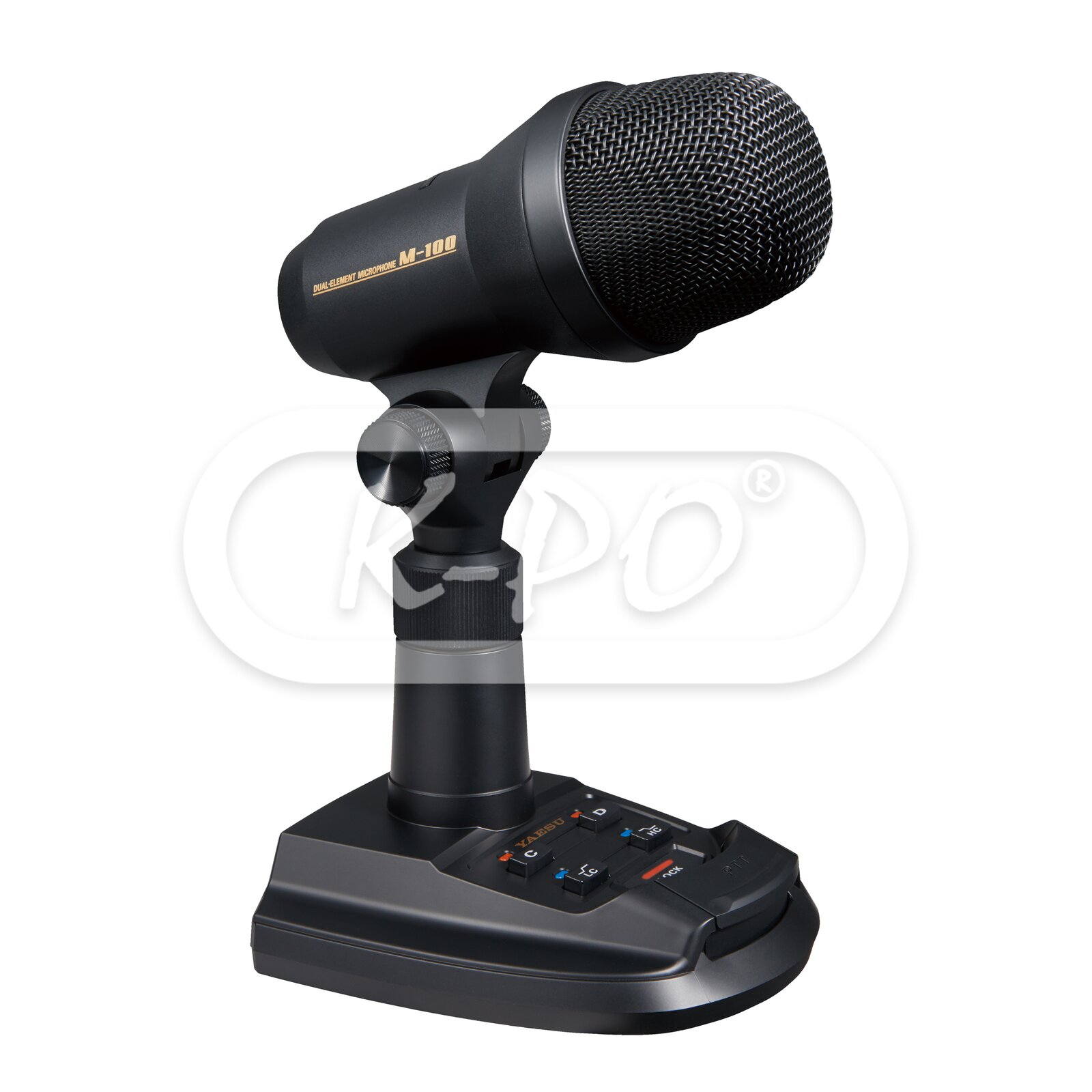

The Yaesu M-100 is a high quality and robust desktop microphone. Utilizes a directional condensor and dynamic microphone element with specially tuned frequency response.

For use with most modern Yaesu transceivers that have the 'modular' or '8-pin' microphone connector. A 'modular' to '8-pin' microphone cable is included, which can be used in both ways just by turning it around. So no extra microphone cable is needed.

Shipped next business day
€369.95 (305.74 excl. 21% VAT)

Features

  • Suitable for: Yaesu FT-891 / Yaesu FT-991A / Yaesu FT-DX10 / Yaesu FT-DX101D / Yaesu FT-DX101MP /
  • Lock button: Yes
  • Microphone type: Dynamic and Condenser
  • Low Cut switch: Yes, cut-off frequency 340 Hz, -6 dB
  • High Cut switch: Yes, cut-off frequency 2 kHz, -6 dB
  • On air indicator: Yes
  • Microphone connector: 8-pin / RJ45

Electrical data

  • Frequency response: 30 - 17000 Hz
  • Impedance: 600 Ω
  • Sensitivity: -60 dB
  • Current consumption: 35 mA
  • Supply voltage: DC 5.0 V ±10 %

Mechanical data

  • Length: 140 mm
  • Height: 280 mm
  • Width: 152 mm
  • Weigth: 960 gram
