Zetagi - 430 Professional Line

Product code: 430

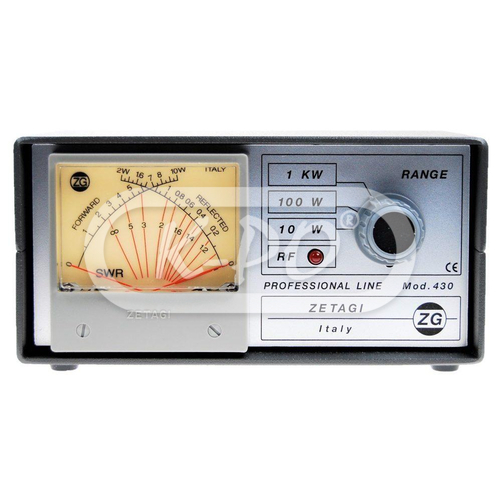

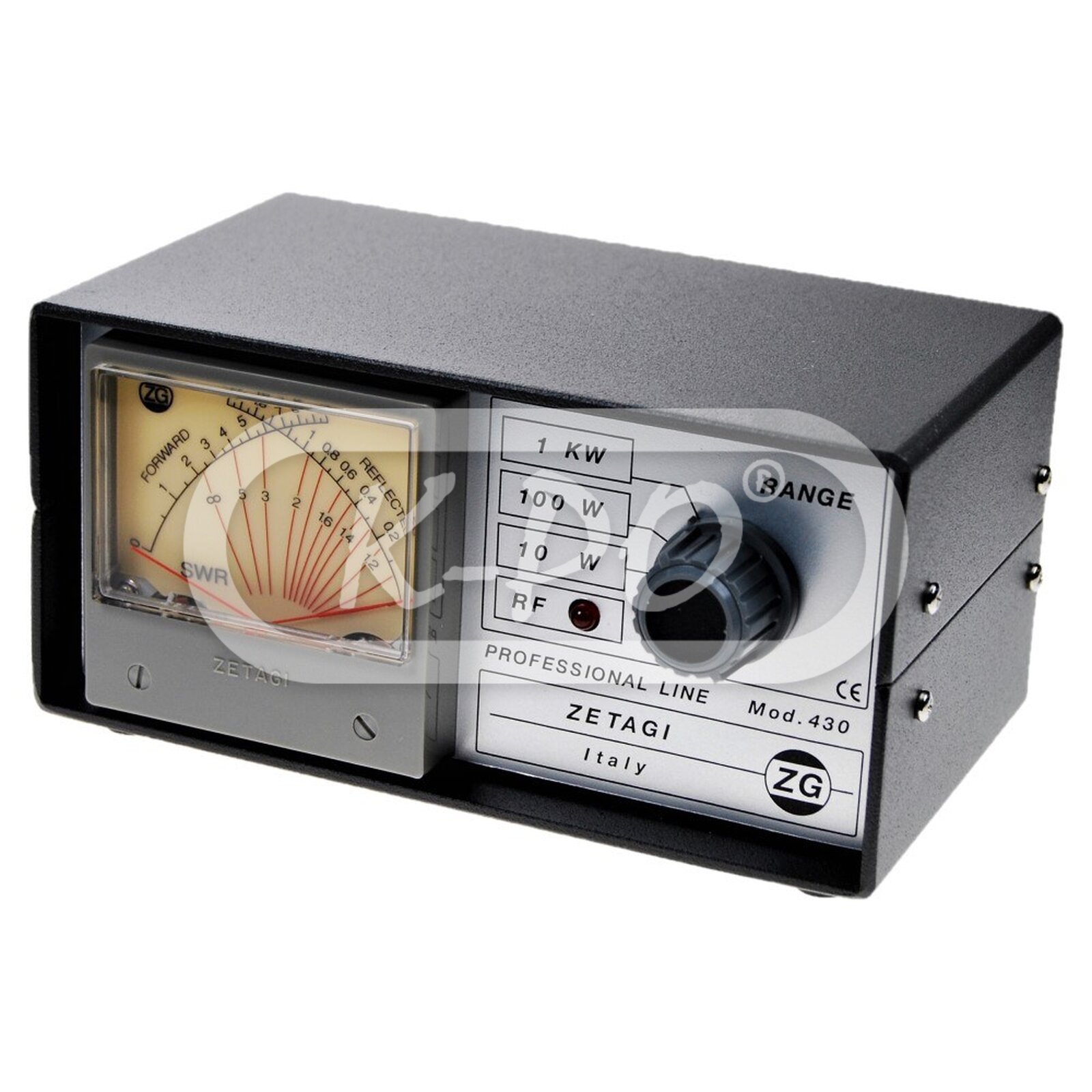

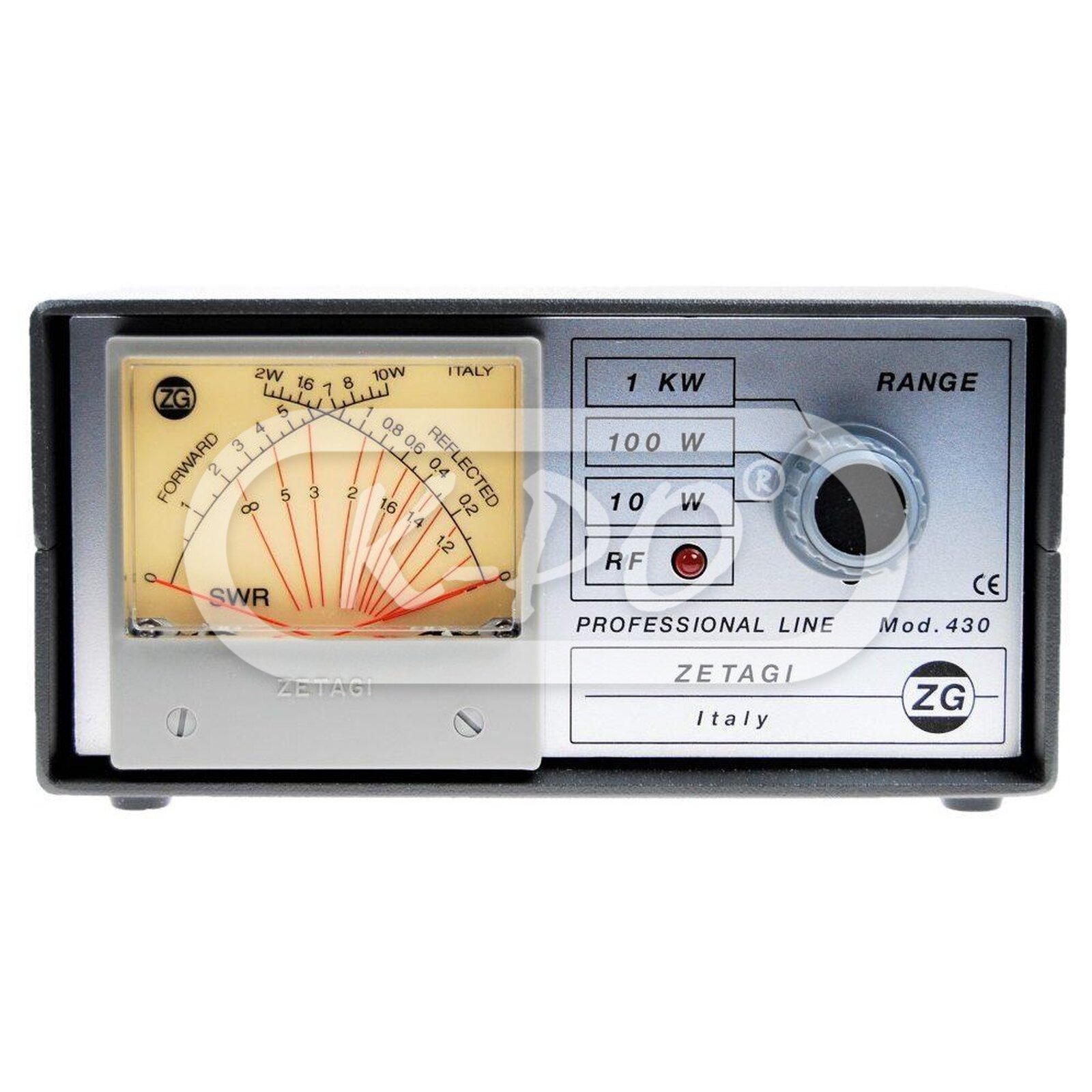

The Zetagi 430 Professional Line is a very robust SWR and Power cross needle meter to measure Forward Power, Reflected Power and SWR simultaneously. Frequency range 120 - 500 MHz. Maximum power handling of 1 kW, short time.

Frequency range: 120 - 500 MHz
Note - Discontinued
€ -- (Discontinued)

Electrical data

  • Impedance: 50 Ohm
  • Power range: 10 / 100 / 1000 Watts
  • Accuracy: ± 10%
  • Testing function: SWR and Power (FWD and REF)

Mechanical data

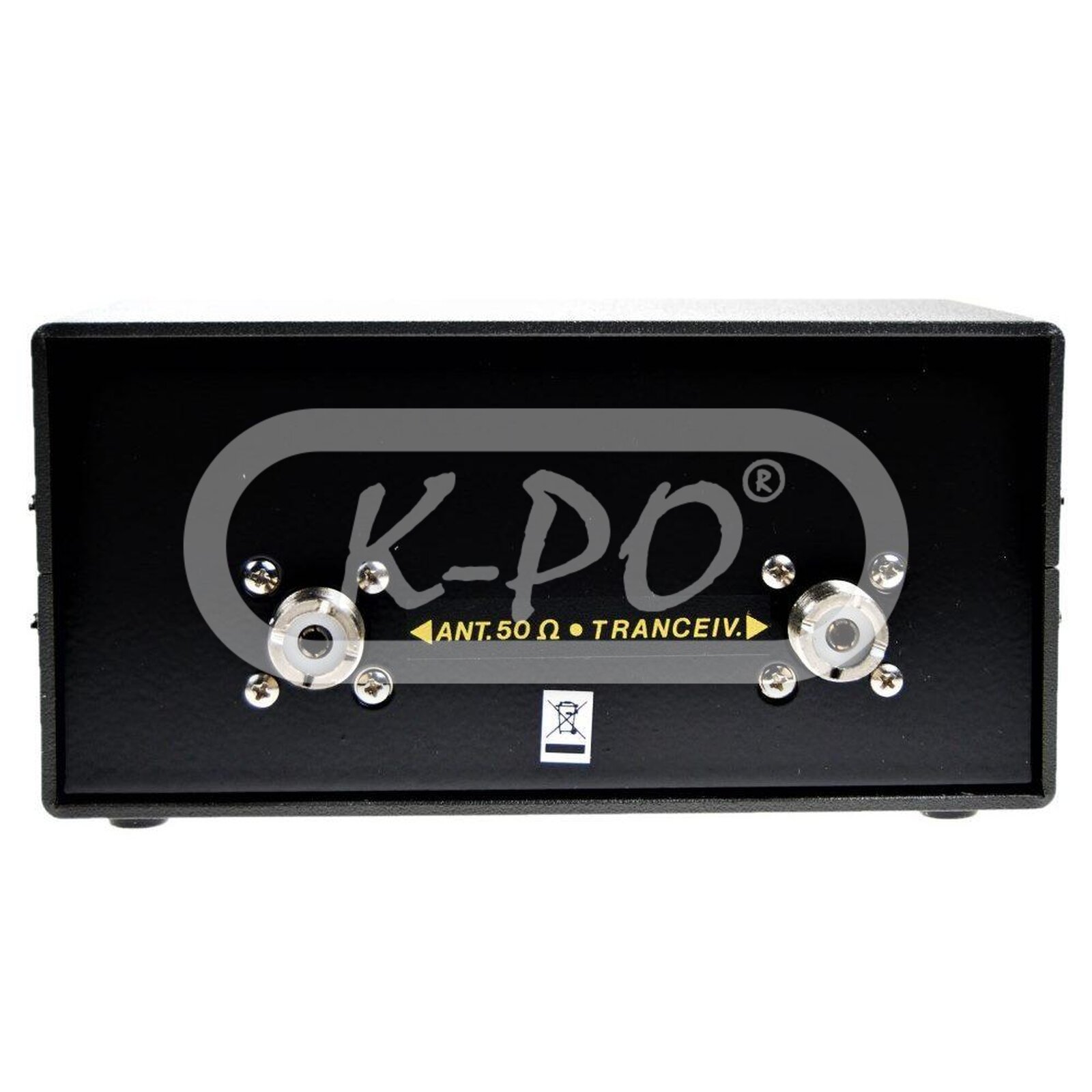

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 160 mm
  • Height: 80 mm
  • Width: 120 mm
  • Weight: 1000 gram

Inside the box

  • Meter: Yes
  • Installation manual: English
