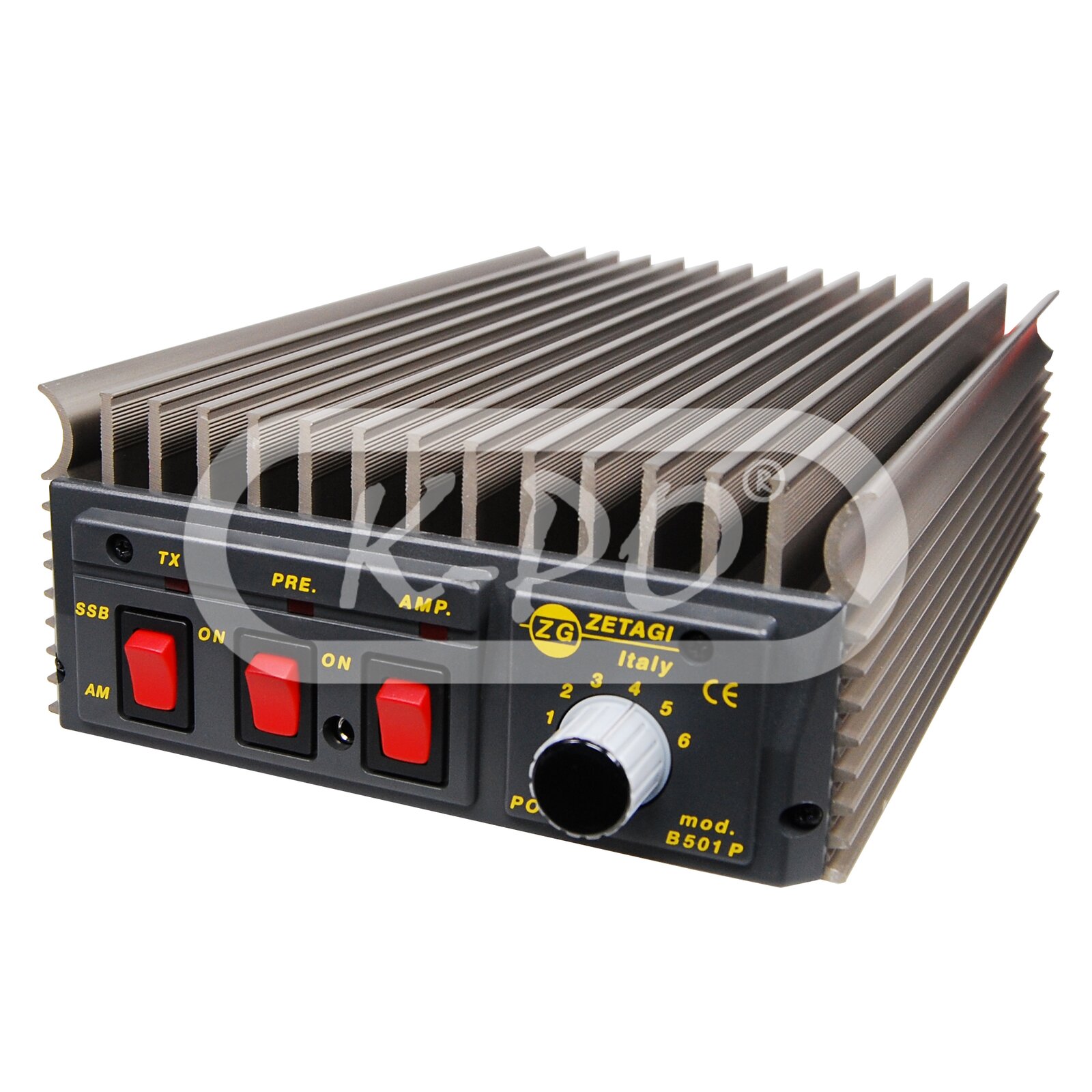

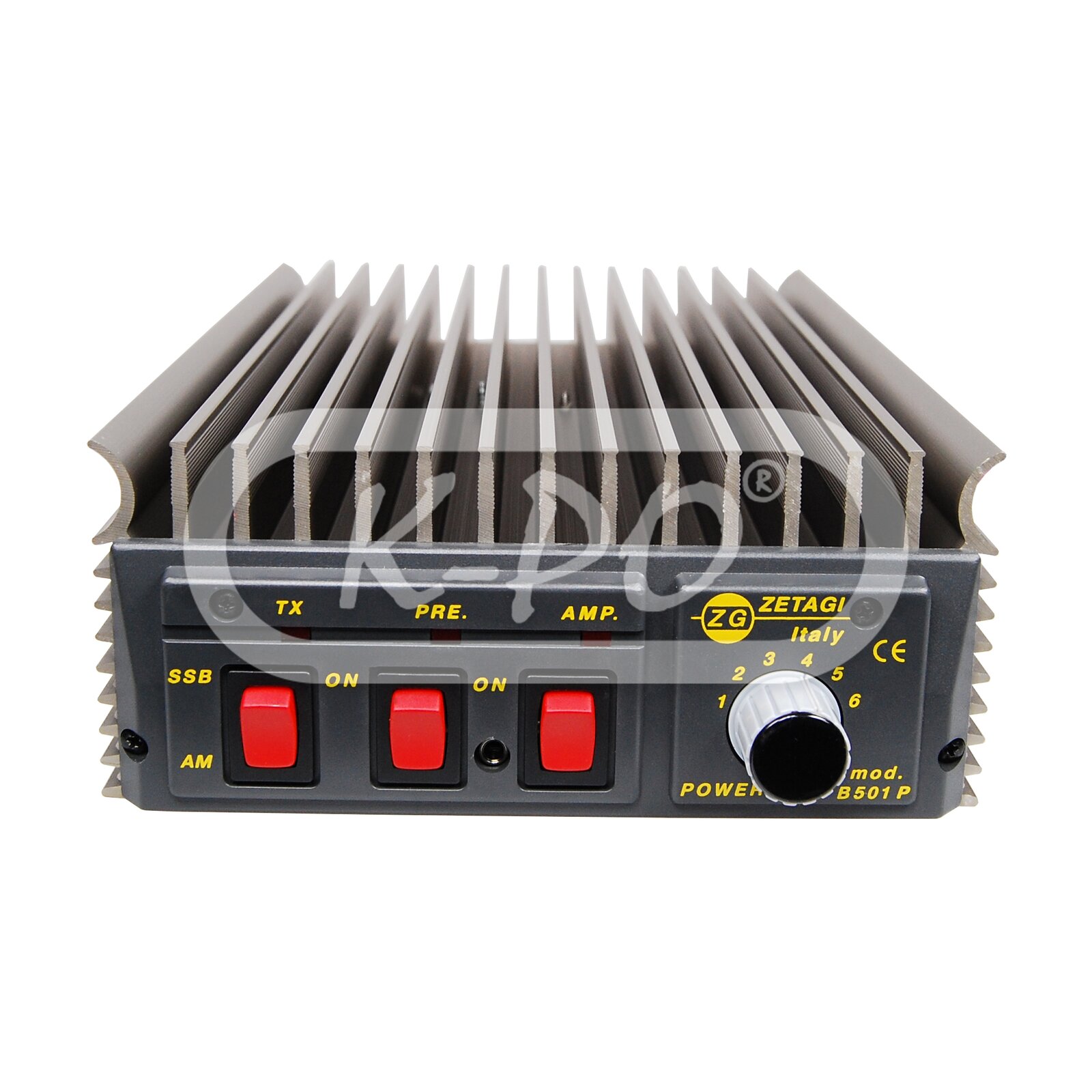

Zetagi - B501P

Product code: 92018

The Zetagi B501P is an linear amplifier with inversion polarity protection is suitable for 24 Volt. The max. output power off the amplifier is 70-250 Watts AM-FM and 140-500 Watts SSB (PEP).

Frequency range: 20-30 MHz
Shipped next business day
€361.94 (361.94 excl. 0% VAT)

Electrical data

  • Input power (Watts): 1-10 AM-FM / 1-20 SSB
  • Max output power (Watts): 70-250 AM-FM
  • Max output power SSB (Watts): 140-500 (PEP)
  • Impedance: 50 Ohm
  • Inversion polarity protection: Yes
  • Pre-amplifier: Yes
  • Cooling fans: No
  • Input energy/power: 6-13 A
  • Output power level: 6
  • Antenna pre-amplifier: 25 dB

Mechanical data

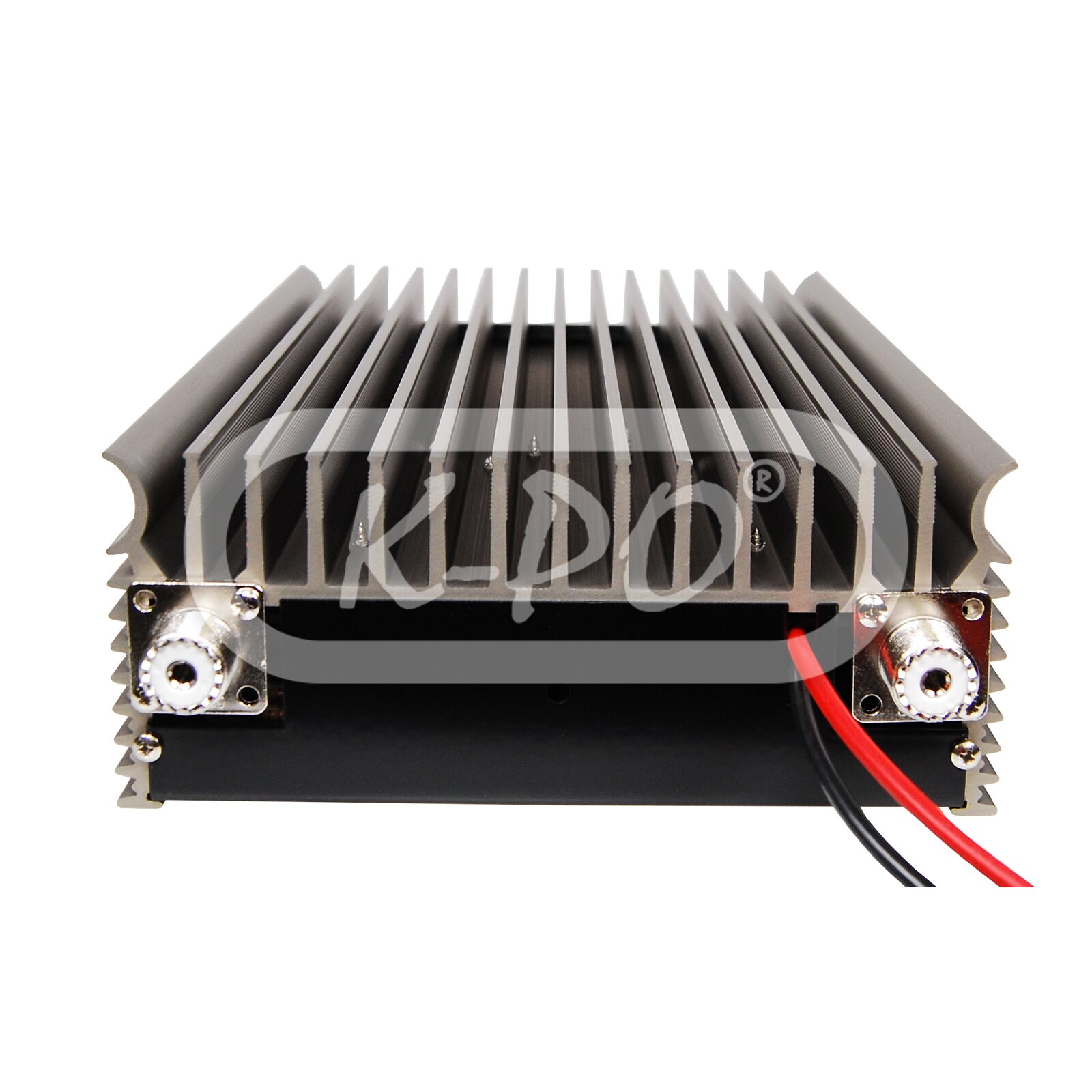

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 260 mm
  • Height: 70 mm
  • Width: 160 mm
  • Weight: 2400 gram
  • Color: Silver

Inside the box

  • Amplifier: Yes
  • DC power cord: Yes
  • Installation manual: English
