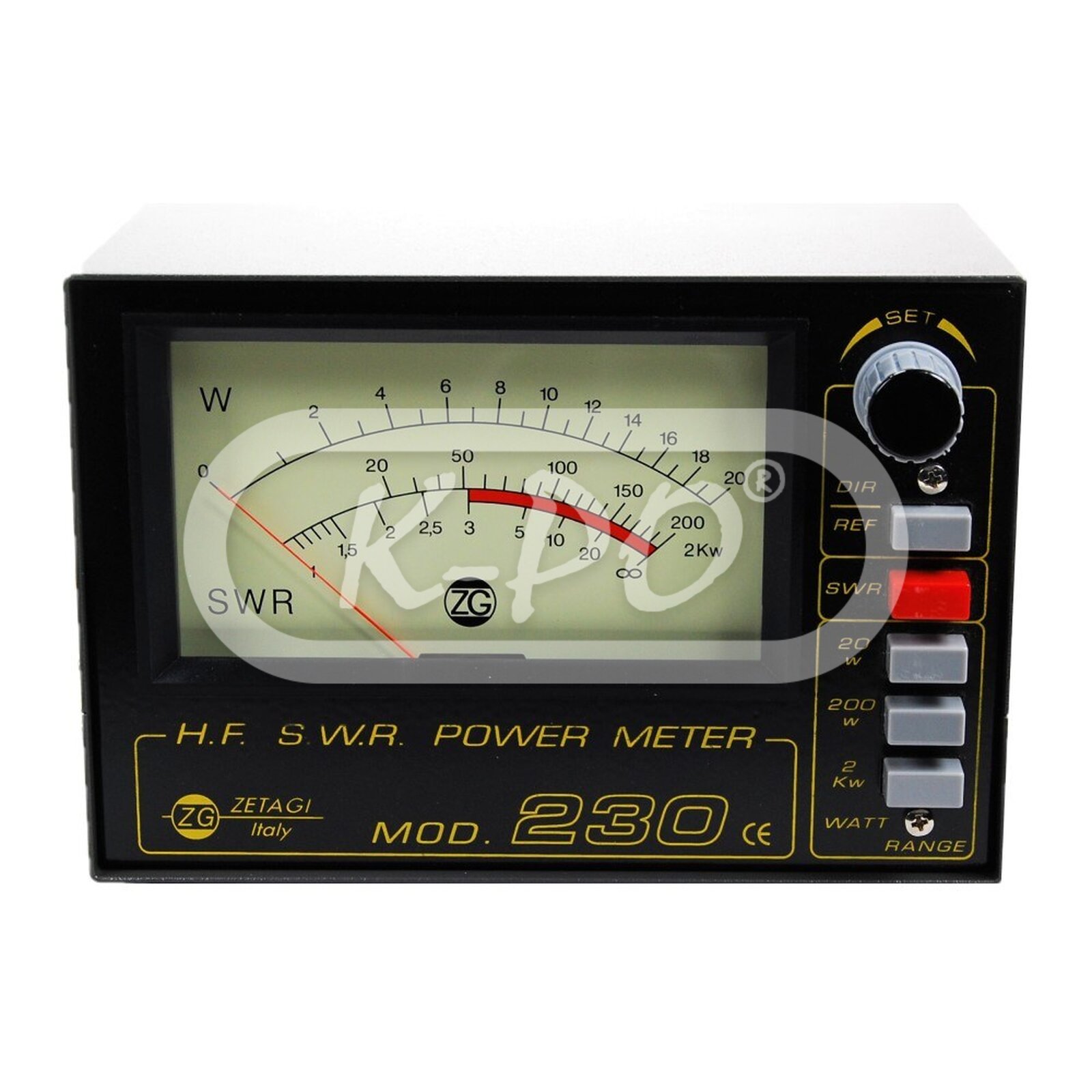

Zetagi - SWR 230

Product code: 900230

The Zetagi SWR 230 is a high quality and precision SWR / PWR meter for HF frequencies, 2 - 30 MHz. The large meter makes you read of the values easily. Maximum power handling of 1 kW.

Frequency range: 2 - 30 MHz
Note - Discontinued
€ -- (Discontinued)

Electrical data

  • Impedance: 50 Ohm
  • Power range: 20 Watts / 200 Watts / 1 kW
  • Accuracy: +/- 10%
  • Testing function: VSWR and Power

Mechanical data

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 180 mm
  • Height: 130 mm
  • Width: 125 mm
  • Weight: 1250 gram

Inside the box

  • Meter: Yes
  • Installation manual: English
