Zetagi - V-2

Product code: 905006

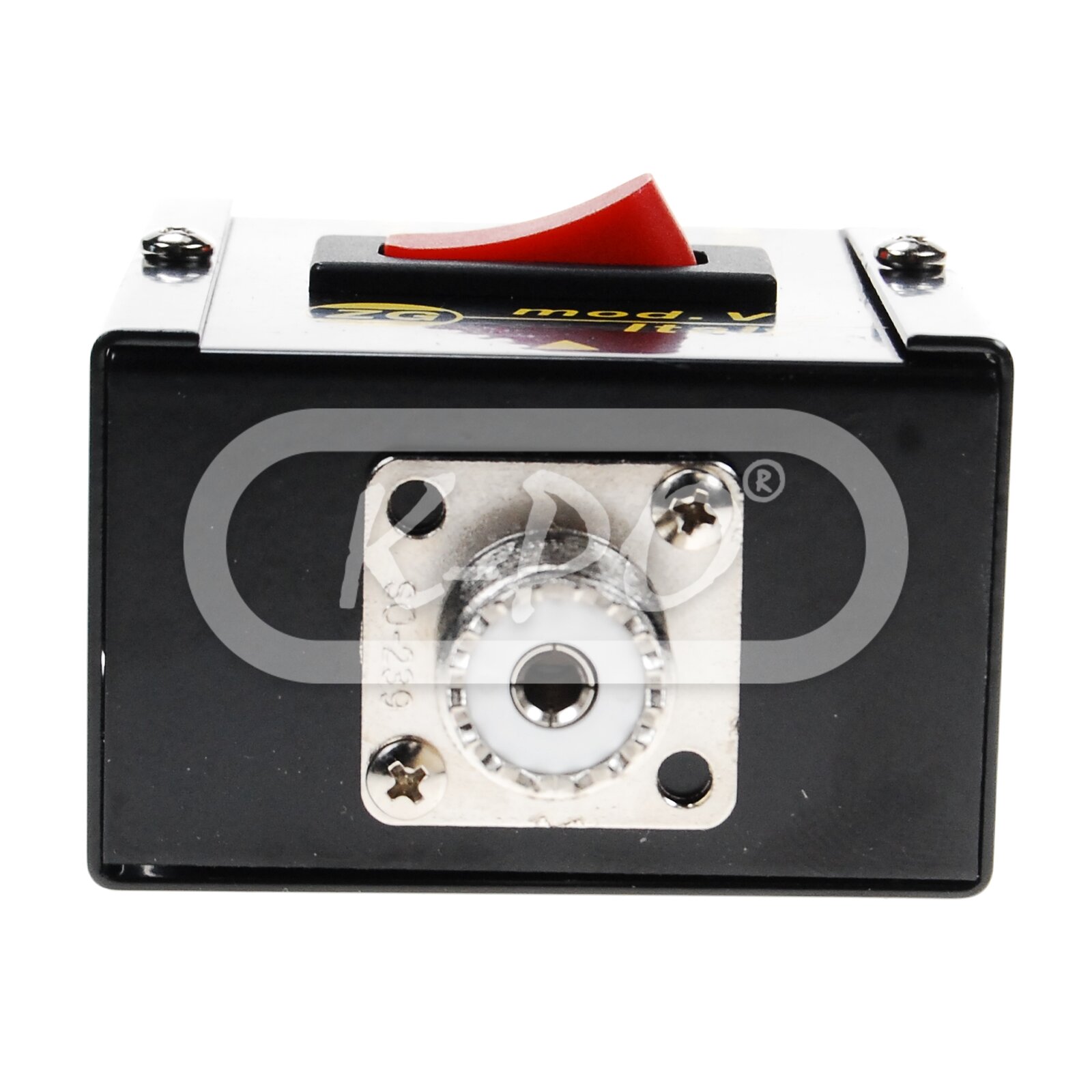

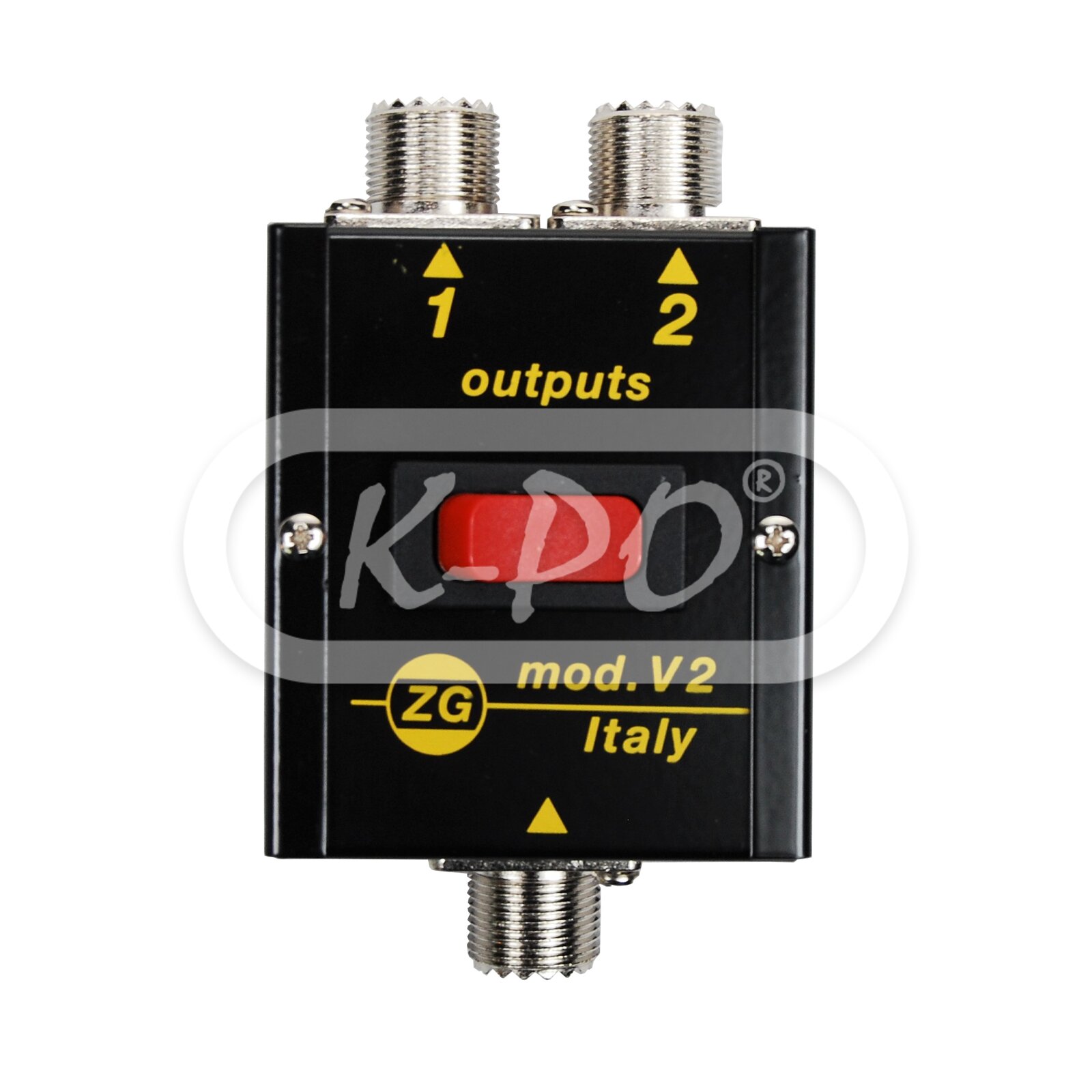

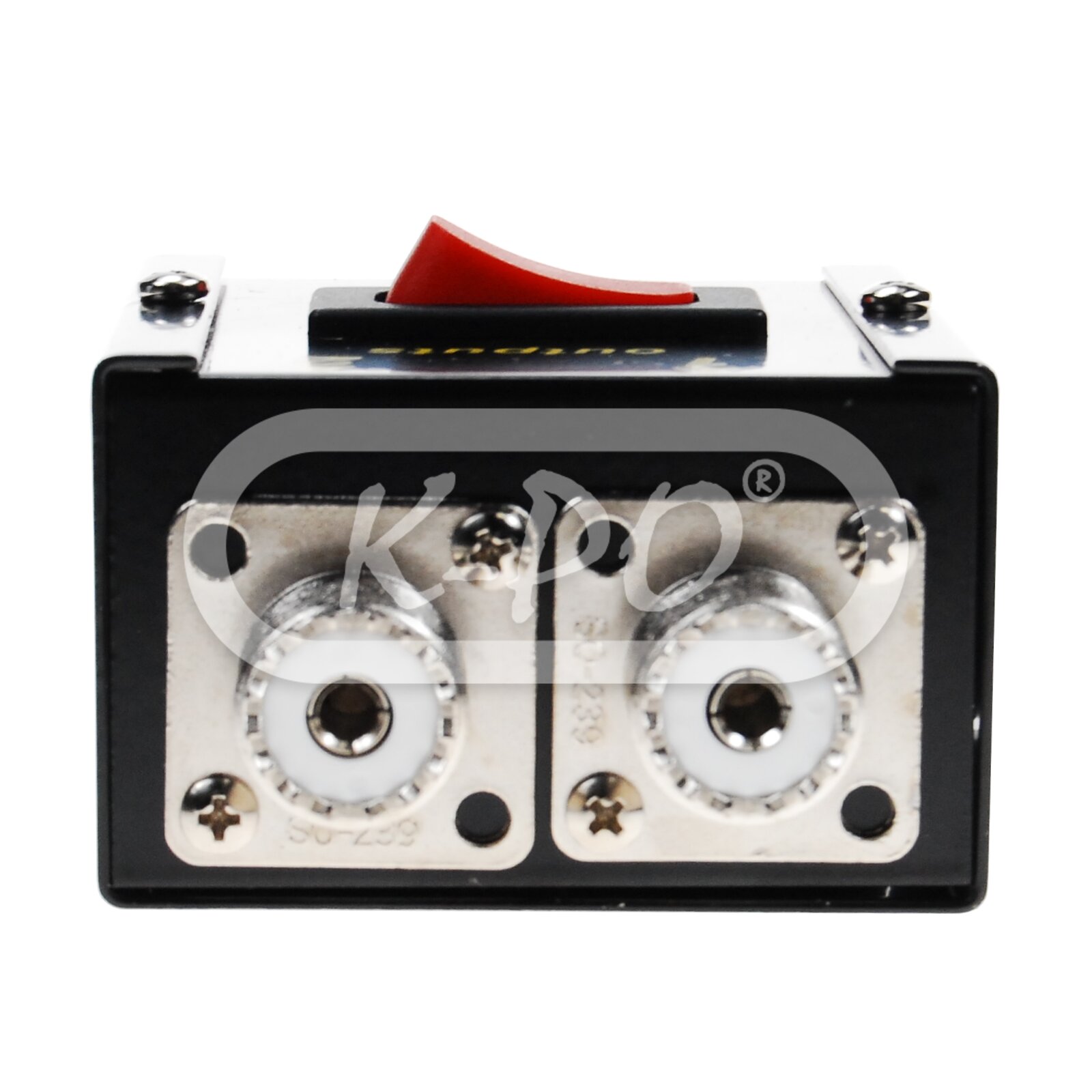

The Zetagi V-2 is a 2 way antenna switch with a UHF (PL) female input connector and 2x UHF (PL) female output connectors.

Frequency range: Up to 30 MHz
Note - Price on request
€ -- (Price on request)

Electrical data

  • Impedance: 50 Ohm
  • Insertion loss: Less than 0.2 dB
  • Max output power: 500 W AM

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Connector(s) type out: UHF (PL) female
  • Length: 105 mm
  • Height: 38 mm
  • Width: 60 mm
  • Weight: 250 gram
