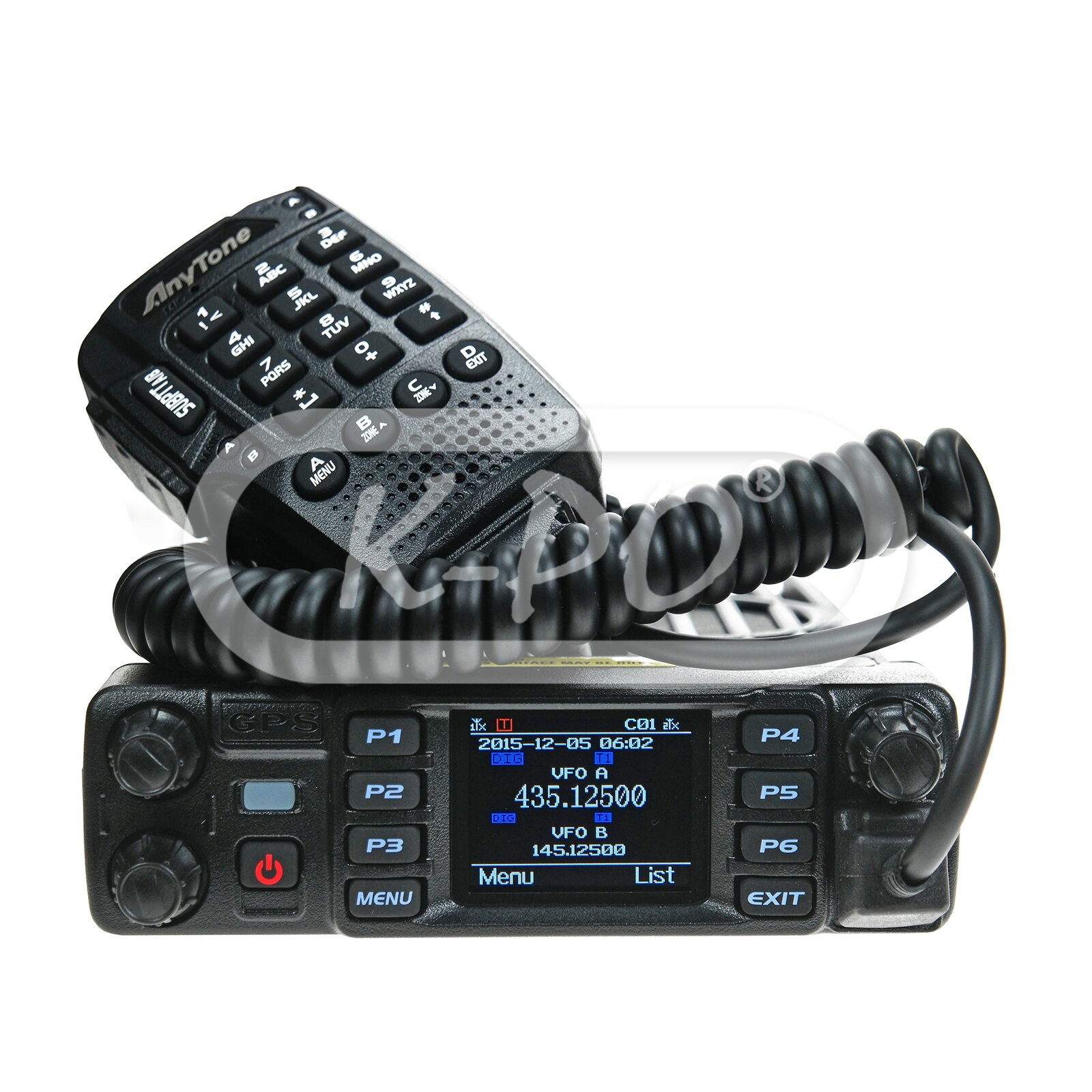

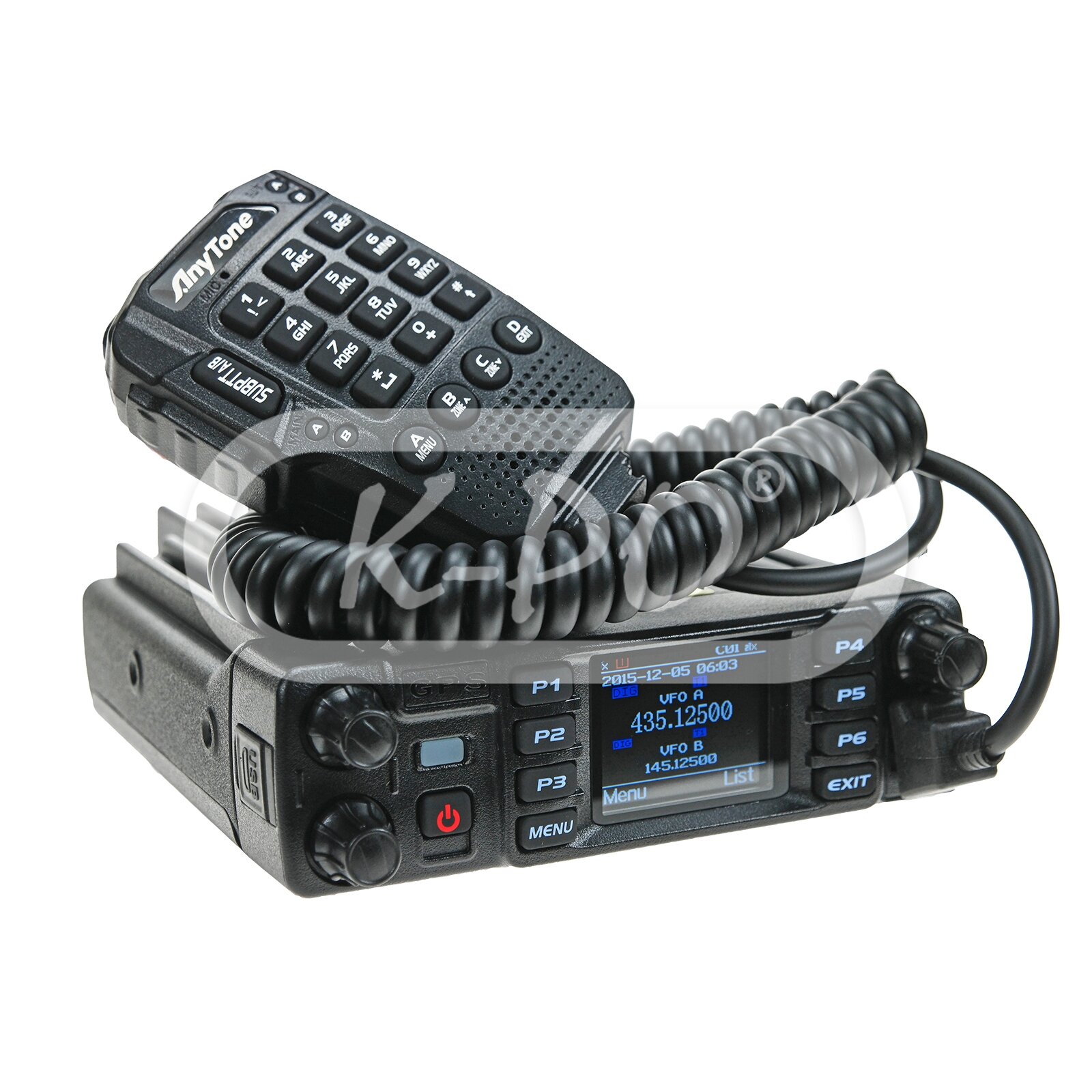

AnyTone - AT-D578UV Plus

Product code: 30575
Factory code: 30575
Barcode: 6947475212832

The Antone AT-D578UV Plus is a true TWIN band radio for digital DMR radio systems, compatible to MOTOTRBO Tier 1 and 2. Traditional FM is of course equally supported. In contrast to many other DMR radios the AT-D578UV offers real VFO operations, which makes it much more suitable for amateur radio.

Frequency range: TX/RX: 144-146 / 430-440 MHz
Out of stock - Longer delivery time
€347.06 (347.06 excl. 0% VAT)

Features

  • True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant

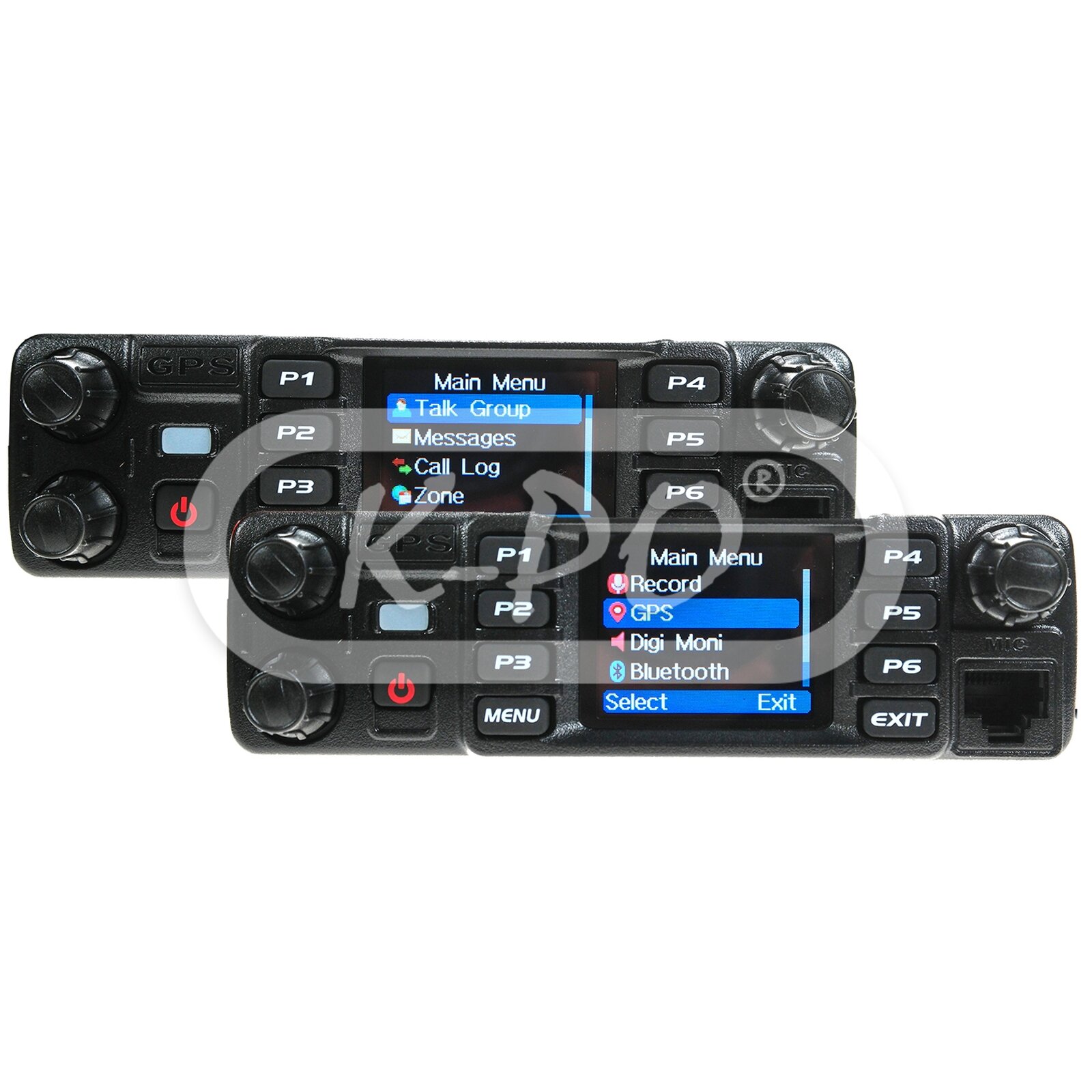

  • Display: Yes, 1.77 inch TFT color LCD, dual display; dual PA; dual PTT
  • Bandwidth: 12.5 - 25 kHz Analog / 12.5 kHz DMR
  • VOX function: Yes, digital recording and play
  • DTMF: Yes, encode and decode
  • 2-tone/5-tone: Yes, encode and decode
  • Crossband repeater function: Yes
  • Ranging function: Yes, between radios with GPS
  • Roaming function: Talker alias function
  • AES256 digital encryption: Yes, zone selection
  • SMS: Yes, with keyboard
  • Call interrupt: Optional function
  • Duplexer Talk: Optional function
  • Connect to Motorola repeater: Yes, with IP
  • Weather alerts: Yes
  • Auto-senses: Yes, digital or analog reception

Electrical data

  • Frequency step: 12.5 kHz / 25 kHz /
  • Channels: 4000 channels + VFO; 10,000 Talk groups with 200,000 digital contacts
  • Wide and narrow bandwidth selection: Yes
  • Phase-locked Step: 5 and 6.25 kHz
  • Operating temperature: -20℃ to +60℃
  • Operating voltage: 13.8 Volt
  • Power supply current requirement: 15 Amps (min)

Transmitter

  • Power output (Watts): VHF: 5/10/25/55 Watts UHF: 5/10/25/45 Watts
  • Modulation limit: ± 5.0 kHz @ 25 kHz / ±.2.5 kHz @ 12.5 kHz
  • Adjacent channel power: Wide: ≤ 70 dB / Narrow: ≤ 60 dB
  • Spurious Emission: Wide: ≤ -57 dB / Narrow: ≤ -57 dB
  • Audio distortion: ≤ 5%
  • Frequency stability: ±2.5 PPM
  • Hum & noise: Wide: ≤40 dB / Narrow: ≤36 dB
  • Error rate: ≤ 3%
  • 4FSK Digital modulation: 7K60FXD: 12.5 kHz (data) / 7K60FXE: 12.5 kHz (data+voice)

Receiver

  • Sensitivity: Wide: ≤ 0.25 µV / Narrow: ≤ 0.30 µV
  • Digital sensitivity: Wide: 0.3 µV / 117.4 dBm (Ber 5%) / Narrow: 0.7 µV / 110 dBm (Ber 1%)
  • Spurious emission: Wide: ≤ -57 dB / Narrow: ≤ -57 dB
  • Spurious rejection: Wide: ≤ 70 dB / Narrow: ≤ 70 dB
  • Blocking: 84 dB
  • Audio distortion: ≤ 5%
  • Audio power output: Wide: ≤ 0.45 µV / Narrow: ≤ 0.40 µV
  • Speaker: 2 Watts - 8 Ohm

Mechanical data

  • Length: 188 mm
  • Height: 40 mm
  • Width: 141 mm
  • Weight: 1004 gram
  • Antenna connector: UHF (PL)

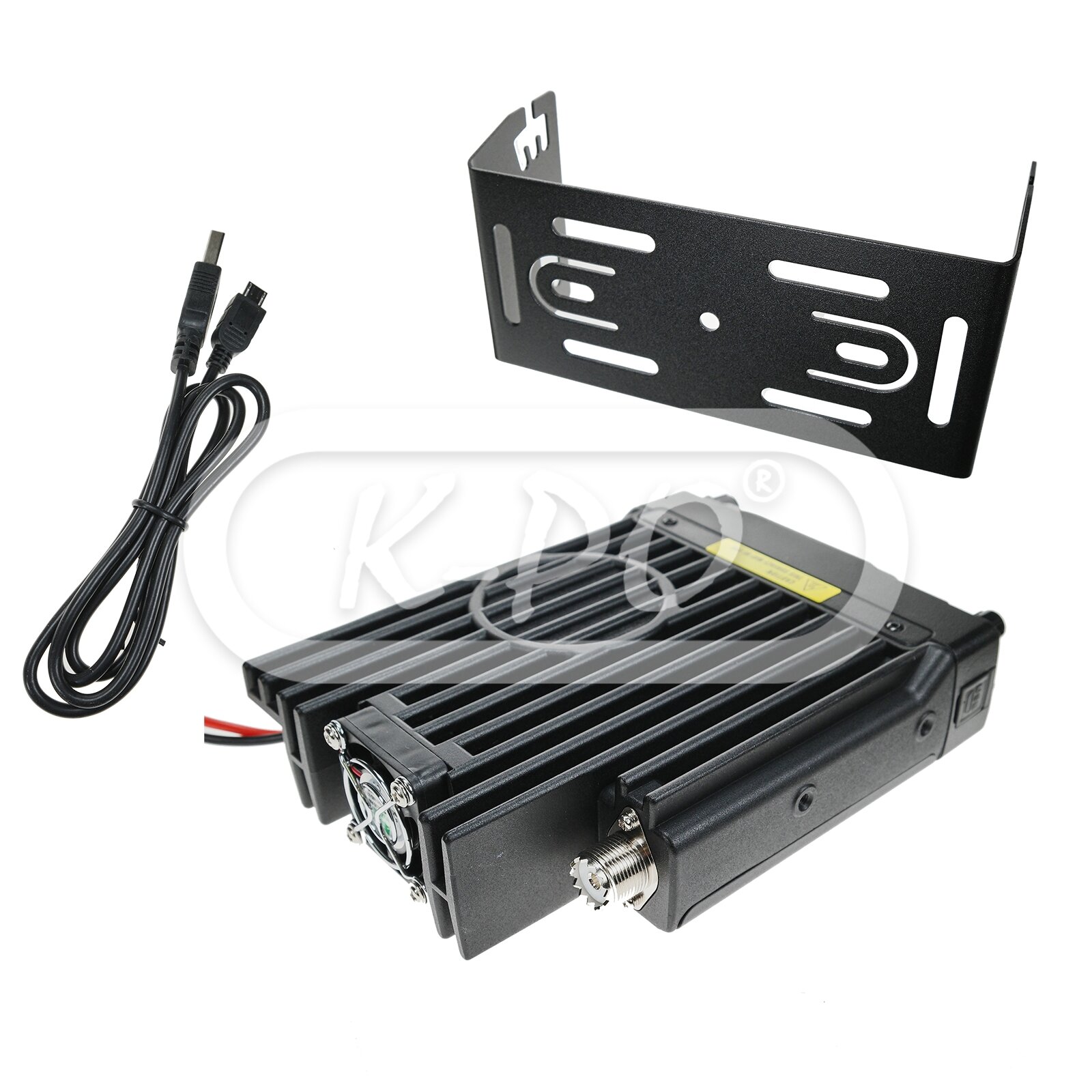

Inside the box

  • Transceiver: Yes

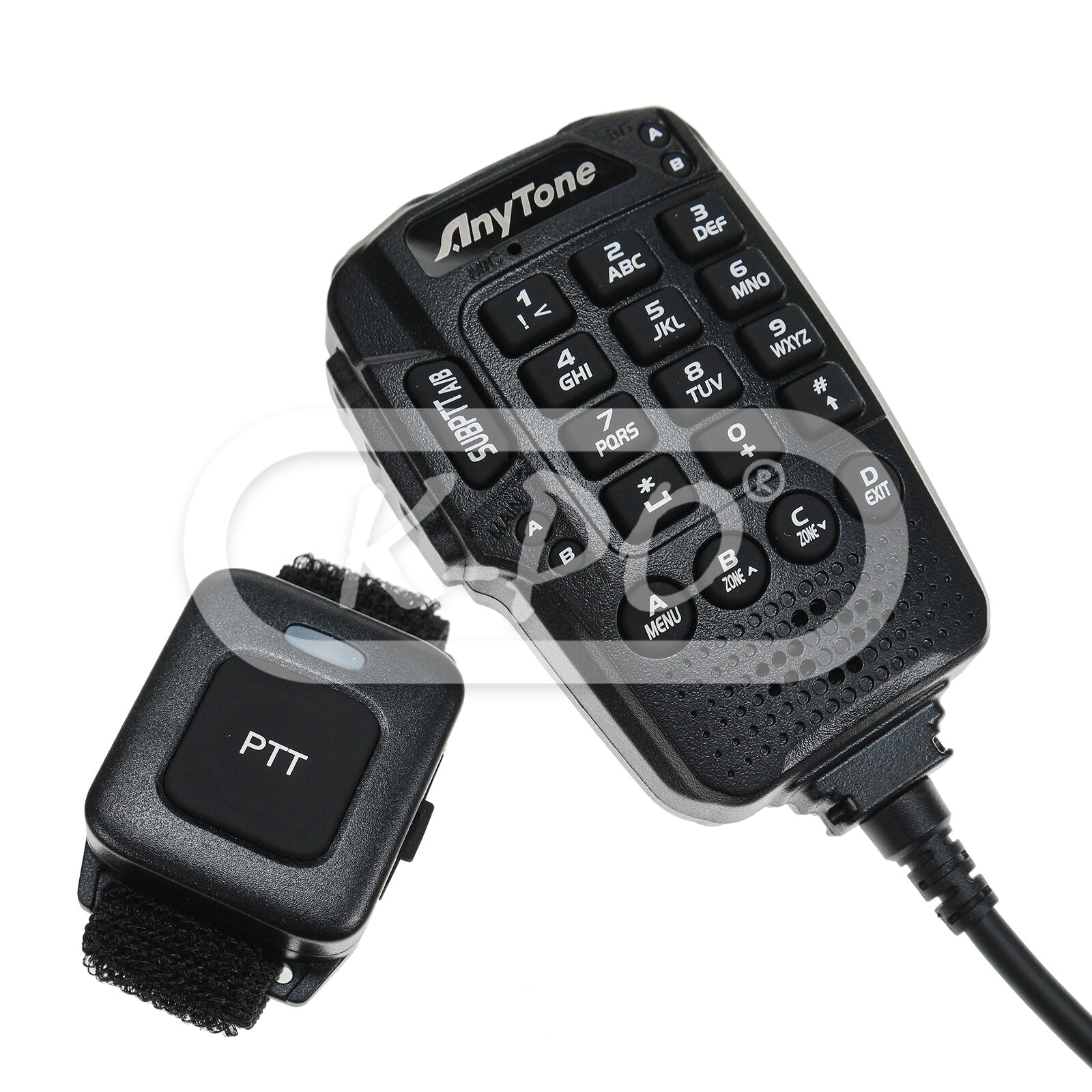

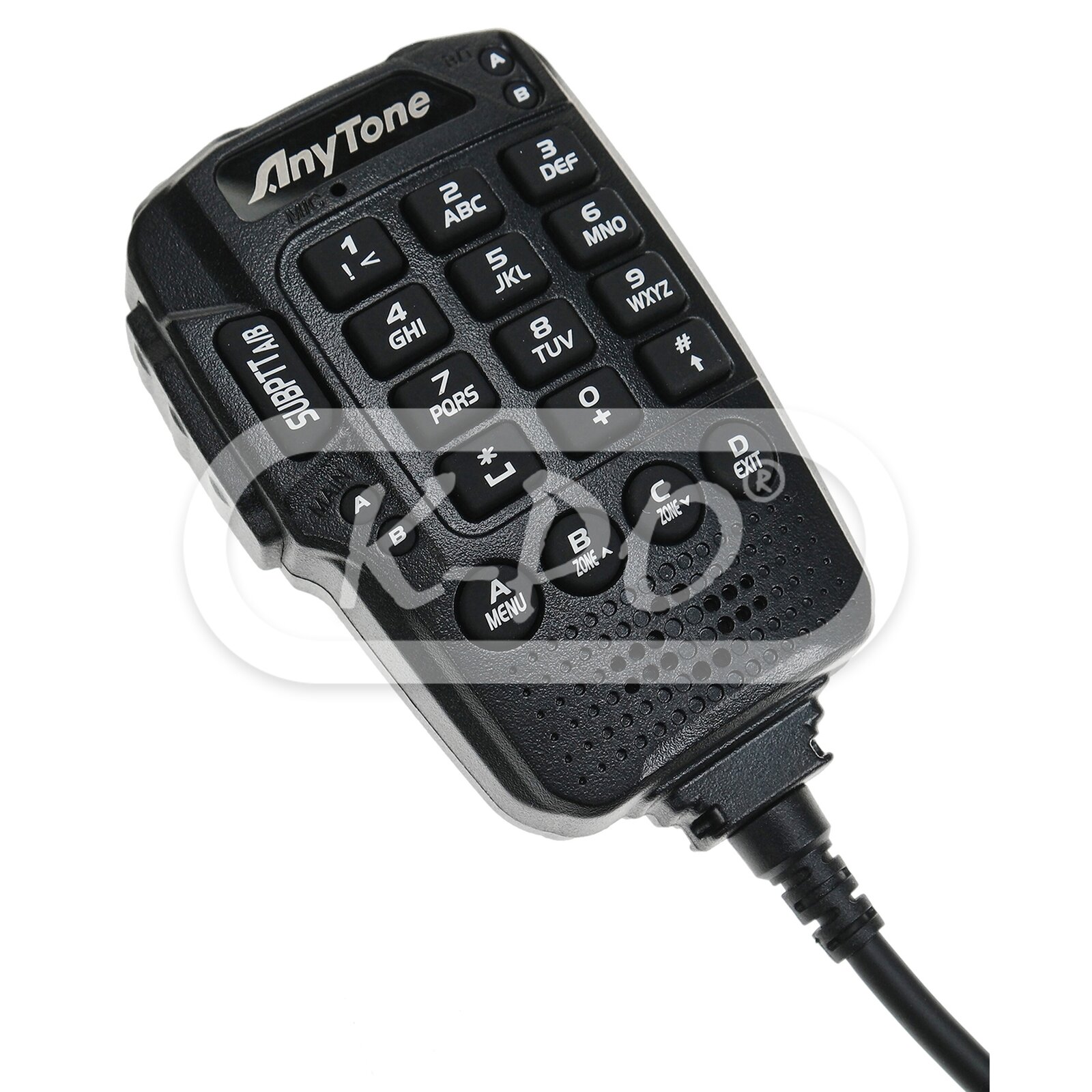

  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • USB program cable: Yes
  • Installation manual: English

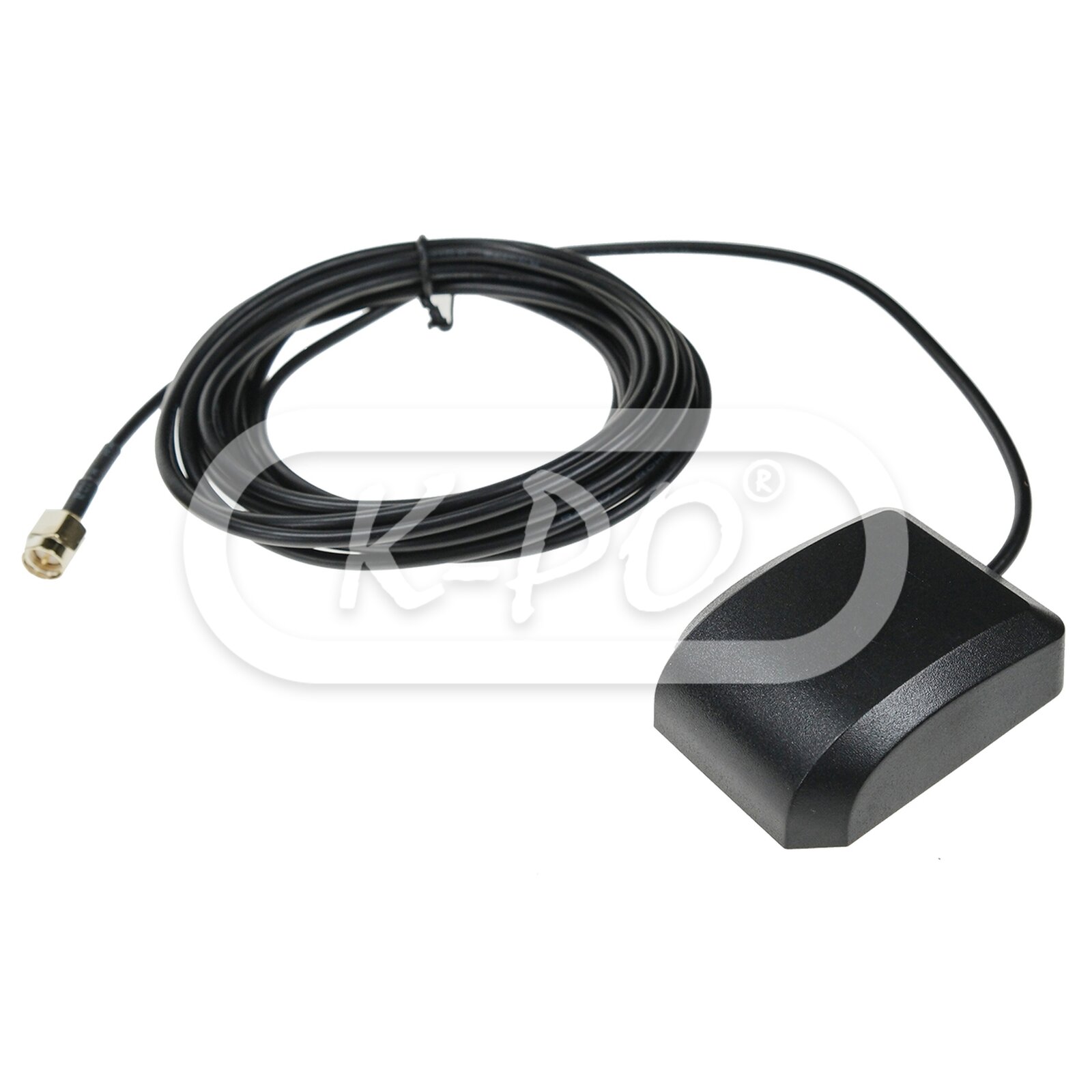

  • GPS Antenna: Yes

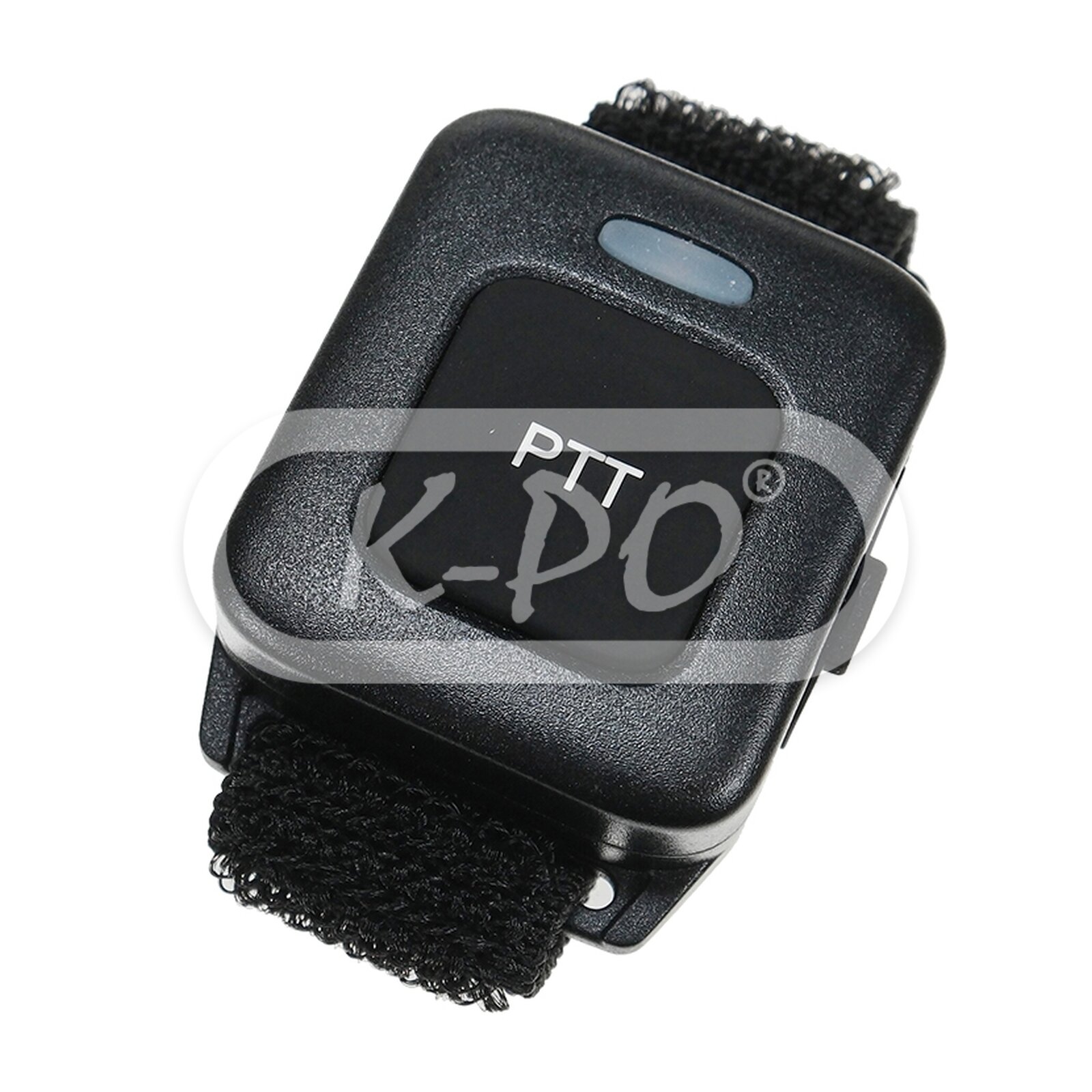

  • PTT Bluetooth button: Yes
