Diamond - A144S5R2

Product code: 990010

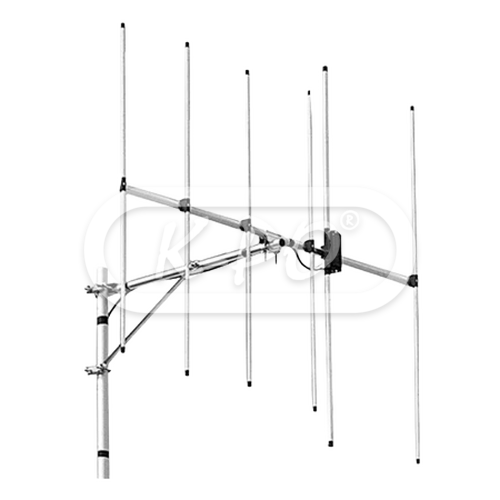

Diamond A144S5R2 Yagi Antenna (144–146 MHz)
Compact and powerful 5-element Yagi antenna for the 2 m amateur band.

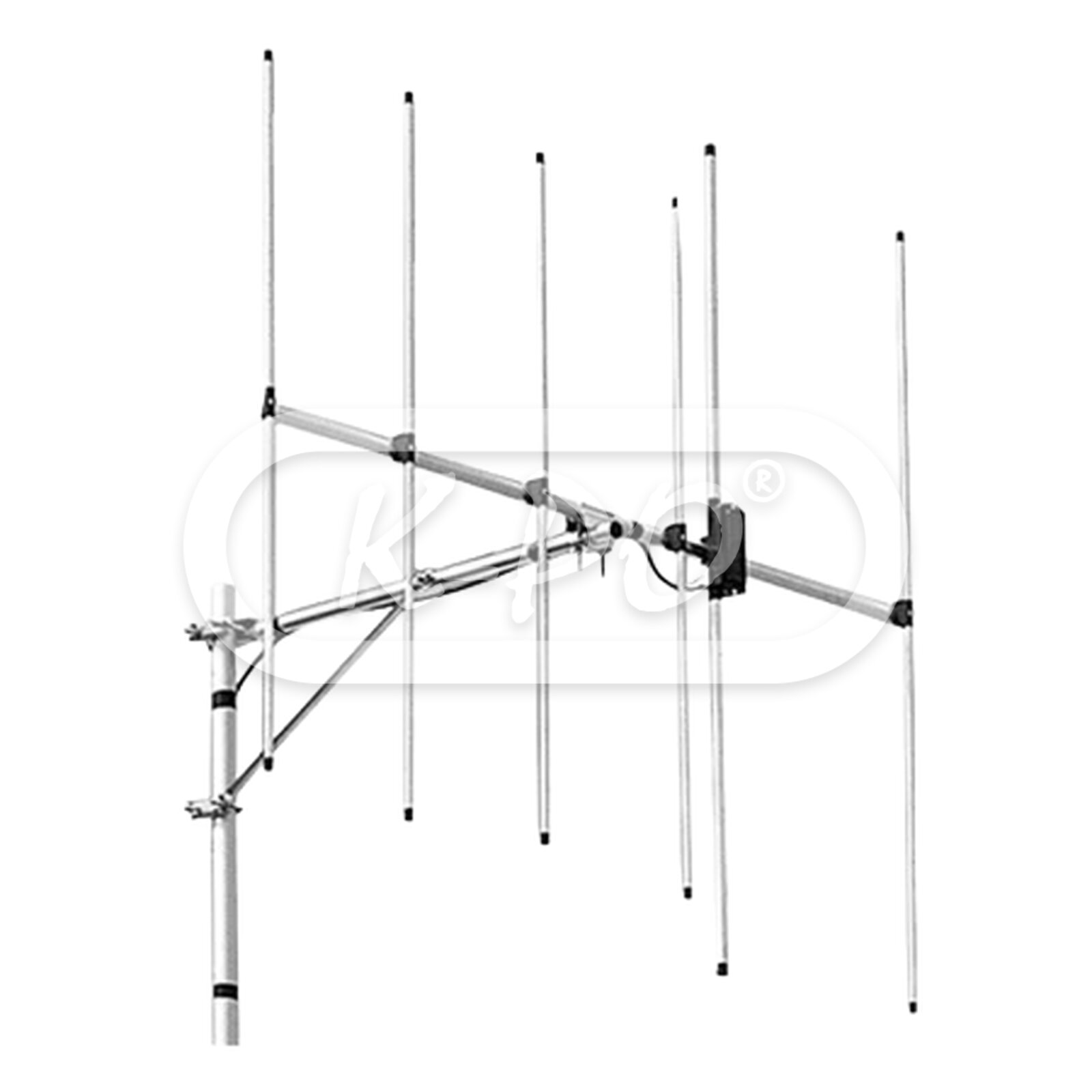

*Note: The Yagi beam support bracket shown in the picture is not included.

Frequency range: 144 / 146 MHz

Shipped today - Stock: 3

€59.94 (49.54 excl. 21% VAT)

Electrical data

• Gain: 9.1dBi
• VSWR: ≤ 1.5
• Maximum continuous power: 50 Watts
• Impedance: 50 Ohm

Mechanical data

• Length: 950 mm
• Height: 1090 mm
• Width: 73 mm
• Weight: 630 gram
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes

Downloads

• Datasheet: Diamond A144 S5 R2
