Shakespeare - QC-4 + QCM-N base mount

Product code: 800004

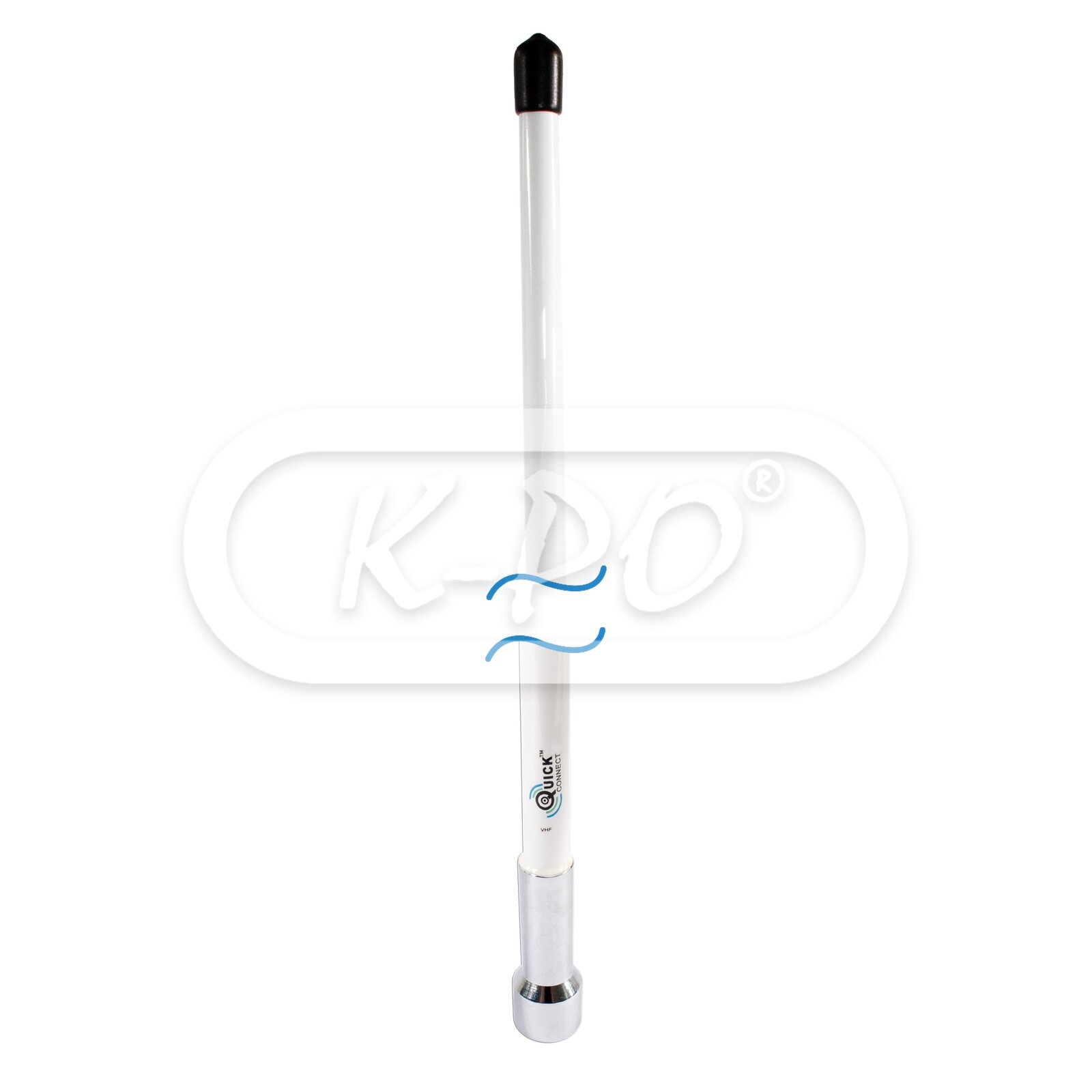

Shakespeare QC-4 QuickConnect VHF Antenna, 4’ (1.21 meter)

Stemming from the popularity of the quick connecting feature on Shakespeare’s high-end Phase III marine antennas, the new QuickConnect product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas.

  • QuickConnect system, screw or unscrew antenna to disconnect or connect.
  • High quality connection so that no noise is generated due to vibrations
  • Splash protection cap to protect the connector on the mount when antenna is disconnected
  • Centerpin® PL-259 Connector is an easy crimp-on type connector
  • Standard mount design to easily upgrade to a high-end Shakespeare antenna without purchasing a new mount

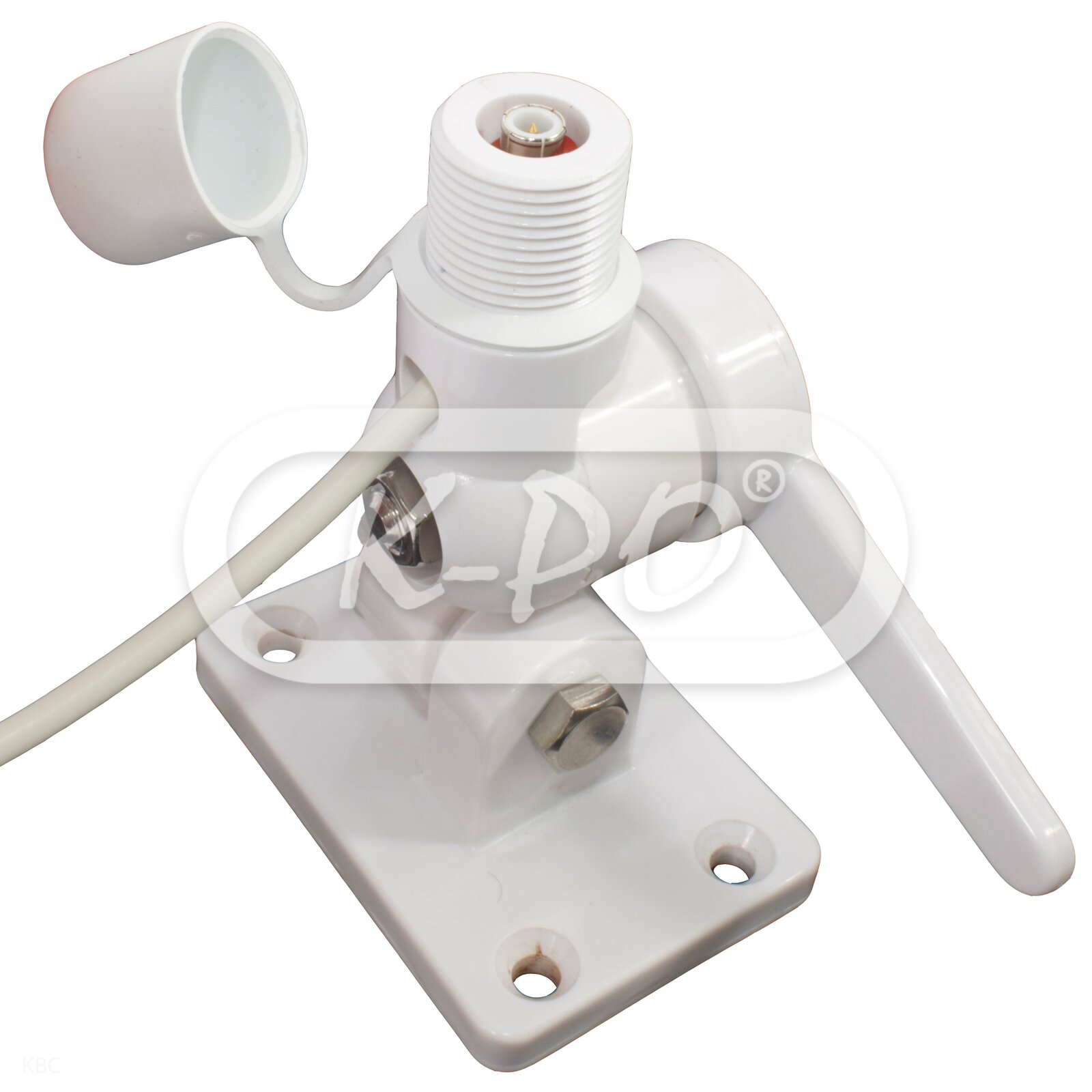

QuickConnect Nylon Ratchet Mount for the Shakespeare QC-4.

Versatile four-way ratchet action and fast-release handle design for quick and easy laydown. For deck or side mounting of QuickConnect antennas.

  • QuickConnect: Easy removal of an antenna without the hassle of re-installing cables
  • Thread: 1” -14 / Bolt holes: 9/32” ø (7.14 mm), 3” x ½” (76.2 mm x 12.7 mm) on center
  • Water and dust protection cap: Stays fastened to mount to prevent it from getting lost
  • Centerpin® PL-259 Connector: Included for easy solder-free installation
  • Handles antennas up to 4’ (1.2 meter)
  • Nylon
Frequency range: 156 - 162 MHz
Shipped today
€109.95 (90.87 excl. 21% VAT)

Electrical data

  • Gain: 3 dB
  • VSWR: ≤ 1.5 at 156.8 MHz
  • Bandwidth: 5 MHz ≤ 2.0
  • Maximum continuous power: 50 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Height: 1219 mm
  • Mounting type: On optional QuickConnect® mount

Inside the box

  • Antenna: Yes
  • Installation manual: English
