Sirio - GP 1801 C N-f

Product code: 860
Factory code: 2108206.00

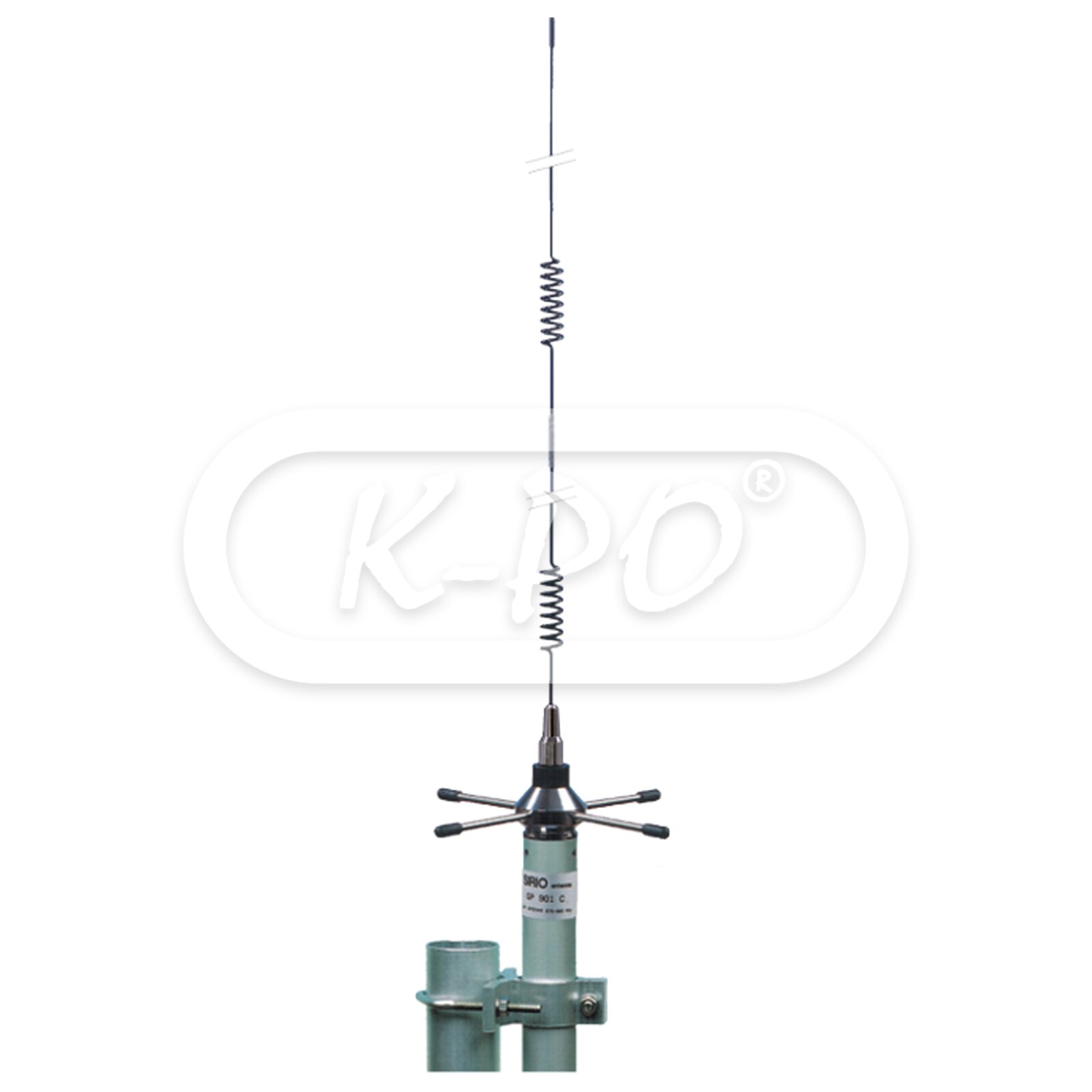

UHF colinear Ground Plane antenna suitable for the base station service covering the frequency range of 1710-1880 MHz (DCS and PCN 1800 systems). The main whip and the radials are made of 17/7 PH stainless steel and its base is of chromed brass to get the best robustness. Easy to fit, it is suitable for a handy installation everywhere.

Frequency range: 1.71 - 1.88 GHz
Shipped today
€45.41 (45.41 excl. 0% VAT)

Electrical data

  • Electrical type: 1/4 λ + 2x 5/8 λ colinear
  • Gain: 6 dBd, 8.15 dBi
  • VSWR: See the product manual under downloads
  • Power continues: 20 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Stainless Steel, aluminium, chromed brass, nylon
  • Mast Ø: 35 - 54 mm
  • Max wind resistance: 180 km/h
  • Height: 550 mm
  • Weight: 635 gram
  • Mounting type: On mast
  • Antenna connector: N-female
  • Radial length: 37 mm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English

Downloads
