Sirio - HP 7000

Product code: 221050505

Factory code: 2210505.05

Barcode: 8056182114587

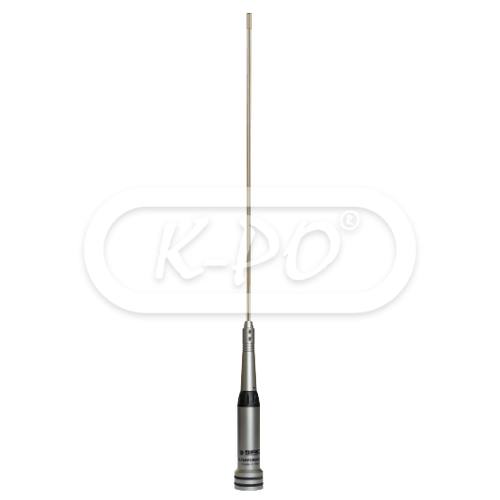

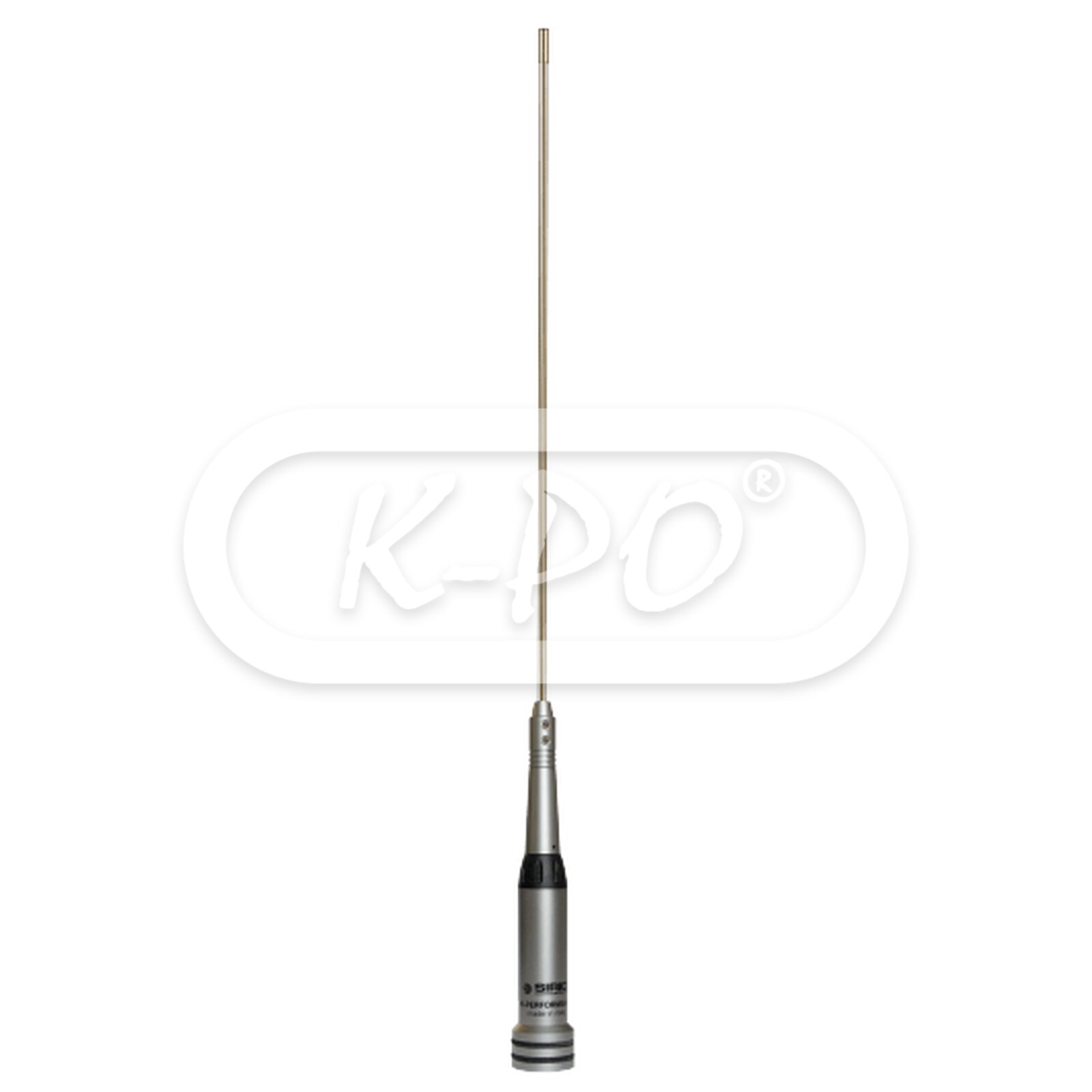

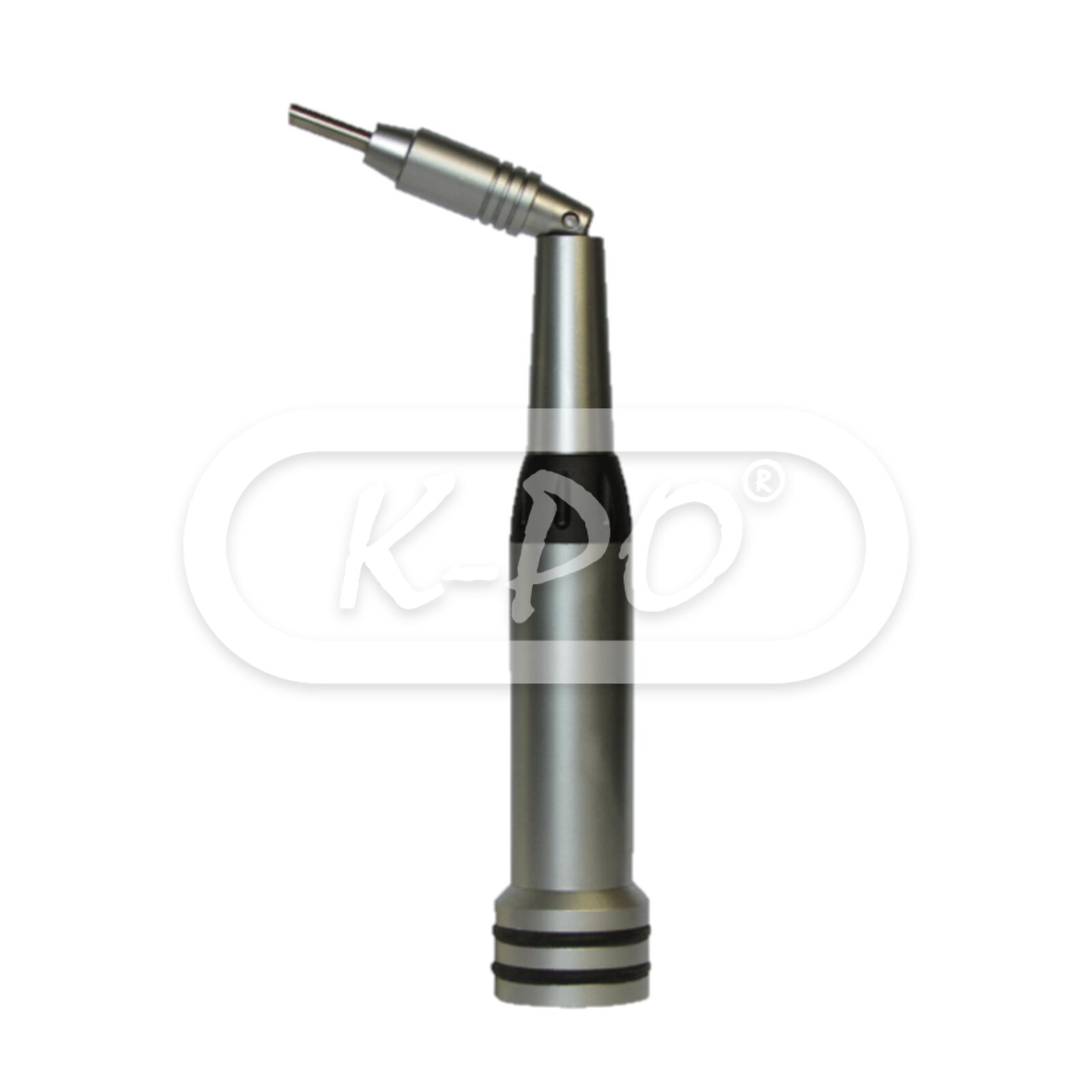

UHF radialless vehicular antenna working on 70 cm band. The very best materials have been used to guarantee the maximum strength and the best performance. The whip, made of 17/7 PH stainless steel, has an inclination system that allows the 90 tilting without using keys or tools. Also a particular attention has been paid to the UHF-male connector with a gold plated center pin, PTFE insulator and silicone rubber gasket for a perfect waterproofing.

Frequency range: 426 - 442 MHz

Out of stock - Longer delivery time

€53.95 (44.59 excl. 21% VAT)

Electrical data

• Electrical type: 5/8 λ
• Gain: 2 dB
• VSWR: ≤ 1.2 on center frequency / ≤ 2.0 @ 426 - 442 MHz
• Maximum continuous power: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 435 mm
• Weight: 250 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English

Downloads

• Datasheet: Id 102 18 06 2015 HP7000
