Sirio - SG-CB/VHF

Product code: 27145

Factory code: 2213105.05

Barcode: 8056182114730

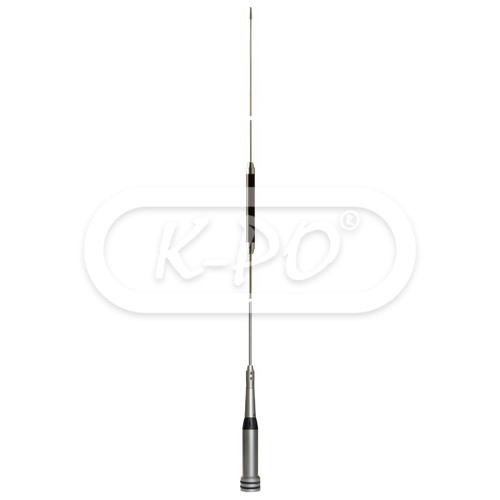

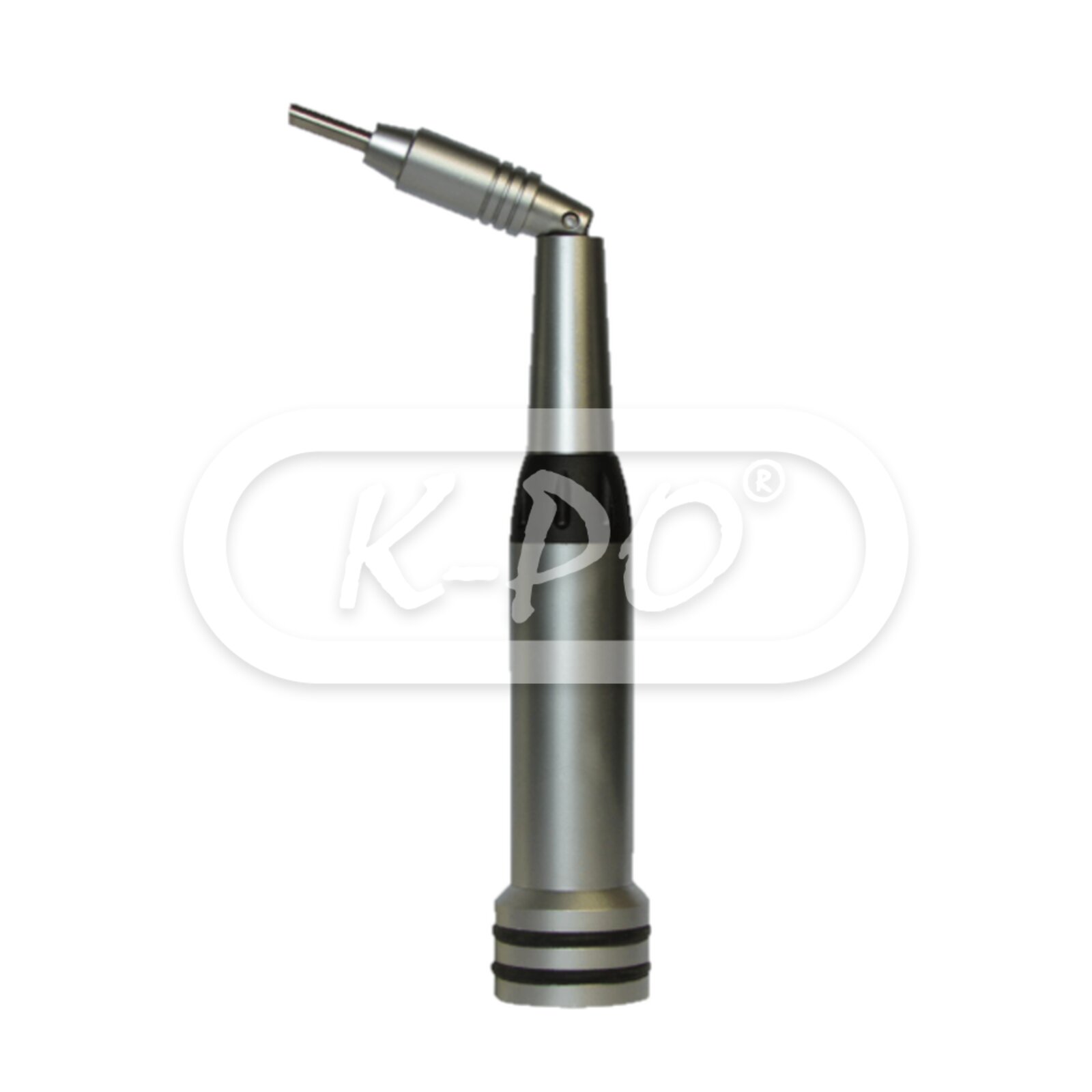

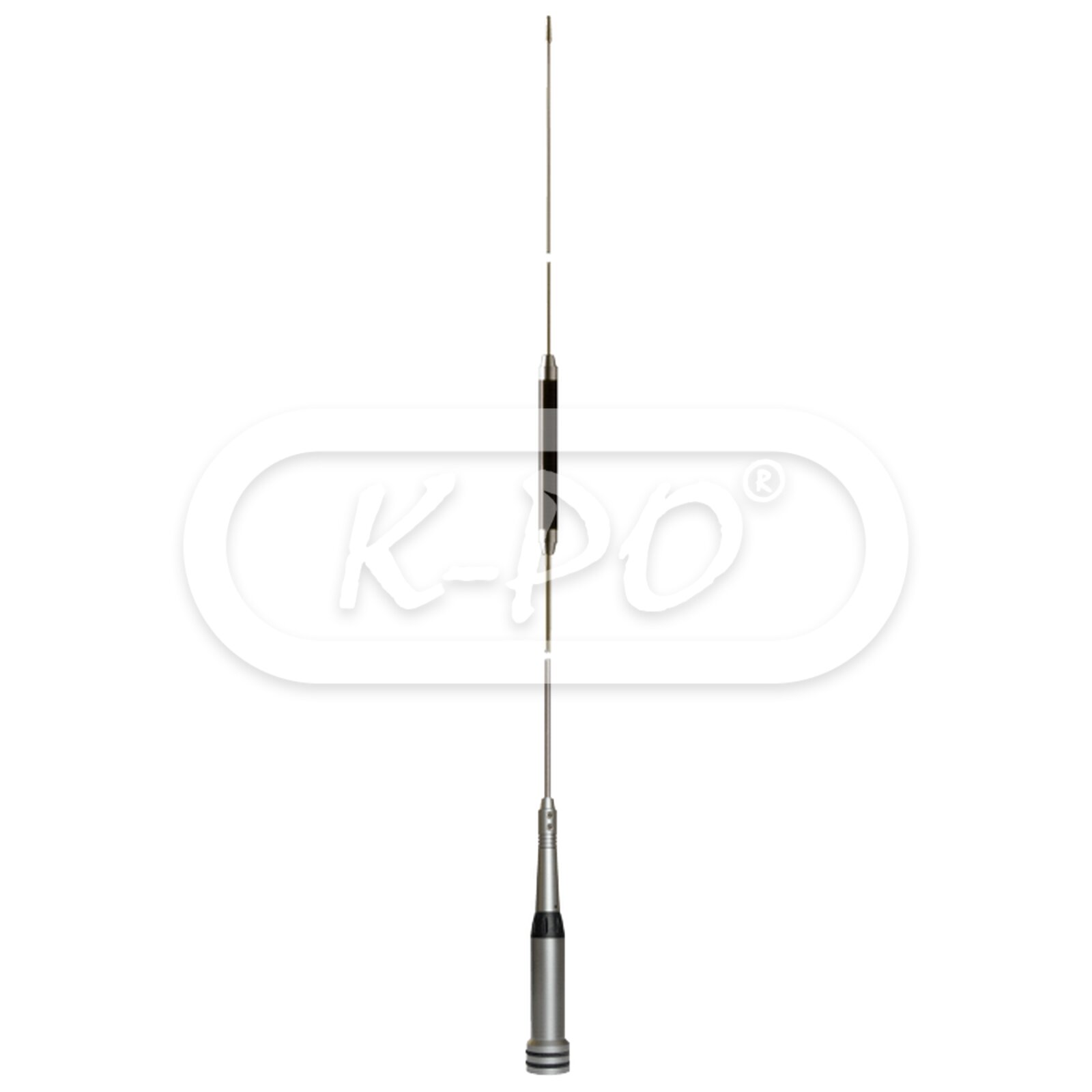

Multi-band vehicular amateur antenna working on 27 MHz and 145 MHz. With Sirio HP tilting system.

Frequency range: CB: 26.45 - 27.55 MHz / VHF: 139 - 151 MHz

Out of stock - Longer delivery time

€58.95 (48.72 excl. 21% VAT)

Electrical data

• Electrical type: CB: 1/4 λ central loaded / VHF: 1/4 λ
• VSWR: ≤ 2.0
• Maximum continuous power: CB: 120 Watts (CW) / VHF: 200 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Chromed brass, stainless steel, nylon
• Height: 1355 mm
• Weight: 330 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 232 sg cb vhf 07 05 2012
