RigExpert - TI-3000
Plug, Run and Have Fun!

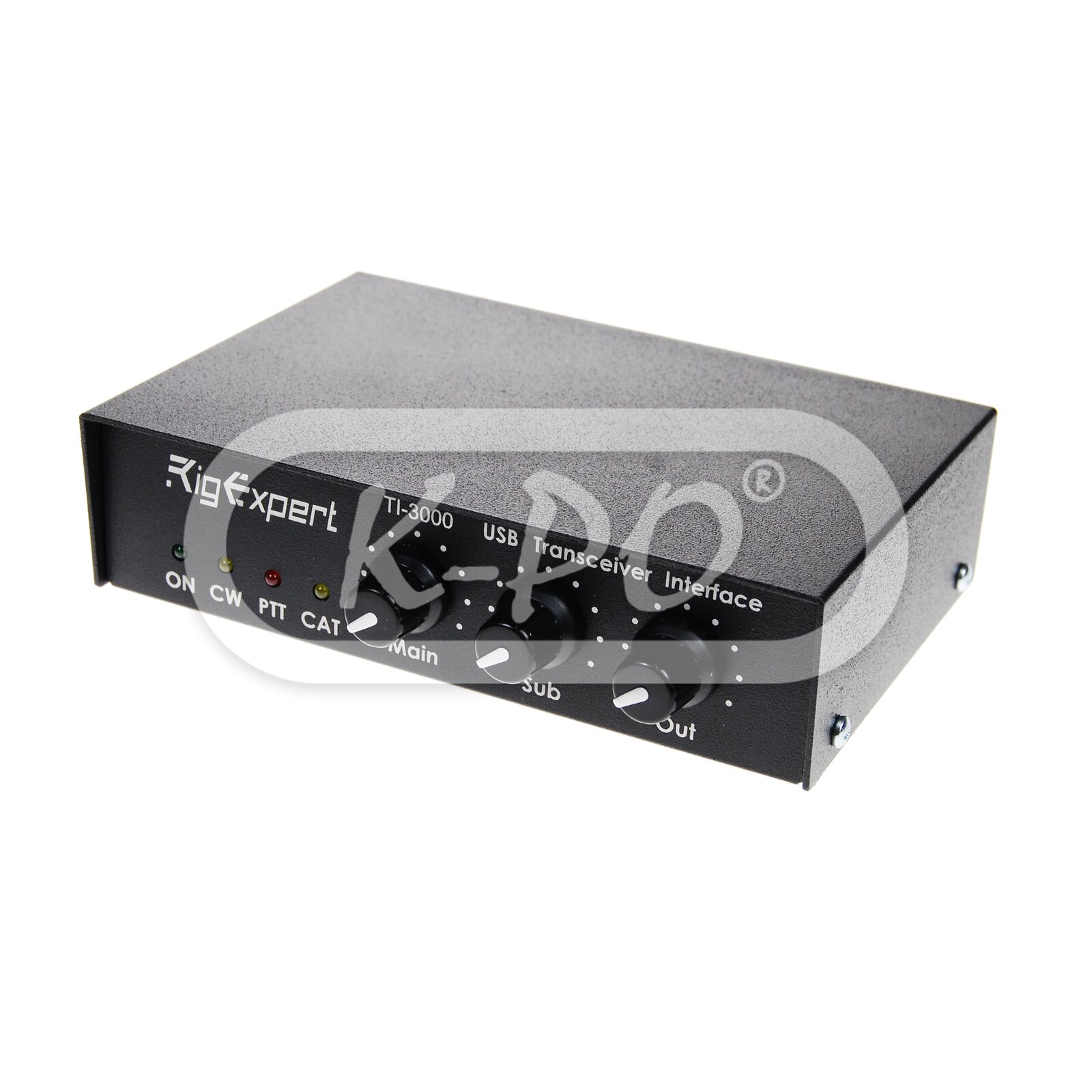

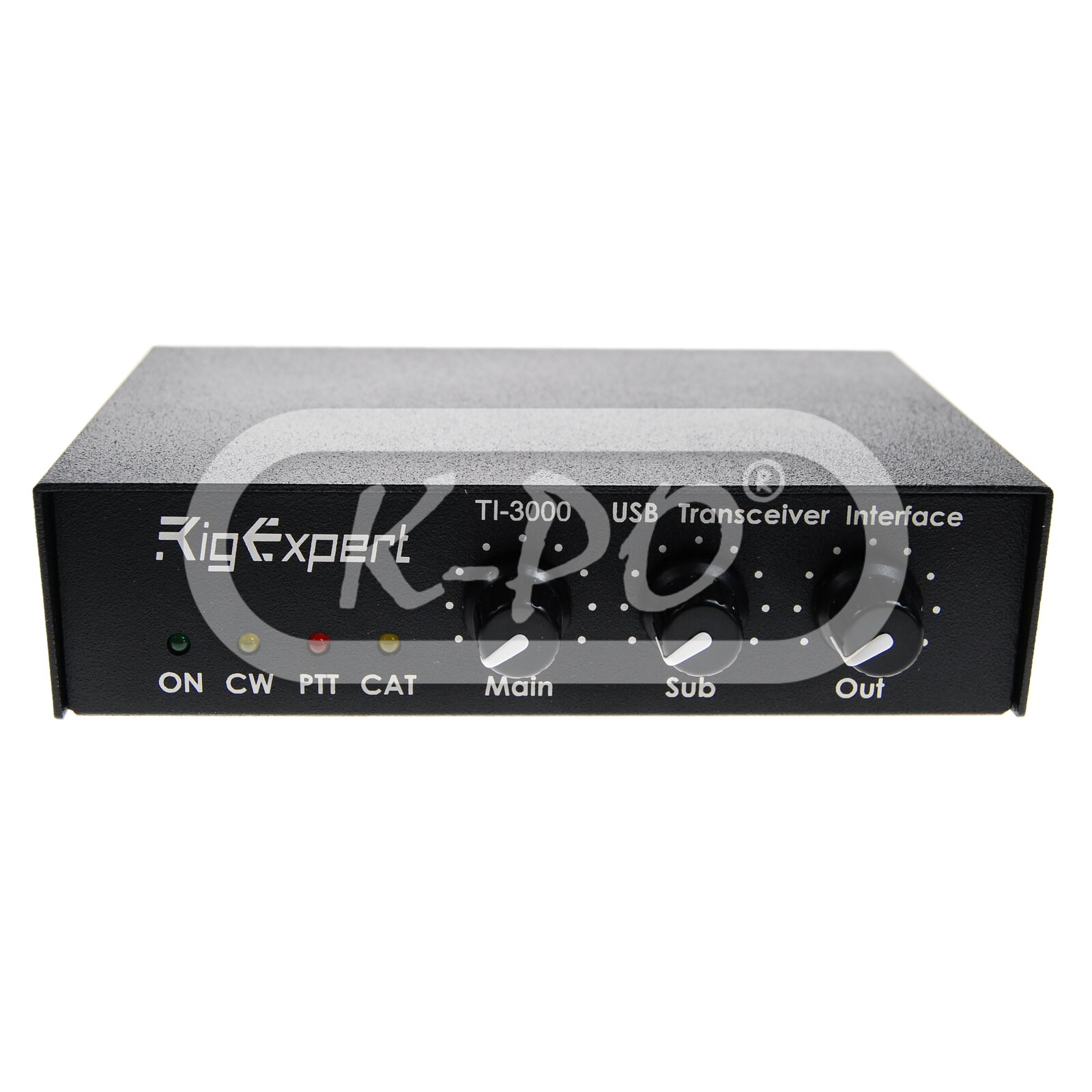

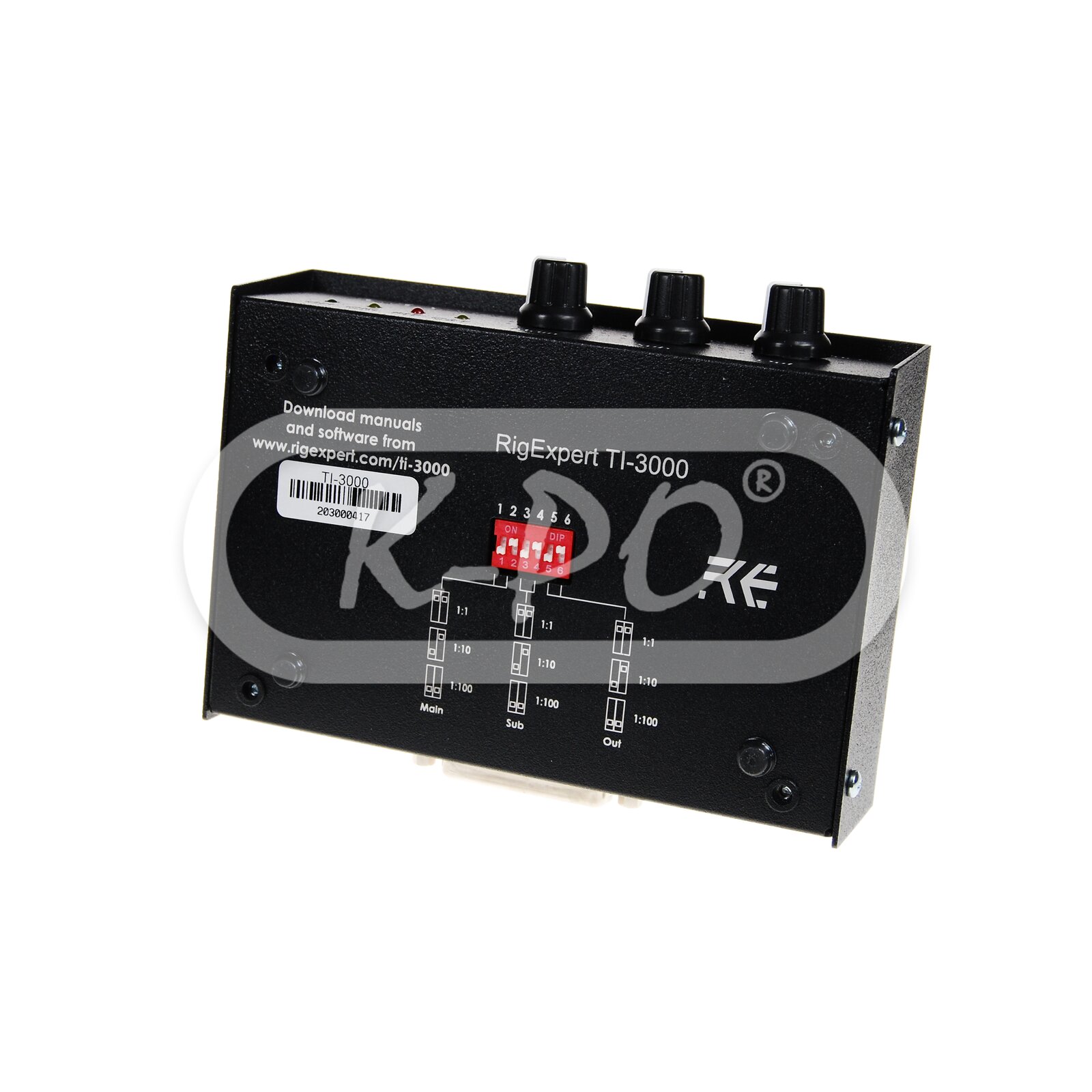

The RigExpert TI-3000 is a new and powerful USB transceiver interface based on high-quality stereo codec IC, for operating phone, CW and digital modes using a personal computer.
All in one through a single USB port. Ideal interface for FT8 and WSJT modes!
Ask your RigExpert distributor or reseller to provide pre-built cable for your new TI-3000 to connect it with your favorite transceiver. Or construct a cable yourself, using the diagrams published on our website here. Or use the cable you already have.
Transceiver audio interface:
Analog audio interface is a connection to transceiver audio output (external speaker connector or line output) and transceiver audio input (microphone connector or line input). Audio interface enables operating digital modes, as well as other useful functions (such as measuring levels of a signal from the air) by using a computer. Input (two channels) and output volume levels are adjusted by potentiometers on the front panel of the device.
CAT interface for various transceiver models:
CAT (Computer Aided Transceiver) system provides control of transceiver frequency, operating mode and other functions by computer software. Normally, modern transceivers have serial (with various signal levels) link providing CAT interface. In RigExpert TI-3000, CAT interface port is recognized as a COM port by computer software.
PTT and CW output functions:
Transceivers provide PTT (Push To Talk) and CW (Continuous Wave) keyer inputs to allow setting the transmitter on or off. In RigExpert TI-3000, PTT and CW outputs are assigned to the RTS and DTR lines of a separate COM port.
- Transceiver audio interface for operating digital modes
- CAT (Computer Aided Transceiver) system
- PTT and CW outputs
- CW keyer
RigExpert TI-3000 is made in Ukraine.
Specifications are subject to change without notice.
- Connector: USB (Universal Serial Bus) connector
- Powered from USB port: Yes, consuming 100 mA maximum
- Power supply: No external power supply needed

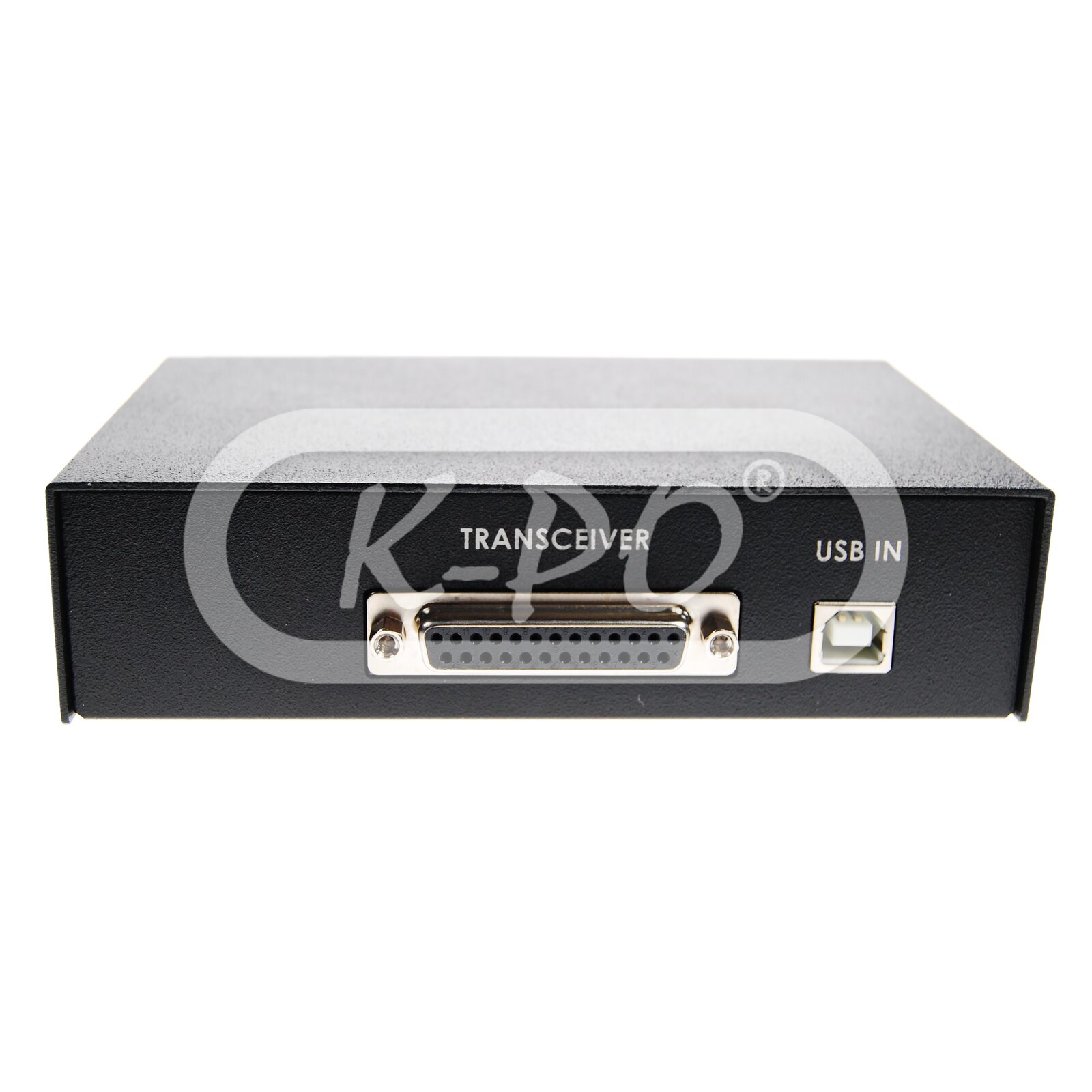

- Connector: Single 25-pin connector for transceiver cable
- Suitable for: Various transceiver models supported
- Insulated: Yes, from digital nets
- Maximum input and output amplitude: 1 Volt
- Input and output samplerate: 8 to 48 kHz
- Hardware: True 16-bit DAC/ADC used
- Volume levels: Adjustable on the front panel with potentiometers
CAT serial port
- Baudrate: 300-115200 baud
- Electrical compatibility: RS-232, CI-V, TTL or inverted-TTL (Yaesu, Icom, Kenwood, Ten-Tec, Elecraft and JRC transceivers)
PTT and CW outputs
- PTT output: Open collector and TTL-level
- CW output: Open collector
- Maximum current: 500 mA
- Desktop or laptop: Yes with USB 1, 2 or 3 compliant port
- Operating system: MacOS / Linux / Windows 2000 / XP / 2003 / Vista / 7 / 8 / 10 (32- or 64-bit)
- Drivers: No extra drivers required for systems on Windows 10 / MacOS and Linux
- Extra Drivers: For Windows 7 and previous versions of Windows only FTDI drivers are required
- Supported software: MixW 2/3 and 4 / MMTTY / MMSSTV / WSJT / WSJT-X / WSPR and all other soundcard software
- Length: 110 mm
- Height: 40 mm
- Width: 145 mm
- Weight: 200 gram
- Working temperature: 0 to 40 °C
Inside the box
- USB transceiver: Yes
- USB cable: Yes
- Installation manual: English
- Datasheet: User Manual TI 3000 en
