Yaesu - M-90MS

Yaesu - M-90MS

Product code: ABC63X002
Factory code: ABC63X002

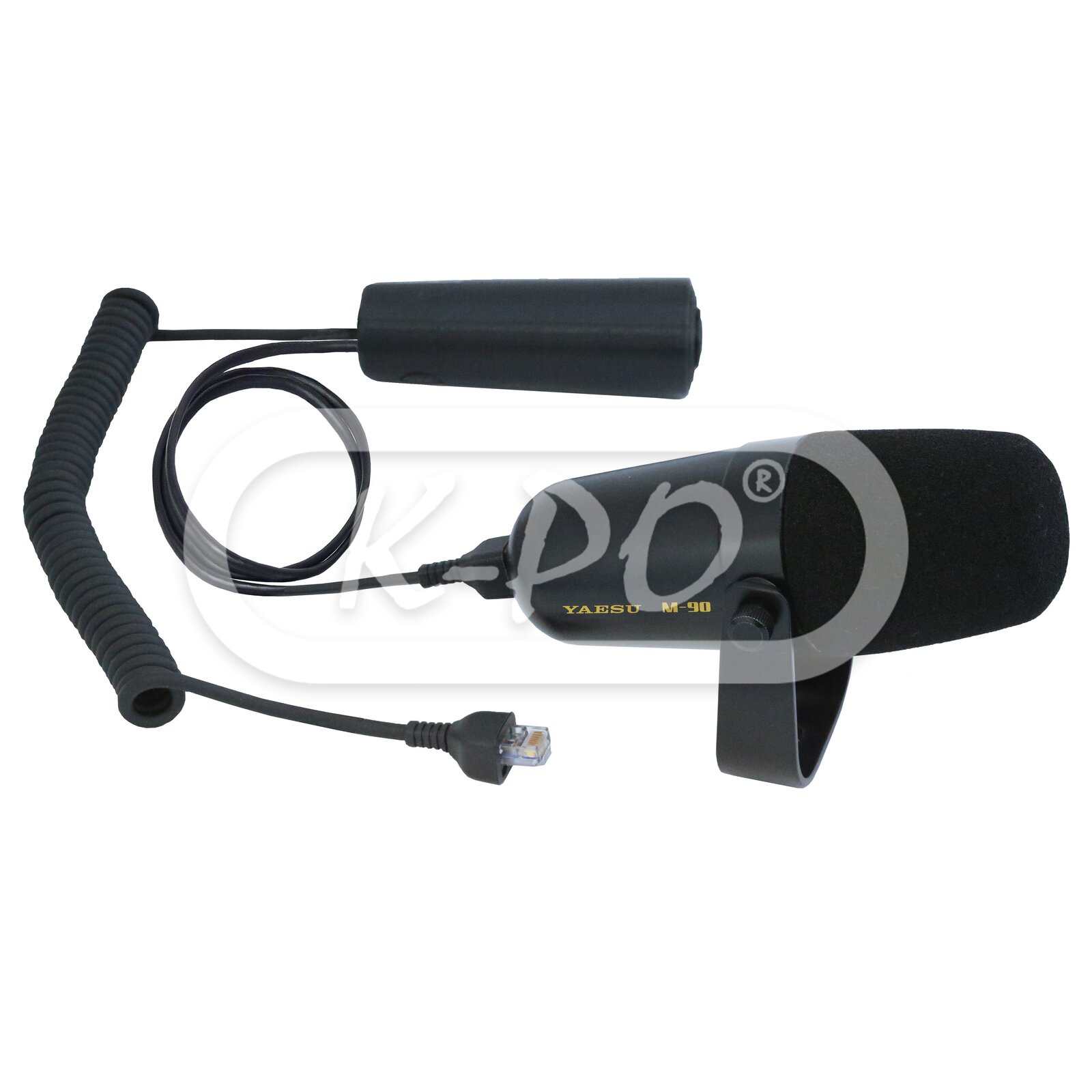

The Yaesu M-90MS is a high quality Microphone Stand kit*. Utilizes a dynamic microphone element which is specially tuned to produce a rich voice with depth and warmth.

For use with most modern Yaesu transceivers that have the '8-pin' modular microphone connector. An optional SCU-53 cable is required when you want to connect the M-90MS to a HF transceiver with a round '8-pin' microphone connector.

*Microphone stand is not included with the M-90MS kit. It can be used with commercially available microphone stands.

Shipped today
€158.95 (131.36 excl. 21% VAT)

Features

  • Suitable for: Yaesu FT-891 / Yaesu FT-991A / Yaesu FT-DX10 / Yaesu FT-DX101D / Yaesu FT-DX101MP /
  • Microphone type: Dynamic
  • Low Cut switch: When this switch is ON, a low-cut filter (cut-off frequency 340 Hz, -6 dB/octave) is activated
  • Microphone connector (including PTT controller): Modular RJ45

Electrical data

  • Frequency response: 30 - 17000 Hz
  • Impedance: 600 Ω
  • Sensitivity: -60 dB (1 kHz 0 dB=1V/1Pa)
  • Current consumption: 15 mA (TYP)
  • Supply voltage: DC 5.0 V ±10 %

Mechanical data

  • Diameter: 62 mm
  • Length: 162 mm (microphone head size only)
  • Weigth: 200 gram (with bracket, without handheld PTT controller
